Nardi Compressori
Marine Breathing Air
Air for underwater hull work, maintenance and marine operations.
Nardi builds a complete breathing air platform for marine work. Hookah systems feed air from the surface through a hose, portable compressors fill cylinders where the work is, and stationary compressors, fill stations and air quality monitoring complete a permanent fill room.
Every unit is built to order in Italy.
The Range
From the Surface to the Fill Room
Choose by how the air reaches the work, then add filling, blending and monitoring.

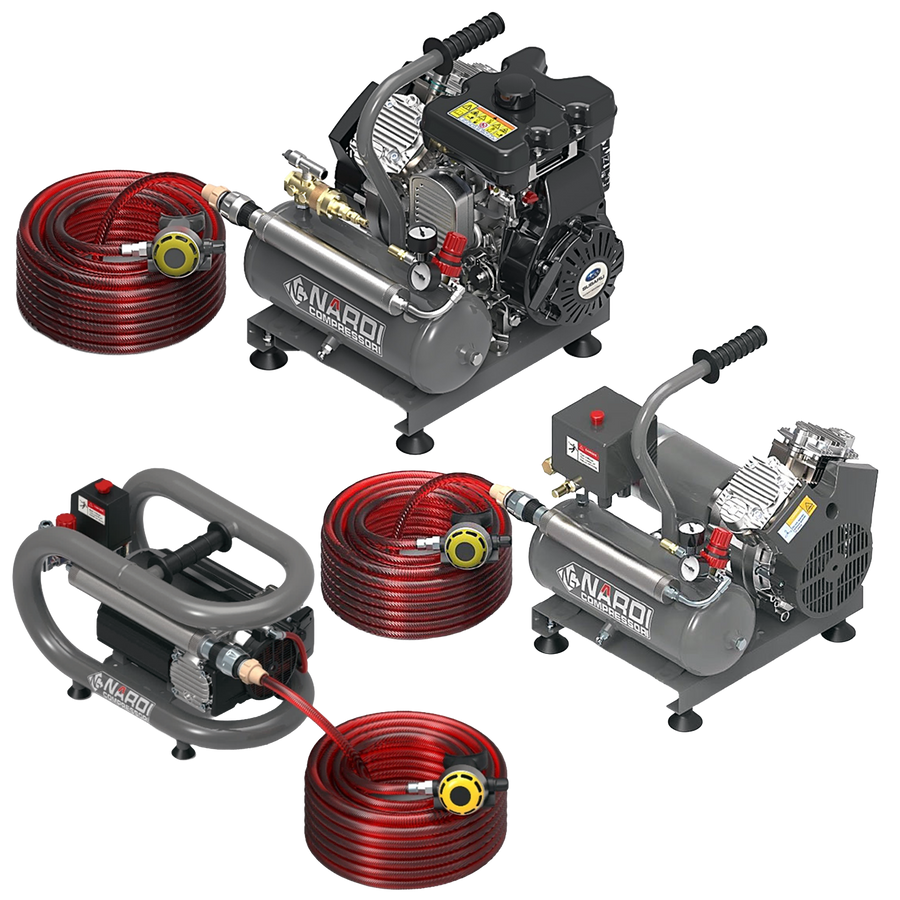

Surface supplied air
Oil-free hookah compressors that feed one or two users through a 17 m hose, on 120V mains, battery or gasoline.
- Air delivery
- 180 to 400 L/min
- Users
- 1 or 2
- Max depth
- 15 to 20 m
Continuous duty surface air
Built for a 100% duty cycle with no thermal shutdown, supplying two users through independent hoses and filters.
- Air intake
- 240 L/min
- Users
- 2
- Weight
- 24 kg

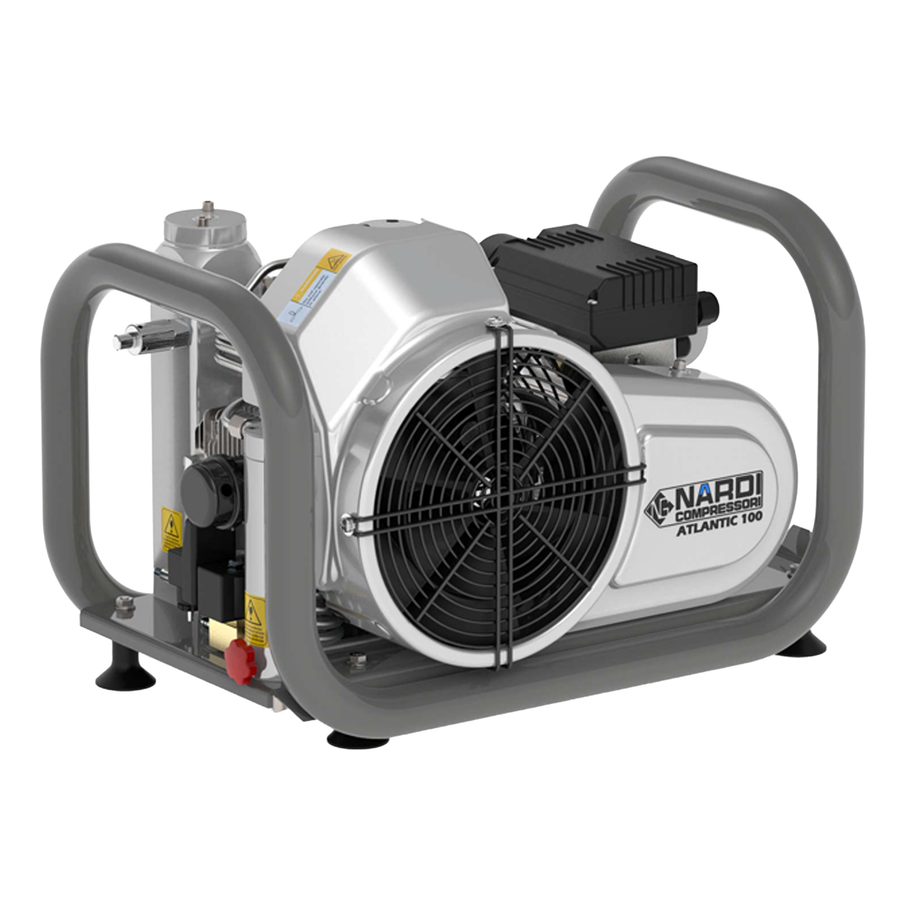

Compact portable fills
Electric, gasoline and diesel portables for filling cylinders at the point of operation.
- Pressure
- Up to 330 bar
- Charging rate
- 60 to 100 L/min
- Weight
- 39.5 to 61 kg

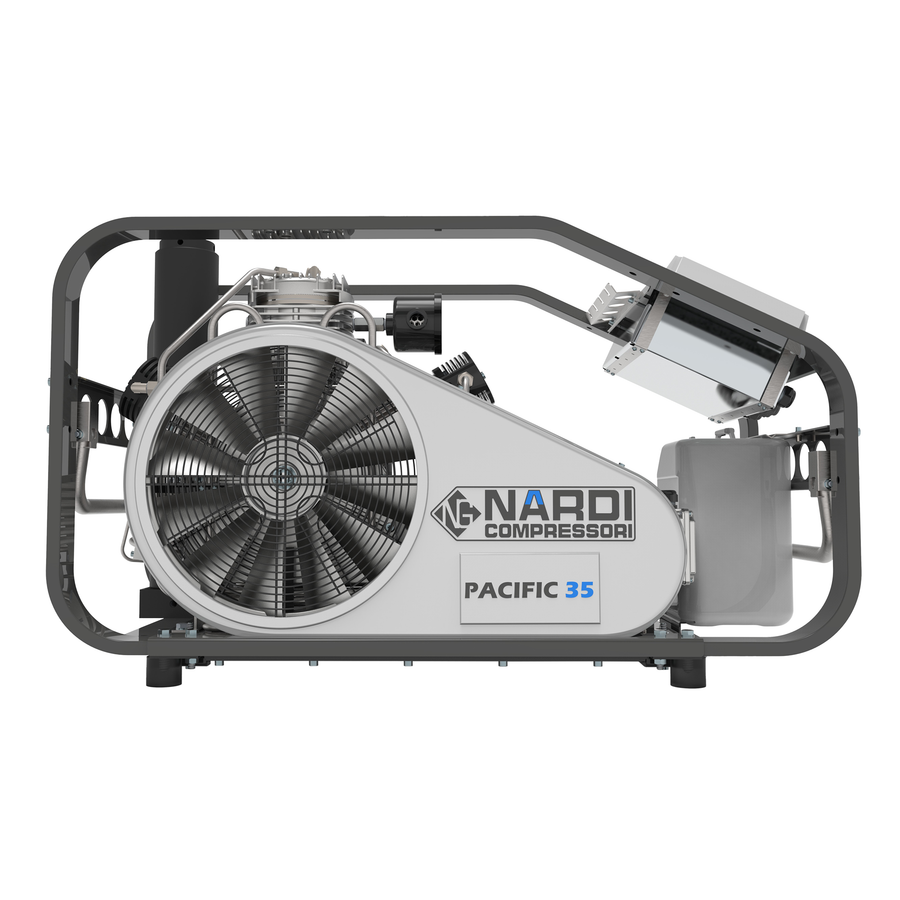

High output portables
Larger portables with more air delivery and a choice of electric, gasoline or diesel power.
- Pressure
- 225 to 420 bar
- Charging rate
- 160 to 350 L/min
- Power
- 4 to 14 HP

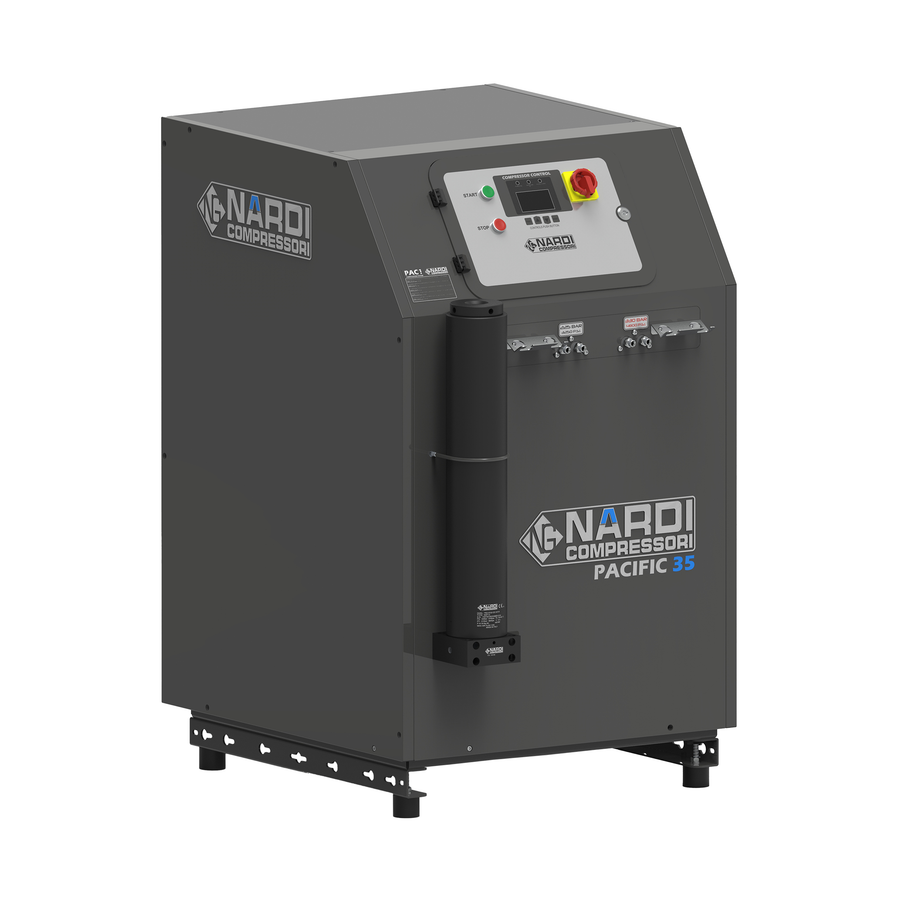

Stationary compressors
Silenced vertical compressors for a fixed fill room, with air flow up to 850 L/min.
- Pressure
- 420 bar
- Air flow
- Up to 850 L/min
- Frames
- 4

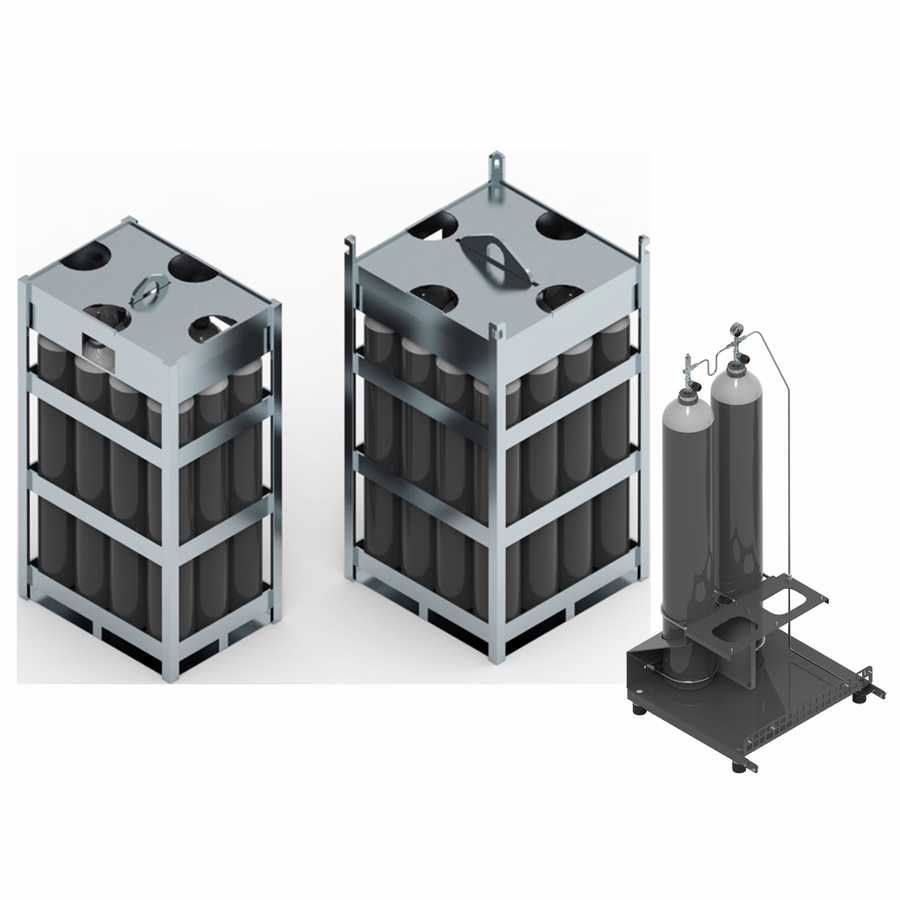

High-pressure storage
Storage frames for the Pacific M and MX, 12 and 16 cylinder packs, and custom racks to keep air ready at the fill station.
- Pressure
- Up to 414 bar
- Packs
- 12 or 16
- Frames
- Pacific M, MX

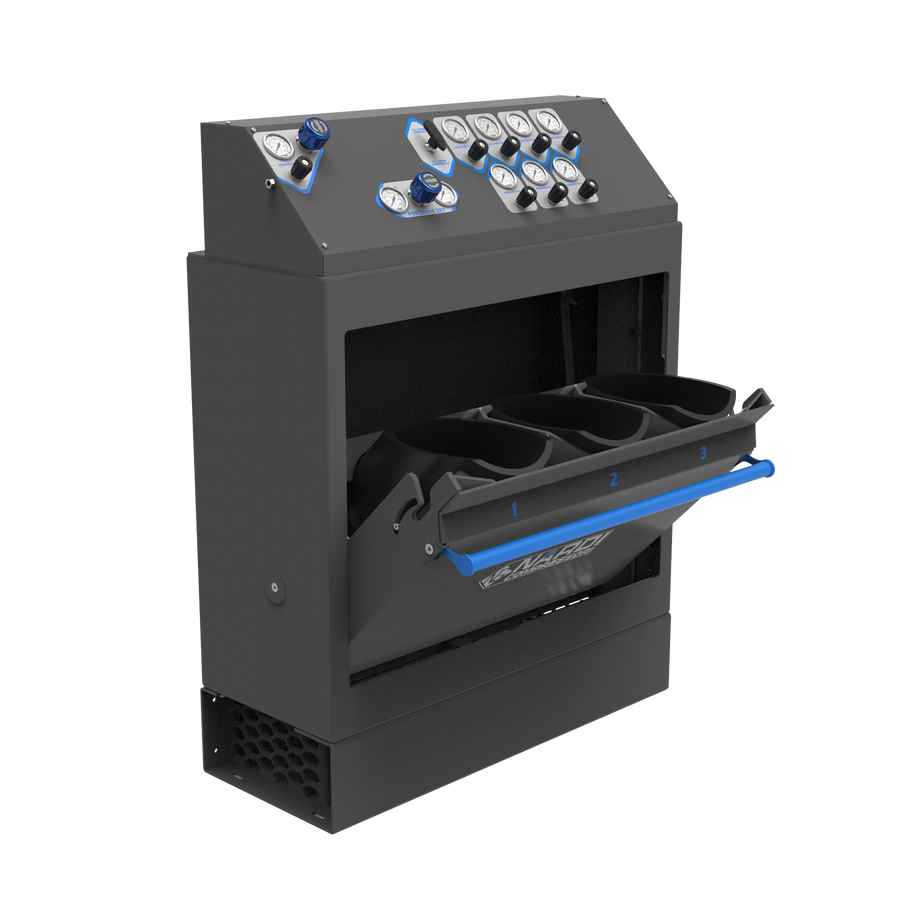

Cylinder containment
Safe fill stations that enclose two or three cylinders while they fill, joined to modular fill panels.
- Fill positions
- 2 or 3
- Connection
- DIN or CGA
- Interlock
- Fill stops when the door opens

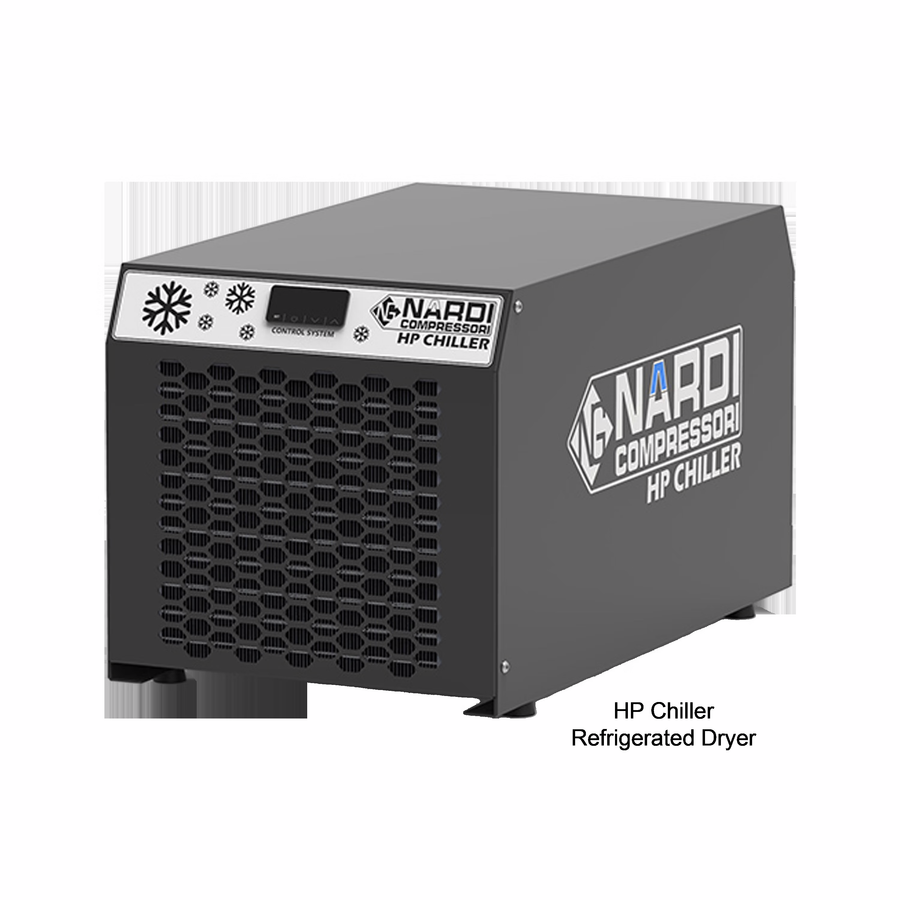

Refrigerated dryer
Cools compressed air close to 0 °C before filtration, so moisture drops out and PAC cartridges last longer.
- Versions
- 330 or 420 bar
- Outlet air
- Close to 0 °C
- Cartridge life
- 3 to 10x

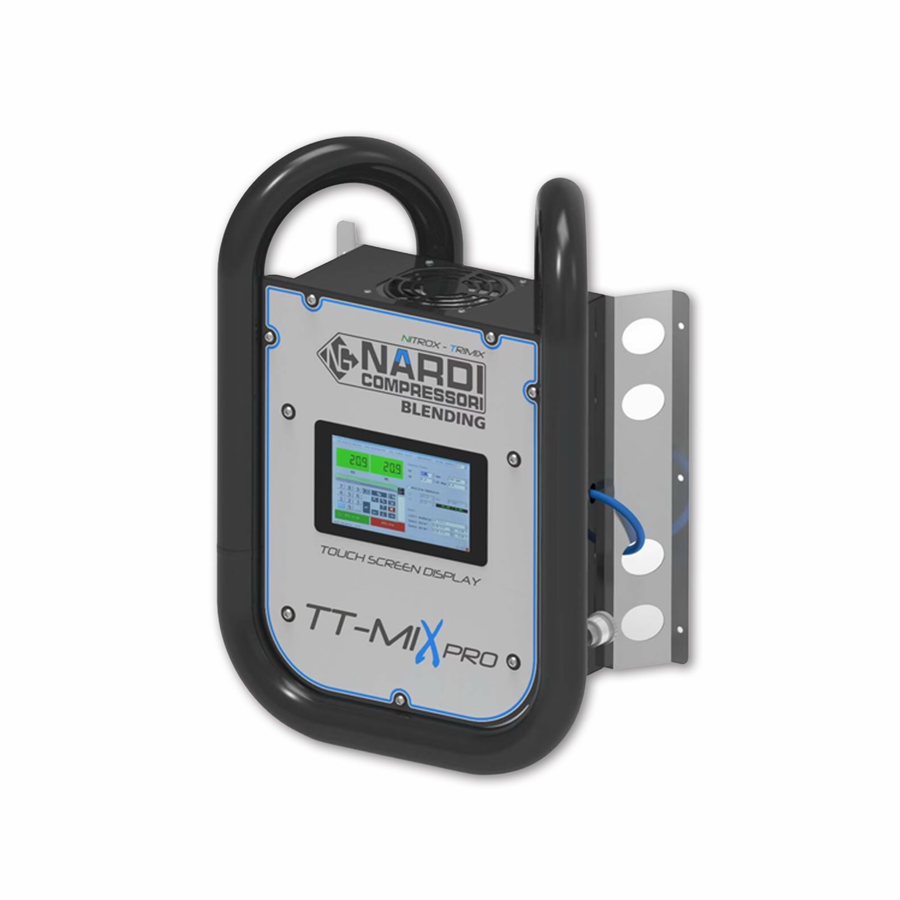

Nitrox and trimix blending
Automatic blender installed between the gas supplies and the compressor, so the gas is blended before compression.
- Gases
- Nitrox and trimix
- Blending flow
- 50 to 800 L/min
- Control
- 7 inch touchscreen
Before you use a hookah. Operate a hookah only with proper training, always have a backup air source, and follow Nardi's limits on users and depth for your model.
Air Quality
Monitoring and purification for every Nardi compressor.
Gas Guardian
Real-time analysis of the air, with alarms and data logging, for CO, CO2, O2, VOC, H2S and dew point.
PAC air treatment modules
Water separator, carbon and dryer modules that add to the filtration on the compressor.
Purification towers
PAC filter towers and replacement cartridges for Nardi compressors.
Tell Us About Your Operation
Tell us whether you supply air from the surface or fill cylinders, how many people are on the air and what power you have, and we will come back with a configuration and a quote.
Request a QuoteMarine breathing air systems designed and built in Italy by Nardi Compressori.
