Industrial Compressors and Boosters
CM Compressor Medium Pressure
Continuous, heavy duty compression at 40, 60 or 80 bar.
The CM is Nardi's medium pressure compressor for continuous, heavy duty industrial work, built with high strength components to withstand intense work cycles. Working pressure is 40, 60 or 80 bar, depending on configuration.
Typical duties include pressure testing, gas recovery and industrial automation. Each pressure rating comes in eight pump unit sizes and three frames.
Model range
CM Ranges

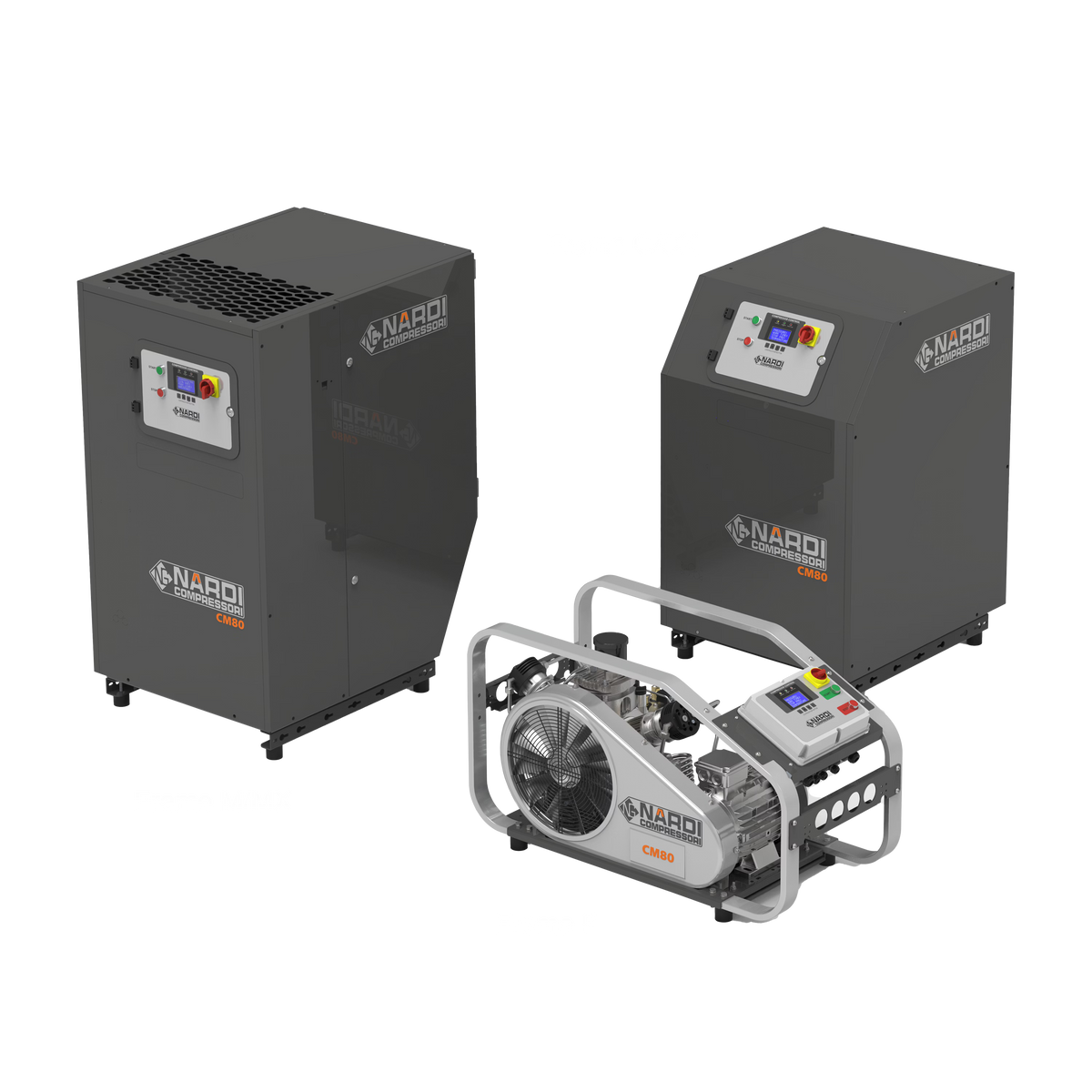

Three pressure ratings, each in eight pump unit sizes and three frames.
| Range | Working pressure bar (psi) | Motor kW | Delivery L/min at rated pressure | Build Pump sizes, frames |
|---|---|---|---|---|
| CM40 | 40 (580) | 2.2 to 9.0 | 109 to 635 | 8 sizes, 3 frames |
| CM60 | 60 (870) | 2.3 to 10 | 101 to 620 | 8 sizes, 3 frames |
| CM80 | 80 (1,160) | 2.7 to 11 | 95 to 612 | 8 sizes, 3 frames |
Scroll the table sideways to see every column.
Source. Nardi Compressori website. A model by model table is on request, and your quote confirms the exact model and delivery.
Equipment
| Working pressure | 40, 60 or 80 bar by range |
|---|---|
| Delivery | 95 to 635 L/min |
| Motor | 2.2 to 11 kW |
| Compression | Two stage |
| Pump unit sizes | Eight per pressure rating |
| Frames | Three |
| Lubrication | Oil pump |
| Control | Electric control panel |
| Soft start | Standard on 10 and 11 kW models, optional on smaller motors |
| Electrical supply | Three phase. Supply voltage and frequency confirmed on your quote |
| Country of origin | Italy |
Configure Your CM
Every Nardi industrial unit is built to order. Send us the gas, the inlet pressure, the flow and the outlet pressure you need, and we will come back with a configured quote.
Request a QuoteCompressors designed and built in Italy by Nardi Compressori.
