CB Compressor Booster Medium Pressure
For gas that arrives at very low pressure, compressed to 40, 60 or 80 bar.
The CB is built for gas that arrives at very low pressure. It accepts inlet pressure from 50 to 650 mbar and compresses it in two stages, through a three cylinder pump, to 40, 60 or 80 bar.
Nardi builds the CB in about 100 configurations across pump size, pressure rating and frame, in a compact indoor frame or a larger silenced frame.
Model range
CB Ranges
Three pressure ratings, each built across a range of pump sizes.
| Range | Maximum outlet bar (psi) | Motor kW | Delivery L/min at rated pressure |
|---|---|---|---|
| CB40 | 40 (580) | 2.2 to 9.0 | 109 to 635 |
| CB60 | 60 (870) | 2.3 to 10.0 | 101 to 620 |
| CB80 | 80 (1,160) | 2.5 to 11.0 | 95 to 612 |
Scroll the table sideways to see every column.
Source. Nardi Compressori website. A model by model table is on request, and your quote confirms the exact model and delivery.

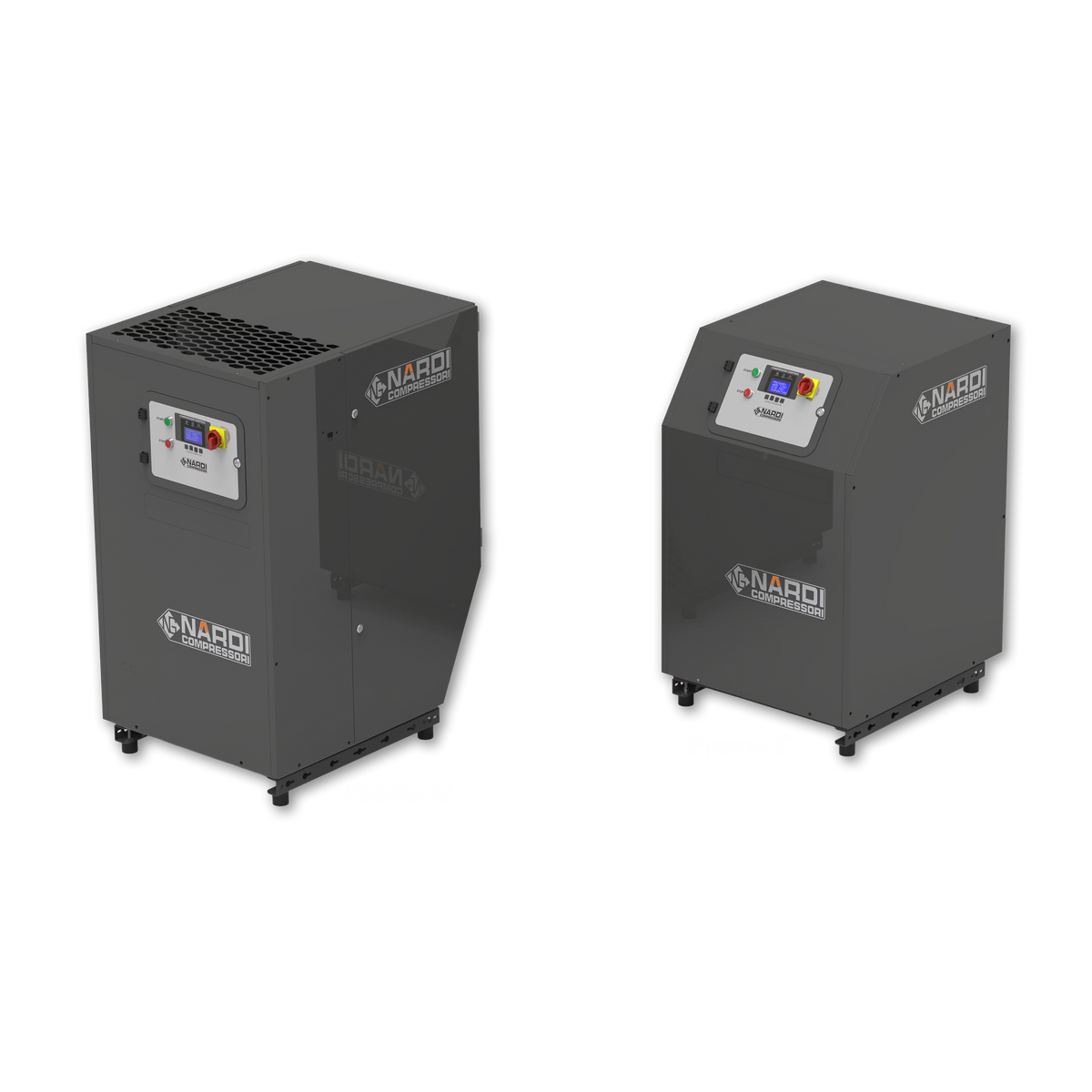

Frames
Two Frames
Compact, indoor
Space saving enclosed design with integrated ventilation, for indoor installation.
Silenced, side access
Larger silenced enclosure with integrated anti-vibration and noise damping systems.
Equipment
| Inlet pressure | 50 to 650 mbar |
|---|---|
| Outlet pressure | 40, 60 or 80 bar by range |
| Compression | Two stage, three cylinder pump |
| Lubrication | Oil pump |
| Control | Integrated electric control panel |
| Soft start | Standard on 10 and 11 kW models, optional on smaller motors |
| Suction filter | 50 micron, G1 inch, optional |
| ATEX | Zone II certificate, optional |
| Electrical supply | Three phase. Supply voltage and frequency confirmed on your quote |
| Country of origin | Italy |
Configure Your CB
Every Nardi industrial unit is built to order. Send us the gas, the inlet pressure, the flow and the outlet pressure you need, and we will come back with a configured quote.
