Nardi Compressori
Nitrox Generators and Compressors
Make enriched air on site, from 32 to 40 percent oxygen.
A Nardi Nitrox system makes oxygen-enriched air where you fill. A membrane generator separates nitrogen from the air and feeds the enriched mixture to a Nitrox-compatible Pacific compressor, which fills your cylinders. The mix is managed automatically, without manual blending.
Every unit is built to order in Italy.
The Range
Generator and Compressor
Choose the generator by the volume of enriched air you need, then the Pacific Nitrox compressor that fills your cylinders.

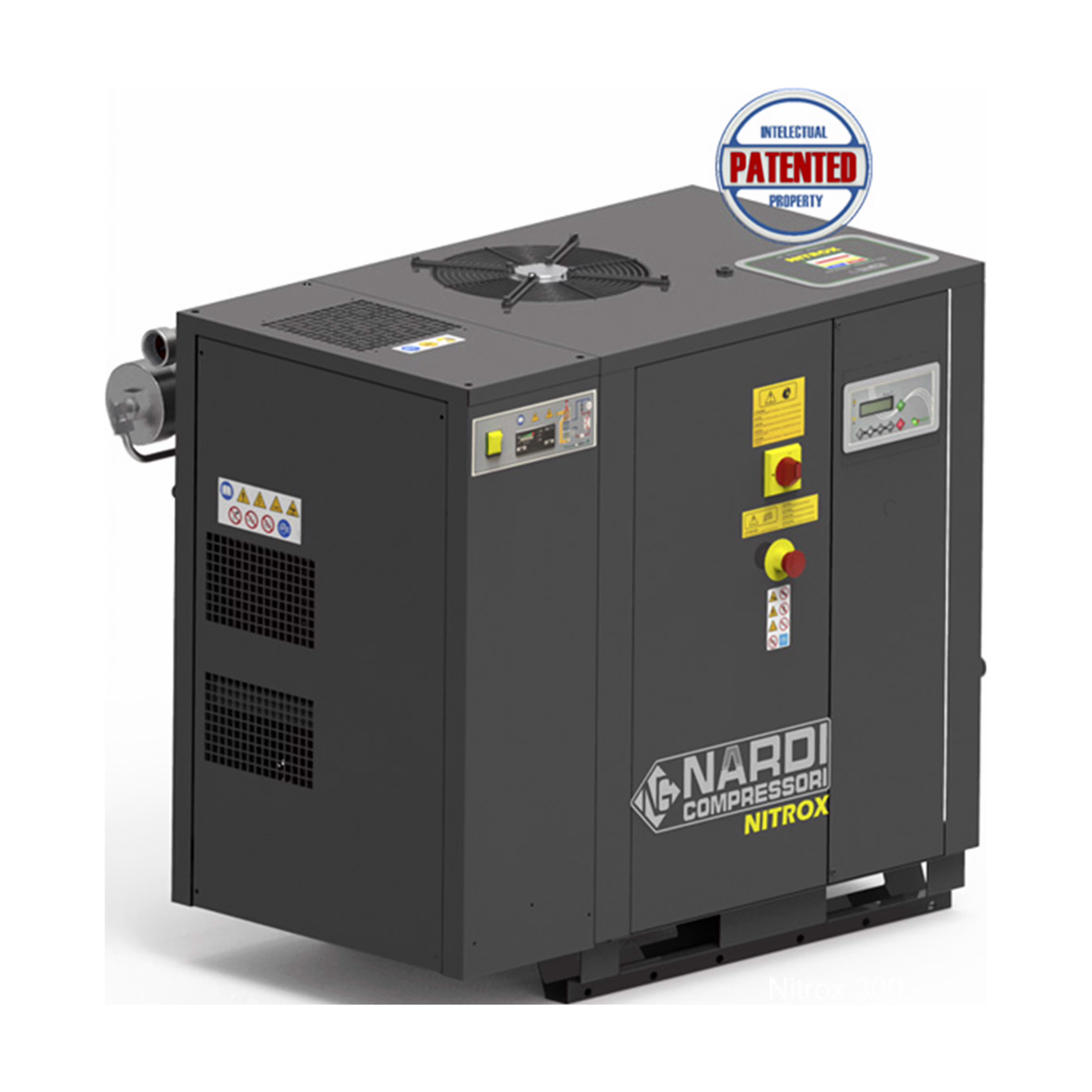

Membrane generators
A screw compressor and membranes make enriched air at 32, 36 or 40 percent oxygen, mixed automatically with integrated TT-MIX PRO technology.
- Output at 40%
- 300 to 900 L/min
- Motor
- 7.5 to 22 kW
- Models
- 5

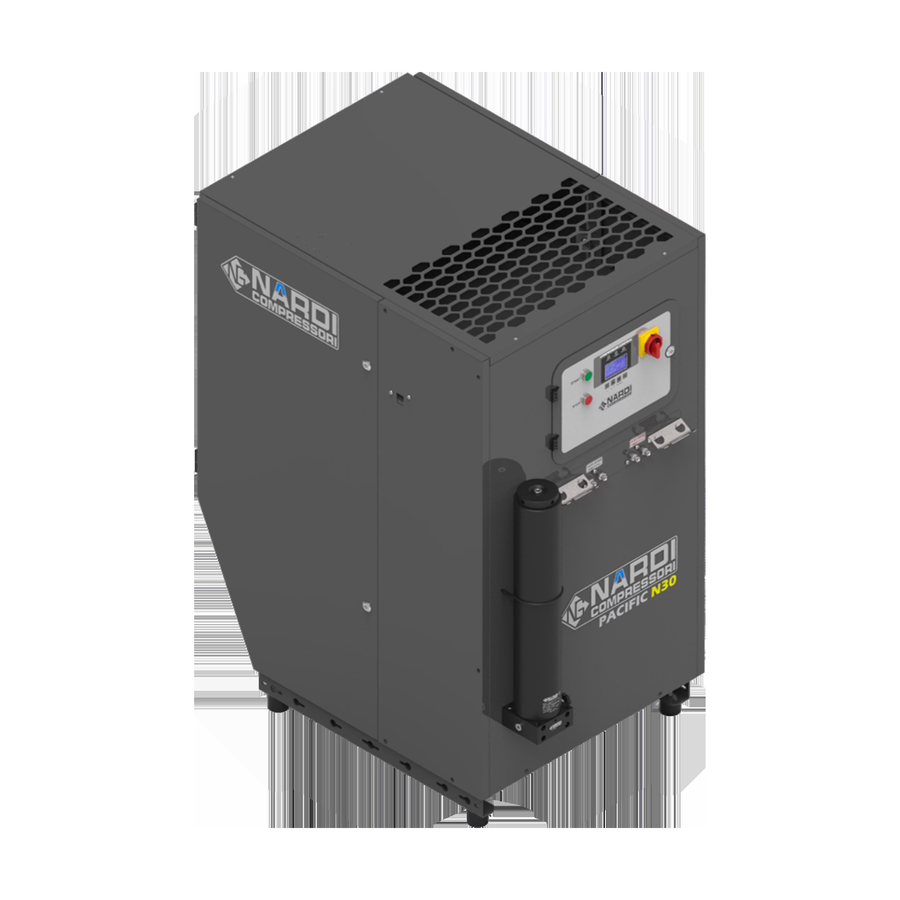

Mid-range Nitrox compressor
Silenced vertical compressor for enriched-air fills, rated for mixtures up to 40 percent oxygen.
- Charging rate
- 300 L/min
- Motor
- 5.5 kW
- Max pressure
- 330 bar

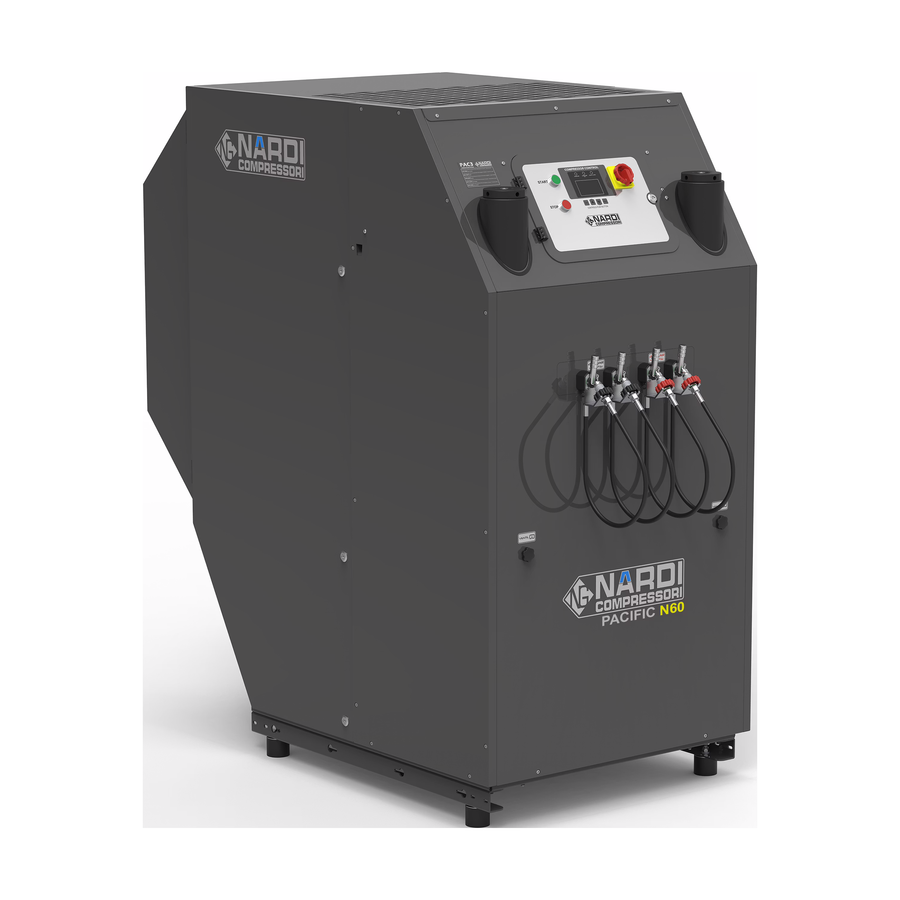

High-volume Nitrox compressor
Silenced vertical compressor for heavy-duty Nitrox operations, rated for mixtures up to 40 percent oxygen.
- Charging rate
- 600 L/min
- Motor
- 11 kW
- Max pressure
- 420 bar
Working with enriched air. Fill and use oxygen-enriched air only with proper training, and analyze every cylinder before use.
How It Works
Three steps, from room air to a filled cylinder.
Separate
A screw compressor pushes air through membranes that separate nitrogen from oxygen.
Mix
A PLC and control software manage the mix automatically, so the mixture is precise and ready to use.
Fill
A flexible hose carries the enriched air to the Nitrox-compatible high pressure compressor, which fills the cylinders.
Generator Output
Enriched air output of each generator at 40, 36 and 32 percent oxygen, with the motor size.
| NITROX 300, 7.5 kW | 300 / 370 / 550 L/min |
|---|---|
| NITROX 450, 11 kW | 450 / 566 / 799 L/min |
| NITROX 600, 15 kW | 600 / 750 / 1,018 L/min |
| NITROX 750, 18.5 kW | 750 / 948 / 1,301 L/min |
| NITROX 900, 22 kW | 900 / 1,132 / 1,558 L/min |
Plan Your Nitrox Fill Station
Tell us how many cylinders you fill a day, the oxygen percentage you need and the power supply on site, and we will come back with a configuration and a quote.
Request a QuoteNitrox systems designed and built in Italy by Nardi Compressori.
