Cylinder Containment and Fill Stations
Protect the operator while SCBA cylinders fill.

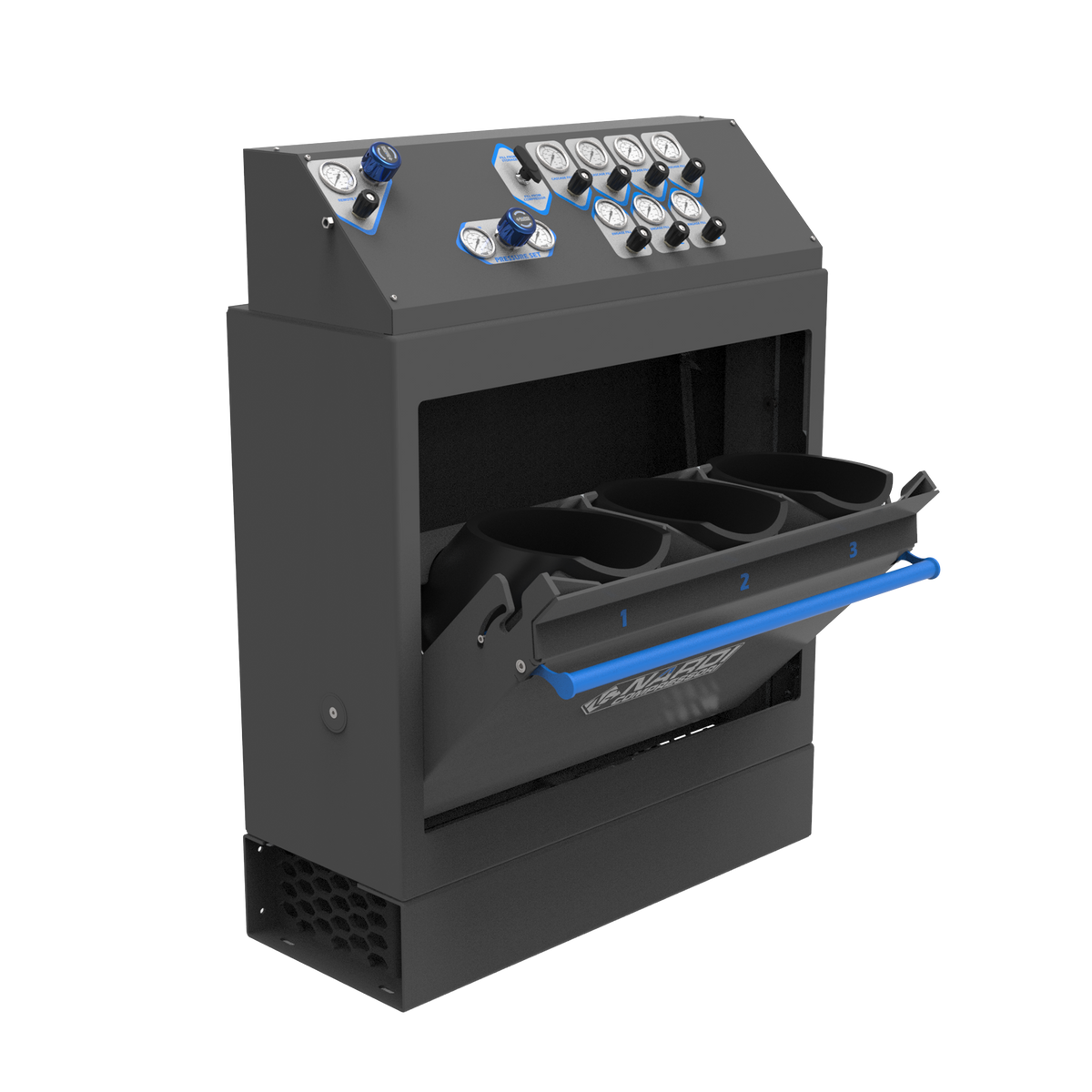

A Nardi Safe Fill Station encloses the cylinders while they fill. A safety interlock stops the fill the moment the door is opened.
Choose a two or three position station, then add Modular Fill Panels to bring air from the compressor or storage to the fill point. Every unit is built to order in Italy, and your order is placed through a regional partner in your area.
The Range
Choose Your Fill Station
Pick the number of fill positions, then the panel modules that bring air to them.

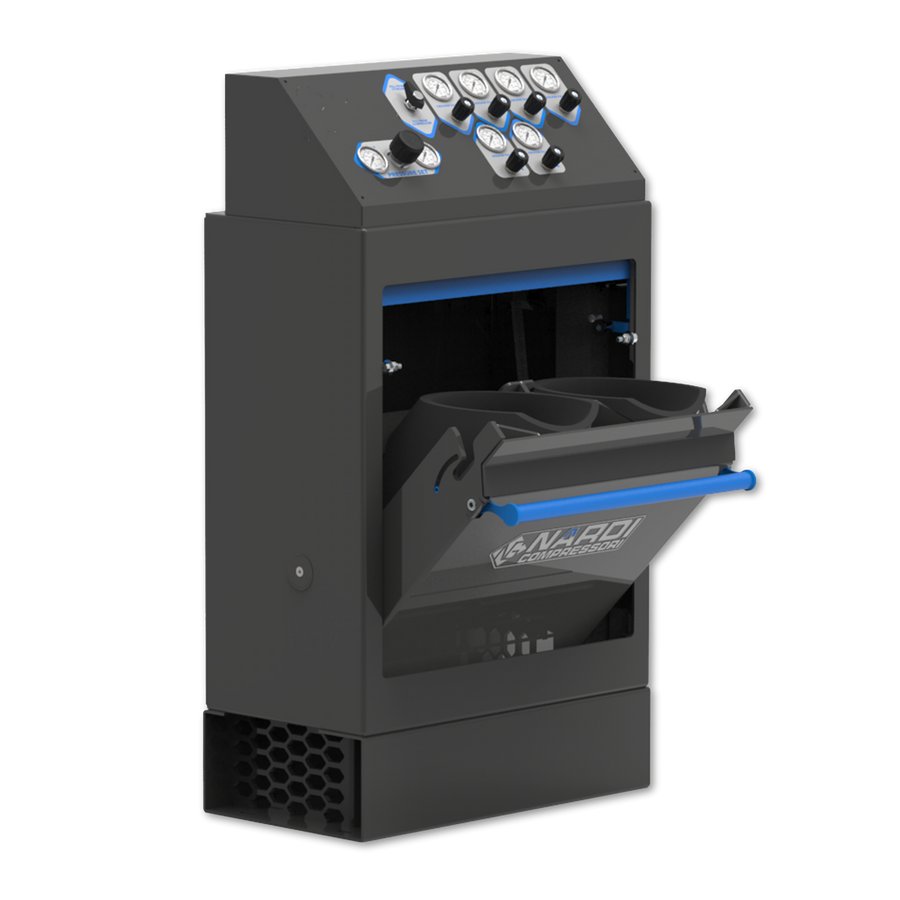

Two Position Containment
Encloses two cylinders while they fill, with a safety interlock on the door.
- Fill positions
- 2
- Connection
- DIN 200, DIN 300 or CGA
- Largest cylinder
- 75 x 23 cm

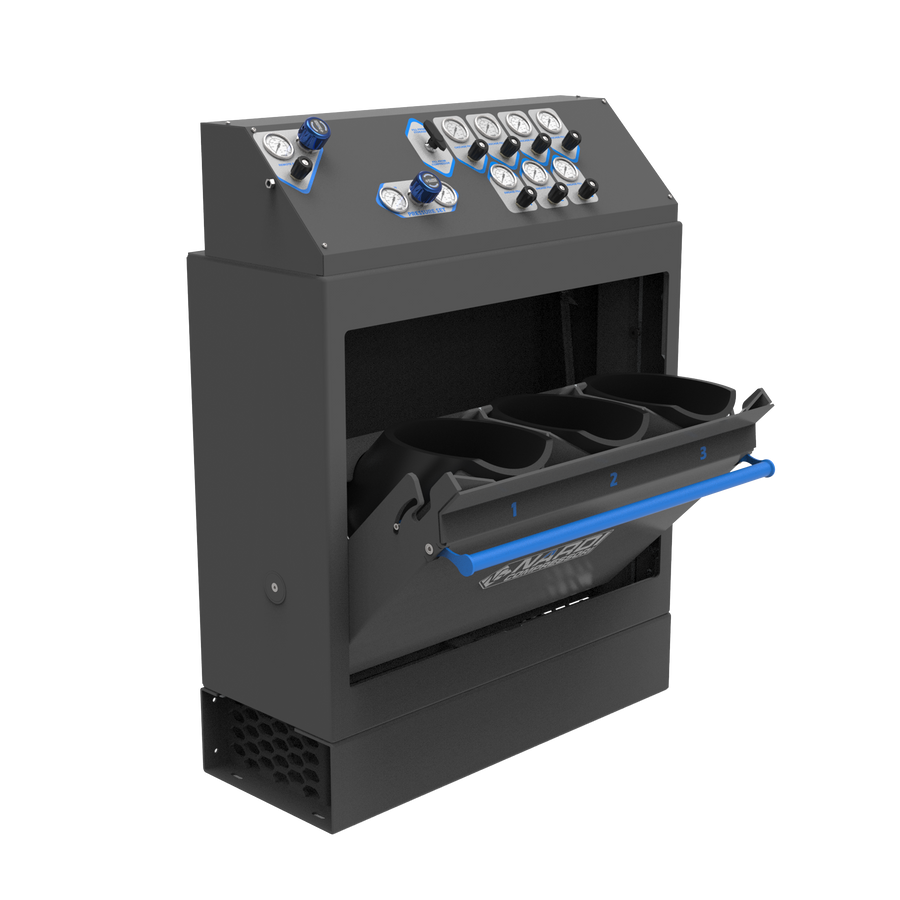

Three Position Containment
Encloses three cylinders while they fill, with a safety interlock on the door.
- Fill positions
- 3
- Connection
- DIN 200, DIN 300 or CGA
- Largest cylinder
- 75 x 23 cm
Bring Air to the Fill Point
Wall mounted stainless steel modules joined in a row, so the panel fits your fill bay. The modules are listed below.
- Module types
- 4
- Pressure
- 225 or 330 bar, or dual
- Mounting
- Wall

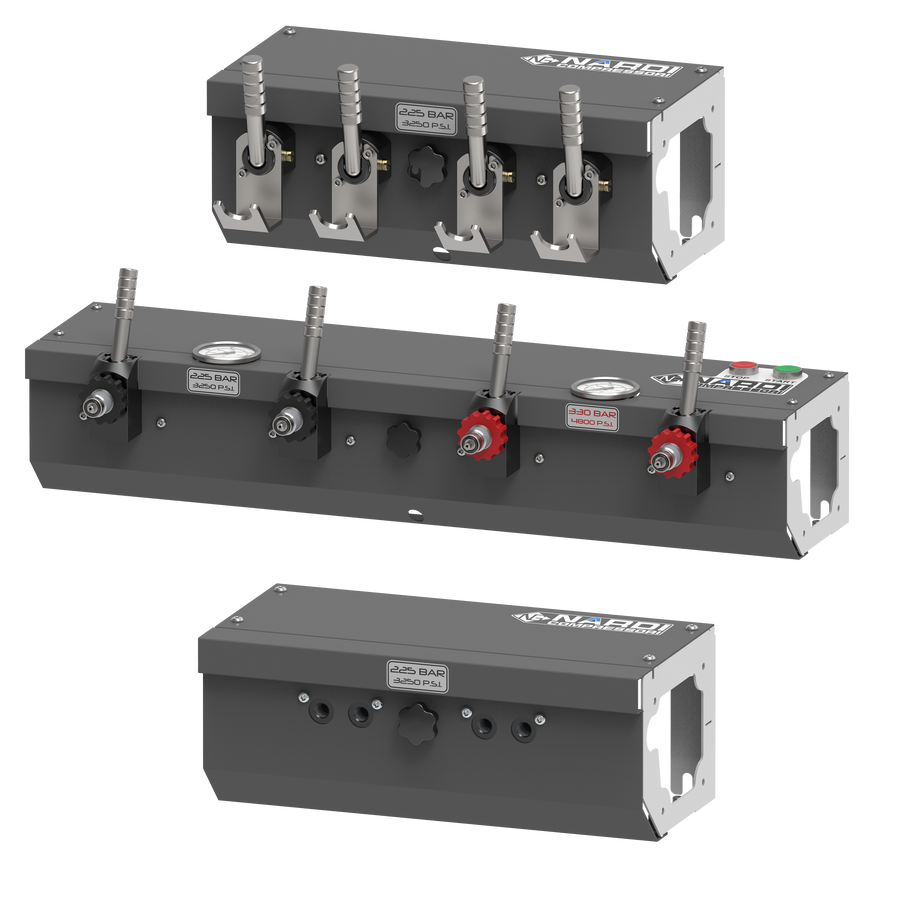

Modular Fill Panel modules. The 2-Lever Direct connects SCBA cylinders straight to the panel. The 4-Lever has integrated filling hoses, the 4-Outlet takes the filling valve and hose you choose, and the Integrated Remote Compressor Controller runs the compressor from the fill bay. Panels are built at 225 or 330 bar, or dual pressure. Ask us about 6000 psi.
Plan Your Fill Room
Tell us how many cylinders you fill at once, the cylinder connection you use and where the station will sit, and we will come back with a configuration and a quote.
Request a QuoteFill stations designed and built in Italy by Nardi Compressori.
