BON2 Booster High Pressure
Recompression from a supply line or low pressure source to 350 bar.
The BON2 is Nardi's high pressure booster. It draws gas from a supply line or a low pressure source and recompresses it to a maximum of 350 bar (5,076 psi).
Ten models in four frames cover delivery from 60 to 1,400 L/min, depending on model and inlet pressure. An electric control panel, oil pump lubrication and an automatic condensate drain are standard on every model.
Model range
BON2 Models
Delivery depends on inlet pressure. Each model is shown with its delivery range across its inlet range.
| Model | Frame Options | Inlet pressure bar | Delivery L/min | Motor kW | Outlet bar max |
|---|---|---|---|---|---|
| Frame C and M, 2.2 to 5.5 kW | |||||
| BON2-6 | C | 0.05 | 60 | 2.2 | 350 |
| BON2-25 | C | 7 | 120 | 4.0 | 350 |
| BON2-55 | C or M | 4 to 12 | 140 to 550 | 5.5 | 350 |
| Frames CX and MX, 11 kW | |||||
| BON2-140 | CX or MX | 4 to 15 | 350 to 1,400 | 11 | 350 |
| BON2-160 | CX or MX | 2 to 8 | 303 to 854 | 11 | 350 |
| BON2-180 | CX or MX | 1 to 5 | 177 to 865 | 11 | 350 |
Scroll the table sideways to see every column.
Source. Nardi high pressure booster price list, January 2026. Inlet ranges for the BON2-55, 140 and 160 are from the Nardi BON2 brochures, 2023 edition. Your quote confirms the model, delivery and outlet pressure for your inlet conditions.
Frames

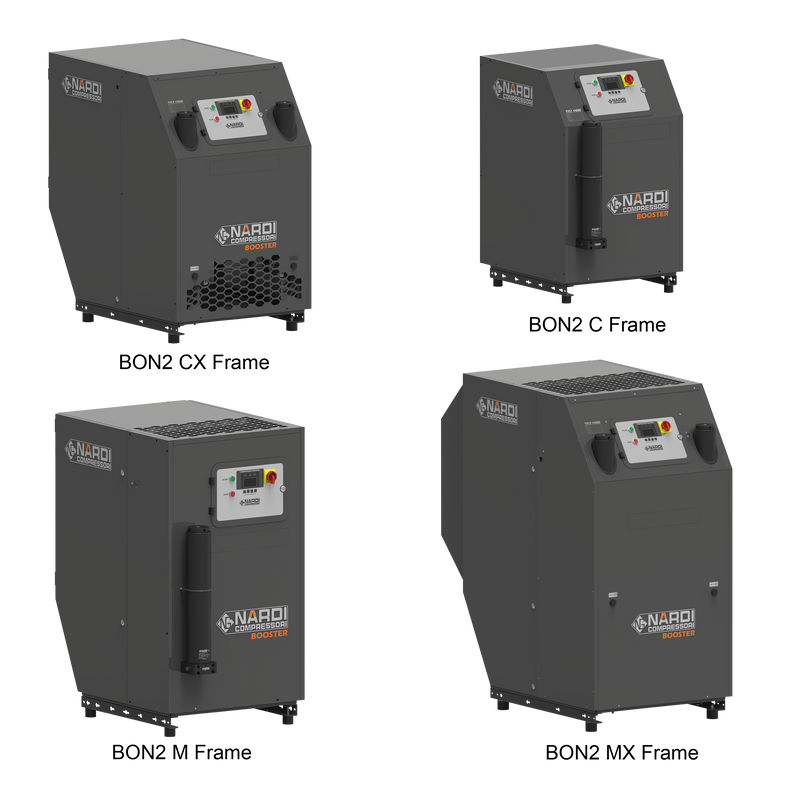

Four Frames
The BON2-6 and BON2-25 come in frame C. The BON2-55 comes in frames C and M. The BON2-140, 160 and 180 come in frames CX and MX.
Compact, indoor
Sound insulated frame with sound absorbing internal lining, for indoor installation.
- Models
- BON2-6, 25, 55
- Noise
- 75 dB(A)
- L x W x H
- 75 x 93 x 123 cm
Silenced, side access
Larger silent enclosure with anti-vibration housing and a side opening for service access.
- Model
- BON2-55
- Noise
- 68 dB(A)
- L x W x H
- 75 x 108 x 134 cm
Compact, indoor, 11 kW class
The most compact silent frame in the Nardi high pressure range, sized for the 11 kW versions and built for indoor installation.
- Models
- BON2-140, 160, 180
- Noise
- 75 dB(A)
- L x W x H
- 84 x 75 x 142 cm

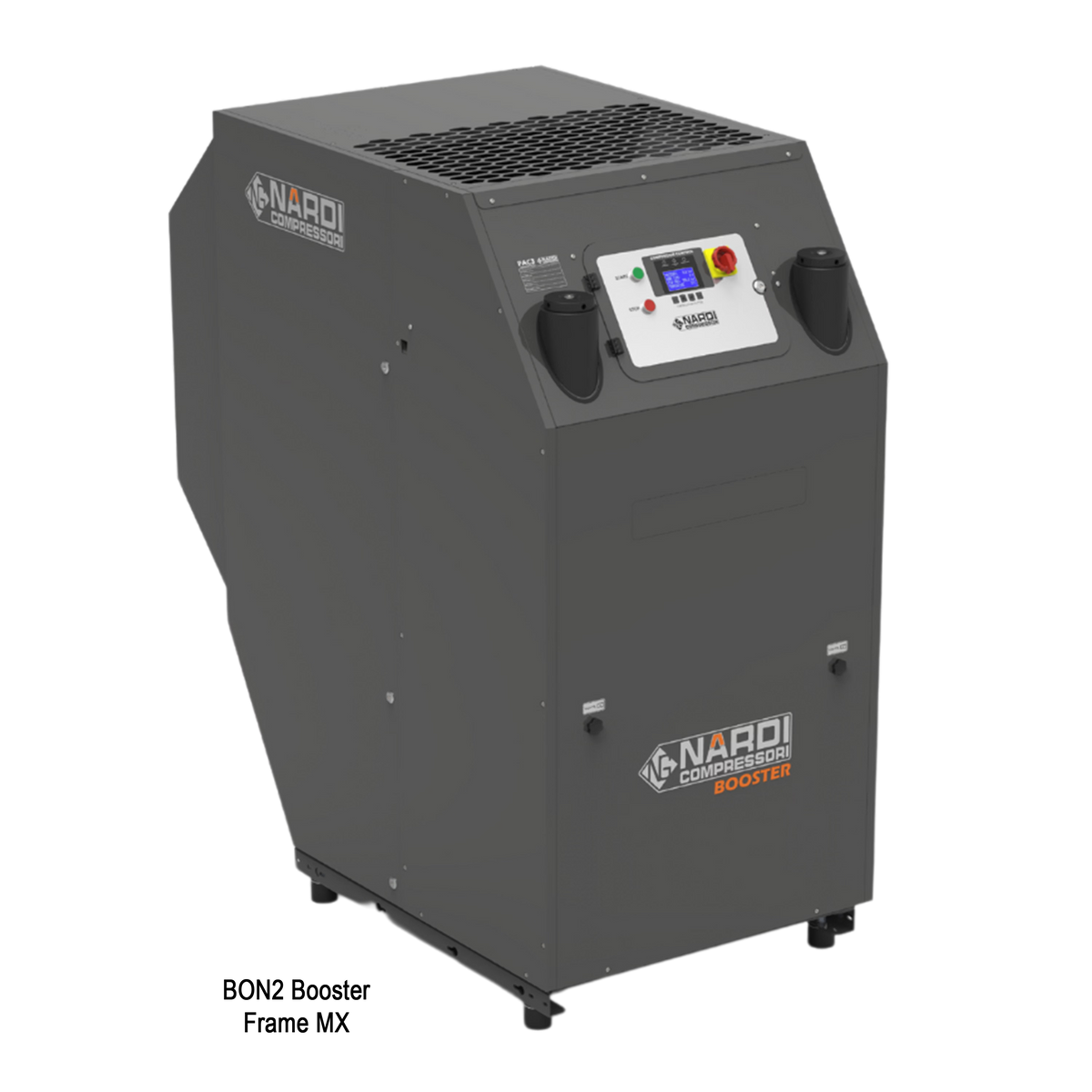

Silenced, side access, 11 kW class
Larger silent enclosure with anti-vibration housing and a side opening for service access, sized for the 11 kW versions.
- Models
- BON2-140, 160, 180
- Noise
- 68 dB(A)
- L x W x H
- 87 x 152 x 172 cm

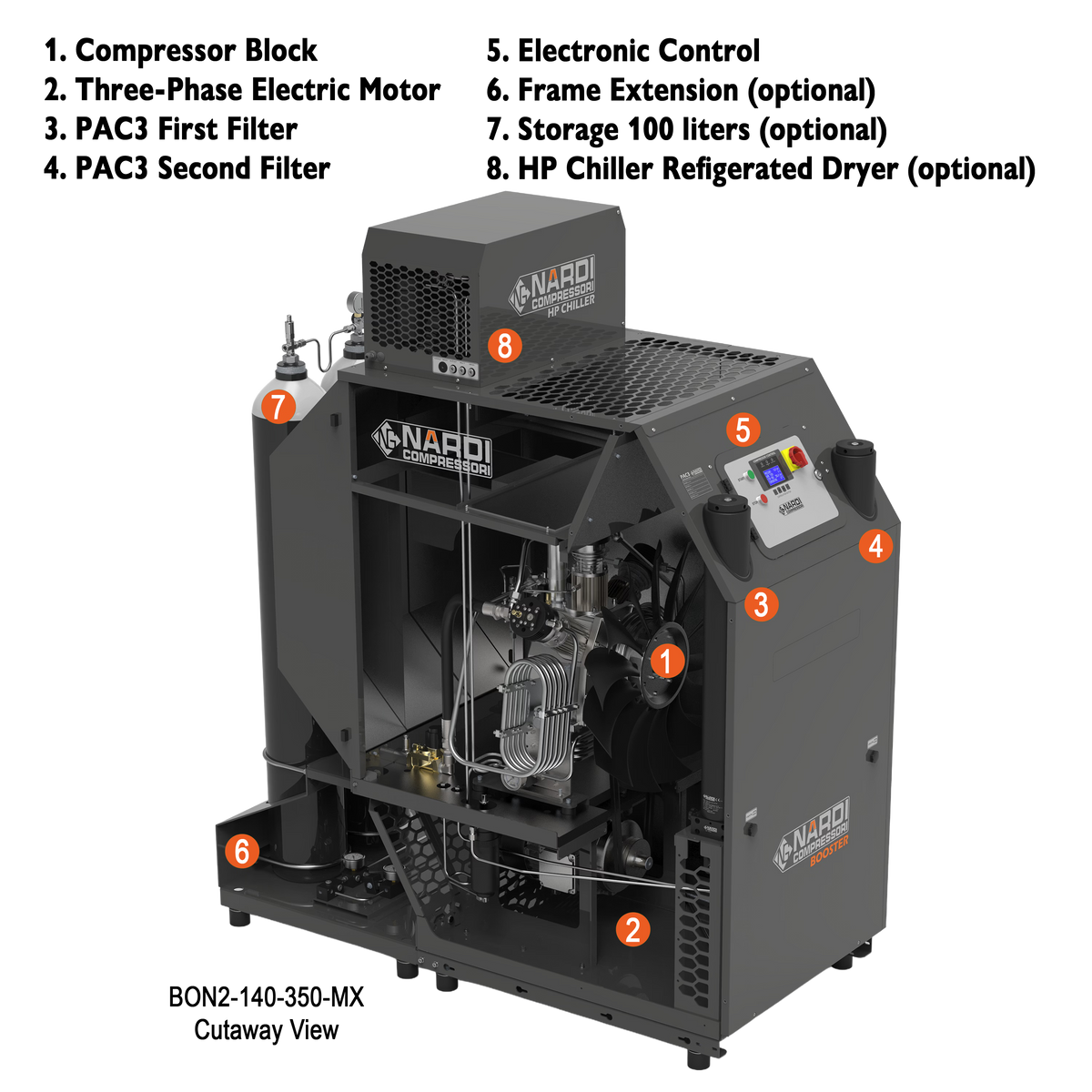

Equipment
| Compression | Two stage, three stage on the BON2-6 |
|---|---|
| Control | Electric control panel, standard |
| Lubrication | Oil pump, standard |
| Condensate drain | Automatic, standard |
| Purification | PAC 3. Double PAC 3 on BON2-140, 160 and 180 |
| Soft start | Standard on BON2-140, 160 and 180. Optional on BON2-6, 25 and 55 |
| Weight | 264 kg in frames C and M, 470 kg in frame CX, 520 kg in frame MX |
| Suction filter | 50 micron, G1 inch (PA001-219), optional |
| ATEX | Zone II certificate, optional |
| Electrical supply | Three phase. Supply voltage and frequency confirmed on your quote |
| Country of origin | Italy |

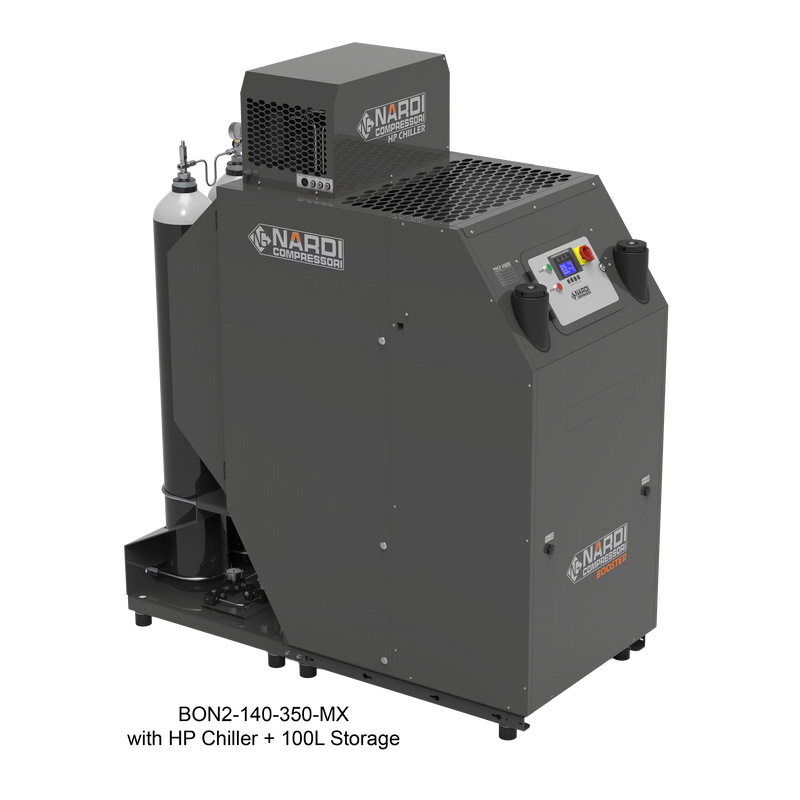

The Hardware
Images supplied by Nardi Compressori.
Configure Your BON2
Every Nardi industrial unit is built to order. Send us the gas, the inlet pressure, the flow and the outlet pressure you need, and we will come back with a configured quote.
