Nardi Compressori
Super Extreme Oil-Free Compressors
Two independent outlets, 10 bar and 30 bar, from one portable oil-free pump.
The Super Extreme runs two pressure circuits at once from the same pump, a 10 bar (145 psi) outlet and a 30 bar (435 psi) outlet, each with its own regulator and check valve. One unit covers work that would otherwise need two compressors.
All three models share a two cylinder, two stage, air cooled oil-free pump rated at 1.6 kW (2.2 hp). They differ in tank and frame. Every unit is built to order in Italy.
Models
Three Models
Same pump and the same dual outlets in each, on a different tank and frame.

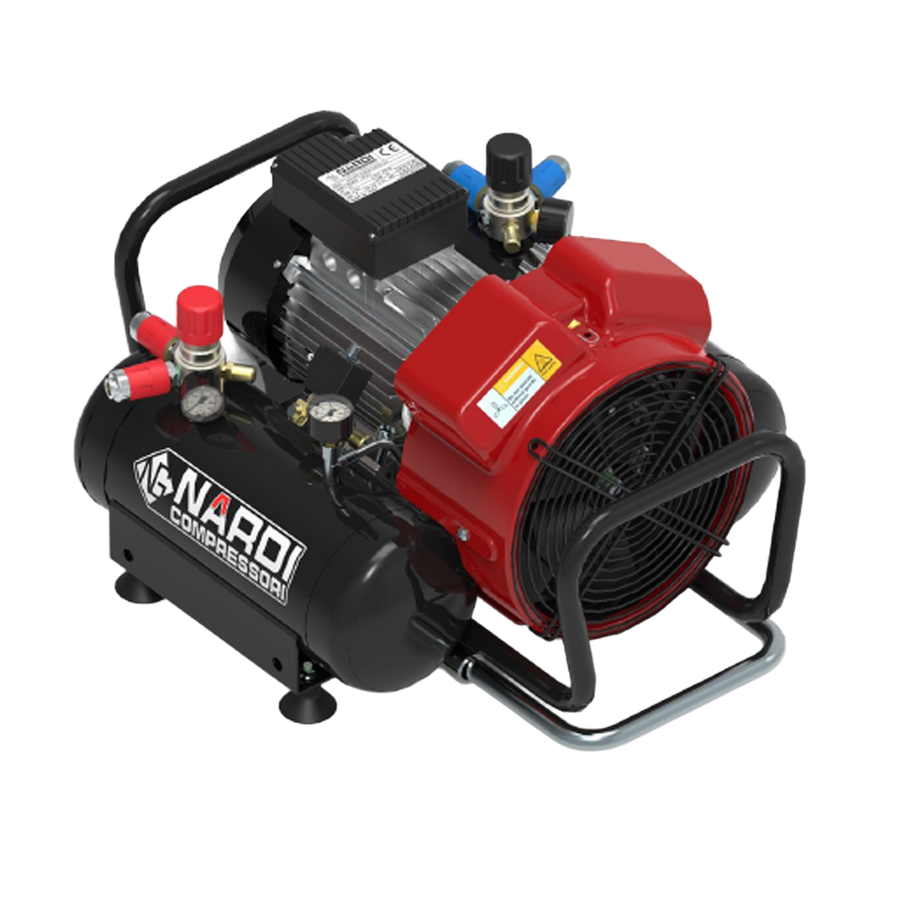

Compact, fixed handles
The lightest and smallest of the three, carried by fixed handles on the base frame.
- Tank
- 18 L
- Weight
- 34 kg
- Size
- 62 x 50 x 40 cm

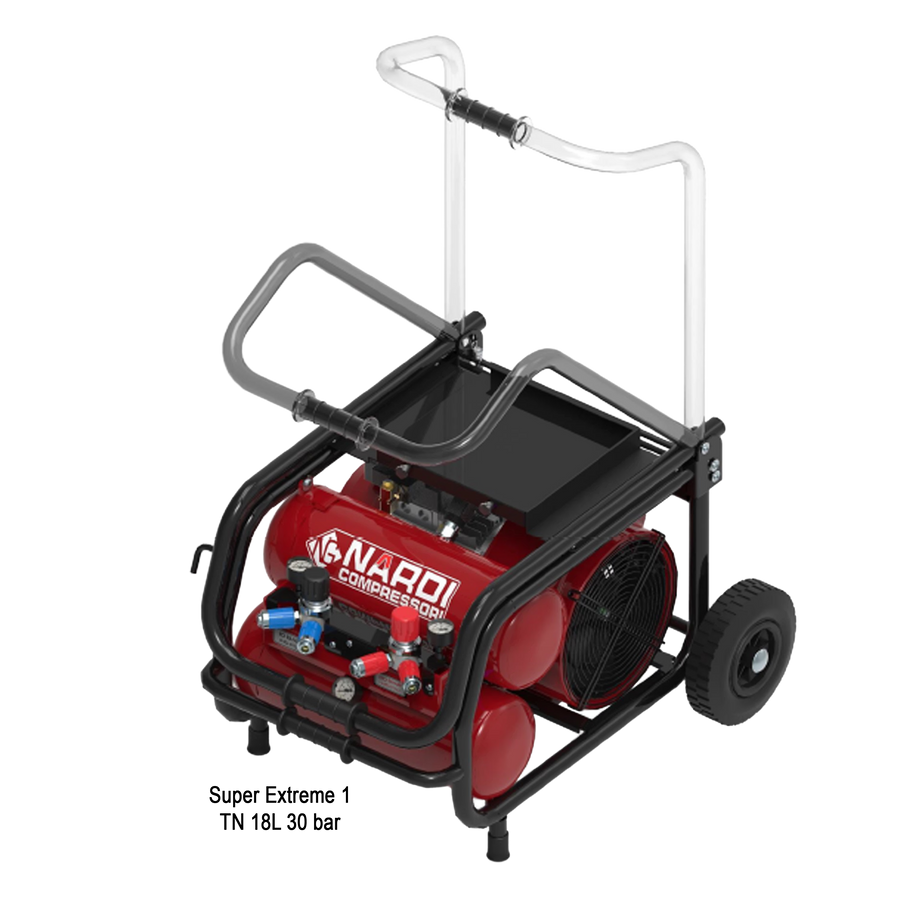

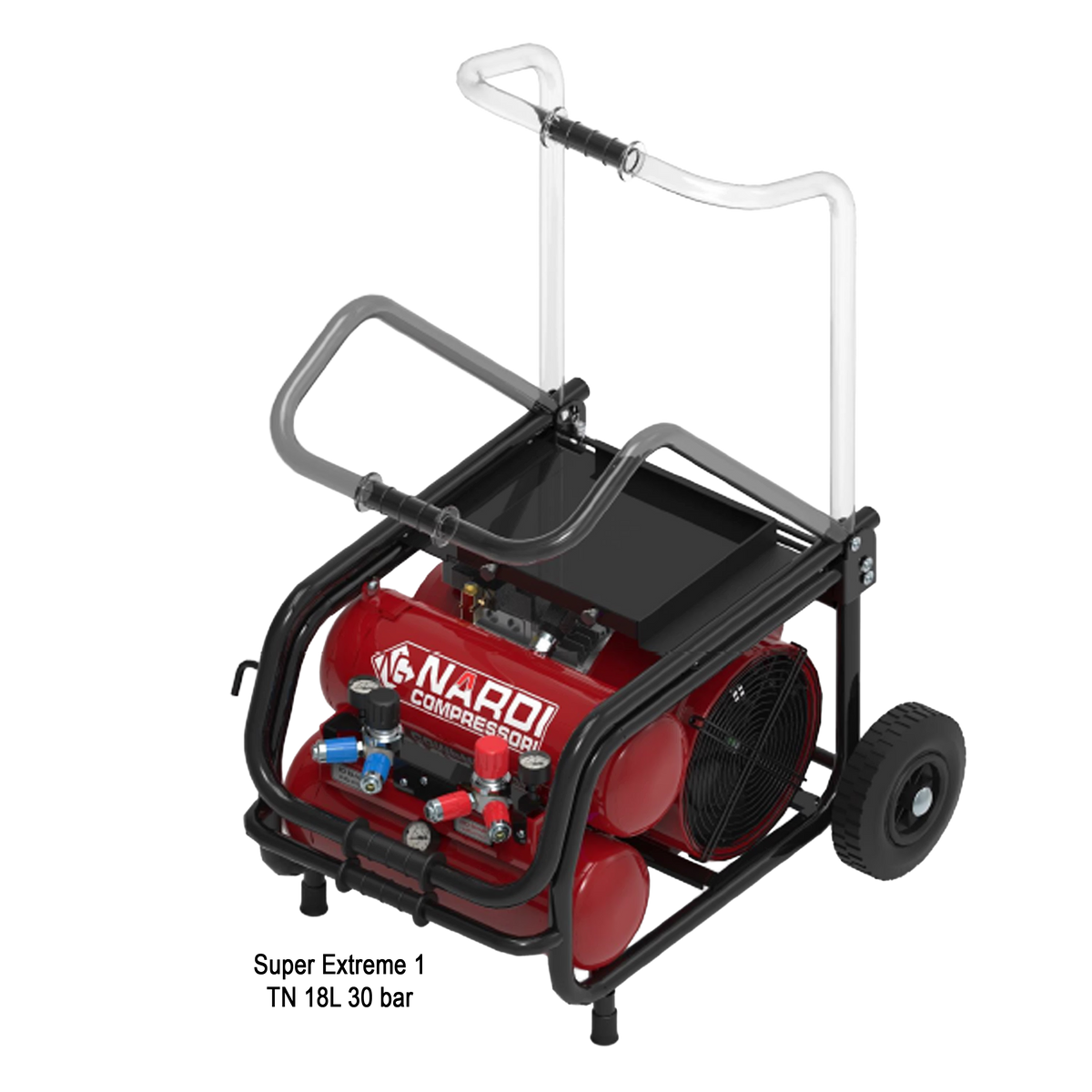

Trolley, folding handle
Wheels and a folding handle for moving between sites and loading into a vehicle.
- Tank
- 18 L
- Weight
- 57 kg
- Size
- 67 x 65 x 48 cm

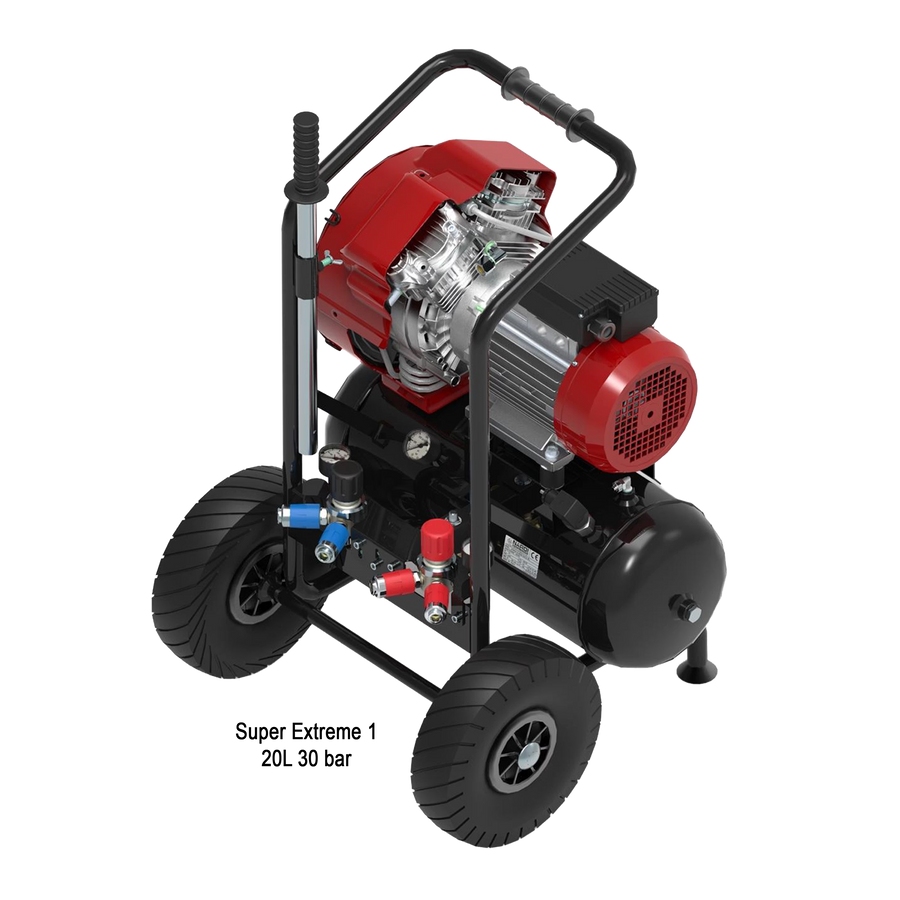

Trolley, welded frame
The largest tank of the three on a welded steel trolley frame with two wheels.
- Tank
- 20 L
- Weight
- 46 kg
- Size
- 54 x 60 x 83 cm
How the Two Outlets Work
The two circuits are fully independent. Pressure in one outlet does not affect the other, and both can run at full rated pressure at the same time.
Low pressure outlet
Set with the black knob regulator, adjustable from 0 to 10 bar, for general shop tools and inflation.
High pressure outlet
Set with the red knob regulator, adjustable from 0 to 30 bar, for equipment that needs higher pressure.
Both at once
Each outlet has its own check valve, so two tools with different pressure needs run from one unit.
Tell Us What You Need to Run
Tell us the tools or equipment you run at each pressure and how you move the compressor between jobs, and we will come back with a quote.
Request a QuoteCompressors designed and built in Italy by Nardi Compressori.
