Nardi Atlantic — Italian-engineered portable high-pressure breathing air compressor from Nardi Compressori, one of Europe's most trusted breathing-air manufacturers. The Atlantic line covers seven models across three power sources to fit fire service, first-responder, commercial diving, and industrial breathing-air applications where mobility and reliability are critical.
Select your Compressor Type above (Electric, Gasoline, or Diesel), then use the configurator on this page to choose model, operating pressure, connection type, voltage, and factory-installed options. The price updates as you configure.

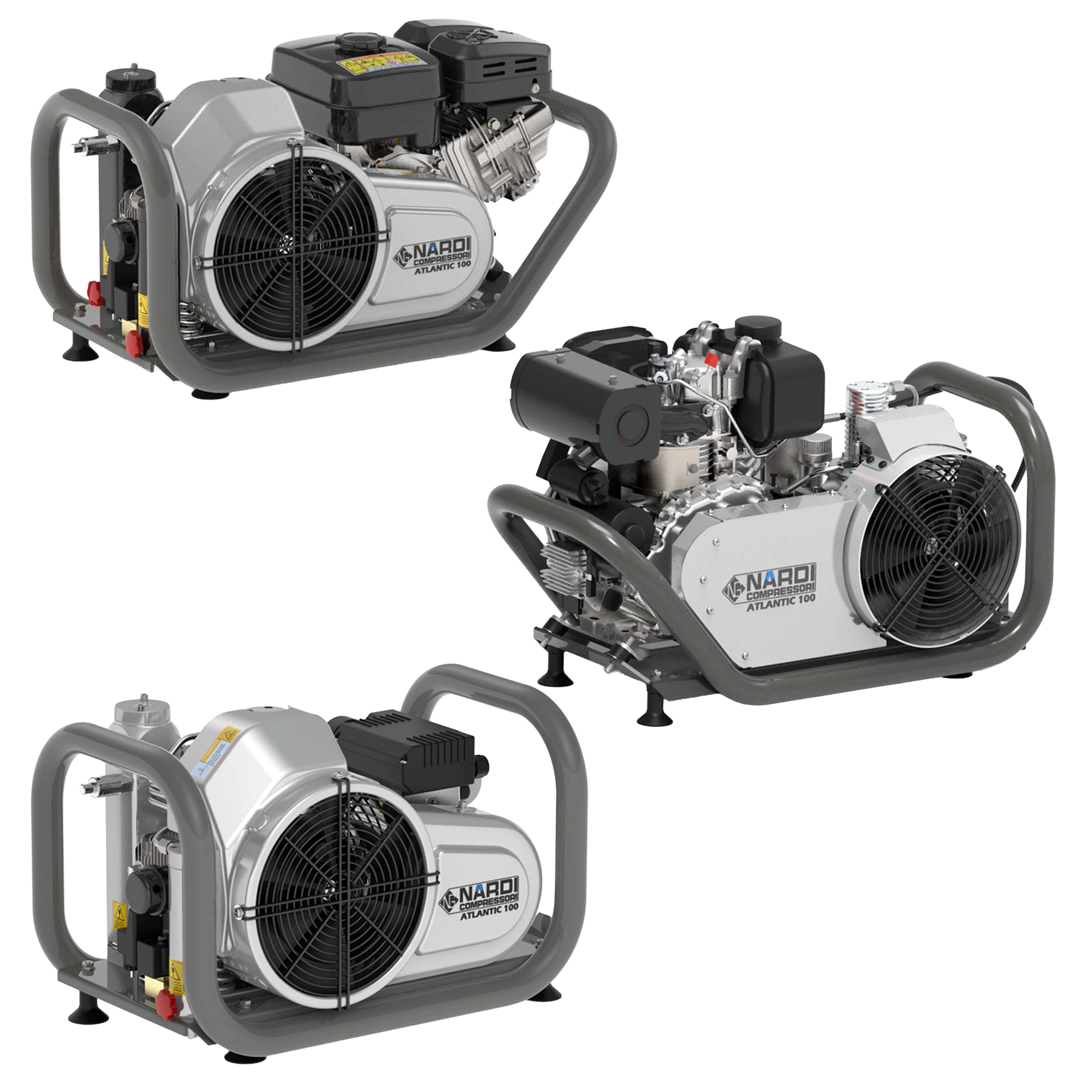

Model lineup
Electric (four models)
- ATLANTIC P 60/1 — 60 L/min (2.1 cfm), 1.85 kW, 230V single-phase

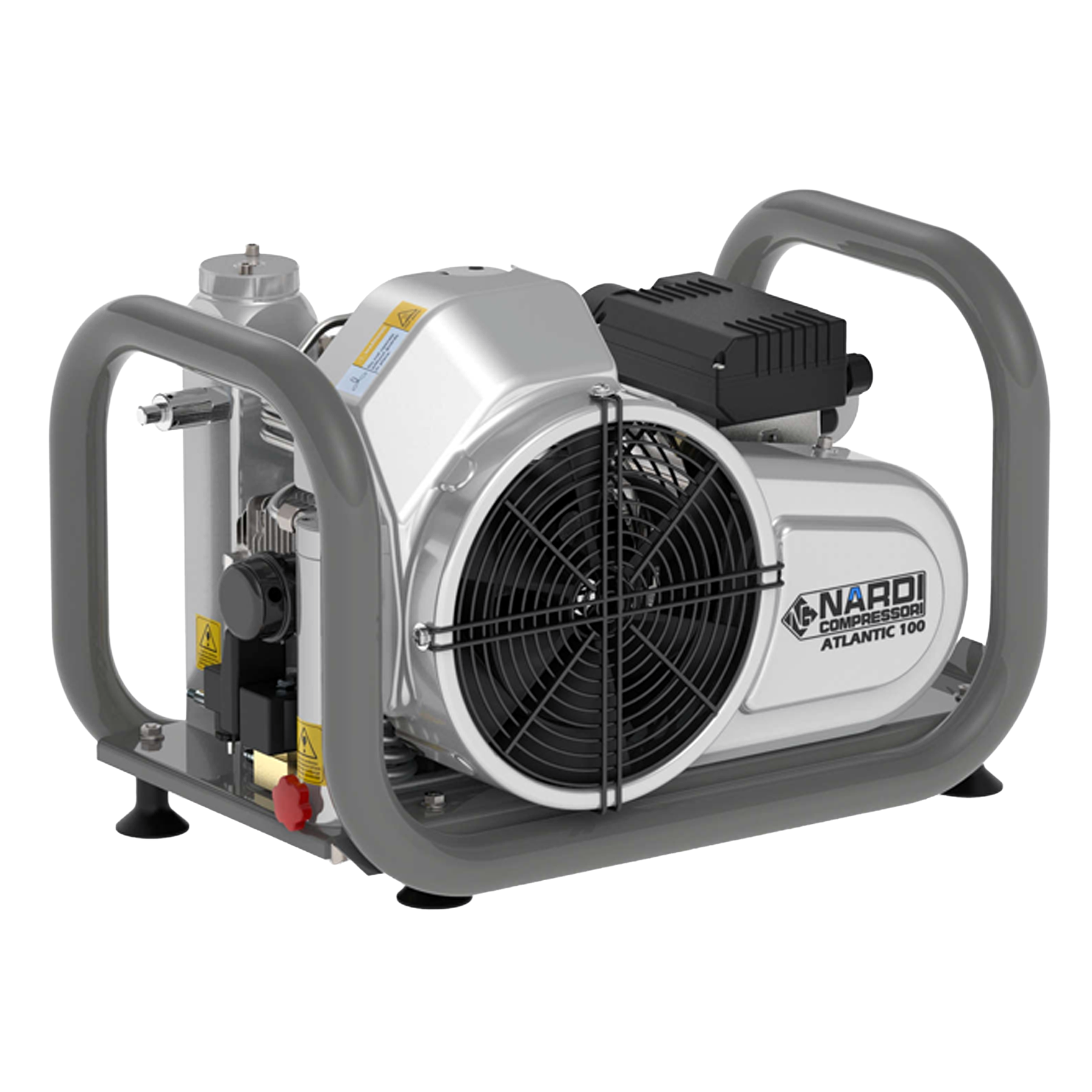

- ATLANTIC P 100/1 — 100 L/min (3.5 cfm), 2.2 kW, 230V single-phase
- ATLANTIC P 100/1 110V — 100 L/min (3.5 cfm), 2.2 kW, 110V single-phase
- ATLANTIC P 100/3 — 100 L/min (3.5 cfm), 3.0 kW, three-phase (230V / 400V / 440V at 50 or 60 Hz)
Gasoline (two models)

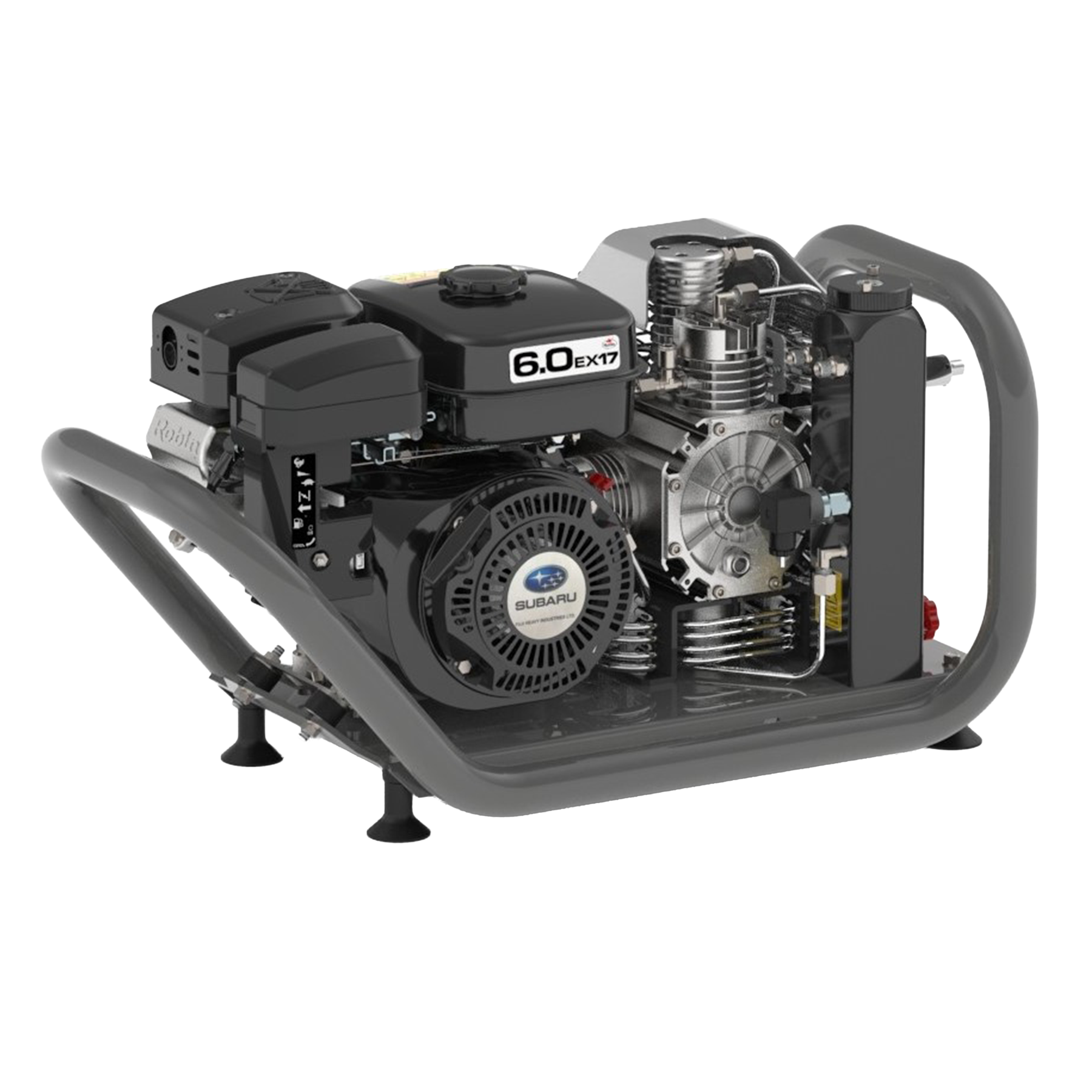

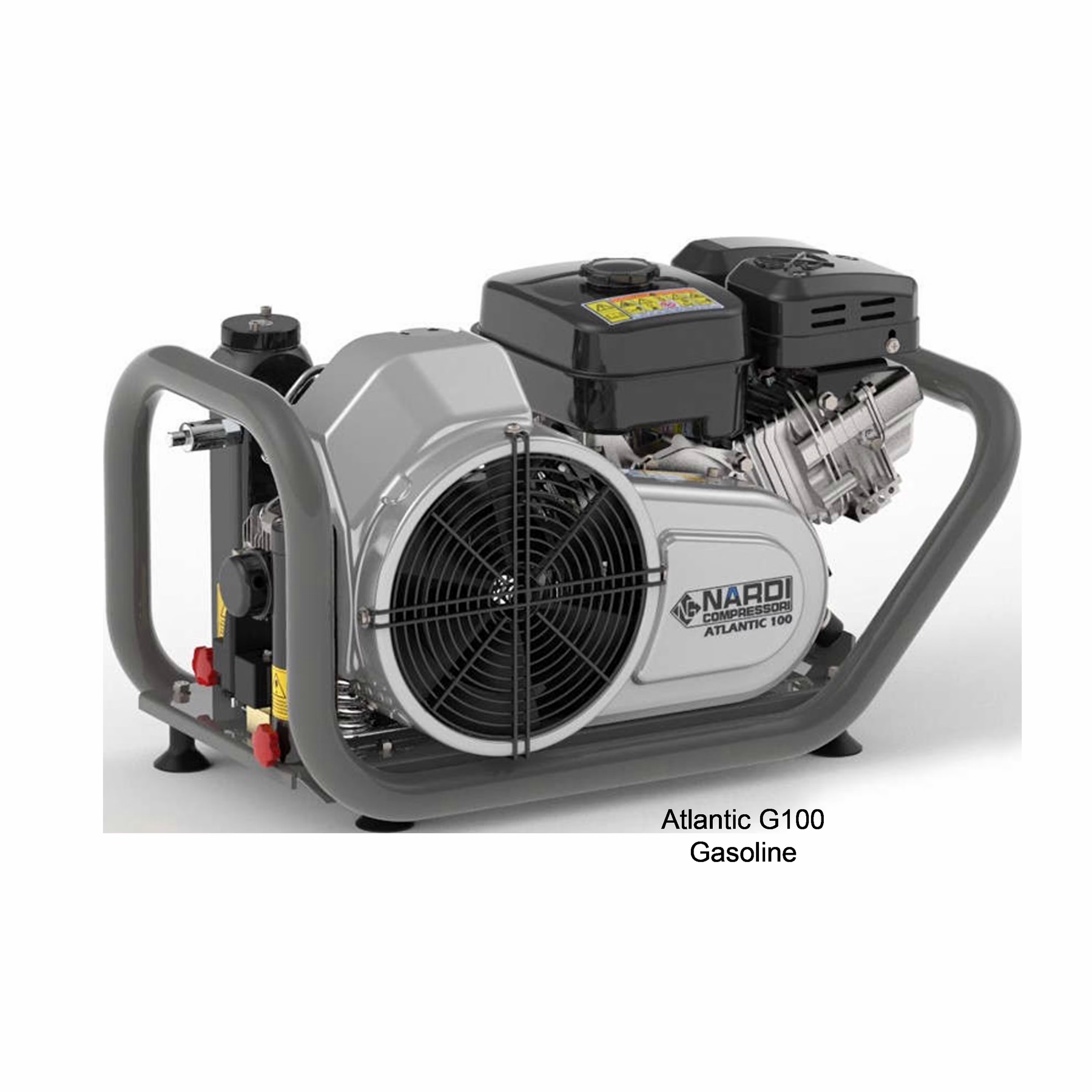

- ATLANTIC G 100 RATO — 100 L/min (3.5 cfm), 4.4 kW, gasoline (RATO engine)
- ATLANTIC G 100 HONDA — 100 L/min (3.5 cfm), 4.4 kW, gasoline (Honda engine)
Diesel (one model)

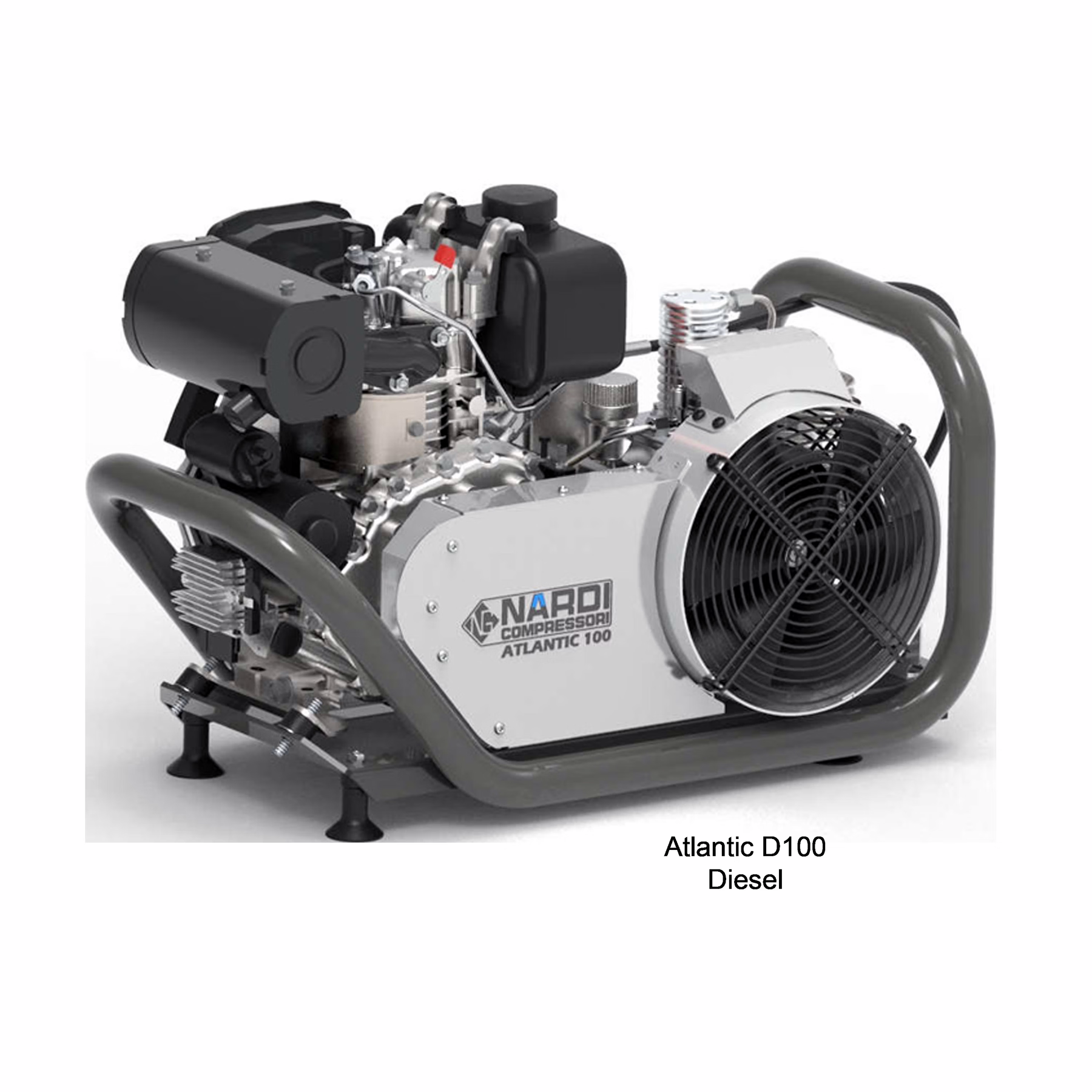

- ATLANTIC D 100 — 100 L/min (3.5 cfm), 3.5 kW, diesel
Standard equipment (included on every Atlantic)
- Up to 330 bar / 4,700 psi maximum operating pressure

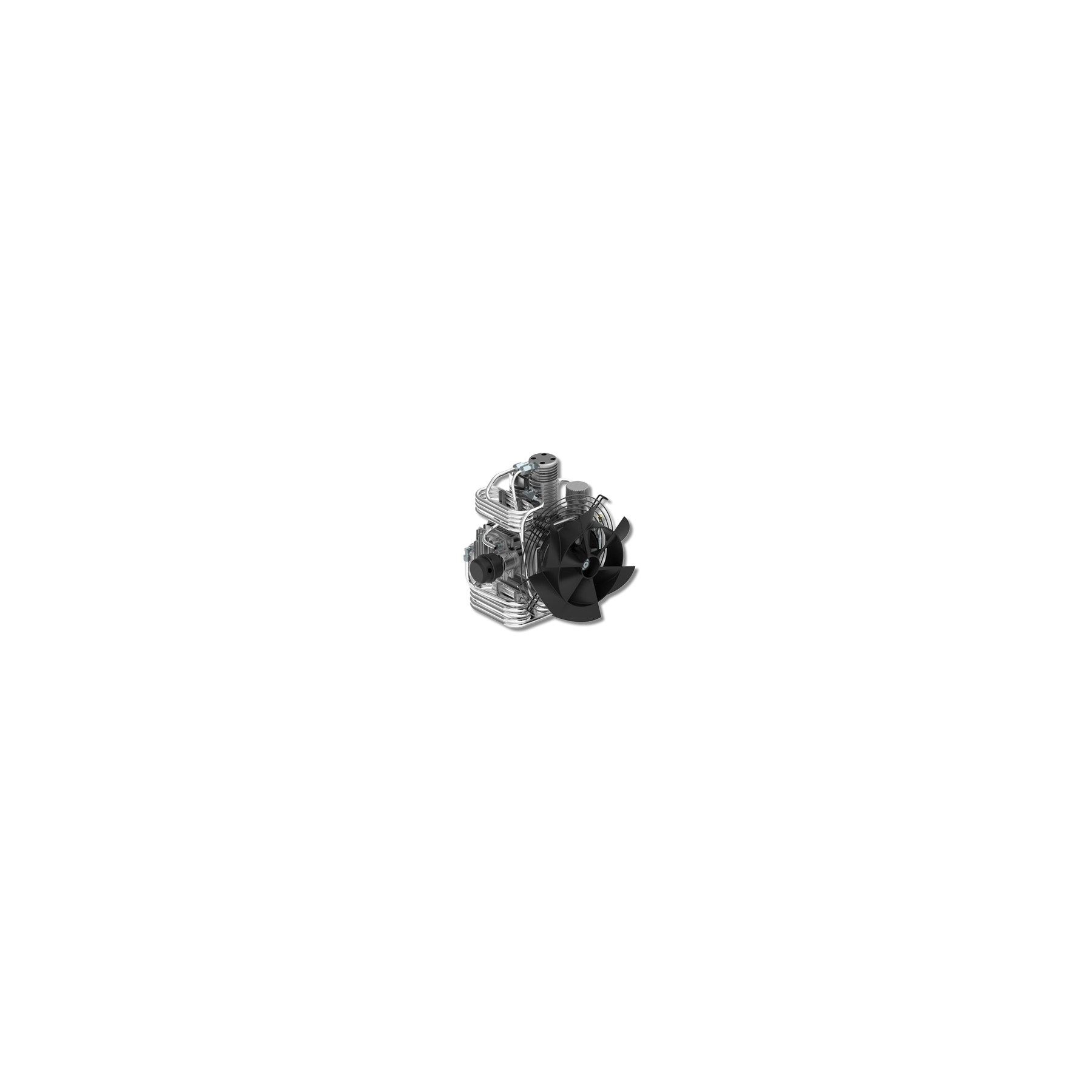

- 4-stage compressor block
- ATL purification system
- Hour meter
- Maintaining valve and no-return valve on the filter
- Integrated carrying frame
- Compliant with DIN EN 12021 (European breathing-air standard)
Order-time configuration (selected above)
- Operating pressure: 225 bar / 3,200 psi (most fire and dive fills) or 330 bar / 4,700 psi (high-pressure applications)
- Connection type (225 bar only): DIN, INT (YOKE), or DIN with reduction to INT-YOKE
- Voltage / Frequency (Electric only): 230V single-phase at 50 or 60 Hz; three-phase Electric also supports 400V or 440V at 50 or 60 Hz; the 110V model is locked at 110V / 60 Hz
Optional factory-installed equipment
All of the following are selectable in the configurator above. Prices add to the base as you tick each item.
- Filling hose holder
- Additional hose connections (max two; 225 bar / 3,200 psi or 330 bar / 4,700 psi)
- Final pressure switch with automatic-stop
- Trolley (2 wheels and handle)

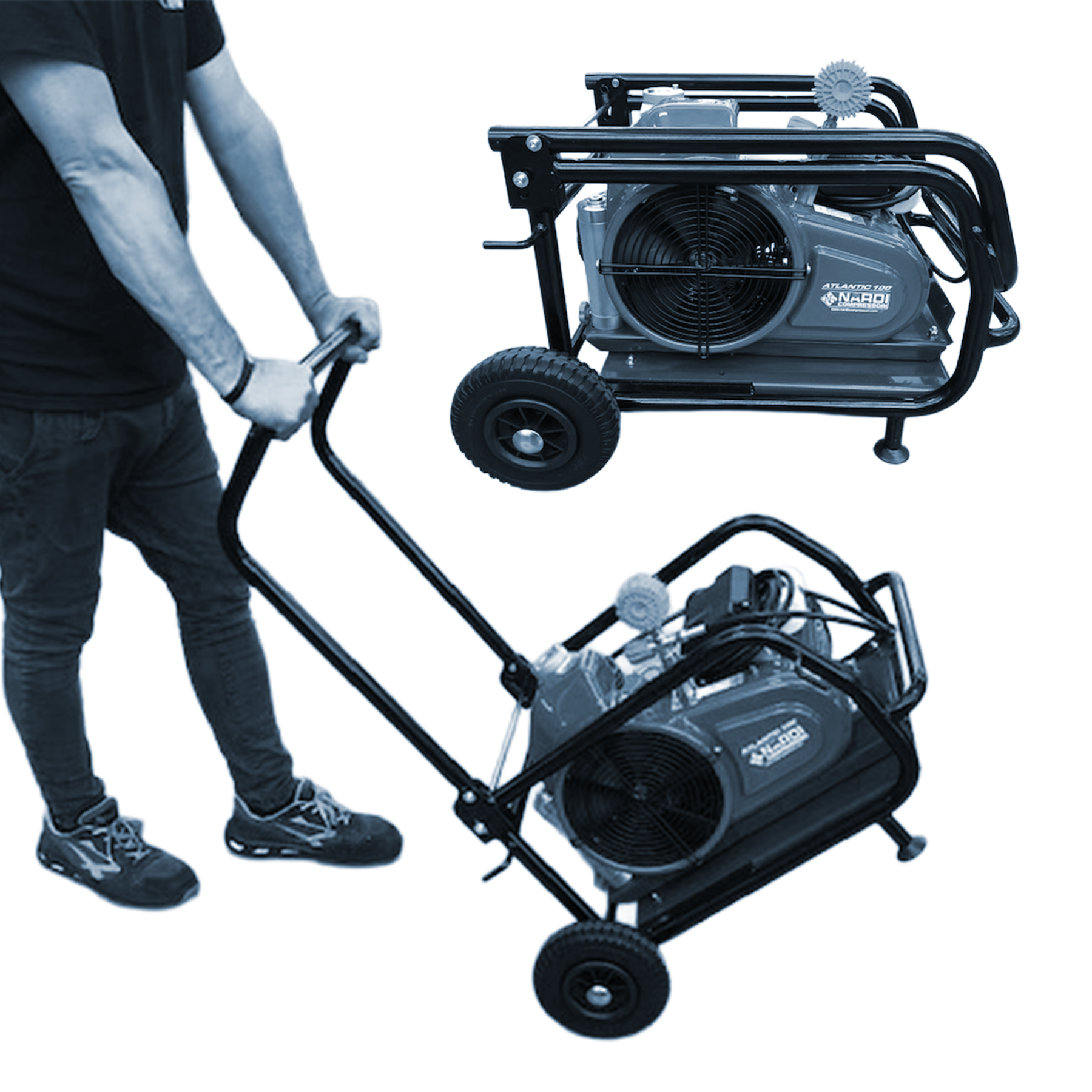

- Folding trolley (2 wheels and reclining handle)
- Double pressure with safety valve (225 bar / 3,200 psi + 330 bar / 4,700 psi)
- Double pressure with pressure reducer (225 bar / 3,200 psi + 330 bar / 4,700 psi)
- Automatic condensate drain (model-dependent — single-phase electric or gasoline / three-phase electric)
- Double purification system
- Eco-friendly condensate container, 5 L
See the Specifications tab for full technical specifications.
Replacement parts and consumables

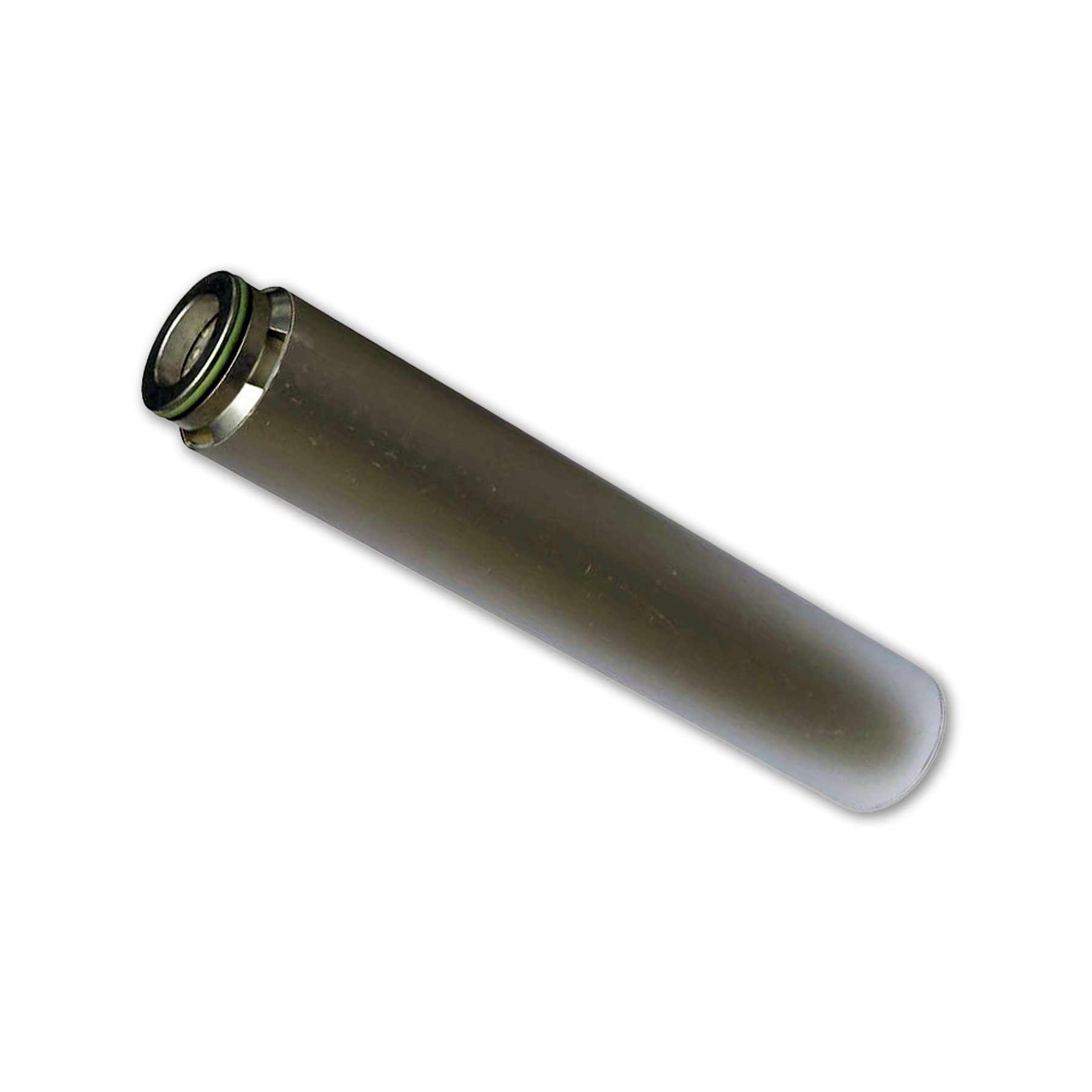

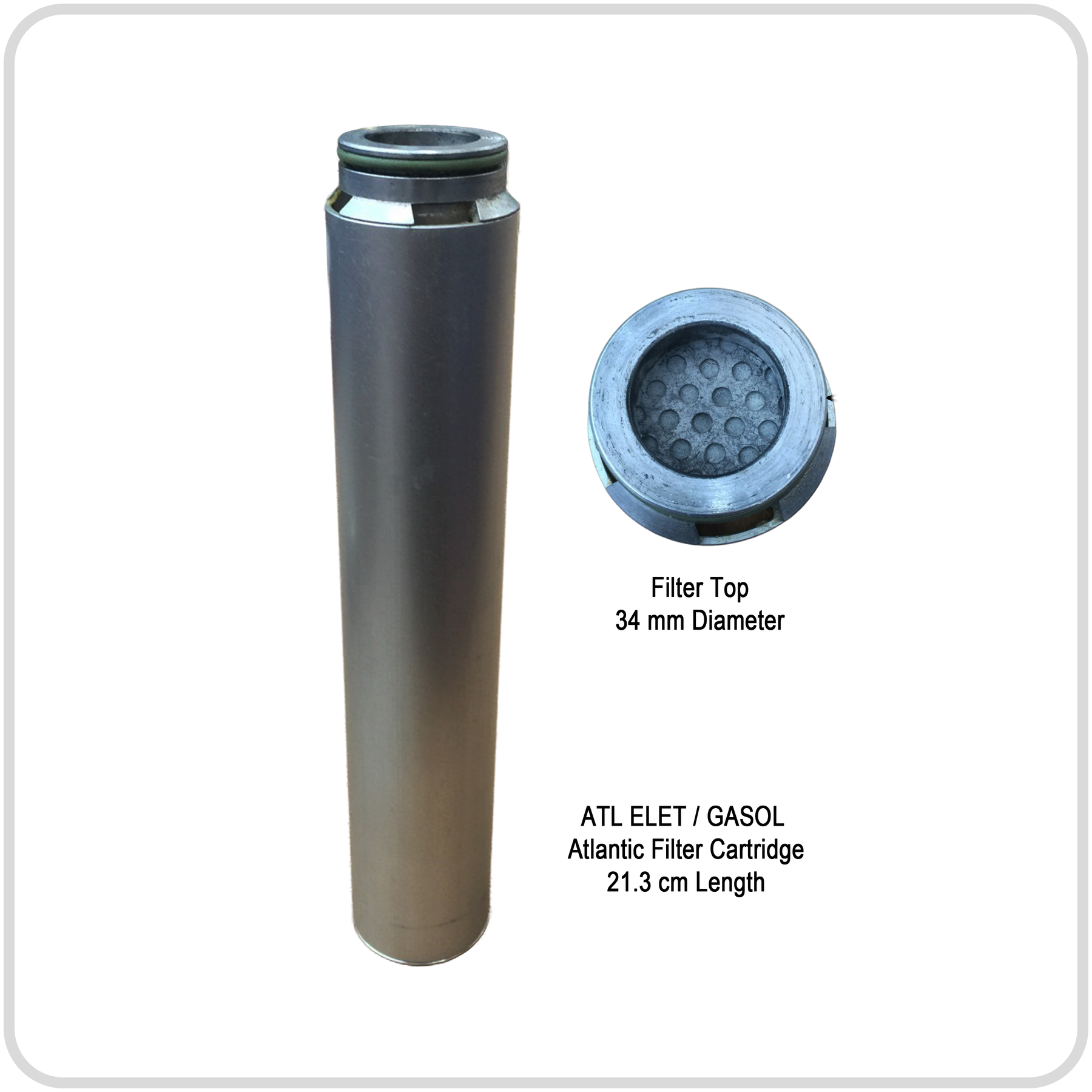

The Atlantic uses the ATL purification cartridge. Replace it per the schedule in your Operator's Manual — see the Nardi Filter Pac ATL Replacement Cartridge and choose Electric (MC-AC media) for the P-series Atlantics, or Gasoline / Diesel (MC-AC-HO with Hopcalite) for the G 100 RATO, G 100 HONDA, and D 100. Other Atlantic consumables, hose-connection accessories, and service kits are sold separately — contact us for the correct reference.
Browse the full Nardi Compressori collection for other breathing-air, industrial, and oil-free compressors.
Engineered in Italy. Made in Italy.
| Specification | Electric | Gasoline | Diesel |
|---|---|---|---|
| Charging rate | 60 – 100 L/min (2.1 – 3.5 cfm) | 100 L/min (3.5 cfm) | 100 L/min (3.5 cfm) |
| Max operating pressure | 330 bar / 4,700 psi | 330 bar / 4,700 psi | 330 bar / 4,700 psi |
| Stages | 4 | 4 | 4 |
| Power | 1.85 – 3.0 kW | 4.4 kW | 3.5 kW |
| Power supply | 110V single-phase, 230V single-phase, or 230 / 400 / 440V three-phase | Gasoline engine (RATO or Honda) | Diesel engine |
| Purification system | ATL | ATL | ATL |
| Weight | 39 – 42 kg (86 – 93 lb) | 42 kg (93 lb) | 61 kg (135 lb) |
| Dimensions (L × W × H) | 58 × 41 × 41 cm | 77 × 41 × 41 cm | 82 × 37 × 50 cm |
| Country of origin | Italy | Italy | Italy |
| Compliance | DIN EN 12021, CE (CSA pending) | DIN EN 12021, CE | DIN EN 12021, CE |
