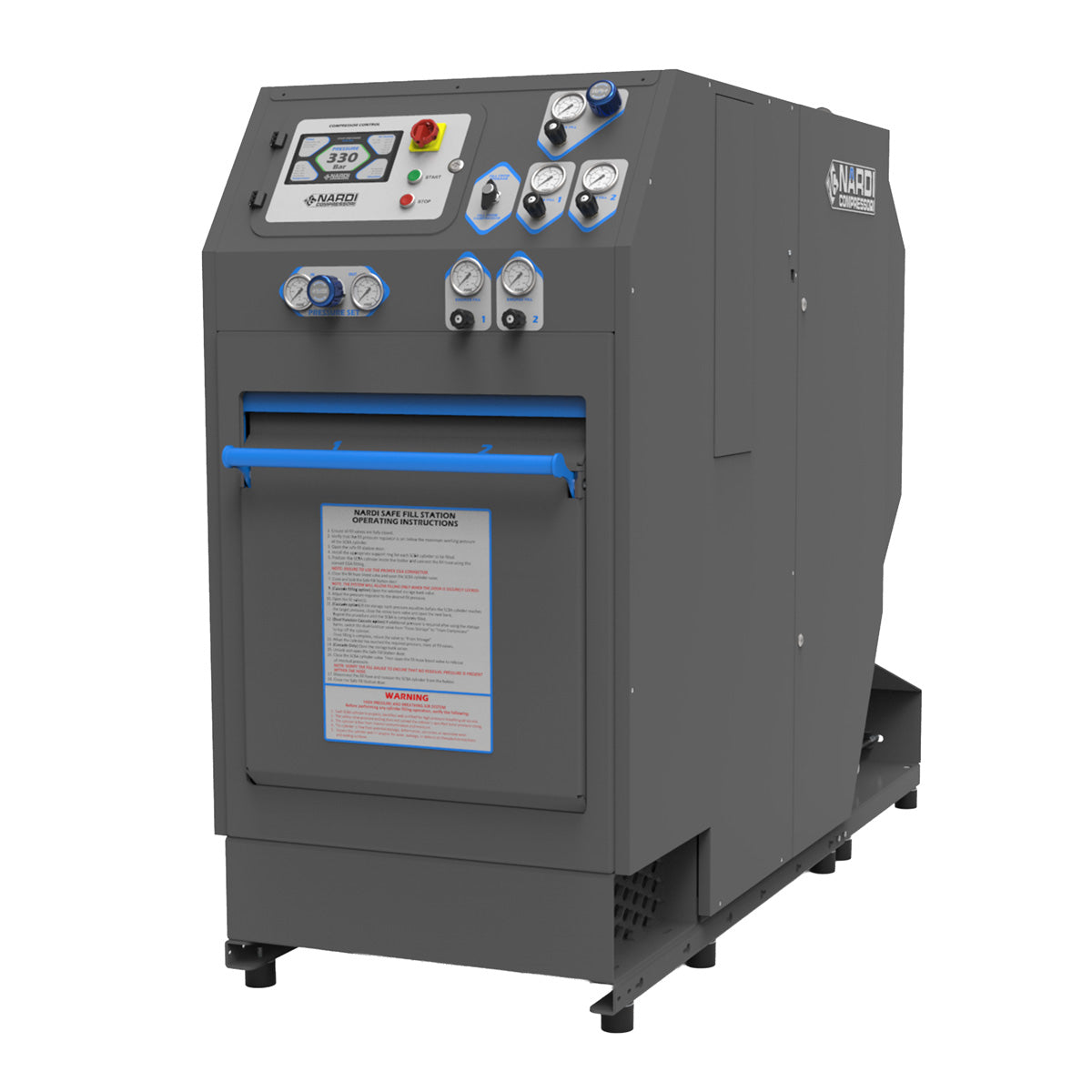

Nardi ONE is a compact, all-in-one high-pressure filling station from Nardi Compressori — fill containment station, compressor, high-pressure storage, cascade filling system, and SCBA/SCUBA fill panel integrated into a single station engineered for mission-critical environments. Fills up to 40 cylinders per hour.
Every stage of high-pressure filling is protected. The integrated Nardi Safe Fill (NSF) containment station — UL-tested to NFPA 1900:2024 — contains debris from accidental cylinder failures and stops the fill cycle the moment the door is opened or the door lock is unsecured (dual safety interlock). The double Nardi PAC3 filter system delivers breathing air compliant with DIN EN 12021 and CGA 7.1 (Grade E).

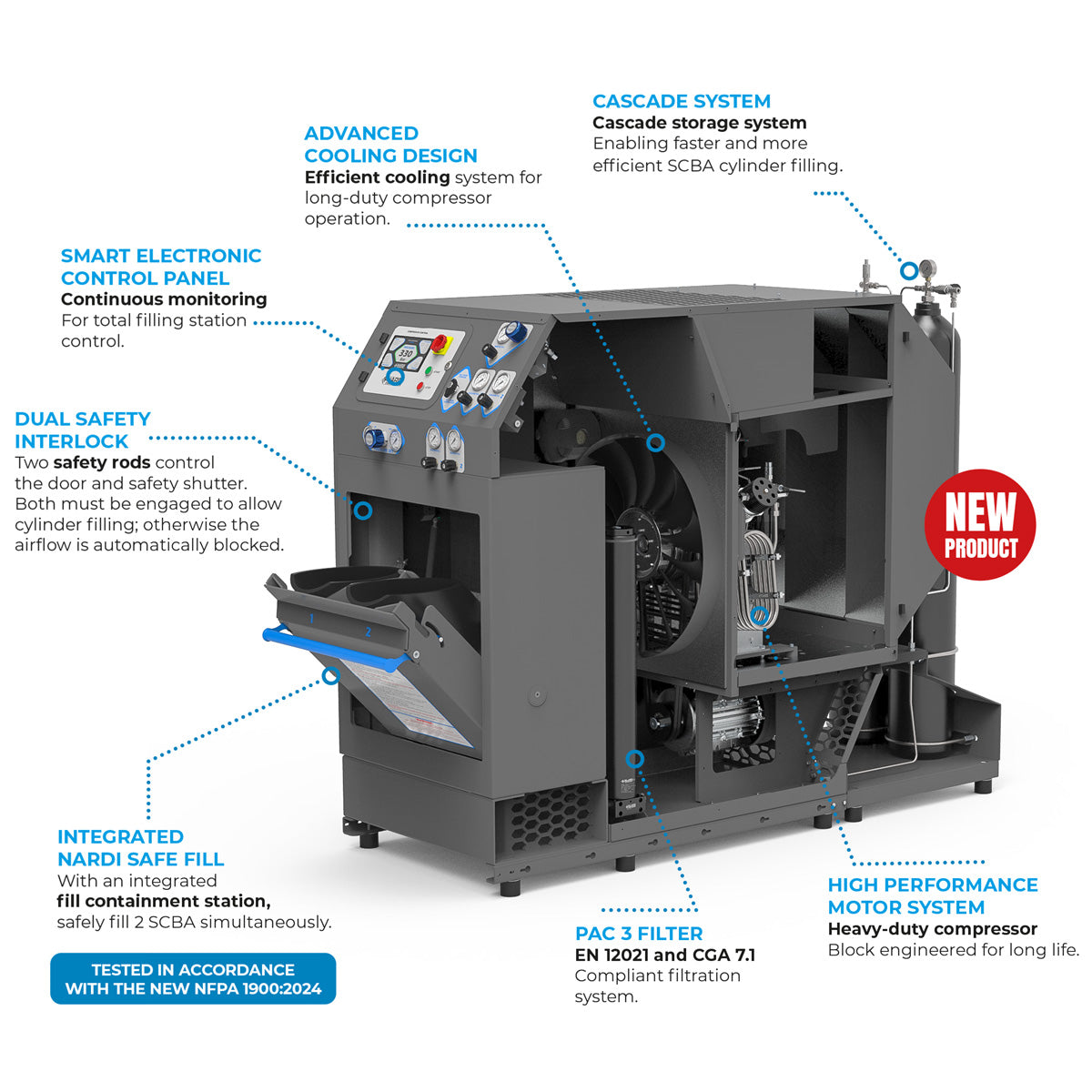

Integrated system:
- Nardi Safe Fill (NSF) containment station — fills 2 SCBA/SCUBA cylinders simultaneously, UL-tested to NFPA 1900:2024
- High-performance MX compressor block with advanced cooling for extended-duty operation
- Double PAC3 purification — DIN EN 12021 and CGA 7.1 (Grade E) compliant
- Integrated high-pressure storage — 2 × 50 L cylinders
- Cascade filling system for faster, more efficient SCBA/SCUBA fills
- Smart electronic control panel with continuous monitoring
- Slow-flow auto-drain — reduces gas expelled during condensate purge by ~80%
- Standard on all models: Soft Start, oil pump, oil alert, large separators
Models
| Model | F.A.D. | Stages | Speed | Power | Weight |
|---|---|---|---|---|---|
| Nardi ONE 50 | 500 L/min (30 m³/h · 17.7 cfm) | 3 | 1100 rpm | 11 kW (15 HP) | 1140 kg / 2513 lb |
| Nardi ONE 60 | 600 L/min (36 m³/h · 21.2 cfm) | 3 | 1300 rpm | 11 kW (15 HP) | 1180 kg / 2601 lb |
| Nardi ONE 60/4 | 600 L/min (36 m³/h · 21.2 cfm) | 4 | 950 rpm | 11 kW (15 HP) | 1200 kg / 2646 lb |
| Nardi ONE 68 | 680 L/min (42 m³/h · 24.0 cfm) | 4 | 1100 rpm | 15 kW (20 HP) | 1200 kg / 2646 lb |
| Nardi ONE 85 | 850 L/min (51 m³/h · 30 cfm) | 4 | 1300 rpm | 18.5 kW (25 HP) | 1300 kg / 2866 lb |
See the Specifications tab for full technical specifications.
Optional equipment
- Nardi Gas Guardian — live air-quality monitoring (O2, CO, CO2, VOC/oil, humidity) with configurable alarms
- Touch-screen control panel
- Chiller
Configure your Nardi ONE — request a quote and we'll walk you through model, operating pressure, connection type, voltage, and optional equipment.
Need the standalone containment station? See the NSF 62 and NSF 63 Safe Fill Stations, or browse the full Nardi Compressori collection.
Engineered in Italy. Made in Italy.
| Maximum Operating Pressure | 225 / 330 / 420 bar (3300 / 4800 / 6000 psi) |
|---|---|
| Purification | Double PAC3 — DIN EN 12021 + CGA 7.1 (Grade E) |
| Integrated Storage | 2 × 50 L high-pressure cylinders |
| Cylinder Max Diameter | 23 cm / 9 in |
| Cylinder Max Length | 75 cm / 29.5 in |
| Connections | DIN, YOKE, or CGA (selectable) |
| Operating Voltage | 400 / 440 / 480 V, 50 / 60 Hz, three-phase (selectable) |
| Weight (estimated) | 1140 – 1300 kg (2513 – 2866 lb) |
| Dimensions (L×W×H) | 2300 × 866 × 1821 mm / 90.6 × 34.1 × 71.7 in |
| Standards | UL-tested to NFPA 1900:2024; DIN EN 12021; CGA 7.1 (Grade E) |
| Country of Origin | Italy |
Brand: Nardi Compressori
Category: All-in-One Filling Station
SKU: NRD-ONE-50
