Nardi Modular Fill Panel — 2-Lever Direct Connection Module

Built to order. Typically ships in 4-6 weeks.
  • In Stock - Ready to Ship
  • Custom Order - See Details Below
$3,040.95 CAD
/
Request a Quote

Some Nardi units are configured or built to your specification; others are standard models we order in from the factory based on your selection. Custom Order items are confirmed and paid for at checkout, then fulfilled on the lead time below.

Lead time for Nardi products:

Lead time depends on the product. Replacement parts, filters, and accessories typically ship within days to a couple of weeks. Built-to-order units, such as Pacific Series compressors, take up to 4 to 6 weeks to build at the Nardi factory in Italy. From there, shipping to Canada takes:

  • Approximately 3 weeks by sea freight (7 to 9 weeks total)
  • Approximately 1 week by air freight, priced on request (5 to 7 weeks total)

What happens next:

  • Payment secures your place in the fulfillment queue
  • You receive an order confirmation with your final specification
  • We coordinate with Nardi to confirm your order and expected ship date
  • Shipping confirmation and tracking follow when your order leaves the factory or warehouse
  • If your timeline changes, we reach out proactively


Need expedited shipping? Use the Request a Quote button above. We'll confirm air freight options and cost, then send a formal quote for your approval.

Nardi Modular Fill Panel. Italian-engineered by Nardi Compressori, the Modular range features a stainless-steel frame, simple wall-mounting, and a module-to-module joining system that lets you tailor fill-bay layouts to your operation. Every module includes a vent valve as standard.

Designed for Fire Stations — enables direct connection of carbon-fiber SCBA cylinders to the filling panel.

Key features:

  • 2 lever valves for direct SCBA cylinder connection
  • Single-pressure (225 bar or 330 bar) or dual-pressure (225/330 bar) configurations
  • Optional Start/Stop remote compressor control
  • Integrated vent valve — depressurizes whole system
  • Stainless-steel frame with wall-mount system

See the Specifications tab for full technical specifications.

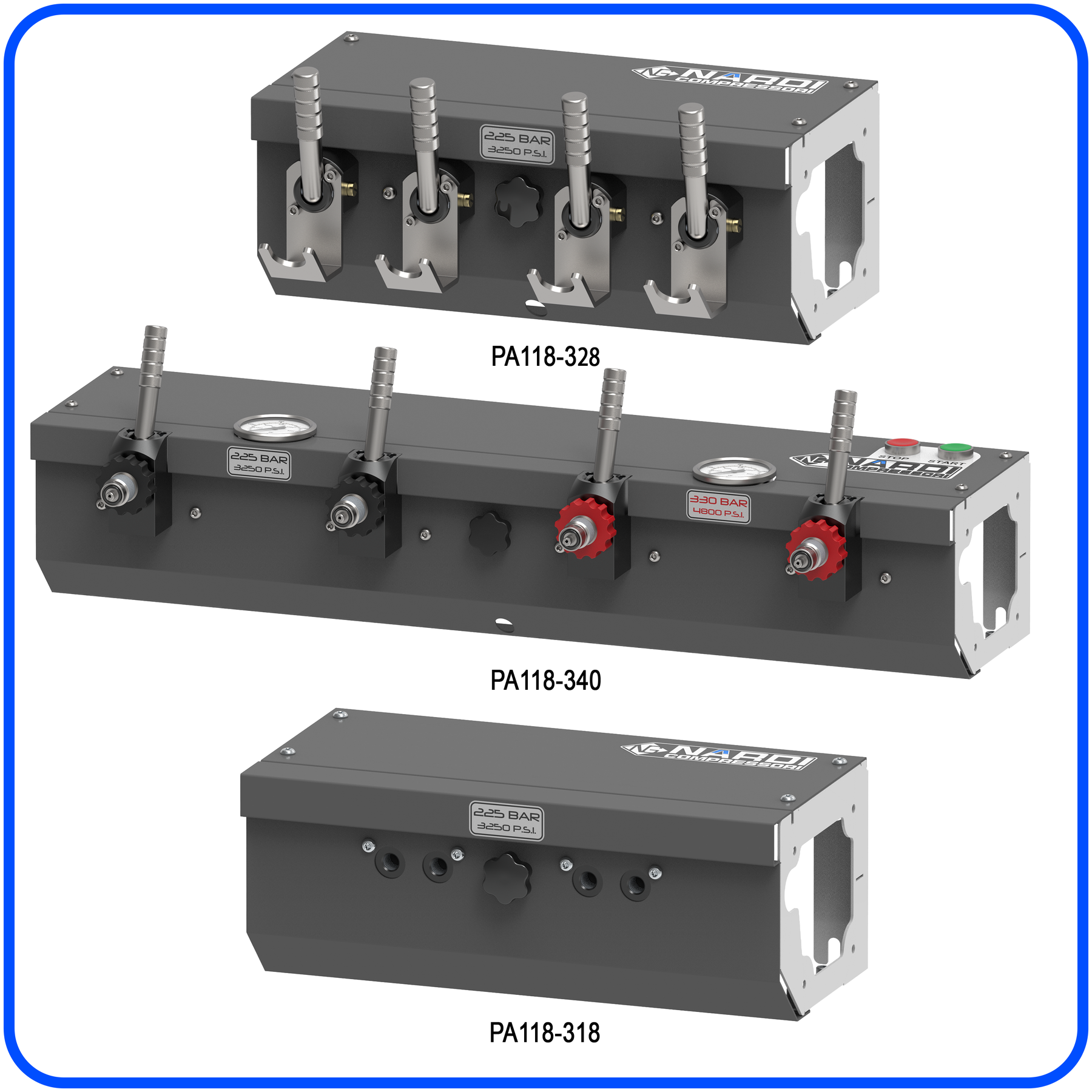

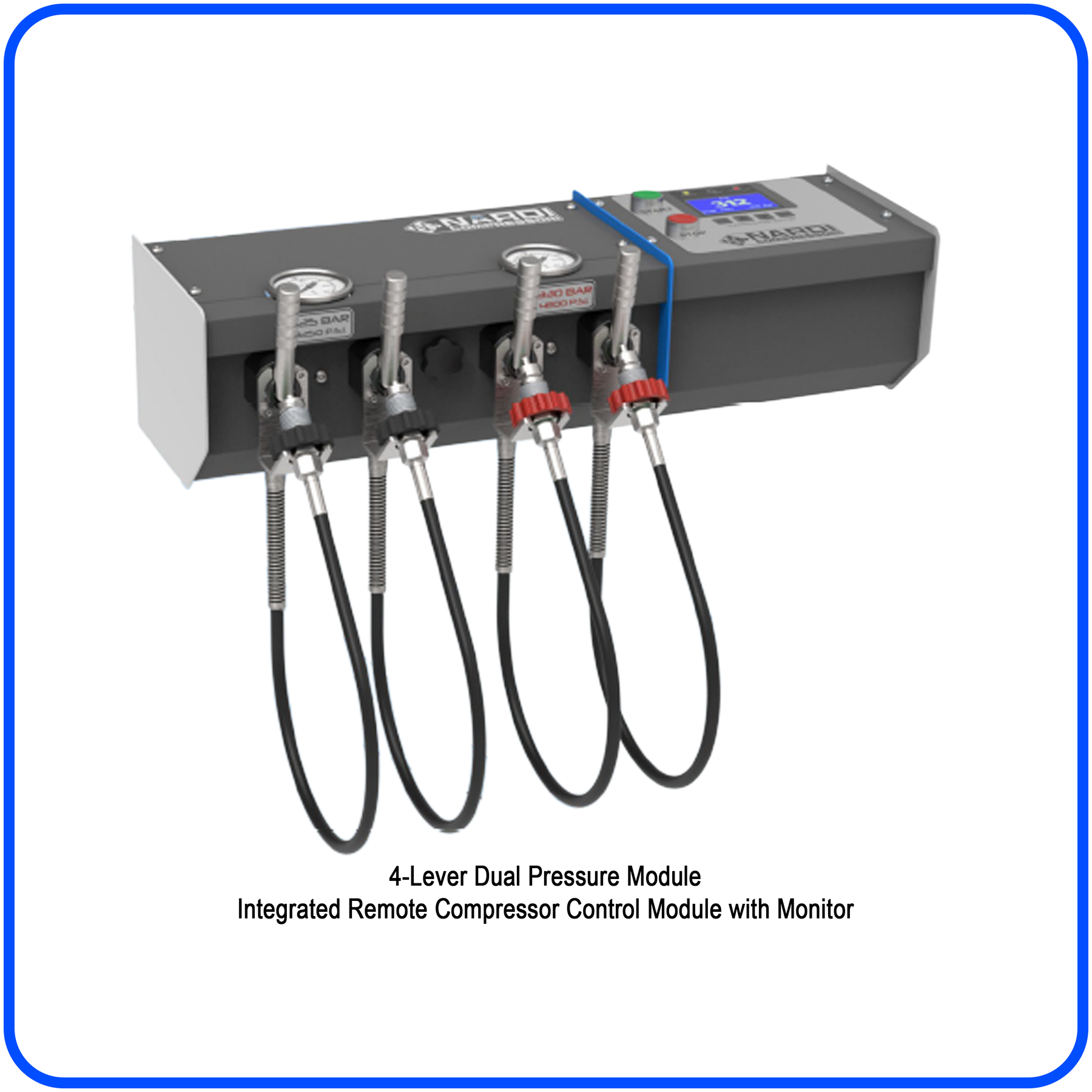

Need a different configuration? Compare the 4-Lever Module (adjacent modular configuration) or Integrated Remote Compressor Controller Module (adjacent modular configuration). Browse the full Nardi Compressori collection.

Configure your Modular Fill Panel — request a quote and we'll walk you through pressure rating, configuration (single or dual), Start/Stop control, and mounting.

Engineered in Italy. Made in Italy.

Configuration Single-pressure 225 bar | Single-pressure 330 bar | Dual 225/330 bar
Pressures 225 bar (3250 psi), 330 bar (4800 psi), or dual
Lever Count 2 lever valves (1+1 on dual-pressure)
Application Direct SCBA carbon-fiber cylinder connection
Remote Control Optional Start/Stop
Country of Origin Italy
Certification CE

Brand: Nardi Compressori

Category: Fill Panel

SKU: NRD-MFP-2LEVD
