Name: Nardi NSF 63 — Safe Fill Station (3-Position Containment)
Brand: Nardi Compressori
SKU: NRD-NSF-63-225
Price: 22931.95 CAD
Availability: InStock

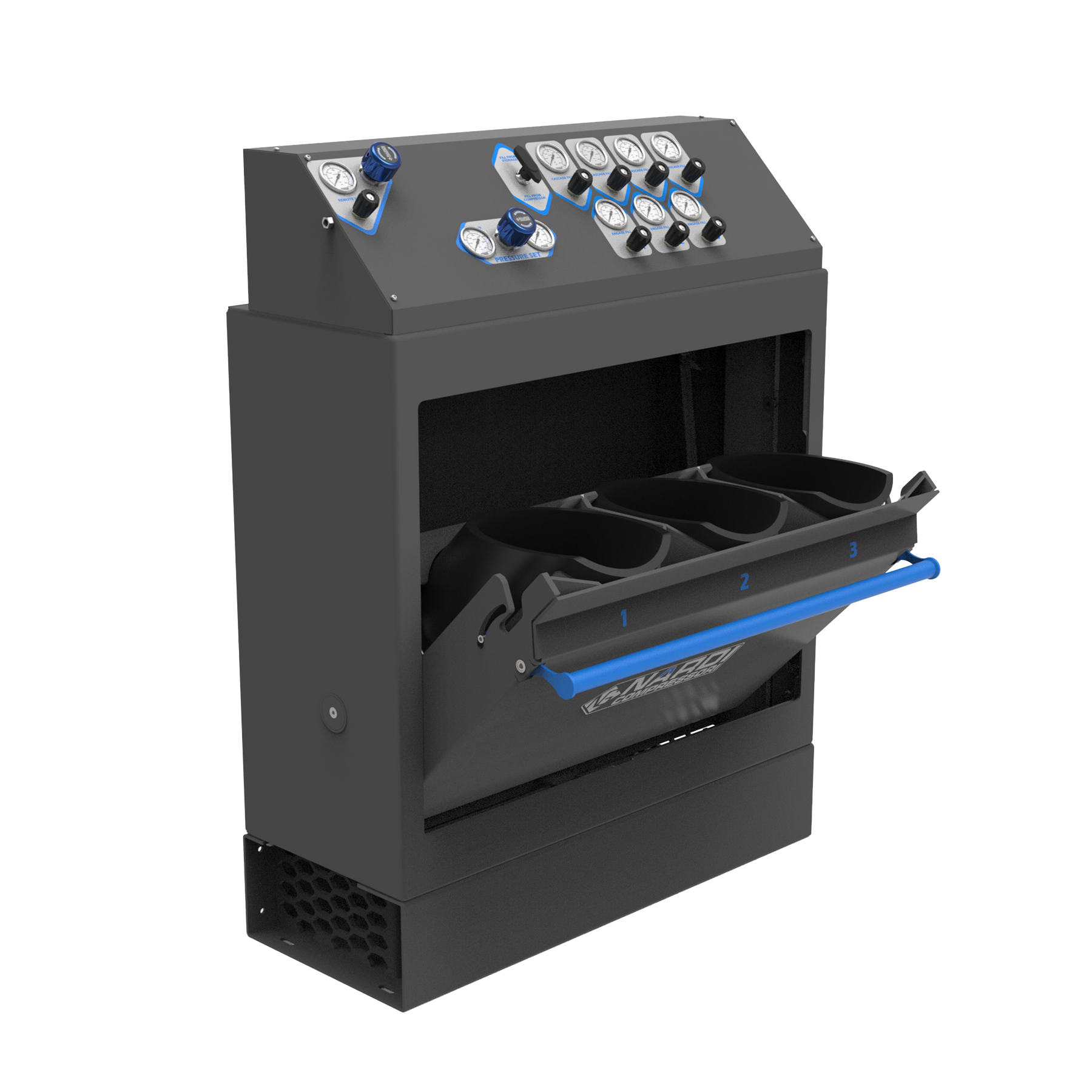

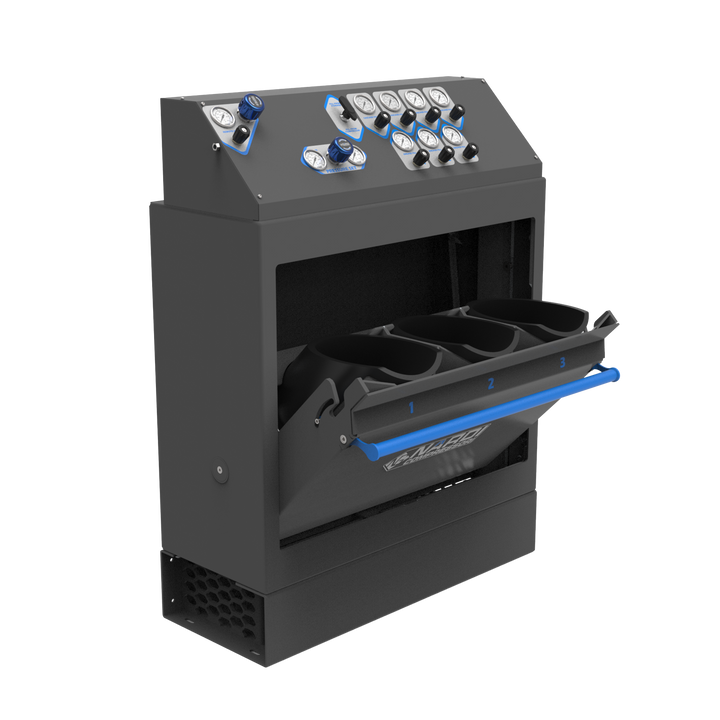

Nardi NSF 63 Safe Fill Station with open 3-position cylinder containment fill panel

Nardi NSF 63 — Safe Fill Station (3-Position Containment)

In Stock - Ready to Ship
Custom Order - See Details Below

$22,931.95

Cylinder Connection

DIN 200 — 225 bar / 3300 psi

DIN 300 — 330 bar / 4800 psi

CGA — 425 bar / 6000 psi

Quantity

Request a Quote

Some Nardi units are configured or built to your specification; others are standard models we order in from the factory based on your selection. Custom Order items are confirmed and paid for at checkout, then fulfilled on the lead time below.

Lead time for Nardi products:

Lead time depends on the product. Replacement parts, filters, and accessories typically ship within days to a couple of weeks. Built-to-order units, such as Pacific Series compressors, take up to 4 to 6 weeks to build at the Nardi factory in Italy. From there, shipping to Canada takes:

Approximately 3 weeks by sea freight (7 to 9 weeks total)
Approximately 1 week by air freight, priced on request (5 to 7 weeks total)

What happens next:

Payment secures your place in the fulfillment queue
You receive an order confirmation with your final specification
We coordinate with Nardi to confirm your order and expected ship date
Shipping confirmation and tracking follow when your order leaves the factory or warehouse
If your timeline changes, we reach out proactively

Need expedited shipping? Use the Request a Quote button above. We'll confirm air freight options and cost, then send a formal quote for your approval.

[{"id":48702221549807,"title":"DIN 200 — 225 bar \/ 3300 psi","option1":"DIN 200 — 225 bar \/ 3300 psi","option2":null,"option3":null,"sku":"NRD-NSF-63-225","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Nardi NSF 63 — Safe Fill Station (3-Position Containment) - DIN 200 — 225 bar \/ 3300 psi","public_title":"DIN 200 — 225 bar \/ 3300 psi","options":["DIN 200 — 225 bar \/ 3300 psi"],"price":2293195,"weight":446000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49642966581487,"title":"DIN 300 — 330 bar \/ 4800 psi","option1":"DIN 300 — 330 bar \/ 4800 psi","option2":null,"option3":null,"sku":"NRD-NSF-63-330","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Nardi NSF 63 — Safe Fill Station (3-Position Containment) - DIN 300 — 330 bar \/ 4800 psi","public_title":"DIN 300 — 330 bar \/ 4800 psi","options":["DIN 300 — 330 bar \/ 4800 psi"],"price":2293195,"weight":446000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49642966614255,"title":"CGA — 425 bar \/ 6000 psi","option1":"CGA — 425 bar \/ 6000 psi","option2":null,"option3":null,"sku":"NRD-NSF-63-414","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Nardi NSF 63 — Safe Fill Station (3-Position Containment) - CGA — 425 bar \/ 6000 psi","public_title":"CGA — 425 bar \/ 6000 psi","options":["CGA — 425 bar \/ 6000 psi"],"price":2293195,"weight":446000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

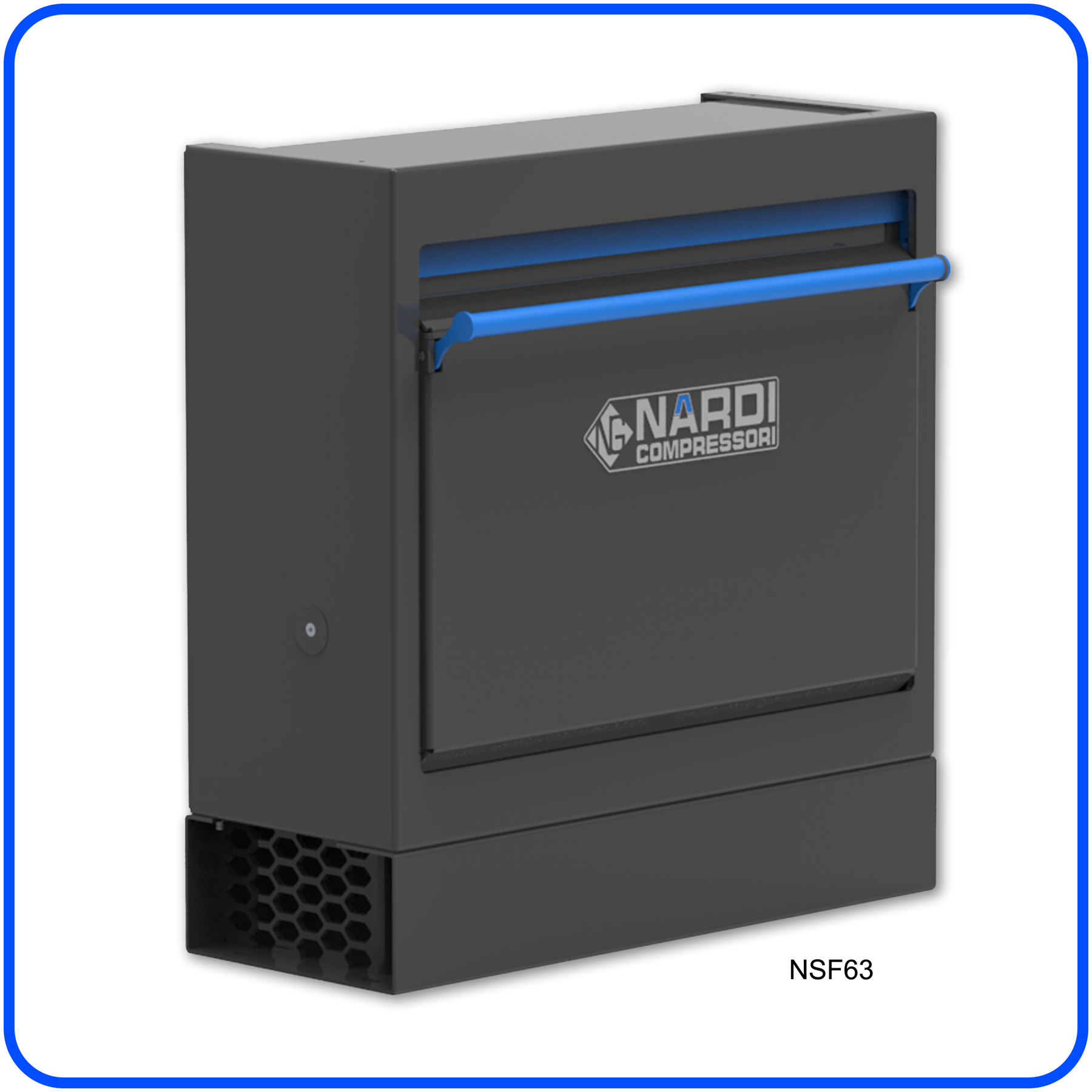

Nardi Safe Fill Station (NSF) high-pressure cylinder containment enclosure, engineered by Nardi Compressori to protect operators from accidental cylinder failures during breathing-air, SCBA, and SCUBA filling operations.

The NSF 63 is a 3-position containment fill station, tested by UL (independent laboratory) to NFPA 1900:2024. Safety interlocks automatically stop the filling cycle the moment the door is opened. Rated to a maximum operating pressure of 425 bar / 6000 psi for maximum operator protection in demanding applications.

Key features:

3 fill positions
UL-tested to NFPA 1900:2024
Automatic safety interlock — halts fill on door open
Maximum operating pressure 425 bar / 6000 psi
Choice of DIN 200, DIN 300, or CGA cylinder connection
Max cylinder height 75 cm (29.5 in), max diameter 23 cm (9 in)

See the Specifications tab for full technical specifications.

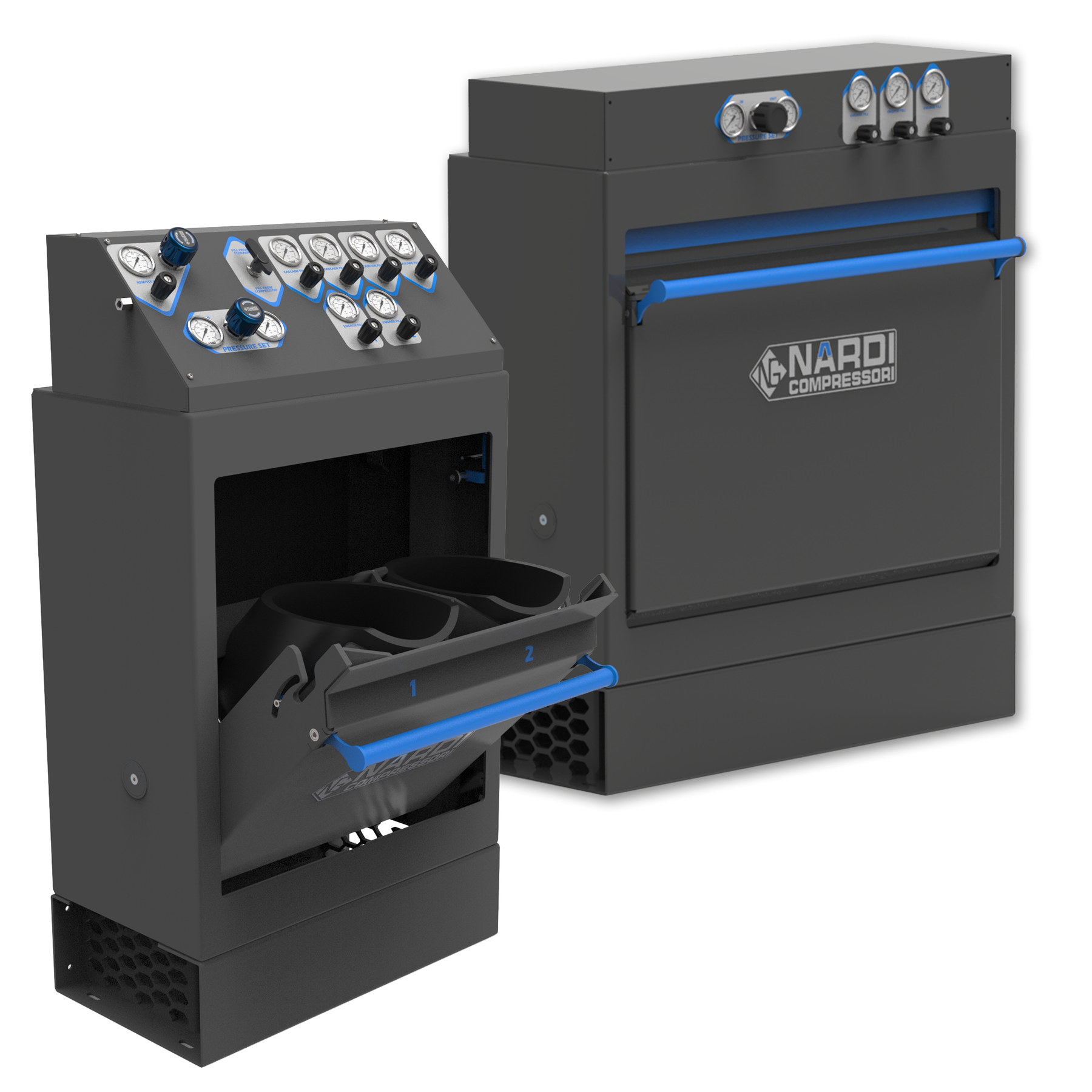

Need a different configuration? Compare the NSF 62 (2-position containment) or the Nardi Modular Fill Panel — 4-Outlet (non-containment modular fill panel). Browse the full Nardi Compressori collection.

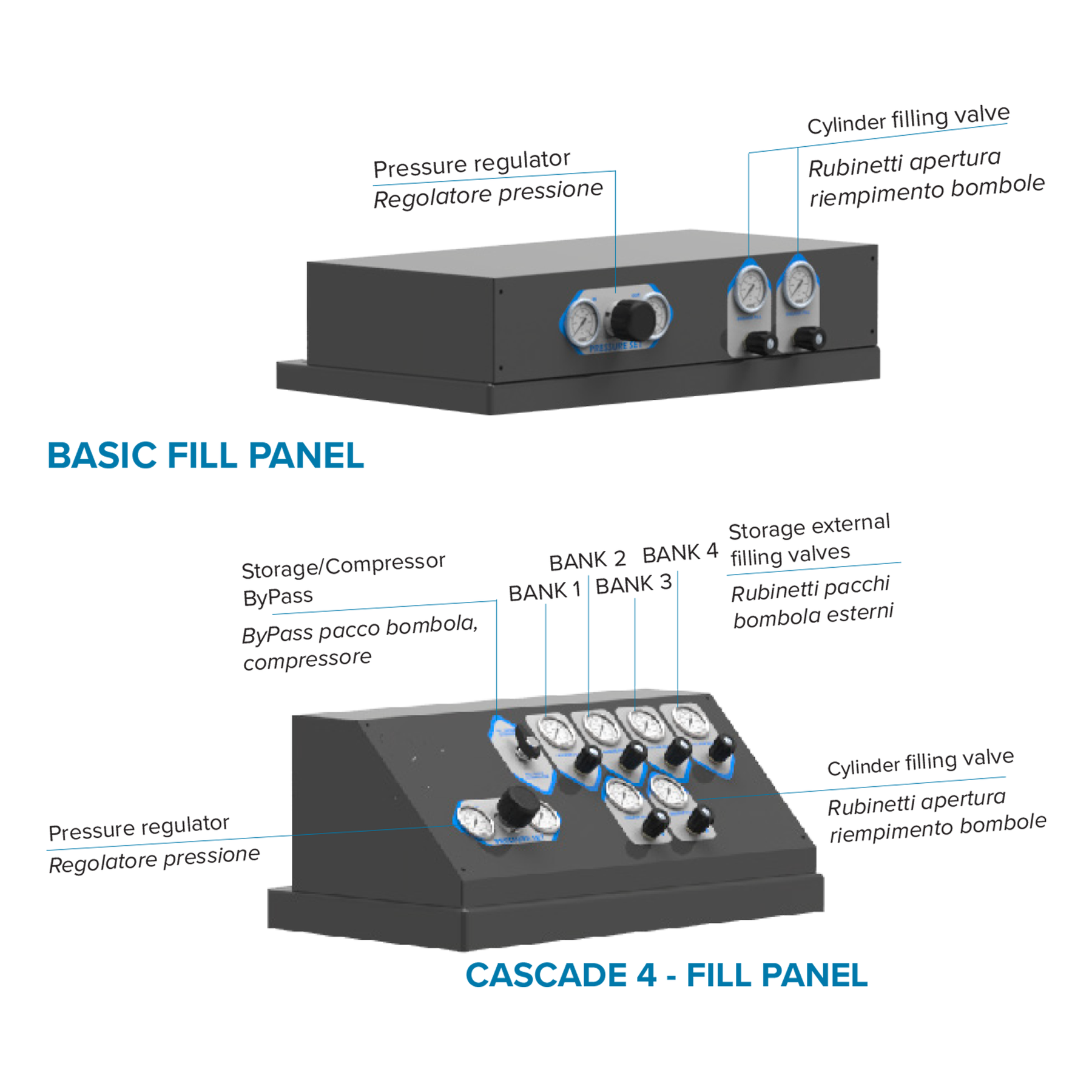

Configure your NSF 63 — request a quote and we'll walk you through fill-panel options, cylinder connection, and site requirements.

Engineered in Italy. Made in Italy.

Fill Positions	3
Maximum Operating Pressure	DIN 200: 225 bar (3300 psi) · DIN 300: 330 bar (4800 psi) · CGA: 425 bar (6000 psi)
Cylinder Max Diameter	23 cm / 9 in
Cylinder Max Height	75 cm / 29.5 in
Cylinder Connections	DIN 200, DIN 300, or CGA (selectable)
Weight	446 kg / 983 lbs
Dimensions (L×W×H)	1105 × 540 × 1162 mm / 43.5 × 21.3 × 45.7 in
Standards	UL-tested to NFPA 1900:2024
Country of Origin	Italy
Certification	NFPA 1900:2024

Brand: Nardi Compressori

Category: Cylinder Fill Station

SKU: NRD-NSF-63-225
