Nardi Pacific M, Italian-engineered silenced vertical high-pressure compressor from Nardi Compressori, built for both breathing air and industrial duty. Its soundproof, silenced chassis is larger than the Pacific C, and a quick-opening sidewall gives easy access to the compressor block. Every Pacific M ships with the NARDI automatic control panel for continuous monitoring, real-time alarms, and scheduled-maintenance alerts. For breathing air it meets international air-quality directives; on the industrial side it can be configured to compress air and inert gases.
Use the configurator above to choose model, operating pressure, connection type, voltage, purification system, and factory-installed options. The price updates as you configure.
Model lineup (four electric models)
- PACIFIC M 23, 230 L/min (8.1 cfm), 3-stage, 4.0 kW, PAC 1
- PACIFIC M 27, 270 L/min (9.5 cfm), 3-stage, 5.5 kW, PAC 1
- PACIFIC M 30, 300 L/min (10.6 cfm), 3-stage, 5.5 kW, PAC 1
- PACIFIC M 35, 350 L/min (12.4 cfm), 4-stage, 7.5 kW, PAC 2
Standard equipment (every Pacific M)
- 330 bar / 4,786 psi maximum operating pressure
- NARDI automatic control panel, continuous monitoring, real-time alarms, scheduled-maintenance alerts
- Oil-pump lubrication on every model, including the M 23 and M 27
- Oil alert (standard)
- Final-stage sensor fitted as standard

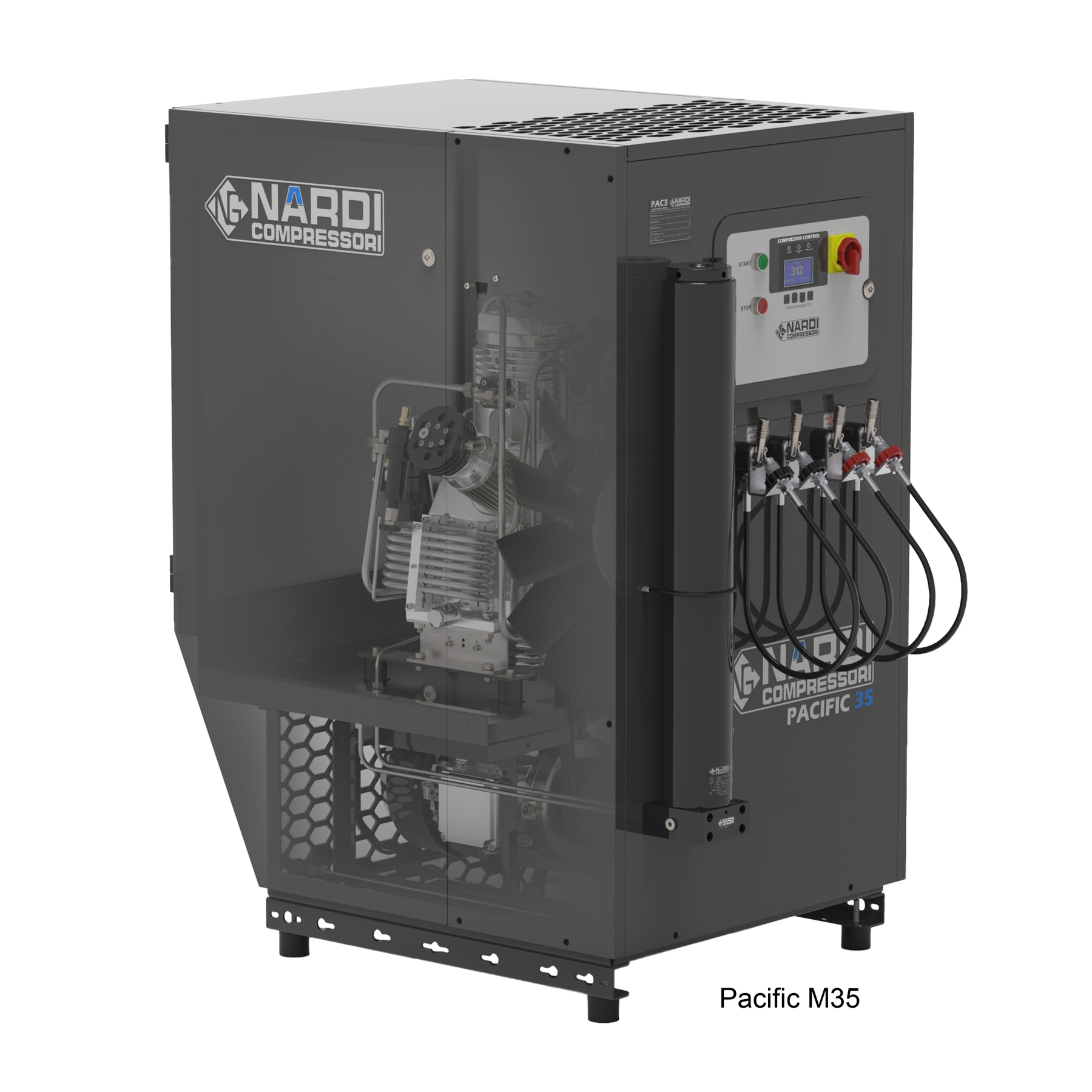

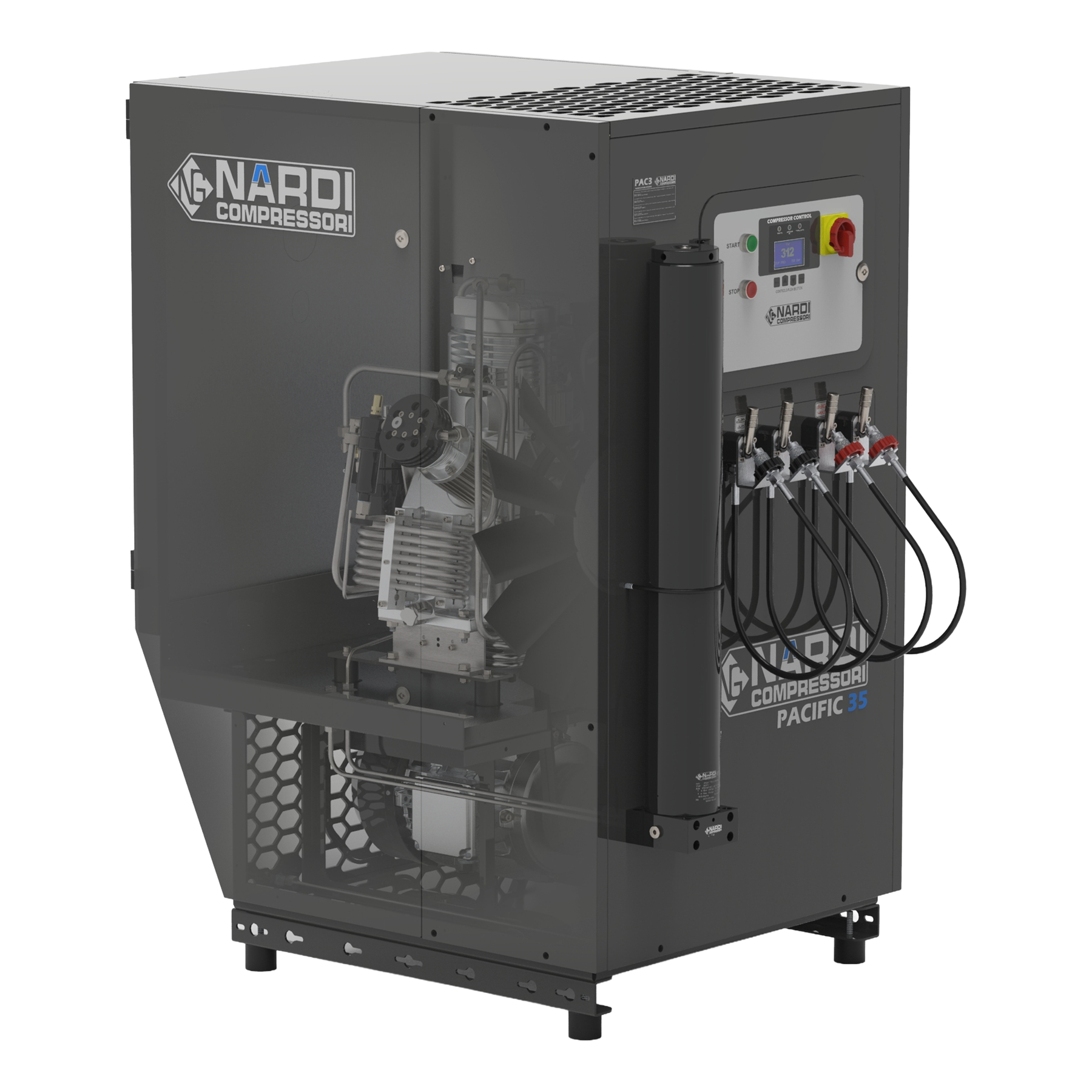

- Silenced, soundproof chassis with quick-opening sidewall access
- 4-fold filling device with 2 hose connections
- PAC 1 purification system (PAC 2 on the M 35)
- Compliant with DIN EN 12021 (European breathing-air standard)
Order-time configuration (selected above)
- Operating pressure: 225 bar / 3,263 psi or 330 bar / 4,786 psi. A 420 bar / 6,092 psi build is offered on the M 30 and M 35.
- Connection type (225 bar only): DIN, INT (YOKE), or DIN with reduction to INT-YOKE
- Voltage / frequency: 240V single phase with soft start included, or 208V, 480V or 600V three phase, all at 60 Hz. Other voltages are available on request.
- Purification system: PAC 1 standard (PAC 2 on M 35); upgrade to PAC 2 or PAC 3 at order time
Optional factory-installed equipment
- Soft start (included with 240V single phase)
- Additional pressure or temperature sensors, one for each stage before the final stage (two on 3-stage models, three on the M 35)
- Double pressure (225 bar / 3,263 psi + 330 bar / 4,786 psi)
- Additional hose connections (max two)
- Eco-friendly condensate collecting tank, 12 L
- Kit of 4 wheels with brakes
- Large separators
- ATEX certificate, Zone II
- Touch screen control panel
See the Specifications tab for full technical specifications.
Replacement parts and consumables
The Pacific M ships with the PAC 1 purification tower as standard (the M 35 ships with PAC 2). Replace its cartridge per the schedule in your Operator's Manual, see the Nardi Filter PAC1 Replacement Filter Cartridge, or the Nardi Filter PAC2 Replacement Filter Cartridge for the M 35 and any unit upgraded to a PAC 2 tower. If your unit was ordered with a PAC 3 tower upgrade, order the PAC3 cartridge instead. Other Pacific consumables and service kits are sold separately, contact us for the correct reference.
Browse the full Nardi Compressori collection for other breathing-air, industrial, and oil-free compressors.
Engineered in Italy. Made in Italy.
| Specification | Pacific M (electric) |
|---|---|
| Charging rate | 230 – 350 L/min (8.1 – 12.4 cfm) |
| Max operating pressure | 330 bar / 4,786 psi (420 bar / 6,092 psi option on the M 30 and M 35) |
| Stages | 3 (M 35: 4) |
| Power | 4.0 – 7.5 kW |
| Power supply | 240V single phase, or 208V, 480V or 600V three phase, 60 Hz. Other voltages available on request. |
| Purification system | PAC 1 (M 35: PAC 2) |
| Weight (estimated) | 264 – 274 kg (582 – 604 lb) |
| Dimensions (L × W × H) | 75 × 108 × 134 cm |
| Country of origin | Italy |
| Compliance | DIN EN 12021, CE (CSA pending) |
