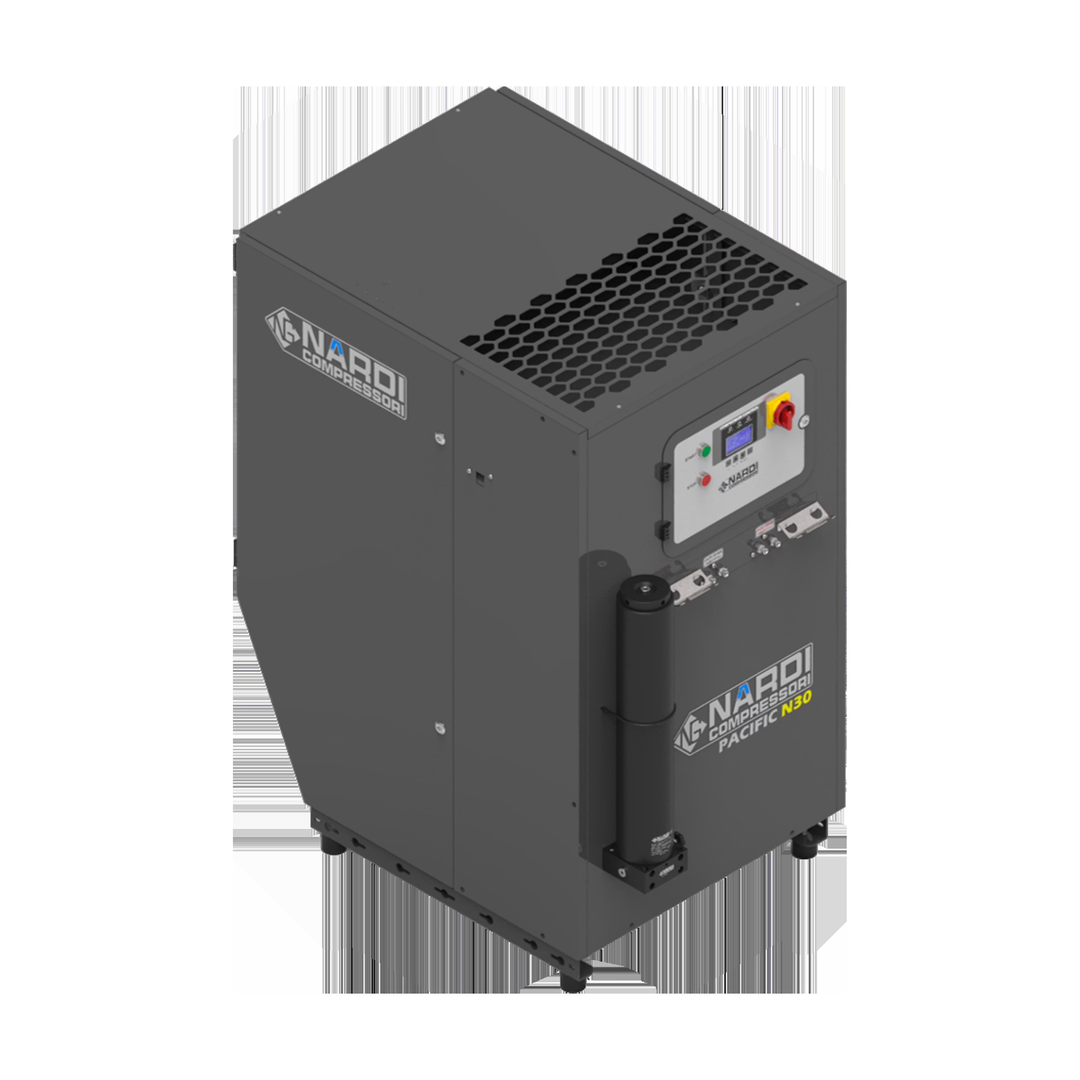

Nardi Pacific M 30N Nitrox, Italian-engineered silenced vertical high-pressure compressor from Nardi Compressori, built for oxygen-enriched air (nitrox) mixtures of up to 40% oxygen as well as standard breathing air. It is a four-stage unit in the Pacific M soundproof cabinet, with oil-pump lubrication and pressure and temperature sensors on every stage. Pair it with a Nardi Nitrox Generator or another nitrox supply to fill cylinders with enriched air at a fixed location.
Model
- PACIFIC M 30N, 300 L/min (10.6 cfm), 4-stage, 5.5 kW (7.5 HP), PAC 2 purification
Standard equipment
- 420 bar / 6,092 psi maximum operating pressure
- For nitrox mixtures up to 40% oxygen
- Pressure and temperature sensors on all stages
- Oil-pump lubrication
- PAC 2 purification system
- Silenced, soundproof cabinet
- 4-fold filling device with 2 hose connections, 1 m filling hoses
- Compliant with DIN EN 12021 (European breathing-air standard)
Specify at time of order
This compressor is built to order. Confirm the following with us before your order is placed, as they determine the final configuration and price.
-
Connection type (225 bar only): DIN, INT (YOKE), or DIN with reduction to INT-YOKE
-
Voltage and frequency: 240V single phase with soft start included, or 208V, 480V or 600V three phase, all at 60 Hz. Other voltages are available on request.
Optional factory-installed equipment
- Soft start (included with 240V single phase)
- PAC 3 purification upgrade (from PAC 2)
- Double pressure (225 bar / 3,263 psi + 330 bar / 4,786 psi)
- Additional hose connections (max two)
- DIN to INT-YOKE reduction (225 bar DIN connections)
- Kit of 4 wheels with brakes
- Eco-friendly condensate collecting tank, 12 L
- Large separators
- ATEX certificate, Zone II
See the Specifications tab for full technical specifications.
Replacement parts and consumables
The Pacific M 30N Nitrox ships with the PAC 2 purification tower. Replace its cartridge per the schedule in your Operator's Manual, see the Nardi Filter PAC2 Replacement Filter Cartridge. If your unit was ordered with the PAC 3 upgrade, order the PAC3 cartridge instead. Other Pacific consumables and service kits are sold separately, contact us for the correct reference.
Browse the full Nardi Compressori collection for other breathing-air, industrial, and oil-free compressors.
Engineered in Italy. Made in Italy.
| Specification | Pacific M 30N Nitrox |
|---|
| Charging rate | 300 L/min (10.6 cfm) |
|---|
| Max operating pressure | 420 bar / 6,092 psi (dual-pressure 225 + 330 bar option) |
|---|
| Stages | 4 |
|---|
| Power | 5.5 kW (7.5 HP) |
|---|
| Power supply | 240V single phase, or 208V, 480V or 600V three phase, 60 Hz. Other voltages available on request. |
|---|
| Gas service | Breathing air and nitrox up to 40% oxygen |
|---|
| Purification system | PAC 2 (PAC 3 upgrade available) |
|---|
| Lubrication | Oil pump |
|---|
| Sensors | Pressure and temperature on all stages |
|---|
| Noise | 68 dBA |
|---|
| Weight (estimated) | 269 kg (593 lb) |
|---|
| Dimensions (L × W × H) | 75 × 108 × 134 cm |
|---|
| Country of origin | Italy |
|---|
| Compliance | DIN EN 12021, CE (CSA pending) |
|---|
Brand: Nardi Compressori
Category: Breathing Air Compressor
SKU: NRD-PAC-M-NTX
