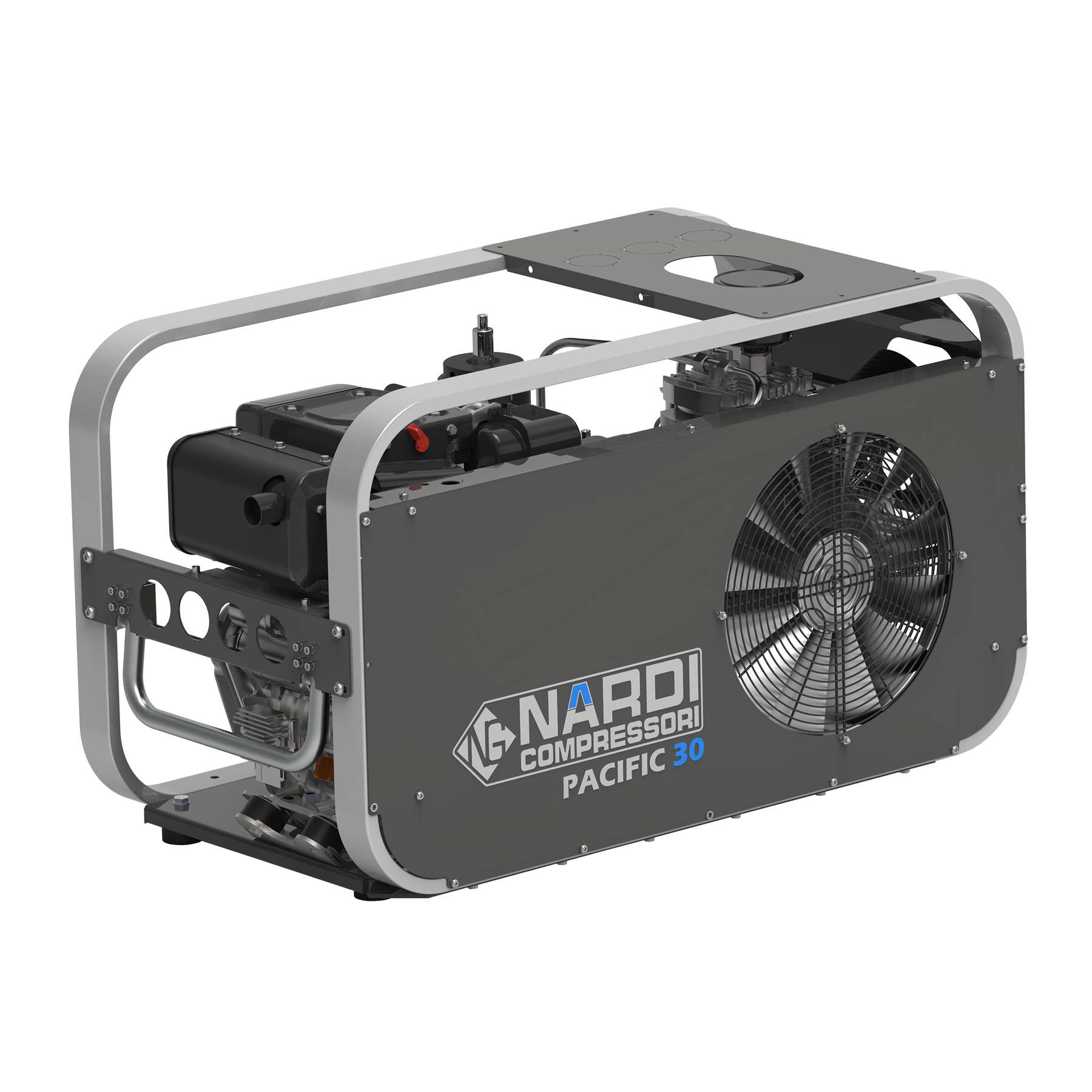

Nardi Pacific DY — Italian-engineered portable diesel high-pressure breathing air compressor from Nardi Compressori, powered by a Yanmar diesel engine. Built for demanding, remote, and offshore work where mains power is not available, the Pacific DY emphasizes mobility, durability, and safe performance under extreme conditions, in a rugged portable protective frame.
Use the configurator above to choose model, operating pressure, connection type, purification system, and factory-installed options. The price updates as you configure.
Model lineup (four diesel models)
- PACIFIC DY 23 — 230 L/min (8.1 cfm), 3-stage, 7.4 kW Yanmar diesel, PAC 1
- PACIFIC DY 27 — 270 L/min (9.5 cfm), 3-stage, 7.4 kW Yanmar diesel, PAC 1

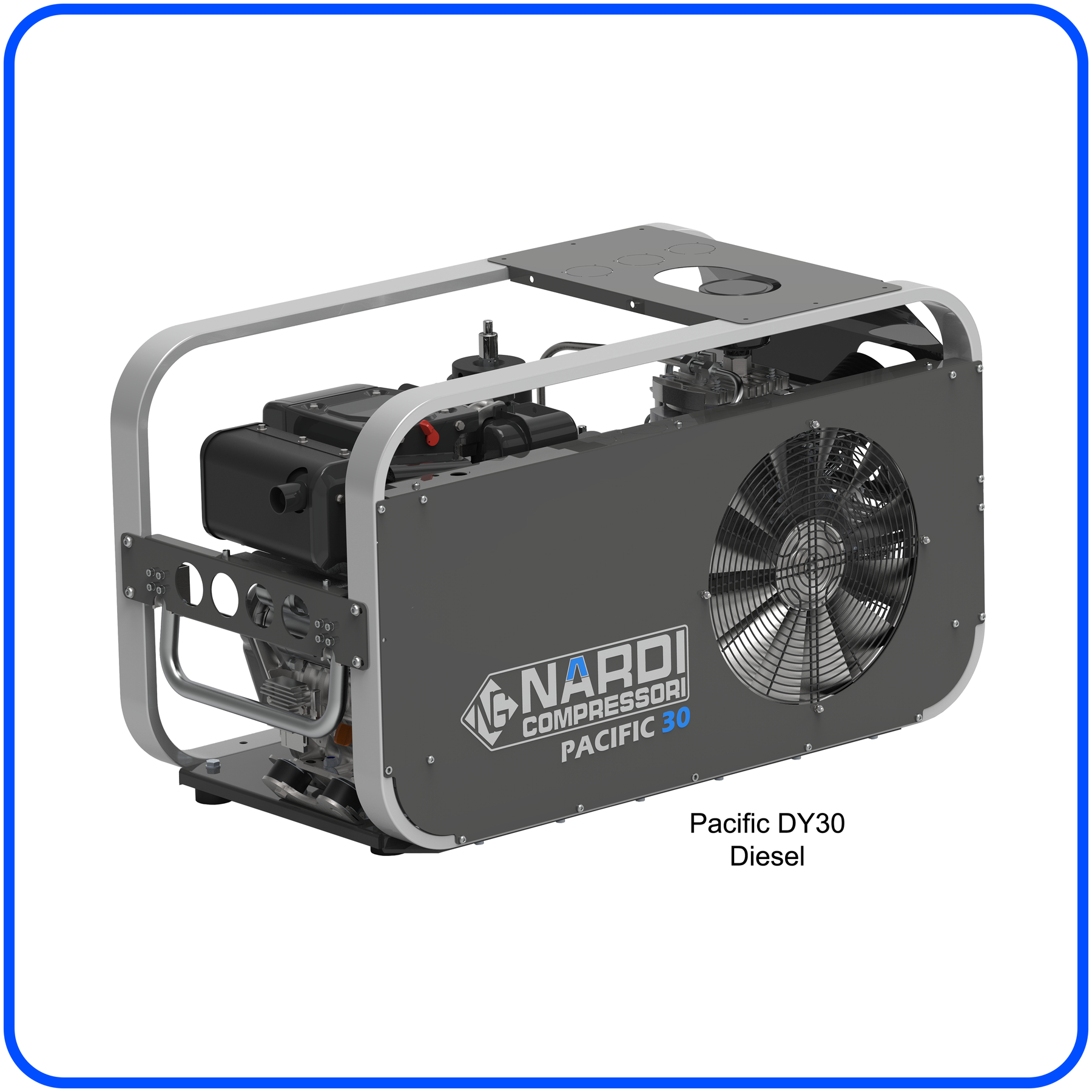

- PACIFIC DY 30 — 300 L/min (10.6 cfm), 3-stage, 7.4 kW Yanmar diesel, PAC 1
- PACIFIC DY 35 — 350 L/min (12.7 cfm), 4-stage, 7.4 kW Yanmar diesel, PAC 2
Standard equipment (every Pacific DY)
- 330 bar / 4,700 psi maximum operating pressure
- Yanmar diesel engine
- PAC 1 purification system (PAC 2 on the DY 35)
- Rugged portable protective frame
- 4-fold filling device with 2 hose connections
- Splash lubrication (oil-pump lubrication optional on DY 23 and DY 27)
- Compliant with DIN EN 12021 (European breathing-air standard)
Order-time configuration (selected above)
- Operating pressure: 225 bar / 3,200 psi or 330 bar / 4,700 psi. A 420 bar / 6,000 psi build is offered on the 4-stage DY 35; availability and pricing are confirmed at quote.
- Connection type (225 bar only): DIN, INT (YOKE), or DIN with reduction to INT-YOKE
- Purification system: PAC 1 standard (PAC 2 on DY 35); upgrade to PAC 2 or PAC 3 at order time
Optional factory-installed equipment
- Automatic system (automatic condensate drain, auto-stop, electric start with key)
- Oil-pump lubrication (DY 23, DY 27)
- Oil alert; hour meter
- PAC Filter 2 or PAC Filter 3 purification upgrade
- Double pressure (225 bar / 3,200 psi + 330 bar / 4,700 psi)
- Additional hose connections (max two), trolley, handles, large separators, 12 L eco-friendly condensate tank
See the Specifications tab for full technical specifications.
Replacement parts and consumables
The Pacific DY ships with the PAC 1 purification tower as standard (the DY 35 ships with PAC 2). Replace its cartridge per the schedule in your Operator's Manual — see the Nardi Filter PAC1 Replacement Filter Cartridge (choose the Gasoline / Diesel cartridge, MC-AC-HO with Hopcalite, for diesel engines), or the Nardi Filter PAC2 Replacement Filter Cartridge for the DY 35 and any unit upgraded to a PAC 2 tower. If your unit was ordered with a PAC 3 tower upgrade, order the PAC3 cartridge instead. Other Pacific consumables and service kits are sold separately — contact us for the correct reference.
Browse the full Nardi Compressori collection for other breathing-air, industrial, and oil-free compressors.
Engineered in Italy. Made in Italy.
| Specification | Pacific DY (diesel) |
|---|---|
| Charging rate | 230 – 350 L/min (8.1 – 12.7 cfm) |
| Max operating pressure | 330 bar / 4,700 psi (420 bar option on the 4-stage DY 35) |
| Stages | 3 (DY 35: 4) |
| Power | 7.4 kW |
| Engine | Yanmar diesel |
| Purification system | PAC 1 (DY 35: PAC 2) |
| Weight | 165 – 172 kg (364 – 379 lb) |
| Dimensions (L × W × H) | 109 × 58 × 65 cm |
| Country of origin | Italy |
| Compliance | DIN EN 12021, CE (CSA pending) |
Brand: Nardi Compressori
Category: Breathing Air Compressor
SKU: NRD-PAC-DY-DSL
