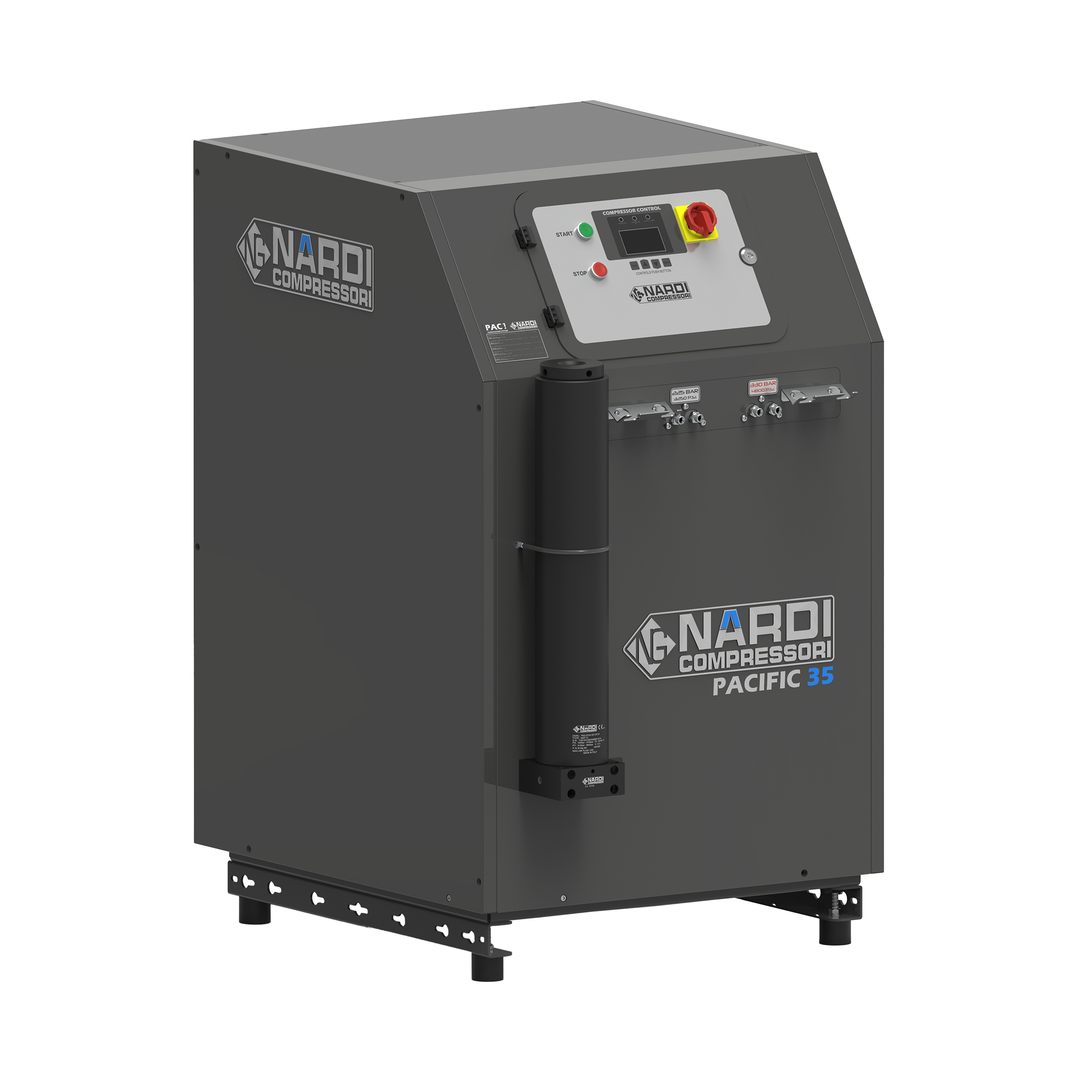

Nardi Pacific C, Italian-engineered silenced vertical high-pressure breathing air compressor from Nardi Compressori. The Pacific C is Nardi's first silent model, designed for indoor installation in fire halls, dive centers, public-safety training facilities, and industrial fill rooms. Its sound-insulated enclosed cabinet keeps noise down and internal temperatures low, even in tropical conditions, and every unit ships with the NARDI automatic control panel for continuous monitoring, alarm notifications, and scheduled-maintenance alerts.
Use the configurator above to choose model, operating pressure, connection type, voltage, purification system, and factory-installed options. The price updates as you configure.
Model lineup (five electric models)
- PACIFIC C 16, 160 L/min (5.6 cfm), 3-stage, 3.0 kW, 240V single phase, PAC 1
- PACIFIC C 23, 230 L/min (8.1 cfm), 3-stage, 4.0 kW, PAC 1
- PACIFIC C 27, 270 L/min (9.5 cfm), 3-stage, 5.5 kW, PAC 1
- PACIFIC C 30, 300 L/min (10.6 cfm), 3-stage, 5.5 kW, PAC 1
- PACIFIC C 35, 350 L/min (12.4 cfm), 4-stage, 7.5 kW, PAC 2
Standard equipment (every Pacific C)
- 330 bar / 4,786 psi maximum operating pressure
- NARDI automatic control panel, continuous monitoring, alarm signals, scheduled-maintenance alerts
- Oil alert (standard)
- Final-stage sensor fitted as standard
- Sound-insulated enclosed cabinet for indoor installation
- 2-fold filling device with 2 hose connections
- PAC 1 purification system (PAC 2 on the C 35)
- Compliant with DIN EN 12021 (European breathing-air standard)
Order-time configuration (selected above)
- Operating pressure: 225 bar / 3,263 psi or 330 bar / 4,786 psi. A 420 bar / 6,092 psi build is offered on the 4-stage C 35.
- Connection type (225 bar only): DIN, INT (YOKE), or DIN with reduction to INT-YOKE
- Voltage / frequency: the C 16 runs on 240V single phase as standard. The C 23 to C 35 take 240V single phase with soft start included, or 208V, 480V or 600V three phase, all at 60 Hz. Other voltages are available on request.
- Purification system: PAC 1 standard (PAC 2 on C 35); upgrade to PAC 2 or PAC 3 at order time
Optional factory-installed equipment
- Soft start on the C 23 to C 35 (included with 240V single phase)
- Oil-pump lubrication (splash-lubricated models: C 16, C 23, C 27)
- Additional pressure or temperature sensors, one for each stage before the final stage (two on 3-stage models, three on the C 35)
- Double pressure with safety valve (225 bar / 3,263 psi + 330 bar / 4,786 psi)
- Eco-friendly condensate collecting tank, 12 L
- Large separators
- ATEX certificate, Zone II
- Touch screen control panel
See the Specifications tab for full technical specifications.
Replacement parts and consumables
The Pacific C ships with the PAC 1 purification tower as standard (the C 35 ships with PAC 2). Replace its cartridge per the schedule in your Operator's Manual, see the Nardi Filter PAC1 Replacement Filter Cartridge, or the Nardi Filter PAC2 Replacement Filter Cartridge for the C 35 and any unit upgraded to a PAC 2 tower. If your unit was ordered with a PAC 3 tower upgrade, order the PAC3 cartridge instead. Other Pacific consumables and service kits are sold separately, contact us for the correct reference.
Browse the full Nardi Compressori collection for other breathing-air, industrial, and oil-free compressors.
Engineered in Italy. Made in Italy.
| Specification | Pacific C (electric) |
|---|---|
| Charging rate | 160 – 350 L/min (5.6 – 12.4 cfm) |
| Max operating pressure | 330 bar / 4,786 psi (420 bar / 6,092 psi option on the C 35) |
| Stages | 3 (C 35: 4) |
| Power | 3.0 – 7.5 kW |
| Power supply | 240V single phase (all models), or 208V, 480V or 600V three phase (C 23 to C 35), 60 Hz. Other voltages available on request. |
| Purification system | PAC 1 (C 35: PAC 2) |
| Weight (estimated) | 205 – 235 kg (452 – 518 lb) |
| Dimensions (L × W × H) | 75 × 95 × 123 cm |
| Country of origin | Italy |
| Compliance | DIN EN 12021, CE (CSA pending) |
Brand: Nardi Compressori
Category: Breathing Air Compressor
SKU: NRD-PAC-C-ELEC
