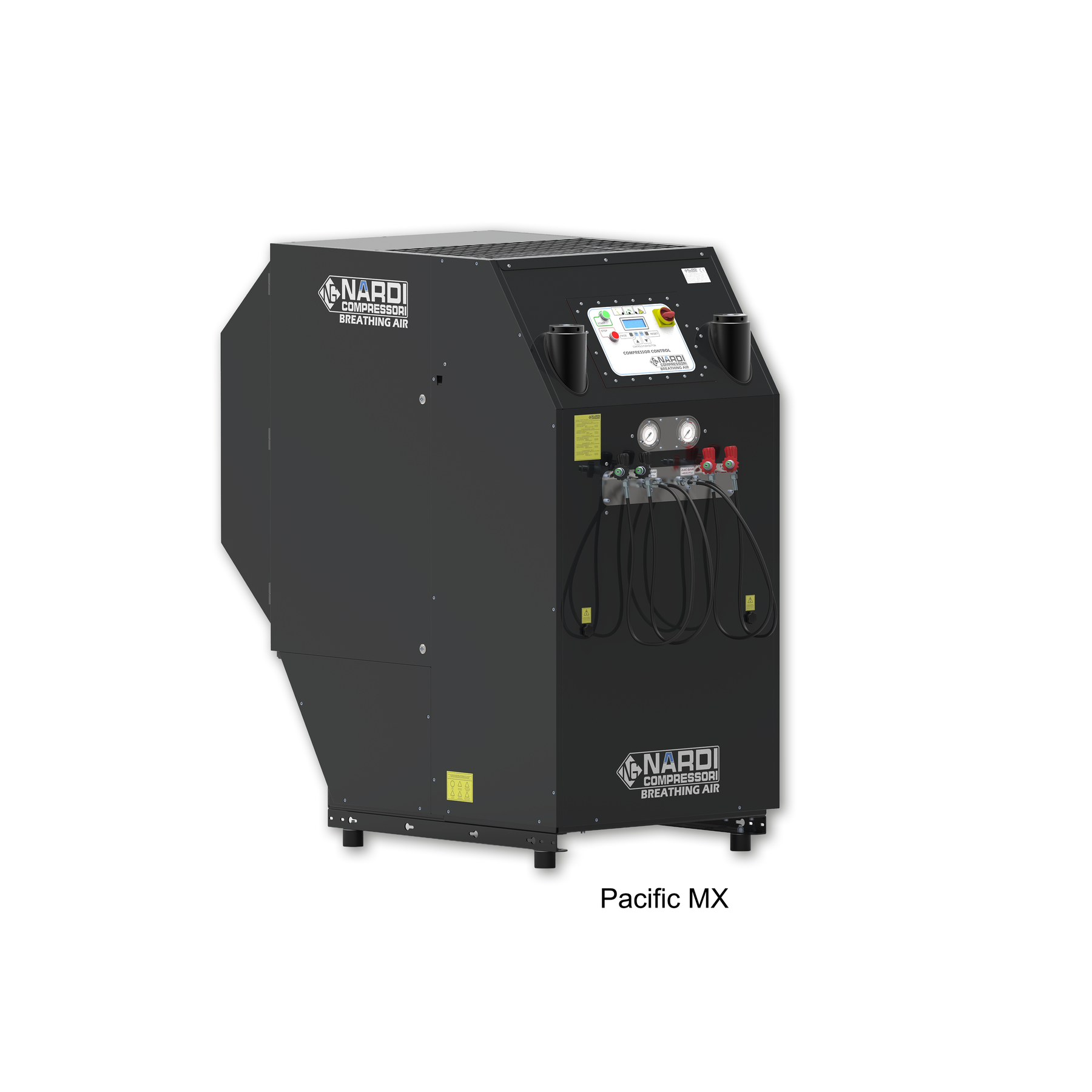

Nardi Pacific MX, Italian-engineered high-output silenced vertical breathing air compressor from Nardi Compressori, the heavy-duty top of the Pacific vertical range. The Pacific MX delivers 500 to 850 L/min for high-throughput fill rooms, dive centers, fire and public-safety facilities, and industrial breathing-air operations, in a sound-insulated cabinet built for continuous duty.
Use the configurator above to choose model, operating pressure, connection type, voltage, purification system, and factory-installed options. The price updates as you configure.
Model lineup (five electric models)
- PACIFIC MX 50, 500 L/min (17.7 cfm), 3-stage, 11 kW, three-phase, single PAC 3
- PACIFIC MX 60, 600 L/min (21.2 cfm), 3-stage, 11 kW, three-phase, Double PAC 3
- PACIFIC MX 60/4, 600 L/min (21.2 cfm), 4-stage, 11 kW, three-phase, Double PAC 3
- PACIFIC MX 68, 680 L/min (23.9 cfm), 4-stage, 15 kW, three-phase, Double PAC 3

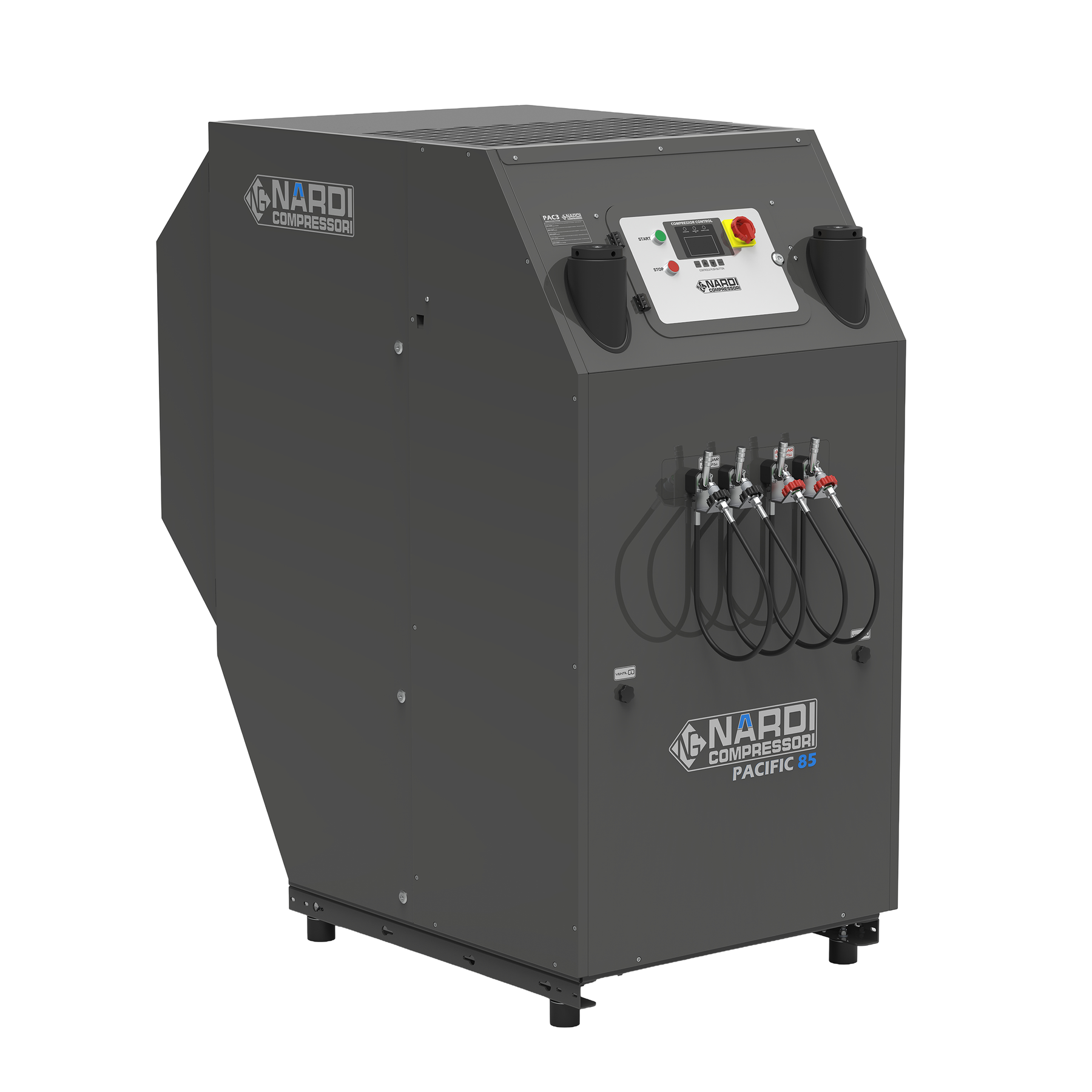

- PACIFIC MX 85, 850 L/min (30 cfm), 4-stage, 18.5 kW, three-phase, Double PAC 3
Standard equipment (every Pacific MX)
- 330 bar / 4,786 psi maximum operating pressure (420 bar / 6,092 psi high-pressure build available)
- Soft start, oil-pump lubrication, oil alert, and large separators, all standard
- Final-stage sensor fitted as standard
- Sound-insulated cabinet for continuous-duty operation
- Four filling hoses and a 12 L eco-friendly condensate collecting tank
- Single PAC 3 purification (MX 50) or Double PAC 3 (MX 60 / 60/4 / 68 / 85)
- Compliant with DIN EN 12021 (European breathing-air standard)
Order-time configuration (selected above)
- Operating pressure: 225 bar / 3,263 psi or 330 bar / 4,786 psi standard. A 420 bar / 6,092 psi high-pressure build is available across the MX range (confirmed with Nardi).
- Connection type (225 bar only): DIN, INT (YOKE), or DIN with reduction to INT-YOKE
- Voltage / frequency: 208V, 480V or 600V three phase at 60 Hz. Other voltages are available on request.
- Purification system: the MX 50 ships with a single PAC 3 tower and can add the supplementary 2 x PAC 3 system; the MX 60 / 60/4 / 68 / 85 ship with Double PAC 3 as standard
Optional factory-installed equipment
- 420 bar / 6,092 psi high-pressure build
- Additional pressure or temperature sensors, one for each stage before the final stage (two on the MX 50 and MX 60, three on the 4-stage models)
- Supplementary filtering (2 x PAC 3) on the MX 50
- Double pressure (225 bar / 3,263 psi + 330 bar / 4,786 psi)
- ATEX certificate, Zone II
- Touch screen control panel
See the Specifications tab for full technical specifications.
Replacement parts and consumables
The Pacific MX uses the PAC 3 purification tower (two of them on every model except the MX 50). Replace each cartridge per the schedule in your Operator's Manual, see the Nardi Filter PAC3 Replacement Filter Cartridge. Double PAC 3 units take two PAC 3 cartridges. Other Pacific consumables and service kits are sold separately, contact us for the correct reference.
Browse the full Nardi Compressori collection for other breathing-air, industrial, and oil-free compressors.
Engineered in Italy. Made in Italy.
| Specification | Pacific MX (electric) |
|---|---|
| Charging rate | 500 – 850 L/min (17.7 – 30 cfm) |
| Max operating pressure | 330 bar / 4,786 psi standard; 420 bar / 6,092 psi high-pressure build available |
| Stages | 3 (MX 60/4, MX 68, MX 85: 4) |
| Power | 11 – 18.5 kW |
| Power supply | 208V, 480V or 600V three phase, 60 Hz. Other voltages available on request. |
| Purification system | Single PAC 3 (MX 50); Double PAC 3 (MX 60 / 60/4 / 68 / 85) |
| Weight (estimated) | 460 – 620 kg (1,014 – 1,367 lb) |
| Dimensions (L × W × H) | 86 × 150 × 174 cm |
| Country of origin | Italy |
| Compliance | DIN EN 12021, CE (CSA pending) |
Brand: Nardi Compressori
Category: Breathing Air Compressor
SKU: NRD-PAC-MX-ELEC
