Nardi Pacific E — Italian-engineered portable high-pressure breathing air compressor from Nardi Compressori. The Pacific E is the open-frame, heavy-duty portable in the Pacific line, an ideal solution for fire service, first-responder, commercial diving, and industrial breathing-air work that has to move between sites. It runs on an electric motor (Pacific E) or a gasoline engine (Pacific EG), with an aluminium crankcase that keeps weight down and improves heat dissipation, and an optional integrated trolley for added mobility.
Select your Compressor Type above (Electric or Gasoline), then use the configurator on this page to choose model, operating pressure, connection type, voltage, purification, and factory-installed options. The price updates as you configure.
Model lineup
Electric — Pacific E (five models)

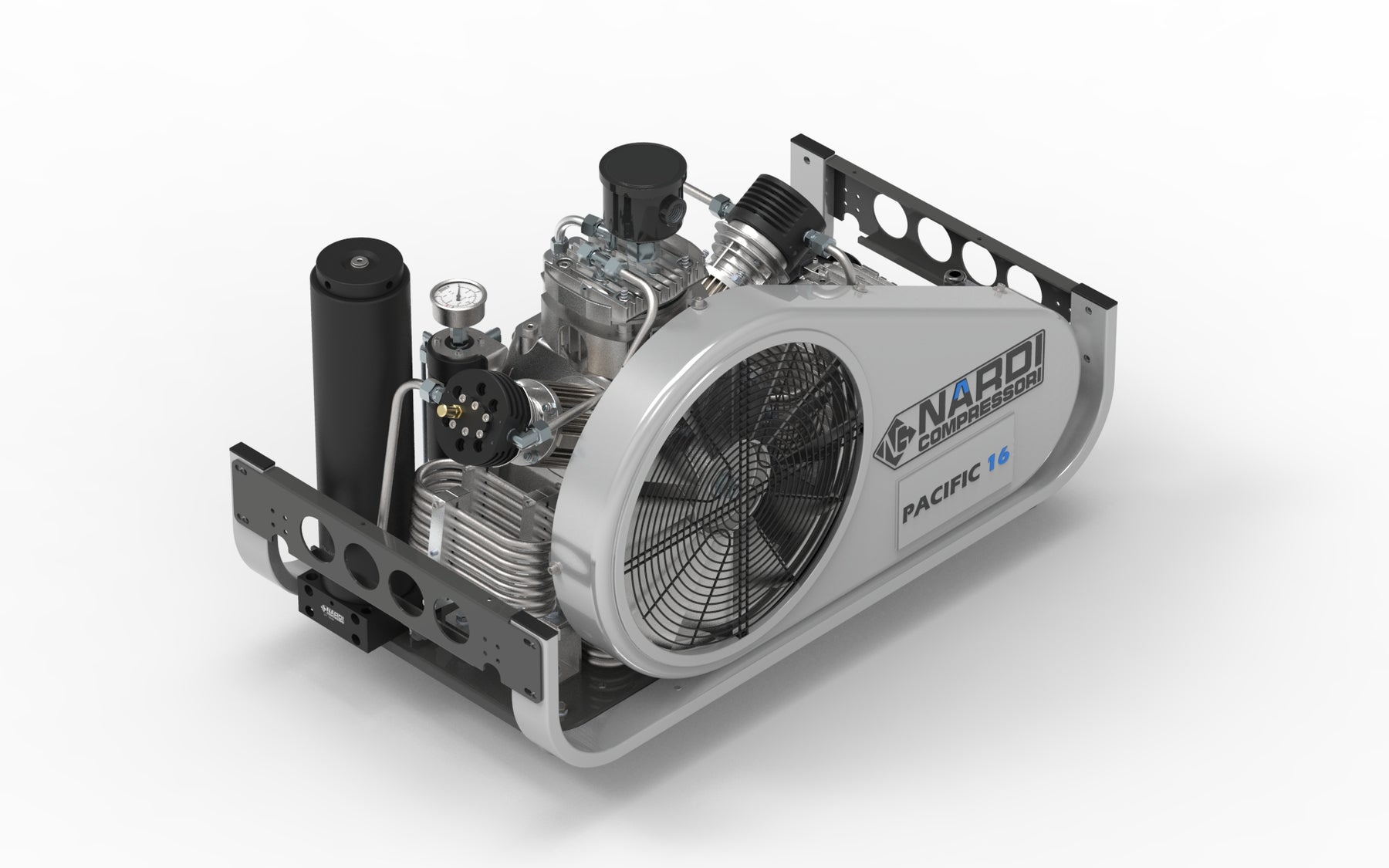

- PACIFIC E 16 — 160 L/min (5.6 cfm), 3-stage, 3.0 kW, 240V single phase (not available with control panel)

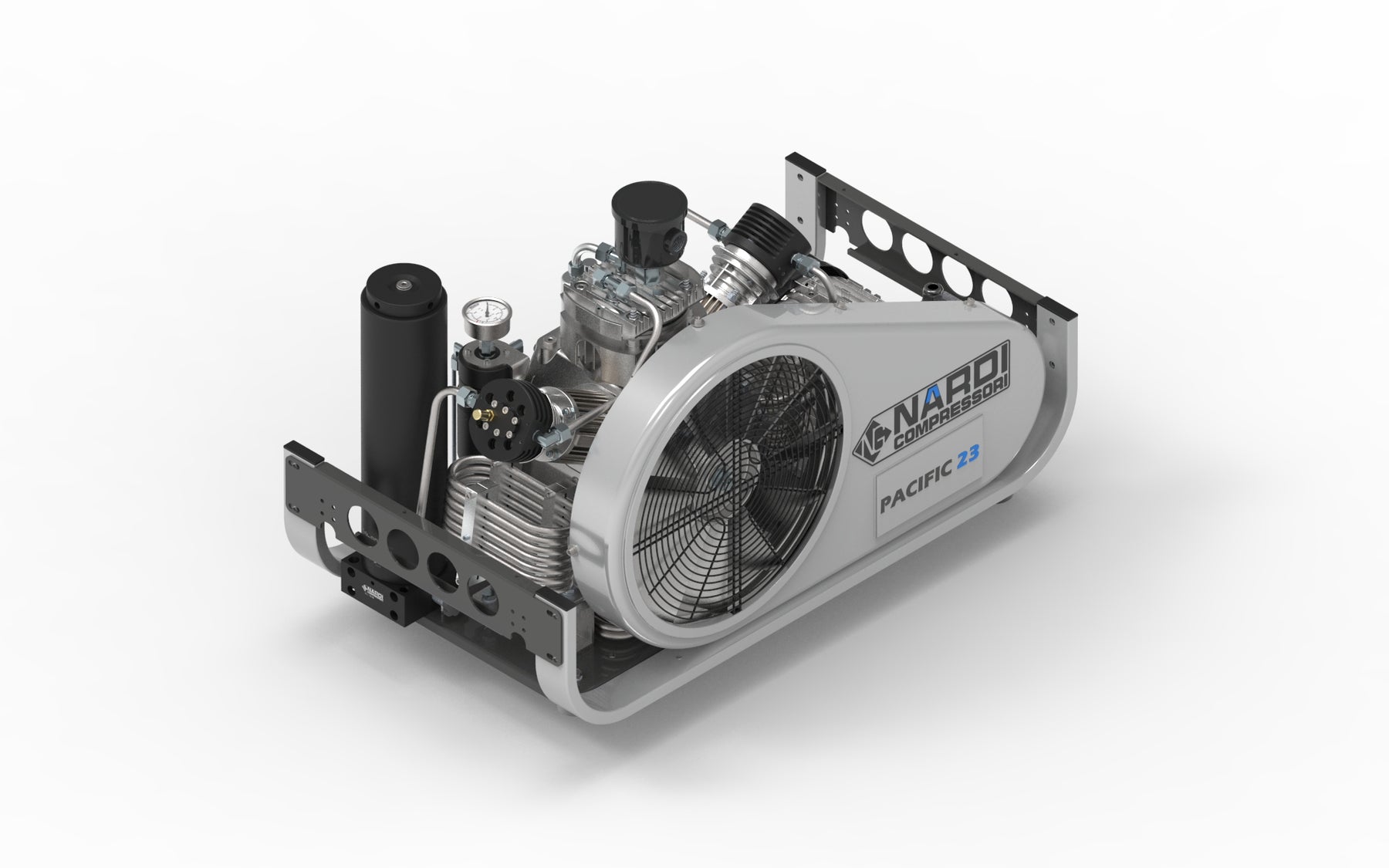

- PACIFIC E 23 — 230 L/min (8.1 cfm), 3-stage, 4.0 kW
- PACIFIC E 27 — 270 L/min (9.5 cfm), 3-stage, 5.5 kW

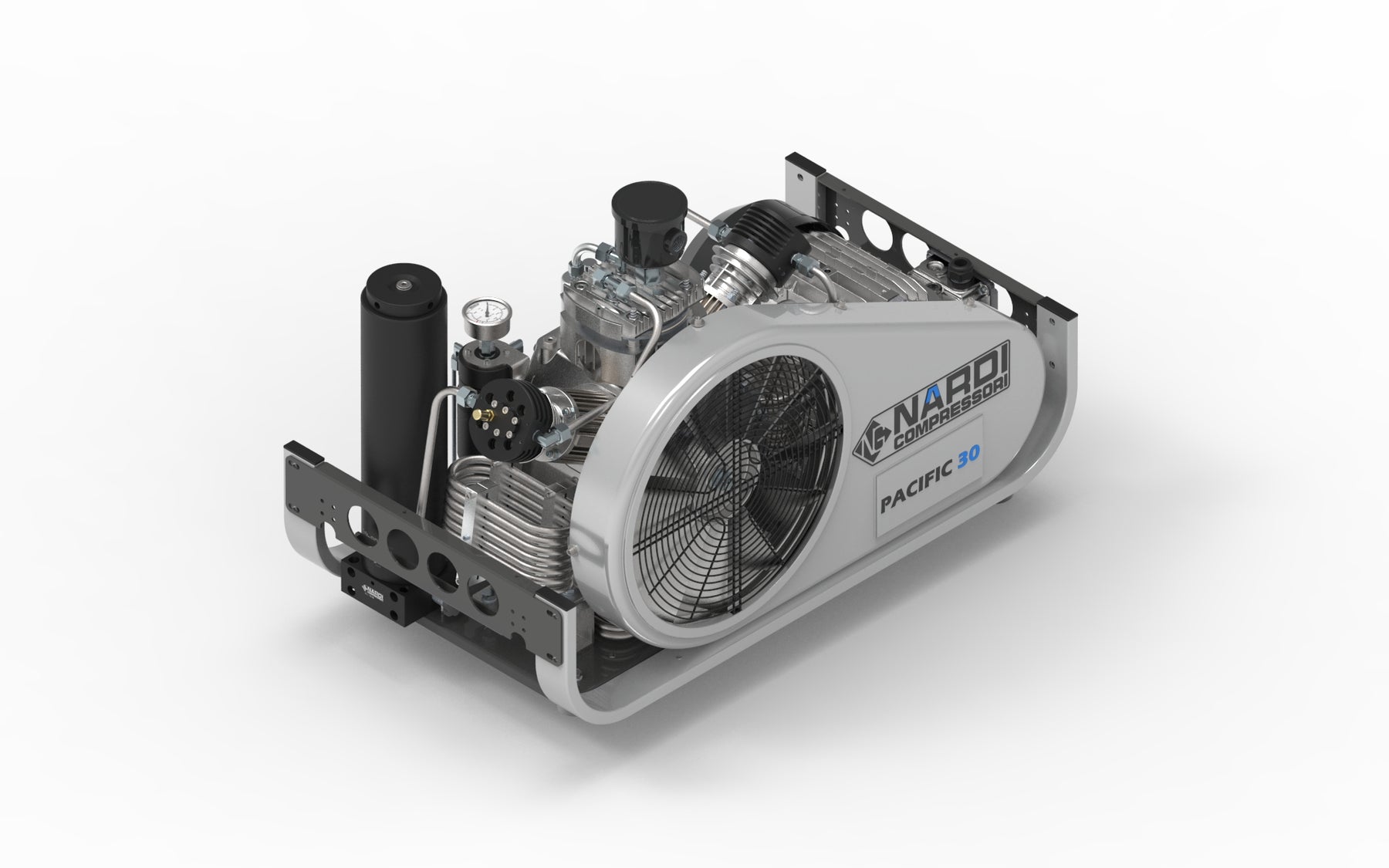

- PACIFIC E 30 — 300 L/min (10.6 cfm), 3-stage, 5.5 kW
- PACIFIC E 35 — 350 L/min (12.4 cfm), 4-stage, 7.5 kW
Gasoline — Pacific EG (four models)
- PACIFIC EG 23 — 230 L/min (8.1 cfm), 3-stage, 6.7 kW gasoline
- PACIFIC EG 27 — 270 L/min (9.5 cfm), 3-stage, 6.7 kW gasoline
- PACIFIC EG 30 — 300 L/min (10.6 cfm), 3-stage, 10 kW gasoline
- PACIFIC EG 35 — 350 L/min (12.4 cfm), 4-stage, 10 kW gasoline
Standard equipment (every Pacific E / EG)
- 330 bar / 4,786 psi maximum operating pressure
- PAC 1 purification system
- Portable open frame with aluminium crankcase
- Two filling devices
- Splash lubrication (oil-pump lubrication optional on E 16/23/27 and EG 23/27)
- Compliant with DIN EN 12021 (European breathing-air standard)
Order-time configuration (selected above)
- Operating pressure: 225 bar / 3,263 psi or 330 bar / 4,786 psi. A 420 bar / 6,092 psi build is offered on the 4-stage models (E 35, EG 35); availability and pricing are confirmed at quote.
- Connection type (225 bar only): DIN, INT (YOKE), or DIN with reduction to INT-YOKE
- Voltage / frequency (Electric): the E 16 runs on 240V single phase as standard. The E 23 to E 35 take 240V single phase with soft start included, or 208V, 480V or 600V three phase, all at 60 Hz. Other voltages are available on request.

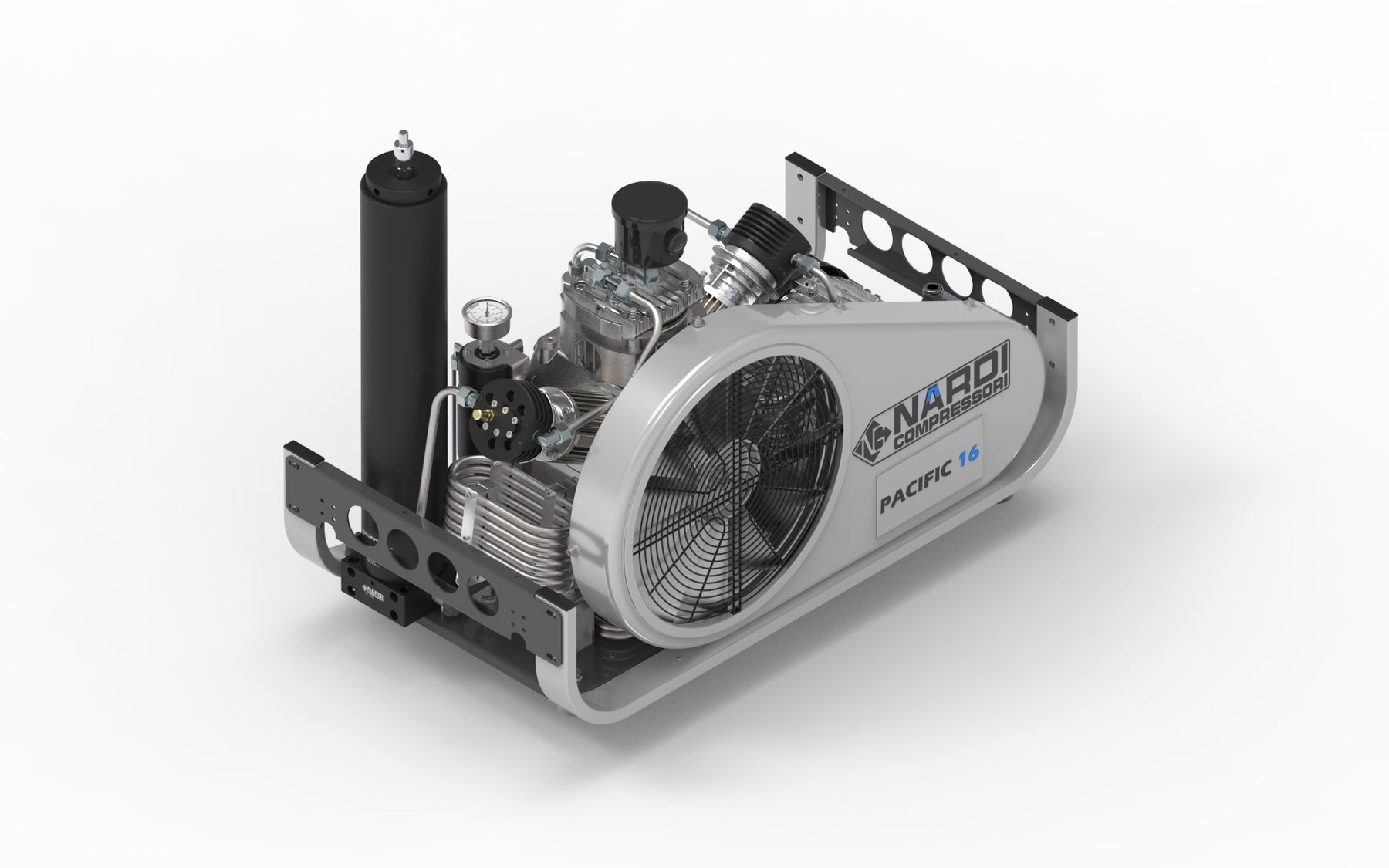

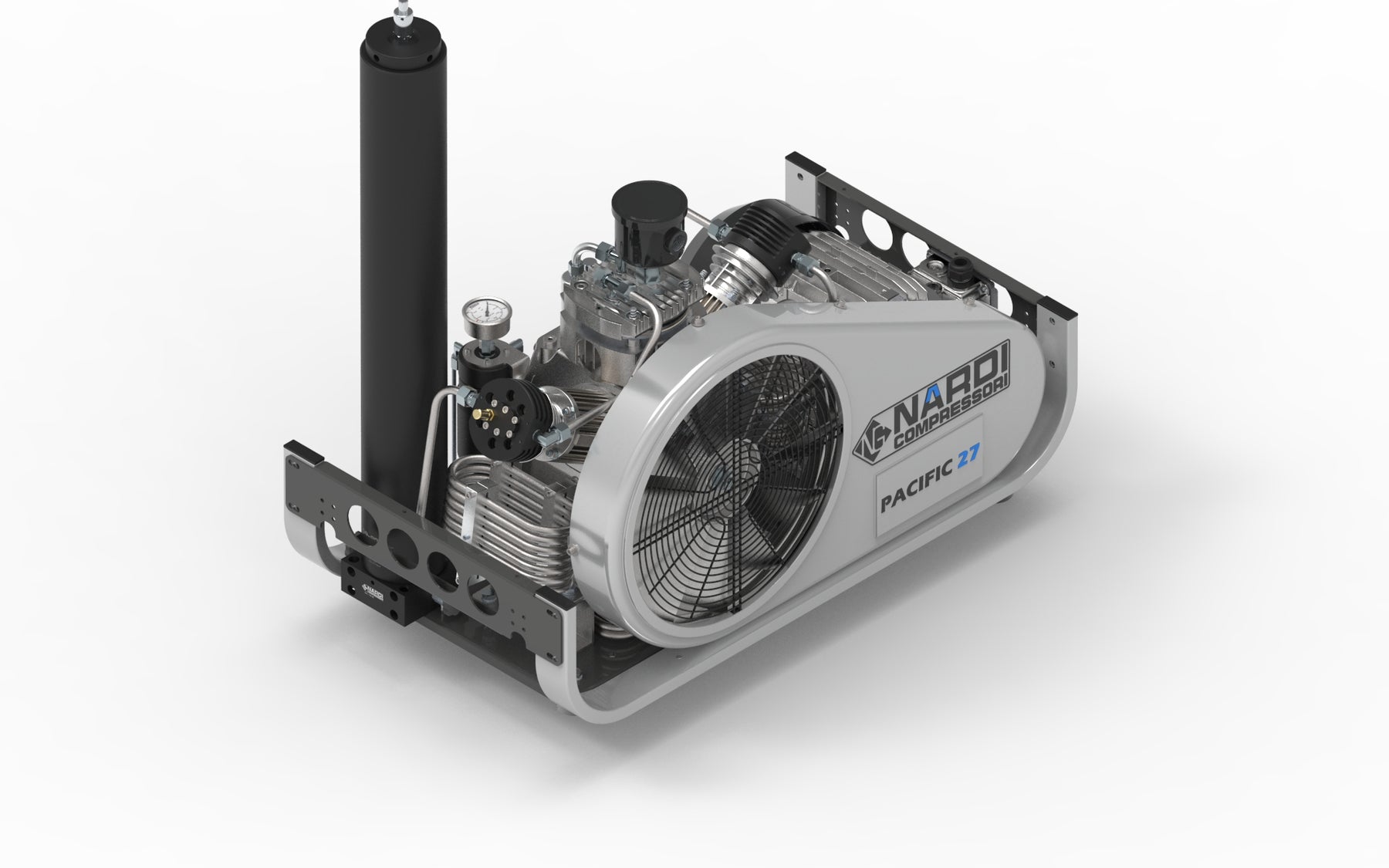

- Purification system: PAC 1 standard; upgrade to PAC 2 or PAC 3 at order time
Optional factory-installed equipment

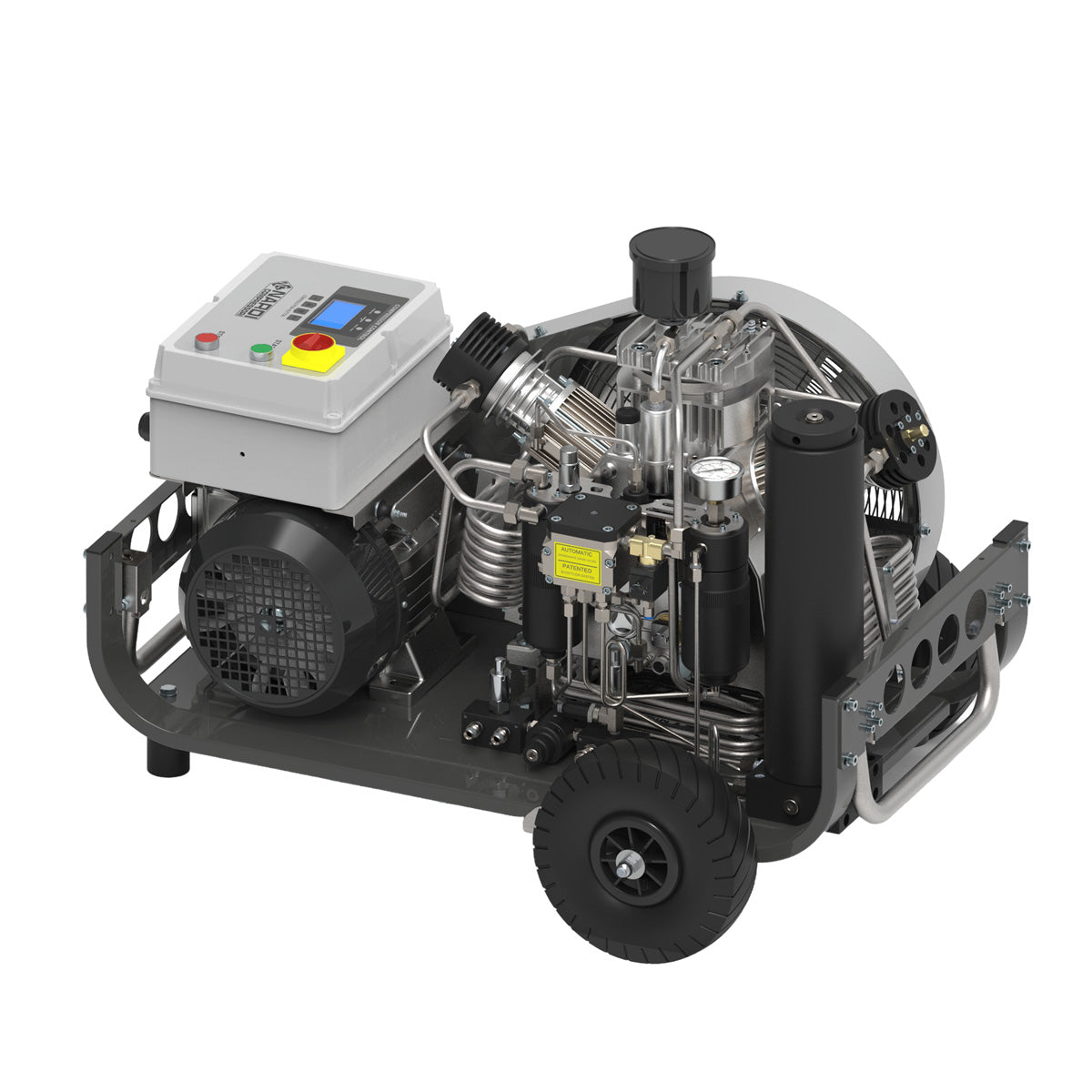

- Automatic system (electronic control panel + automatic condensate drain) — electric models E 23 and larger; not available on the E 16
- Soft start on the electric E 23 to E 35 (included with 240V single phase)
- Oil-pump lubrication (splash-lubricated models)
- Oil alert; hour meter
- Additional pressure or temperature sensors (Electric), one for each stage before the final stage (two on 3-stage models, three on the E 35)
- PAC Filter 2 or PAC Filter 3 purification upgrade
- Double pressure (225 bar / 3,263 psi + 330 bar / 4,786 psi)

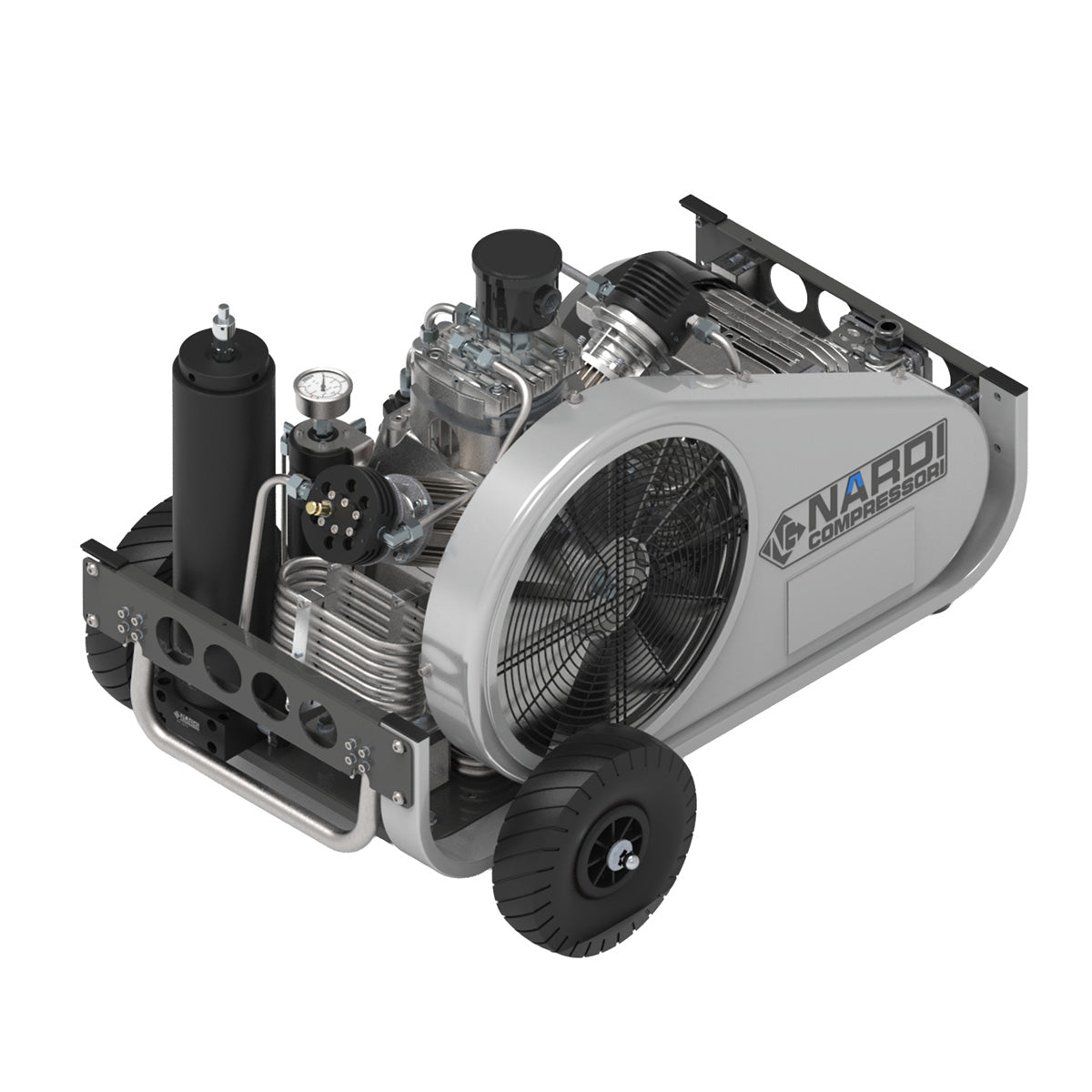

- Filling device, 4-fold; additional hose connections (max two); trolley; handles; large separators; 12 L eco-friendly condensate tank
See the Specifications tab for full technical specifications.
Replacement parts and consumables
The Pacific E ships with the PAC 1 purification tower as standard. Replace its cartridge per the schedule in your Operator's Manual — see the Nardi Filter PAC1 Replacement Filter Cartridge, and choose Electric (MC-AC media) for the electric Pacific E, or Gasoline / Diesel (MC-AC-HO with Hopcalite) for the gasoline Pacific EG. If your unit was ordered with a PAC 2 or PAC 3 tower upgrade, order the matching cartridge instead. Other Pacific consumables, hose-connection accessories, and service kits are sold separately — contact us for the correct reference.
Browse the full Nardi Compressori collection for other breathing-air, industrial, and oil-free compressors.
Engineered in Italy. Made in Italy.
| Specification | Electric (Pacific E) | Gasoline (Pacific EG) |
|---|---|---|
| Charging rate | 160 – 350 L/min (5.6 – 12.4 cfm) | 230 – 350 L/min (8.1 – 12.4 cfm) |
| Max operating pressure | 330 bar / 4,786 psi (420 bar option on 4-stage) | 330 bar / 4,786 psi (420 bar option on 4-stage) |
| Stages | 3 or 4 (model-dependent) | 3 or 4 (model-dependent) |
| Power | 3.0 – 7.5 kW | 6.7 – 10 kW |
| Power supply | 240V single phase (all electric models), or 208V, 480V or 600V three phase (E 23 to E 35), 60 Hz. Other voltages available on request. | Gasoline engine |
| Purification system | PAC 1 | PAC 1 |
| Weight | 108 – 123 kg (238 – 271 lb) | 108 – 123 kg (238 – 271 lb) |
| Dimensions (L × W × H) | 103 × 53 × 65 cm | 111 × 53 × 65 cm |
| Country of origin | Italy | Italy |
| Compliance | DIN EN 12021, CE (CSA pending) | DIN EN 12021, CE (CSA pending) |
Brand: Nardi Compressori
Category: Breathing Air Compressor
SKU: NRD-PAC-E-ELEC
