Nardi Compressori

Nardi Filling Valves, Hoses, Connections and Gauges

  • In Stock - Ready to Ship
  • Custom Order - See Details Below
Request a Quote
/
Model
Request a Quote

Some Nardi units are configured or built to your specification; others are standard models we order in from the factory based on your selection. Custom Order items are confirmed and paid for at checkout, then fulfilled on the lead time below.

Lead time for Nardi products:

Lead time depends on the product. Replacement parts, filters, and accessories typically ship within days to a couple of weeks. Built-to-order units, such as Pacific Series compressors, take up to 4 to 6 weeks to build at the Nardi factory in Italy. From there, shipping to Canada takes:

  • Approximately 3 weeks by sea freight (7 to 9 weeks total)
  • Approximately 1 week by air freight, priced on request (5 to 7 weeks total)

What happens next:

  • Payment secures your place in the fulfillment queue
  • You receive an order confirmation with your final specification
  • We coordinate with Nardi to confirm your order and expected ship date
  • Shipping confirmation and tracking follow when your order leaves the factory or warehouse
  • If your timeline changes, we reach out proactively


Need expedited shipping? Use the Request a Quote button above. We'll confirm air freight options and cost, then send a formal quote for your approval.

Pricing for this product is confirmed on your quote.

A breathing air system is only as reliable as its final connection. Nardi supplies filling valves, hoses, connections and gauges for European DIN 200 and DIN 300, international Yoke and North American CGA 346 and CGA 347 standards, along with custom certified hoses complete with fittings.

Items

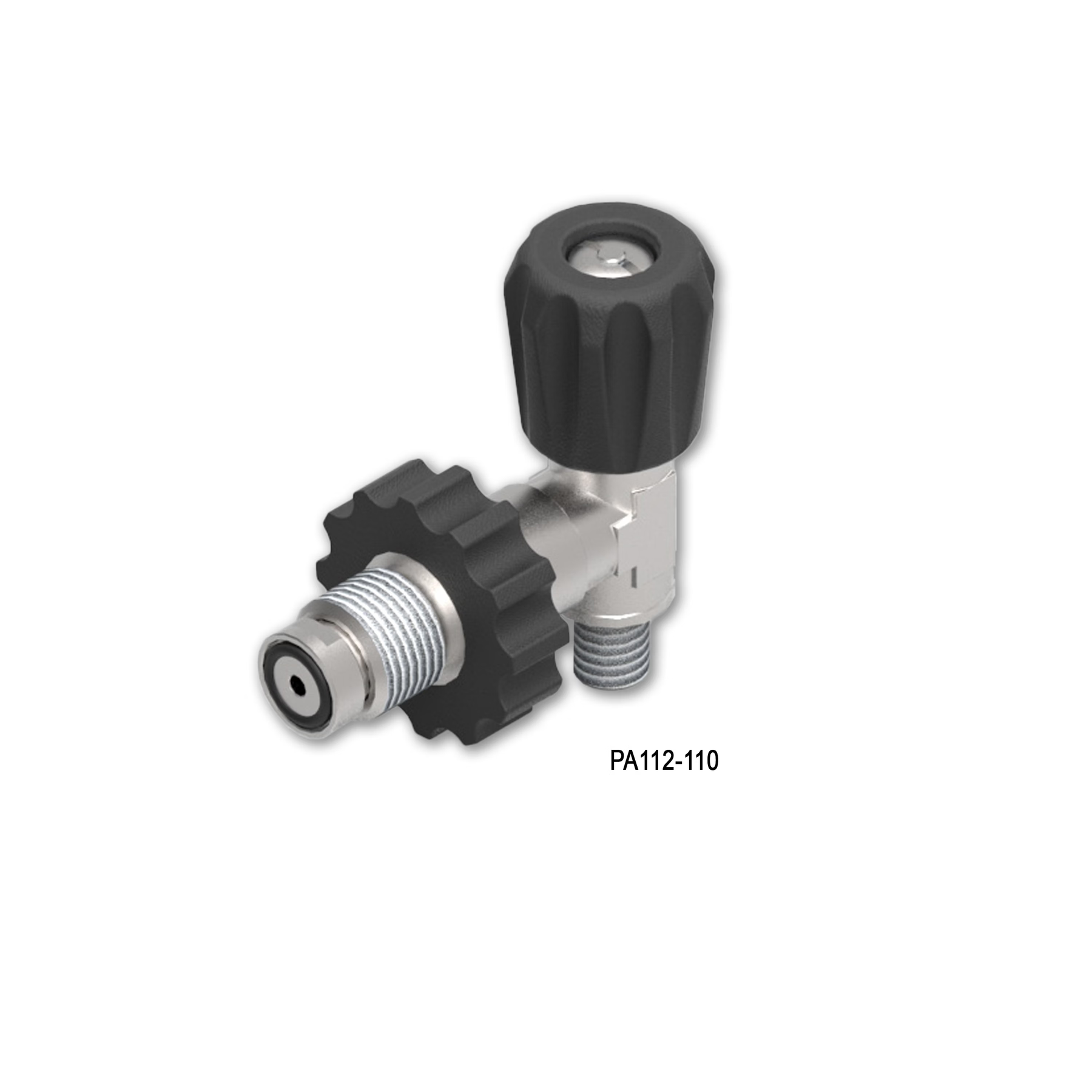

  • Hand wheel valve DIN 200, max 250 bar (PA112-110)

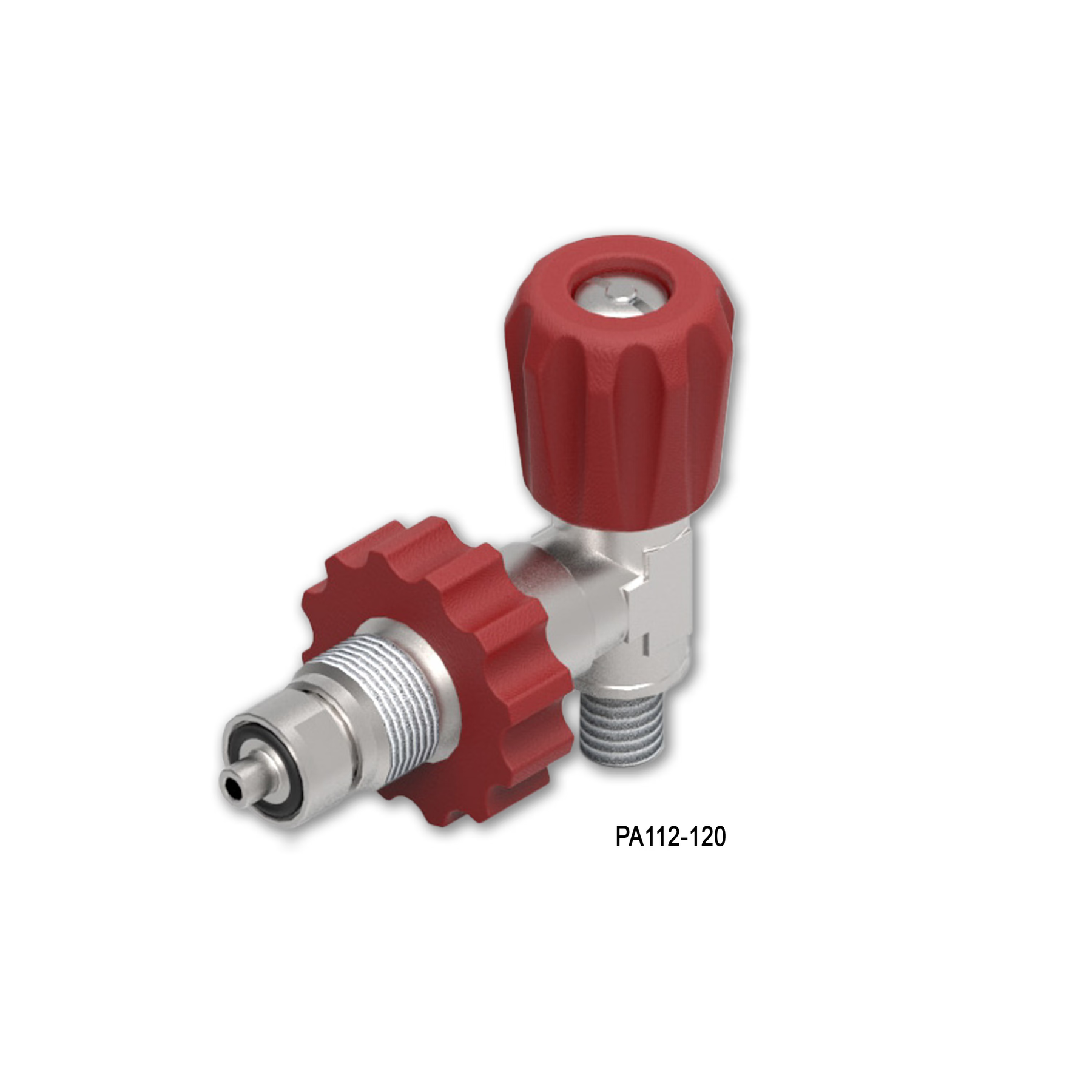

  • Hand wheel valve DIN 300, max 350 bar (PA112-120)

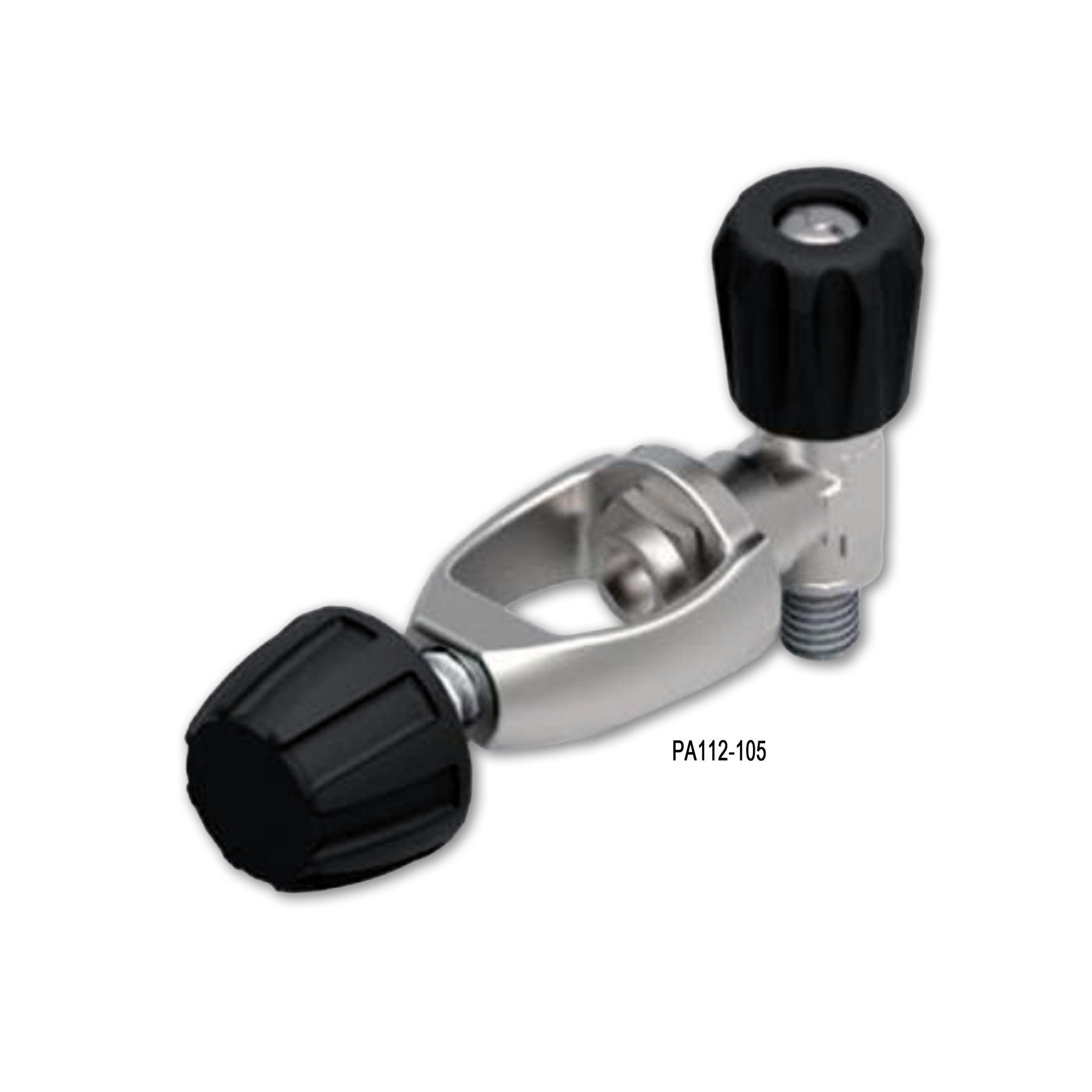

  • Hand wheel valve INT 200 (Yoke), max 250 bar (PA112-105)

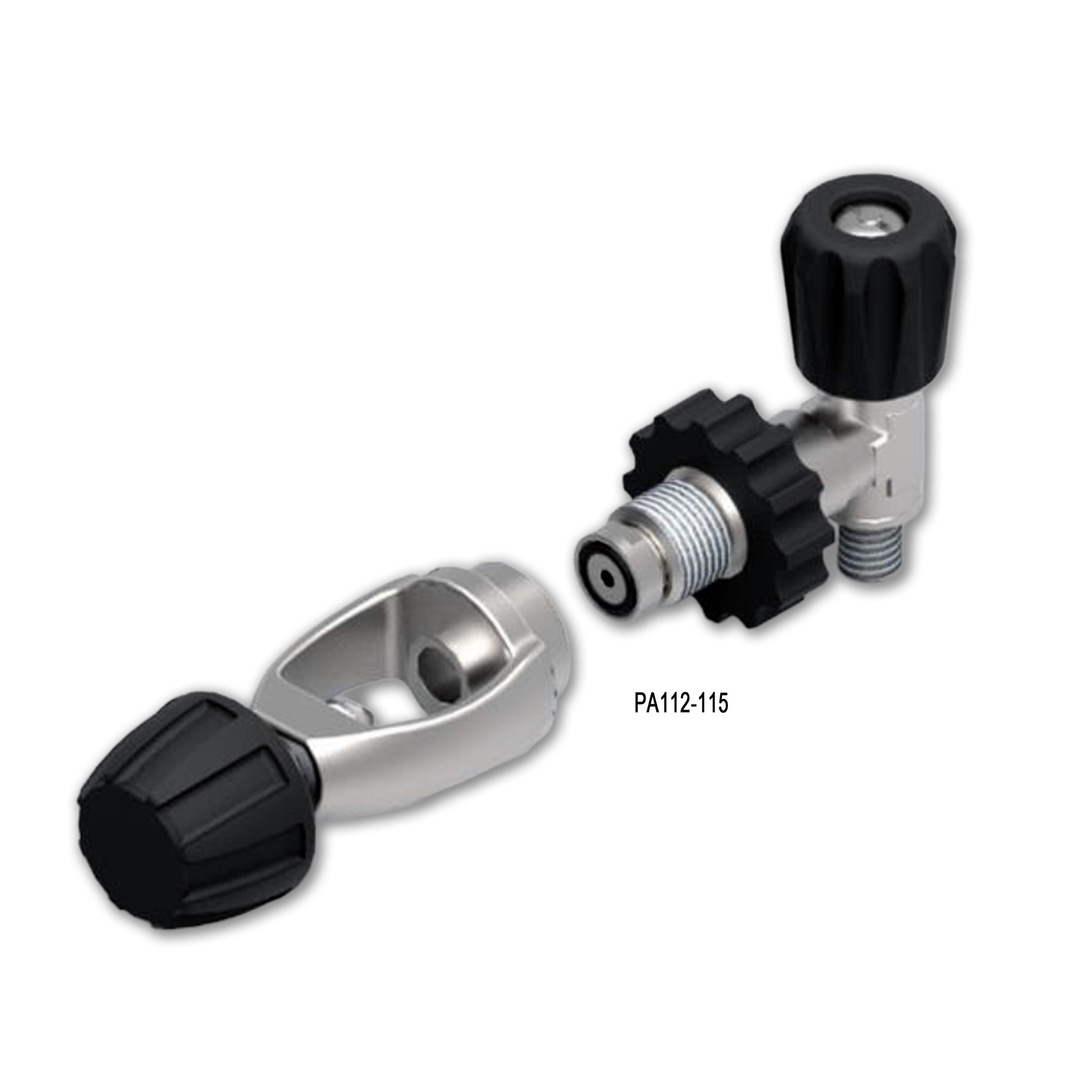

  • Hand wheel valve DIN 200 + INT 200 (Yoke), max 250 bar (PA112-115)

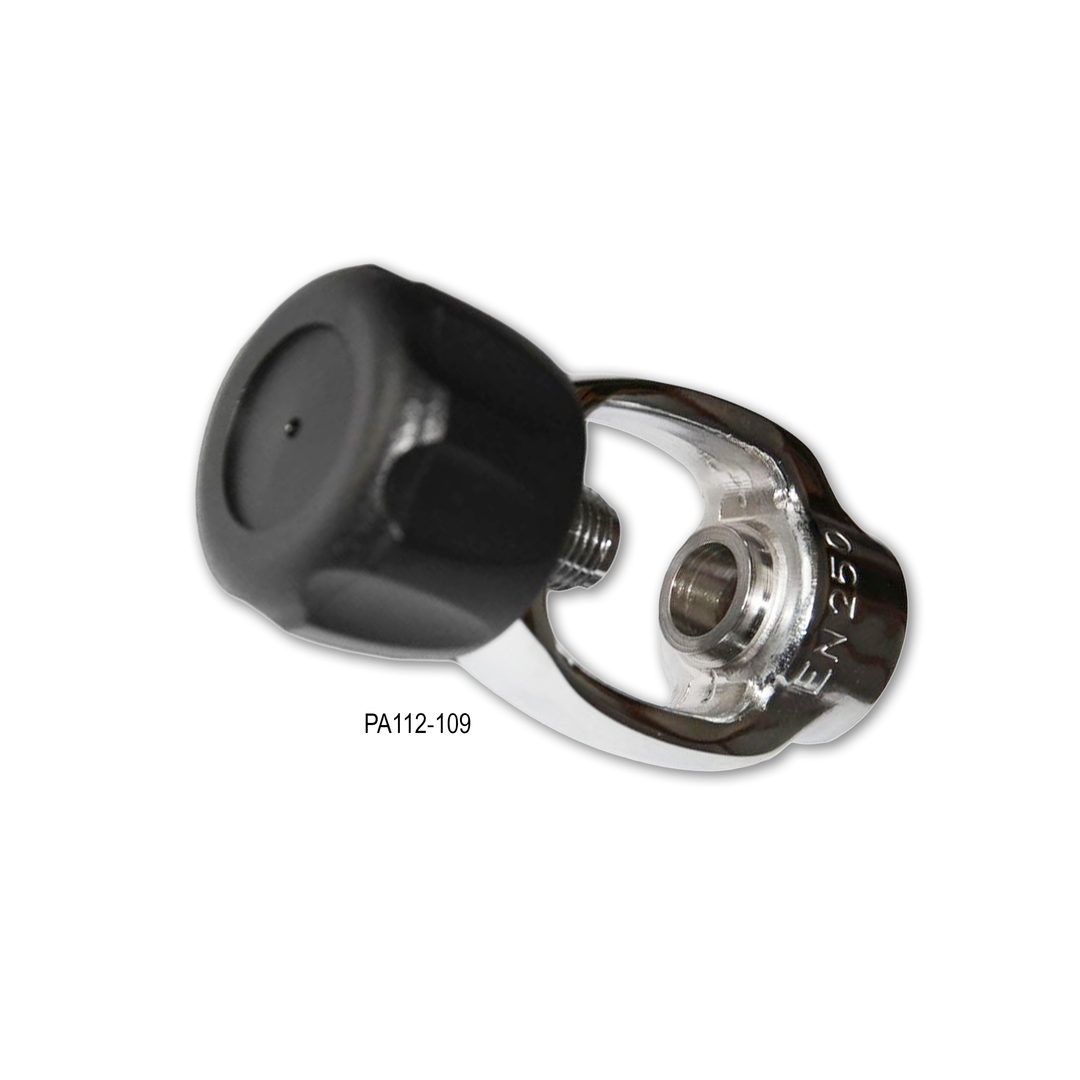

  • Reduction DIN 200 to INT 200 (Yoke) (PA112-109)

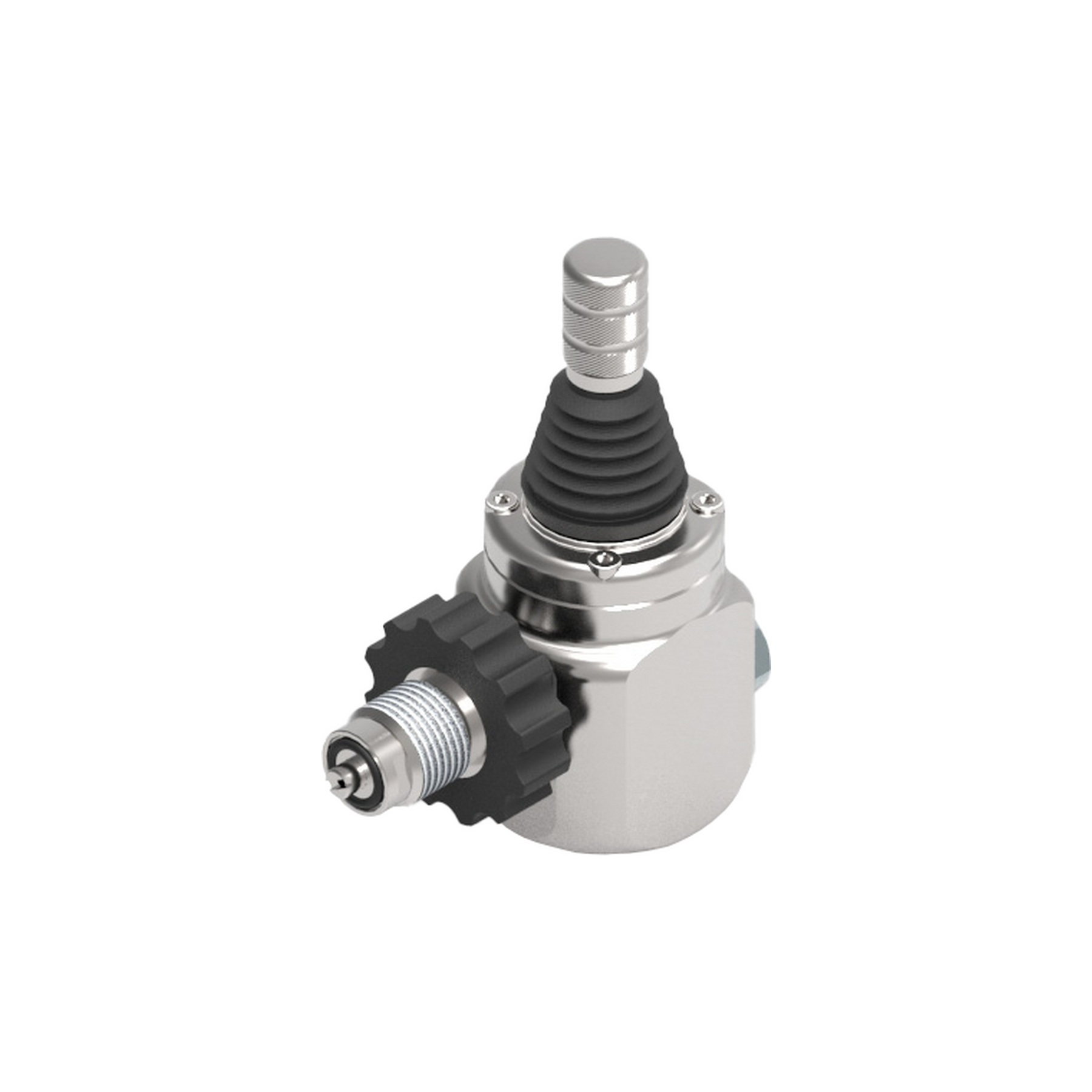

  • Lever valve DIN 200, safety flow stop, max 250 bar (PA112-542)
  • Lever valve DIN 300, safety flow stop, max 350 bar (PA100-552)

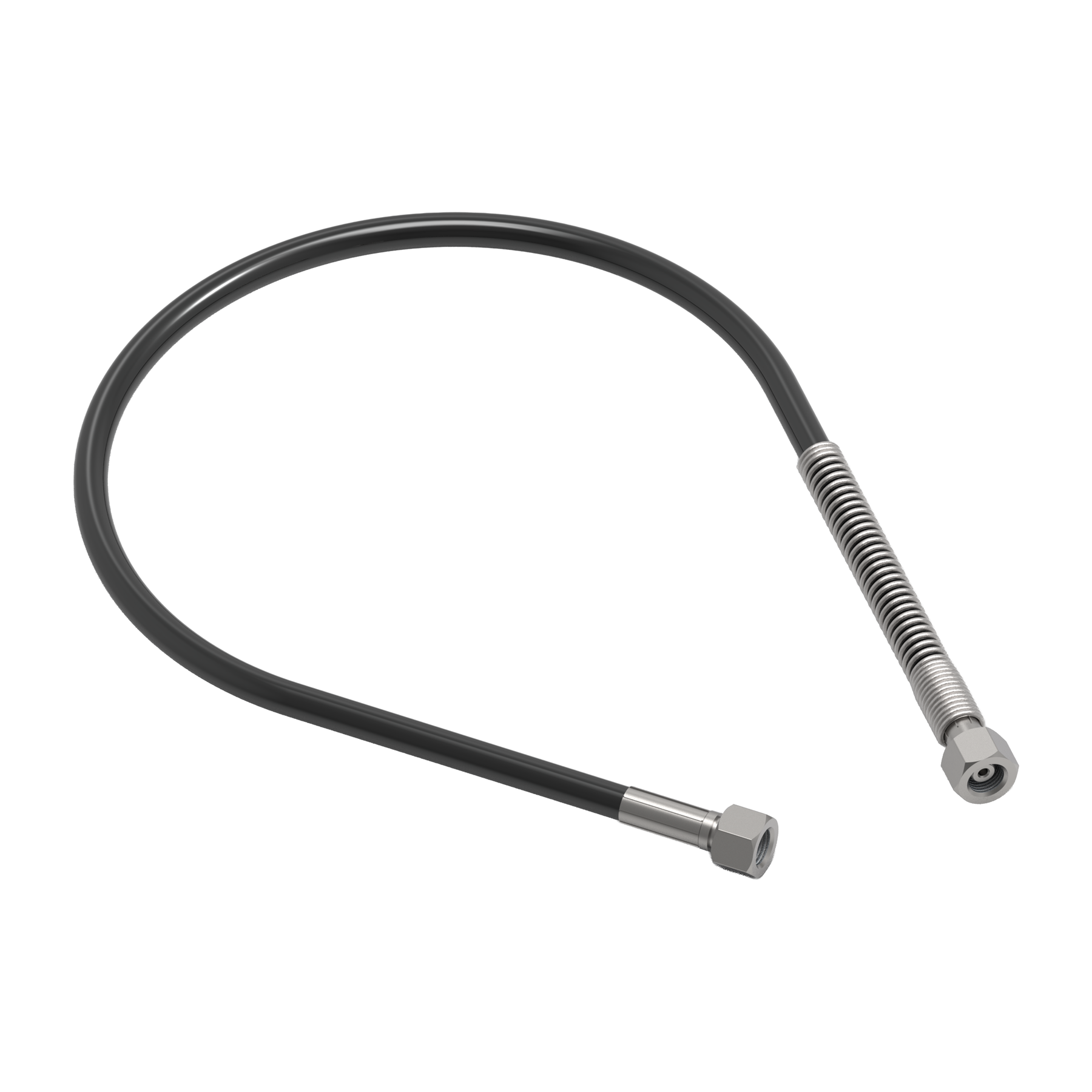

  • Filling hose 1 m, 1/4 in G (PA113-100)

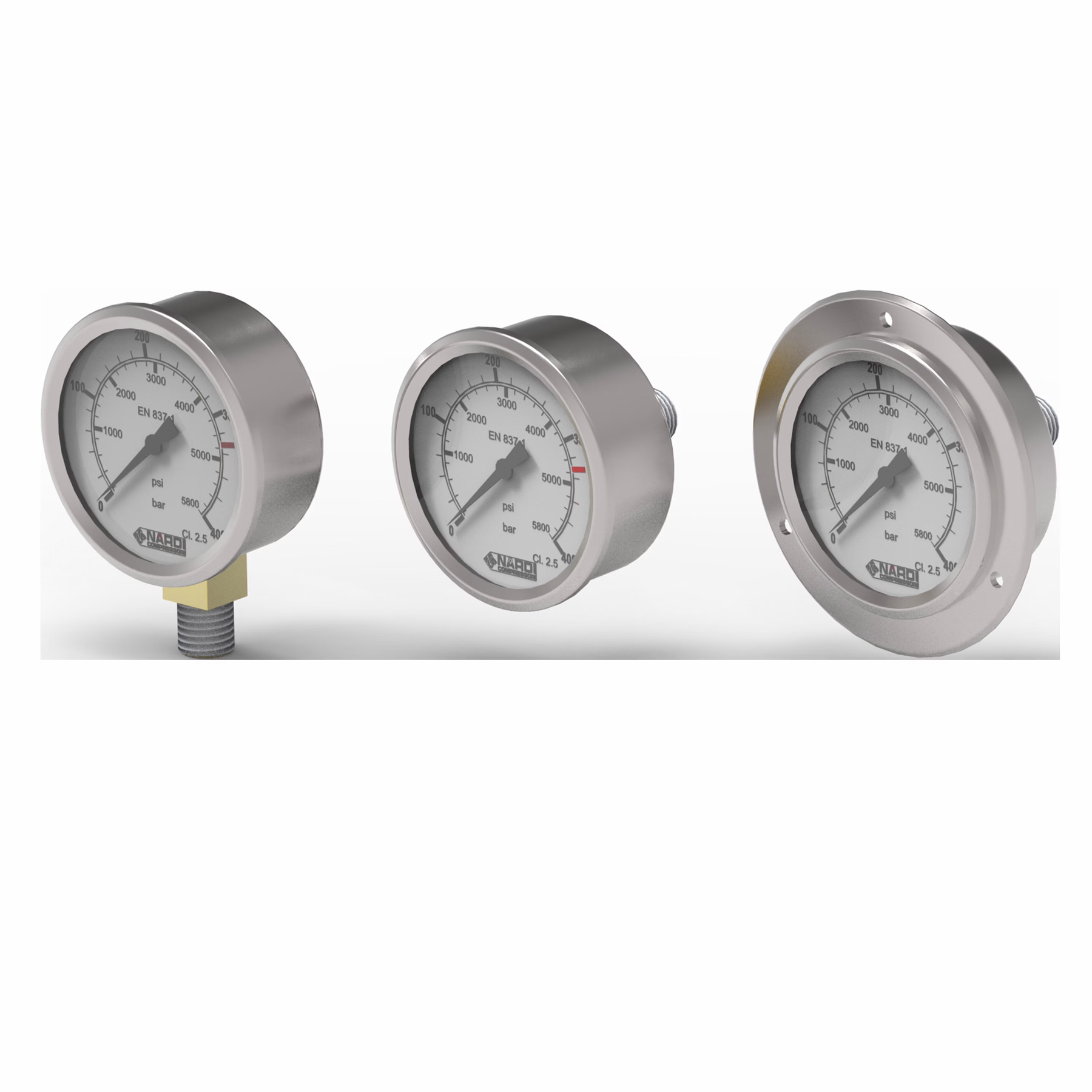

  • Manometer 63 mm, bottom connection, 0 to 300 bar (PA112-029)
  • Manometer 63 mm, bottom connection, 0 to 400 bar (PA112-030)
  • Manometer 63 mm, rear connection, 0 to 300 bar, glycerine (PA112-050)
  • CGA 346 or CGA 347 filling connection (On request)

Nardi hand wheel filling valves are built to UNI 144-2 for breathing air filling. Gauges are available for 200, 300 and 420 bar, in glycerine-filled and stainless steel versions. Codes and fittings are confirmed with you on your quote.

Pricing and configuration are confirmed on your quote.

Built in Italy by Nardi Compressori.

See the Specifications tab for full technical specifications.

ItemNardi code
Hand wheel valve DIN 200, max 250 barPA112-110
Hand wheel valve DIN 300, max 350 barPA112-120
Hand wheel valve INT 200 (Yoke), max 250 barPA112-105
Hand wheel valve DIN 200 + INT 200 (Yoke), max 250 barPA112-115
Reduction DIN 200 to INT 200 (Yoke)PA112-109
Lever valve DIN 200, safety flow stop, max 250 barPA112-542
Lever valve DIN 300, safety flow stop, max 350 barPA100-552
Filling hose 1 m, 1/4 in GPA113-100
Manometer 63 mm, bottom connection, 0 to 300 barPA112-029
Manometer 63 mm, bottom connection, 0 to 400 barPA112-030
Manometer 63 mm, rear connection, 0 to 300 bar, glycerinePA112-050
CGA 346 or CGA 347 filling connectionOn request
SpecificationRange
Connection standardsDIN 200, DIN 300, INT (Yoke), CGA 346, CGA 347
Country of originItaly
SourceNardi High-Pressure Accessories catalogue (Rev. 00/2020) and Nardi Marine catalogue (09/2026)
