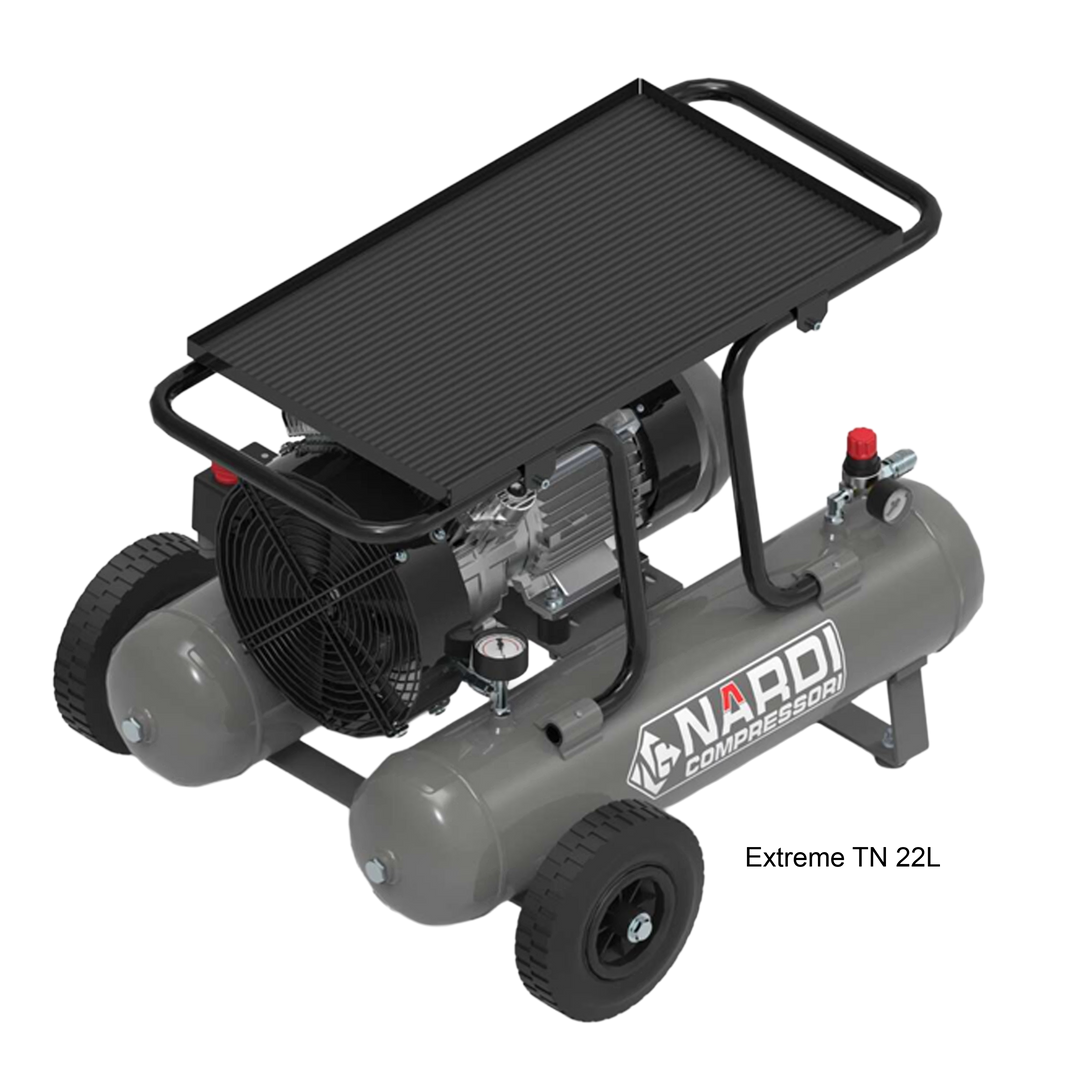

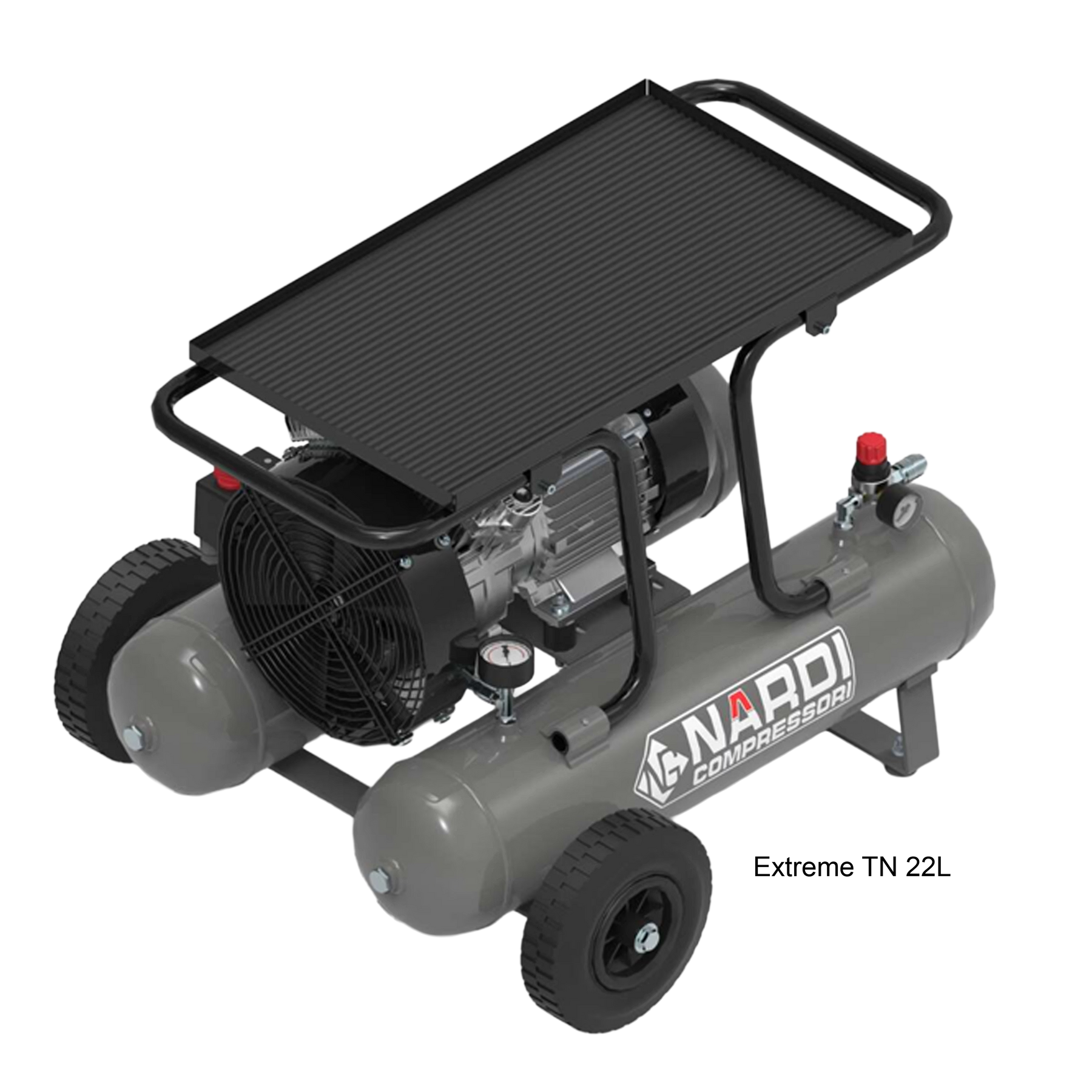

Nardi Extreme TN 22L twin-tank oil-free compressor
Nardi Extreme TN twin-tank oil-free compressor
Nardi Extreme TN 22L twin-tank oil-free compressor
Nardi Extreme TN twin-tank oil-free compressor
Nardi Compressori

Nardi Extreme TN Twin-Tank Oil-Free Compressor

Built to order. Typically ships in 4-6 weeks.
  • In Stock - Ready to Ship
  • Custom Order - See Details Below
Request a Quote
/
Power
Request a Quote

Some Nardi units are configured or built to your specification; others are standard models we order in from the factory based on your selection. Custom Order items are confirmed and paid for at checkout, then fulfilled on the lead time below.

Lead time for Nardi products:

Lead time depends on the product. Replacement parts, filters, and accessories typically ship within days to a couple of weeks. Built-to-order units, such as Pacific Series compressors, take up to 4 to 6 weeks to build at the Nardi factory in Italy. From there, shipping to Canada takes:

  • Approximately 3 weeks by sea freight (7 to 9 weeks total)
  • Approximately 1 week by air freight, priced on request (5 to 7 weeks total)

What happens next:

  • Payment secures your place in the fulfillment queue
  • You receive an order confirmation with your final specification
  • We coordinate with Nardi to confirm your order and expected ship date
  • Shipping confirmation and tracking follow when your order leaves the factory or warehouse
  • If your timeline changes, we reach out proactively


Need expedited shipping? Use the Request a Quote button above. We'll confirm air freight options and cost, then send a formal quote for your approval.

Pricing for this product is confirmed on your quote.

The Nardi Extreme TN puts two tanks on one frame for more stored air in a unit that still moves easily. Its two cylinder oil-free pump delivers clean compressed air with no oil to change and no oil carried into the air, with motors from 0.75 to 3 hp.

Models

  • Extreme TN 22 L, twin 11 + 11 L tanks, 0.75 to 3 hp, 200 to 600 L/min
  • Extreme TN 50 L, twin 25 + 25 L tanks, 1.5 to 3 hp, 240 to 600 L/min
  • The 3 hp models run on three phase supply

Electrical supply. Supply voltage and frequency are confirmed on your quote.

Pricing and configuration are confirmed on your quote.

Built to order in Italy by Nardi Compressori.

See the Specifications tab for full technical specifications.

ModelSupplyAir intakeMax pressurePowerReceiverNoiseWeightL x W x H
Extreme TN 22 L 0.75 hpMains, single phase200 L/min10 bar (145 psi)0.75 hp (0.55 kW)Twin, 11 + 11 L72 dB(A)47.5 kg (104.7 lb)75 x 67 x 56 cm
Extreme TN 22 L 1.5 hpMains, single phase240 L/min10 bar (145 psi)1.5 hp (1.1 kW)Twin, 11 + 11 L72 dB(A)50 kg (110.2 lb)75 x 67 x 56 cm
Extreme TN 22 L 2 hp, 1,400 rpmMains, single phase350 L/min10 bar (145 psi)2 hp (1.5 kW)Twin, 11 + 11 L73 dB(A)55 kg (121.3 lb)75 x 67 x 56 cm
Extreme TN 22 L 2 hp, 2,800 rpmMains, single phase400 L/min10 bar (145 psi)2 hp (1.5 kW)Twin, 11 + 11 L82 dB(A)53 kg (116.8 lb)75 x 67 x 56 cm
Extreme TN 22 L 2.5 hpMains, single phase480 L/min10 bar (145 psi)2.5 hp (1.84 kW)Twin, 11 + 11 L73 dB(A)60.3 kg (132.9 lb)75 x 67 x 57 cm
Extreme TN 22 L 3 hpMains, three phase600 L/min10 bar (145 psi)3 hp (2.2 kW)Twin, 11 + 11 L73 dB(A)60 kg (132.3 lb)75 x 67 x 56 cm
Extreme TN 50 L 1.5 hpMains, single phase240 L/min10 bar (145 psi)1.5 hp (1.1 kW)Twin, 25 + 25 L72 dB(A)62 kg (136.7 lb)93 x 75 x 65 cm
Extreme TN 50 L 2 hp, 1,400 rpmMains, single phase350 L/min10 bar (145 psi)2 hp (1.5 kW)Twin, 25 + 25 L73 dB(A)67 kg (147.7 lb)93 x 75 x 65 cm
Extreme TN 50 L 2 hp, 2,800 rpmMains, single phase400 L/min10 bar (145 psi)2 hp (1.5 kW)Twin, 25 + 25 L82 dB(A)65 kg (143.3 lb)93 x 75 x 65 cm
Extreme TN 50 L 2.5 hpMains, single phase480 L/min10 bar (145 psi)2.5 hp (1.84 kW)Twin, 25 + 25 L73 dB(A)70 kg (154.3 lb)93 x 75 x 65 cm
Extreme TN 50 L 3 hpMains, three phase600 L/min10 bar (145 psi)3 hp (2.2 kW)Twin, 25 + 25 L73 dB(A)72 kg (158.7 lb)93 x 75 x 65 cm
SpecificationAll models
Stages / cylinders1 / 2
Air outletQuick coupling
LubricationOil-free, no oil change required
Working temperature5 to 45 C
Electrical supplyConfirmed on your quote
Country of originItaly

Brand: Nardi Compressori

Category: Oil-Free Compressor

SKU: NRD-EXT-TN-ELEC
