The Nardi Extreme is the workhorse of the Nardi oil-free range. Its two cylinder oil-free pump delivers clean compressed air with no oil to change and no oil carried into the air, on a tank from 5 to 50 L. It runs on mains power, a 12V or 24V battery or a gasoline engine, and a 15 bar version is available on the Extreme 3T.
Models

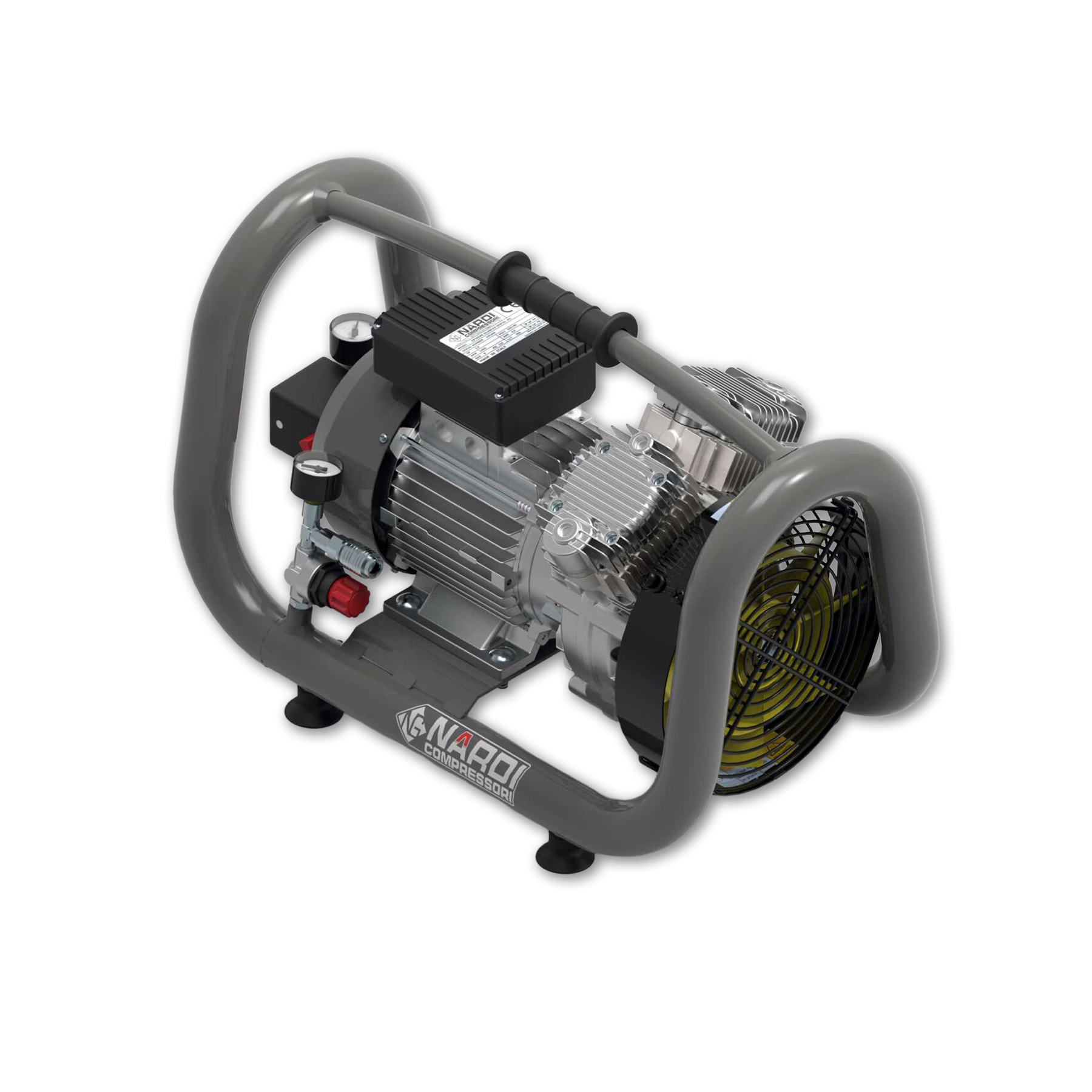

- Extreme 3T, 5 L tank, 0.75 to 2 hp, including a 15 bar version
- Extreme 3, 30 or 50 L tank, 0.75 to 2 hp

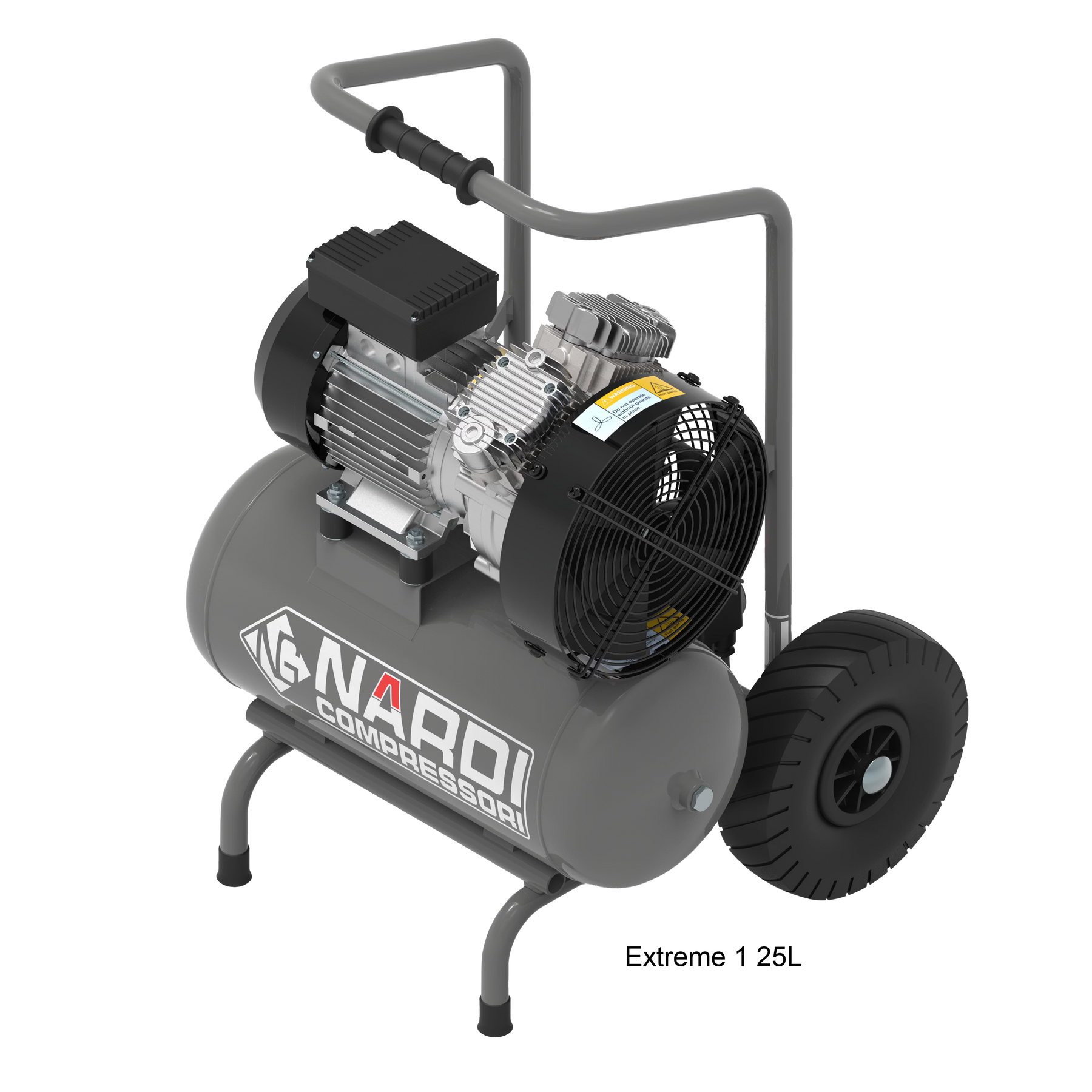

- Extreme 1, 10 or 25 L tank, 0.75 to 2 hp
- Extreme 1C, 25 L tank on a trolley frame, mains or gasoline

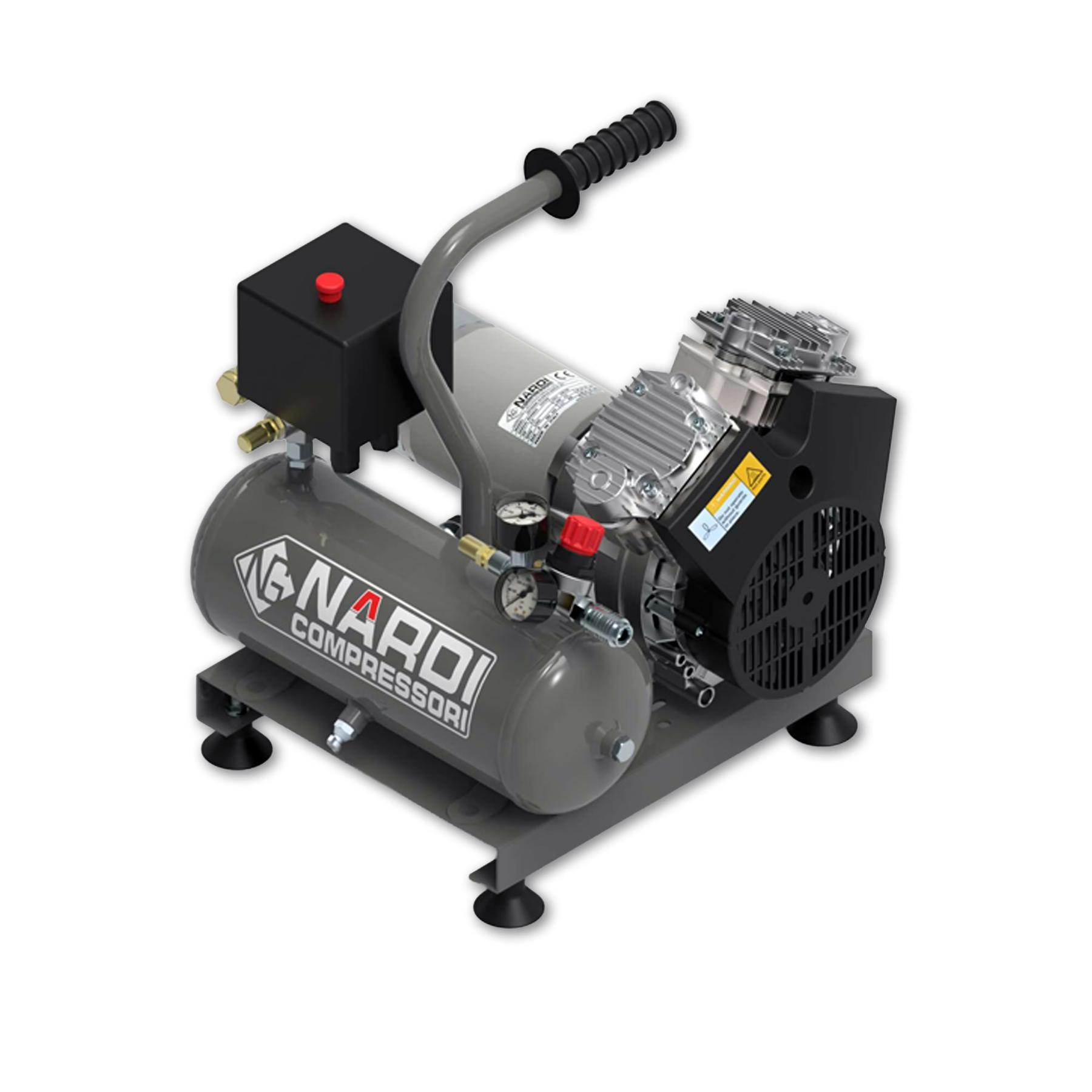

- Battery versions, Extreme 3 on a 7 or 30 L tank, 12V or 24V

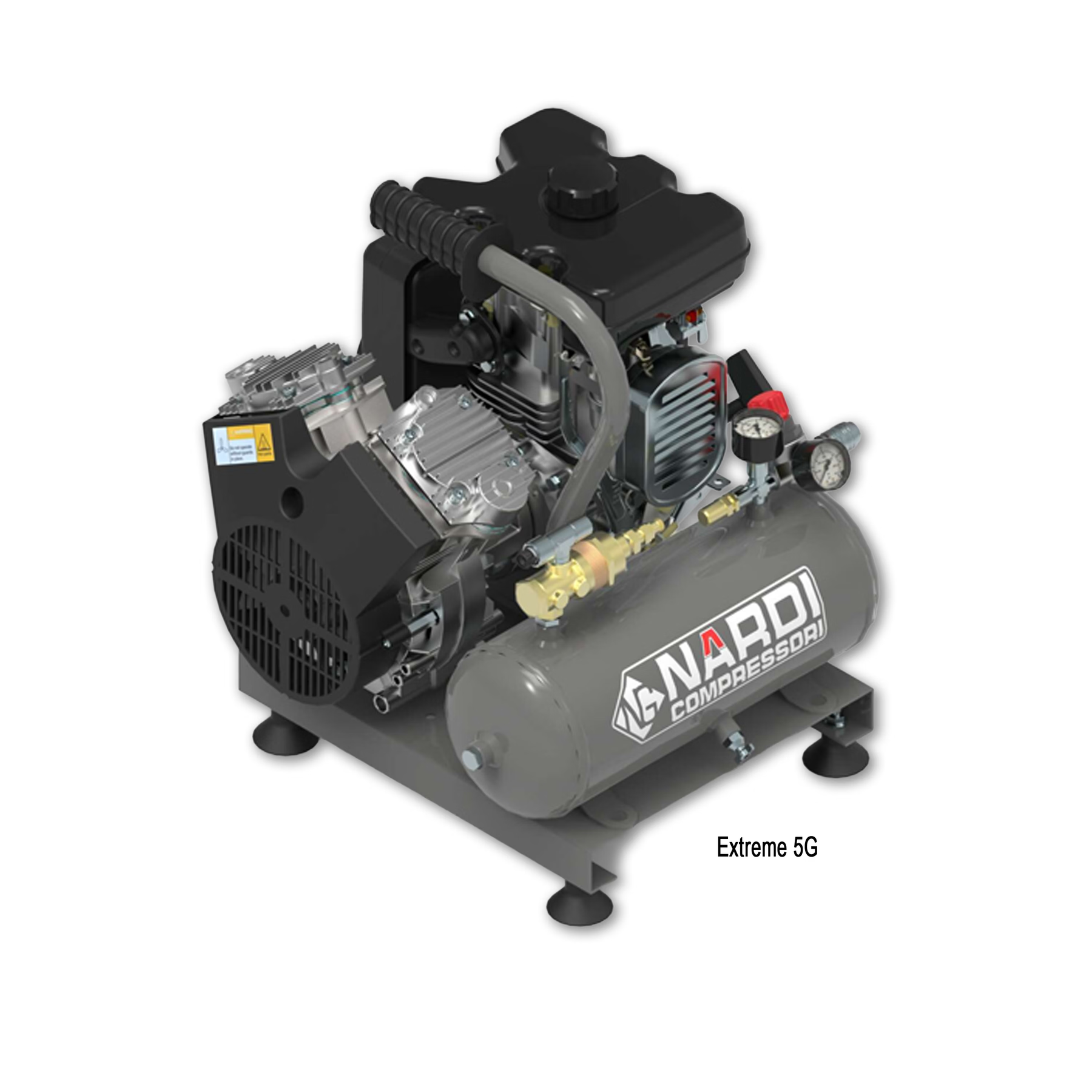

- Gasoline versions, Extreme 5G and Extreme 70 5G on a 7 L tank, Subaru engine
The twin-tank Extreme TN, the silenced Extreme and the 90 L Extreme 4 are listed separately.
Electrical supply. Supply voltage and frequency are confirmed on your quote.
Pricing and configuration are confirmed on your quote.
Built to order in Italy by Nardi Compressori.
See the Specifications tab for full technical specifications.
| Model | Supply | Air intake | Max pressure | Power | Receiver | Noise | Weight | L x W x H |
|---|---|---|---|---|---|---|---|---|
| Extreme 3T 0.75 hp | Mains, single phase | 200 L/min | 10 bar (145 psi) | 0.75 hp (0.55 kW) | 5 L | 72 dB(A) | 20.5 kg (45.2 lb) | 53 x 31 x 39 cm |
| Extreme 3T 1.5 hp | Mains, single phase | 240 L/min | 10 bar (145 psi) | 1.5 hp (1.1 kW) | 5 L | 72 dB(A) | 23.6 kg (52 lb) | 53 x 30 x 40 cm |
| Extreme 3T 1.5 hp, 15 bar | Mains, single phase | 115 L/min | 15 bar (218 psi) | 1.5 hp (1.1 kW) | 5 L | 72 dB(A) | 23 kg (50.7 lb) | 53 x 31 x 39 cm |
| Extreme 3T 2 hp, 1,400 rpm | Mains, single phase | 350 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 5 L | 73 dB(A) | 28.3 kg (62.4 lb) | 58 x 31.5 x 40.5 cm |
| Extreme 3T 2 hp, 2,800 rpm | Mains, single phase | 400 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 5 L | 82 dB(A) | 26.9 kg (59.3 lb) | 58 x 31.5 x 40.5 cm |
| Extreme 3 30 L 0.75 hp | Mains, single phase | 200 L/min | 10 bar (145 psi) | 0.75 hp (0.55 kW) | 30 L | 72 dB(A) | 28 kg (61.7 lb) | 70 x 30 x 60 cm |
| Extreme 3 30 L 1.5 hp | Mains, single phase | 240 L/min | 10 bar (145 psi) | 1.5 hp (1.1 kW) | 30 L | 72 dB(A) | 30.5 kg (67.2 lb) | 70 x 30 x 60 cm |
| Extreme 3 30 L 2 hp, 1,400 rpm | Mains, single phase | 350 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 30 L | 73 dB(A) | 36.5 kg (80.5 lb) | 70 x 30 x 60 cm |
| Extreme 3 30 L 2 hp, 2,800 rpm | Mains, single phase | 400 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 30 L | 82 dB(A) | 34 kg (75 lb) | 70 x 30 x 60 cm |
| Extreme 3 50 L 0.75 hp | Mains, single phase | 200 L/min | 10 bar (145 psi) | 0.75 hp (0.55 kW) | 50 L | 72 dB(A) | 33.5 kg (73.9 lb) | 81 x 40 x 69 cm |
| Extreme 3 50 L 1.5 hp | Mains, single phase | 240 L/min | 10 bar (145 psi) | 1.5 hp (1.1 kW) | 50 L | 72 dB(A) | 36 kg (79.4 lb) | 81 x 40 x 69 cm |
| Extreme 3 50 L 2 hp, 1,400 rpm | Mains, single phase | 350 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 50 L | 73 dB(A) | 43 kg (94.8 lb) | 81 x 40 x 69 cm |
| Extreme 3 50 L 2 hp, 2,800 rpm | Mains, single phase | 400 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 50 L | 82 dB(A) | 39.5 kg (87.1 lb) | 81 x 40 x 69 cm |
| Extreme 1 10 L 0.75 hp | Mains, single phase | 200 L/min | 10 bar (145 psi) | 0.75 hp (0.55 kW) | 10 L | 72 dB(A) | 22.5 kg (49.6 lb) | 42 x 39 x 72 cm |
| Extreme 1 10 L 1.5 hp | Mains, single phase | 240 L/min | 10 bar (145 psi) | 1.5 hp (1.1 kW) | 10 L | 72 dB(A) | 26.2 kg (57.8 lb) | 40 x 40 x 68 cm |
| Extreme 1 10 L 2 hp, 1,400 rpm | Mains, single phase | 350 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 10 L | 73 dB(A) | 30.8 kg (67.9 lb) | 42 x 40 x 68 cm |
| Extreme 1 10 L 2 hp, 2,800 rpm | Mains, single phase | 400 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 10 L | 82 dB(A) | 28.5 kg (62.8 lb) | 42 x 39 x 72 cm |
| Extreme 1 25 L 0.75 hp | Mains, single phase | 200 L/min | 10 bar (145 psi) | 0.75 hp (0.55 kW) | 25 L | 72 dB(A) | 30.5 kg (67.2 lb) | 54 x 60 x 83 cm |
| Extreme 1 25 L 1.5 hp | Mains, single phase | 240 L/min | 10 bar (145 psi) | 1.5 hp (1.1 kW) | 25 L | 72 dB(A) | 33 kg (72.8 lb) | 54 x 60 x 83 cm |
| Extreme 1 25 L 2 hp, 1,400 rpm | Mains, single phase | 350 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 25 L | 73 dB(A) | 38.5 kg (84.9 lb) | 54 x 60 x 83 cm |
| Extreme 1 25 L 2 hp, 2,800 rpm | Mains, single phase | 400 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 25 L | 82 dB(A) | 36.5 kg (80.5 lb) | 54 x 60 x 83 cm |
| Extreme 3 7 L, 12V | 12V DC | 250 L/min | 8 bar (116 psi) | 0.8 kW | 7 L | 72 dB(A) | 22.5 kg (49.6 lb) | 41 x 40 x 40 cm |
| Extreme 3 7 L, 24V | 24V DC | 250 L/min | 8 bar (116 psi) | 0.8 kW | 7 L | 72 dB(A) | 22.5 kg (49.6 lb) | 41 x 40 x 40 cm |
| Extreme 3 30 L, 12V | 12V DC | 250 L/min | 8 bar (116 psi) | 0.8 kW | 30 L | 72 dB(A) | 28 kg (61.7 lb) | 70 x 30 x 60 cm |
| Extreme 3 30 L, 12V or 24V | 12V or 24V DC | 250 L/min | 8 bar (116 psi) | 0.8 kW | 30 L | 72 dB(A) | 28 kg (61.7 lb) | 70 x 30 x 60 cm |
| Extreme 5G, Subaru | Gasoline engine | 270 L/min | 10 bar (145 psi) | 2.2 kW | 7 L | 85 dB(A) | 28.3 kg (62.4 lb) | 43 x 44.5 x 48.5 cm |
| Extreme 70 5G, Subaru | Gasoline engine | 380 L/min | 10 bar (145 psi) | 2.2 kW | 7 L | 85 dB(A) | 29.2 kg (64.4 lb) | 44.5 x 41 x 50 cm |
| Specification | All models |
|---|---|
| Stages / cylinders | 1 / 2 |
| Air outlet | Quick coupling |
| Lubrication | Oil-free, no oil change required |
| Working temperature | 5 to 45 C |
| Electrical supply | Confirmed on your quote |
| Country of origin | Italy |
Brand: Nardi Compressori
Category: Oil-Free Compressor
SKU: NRD-EXT-AC
