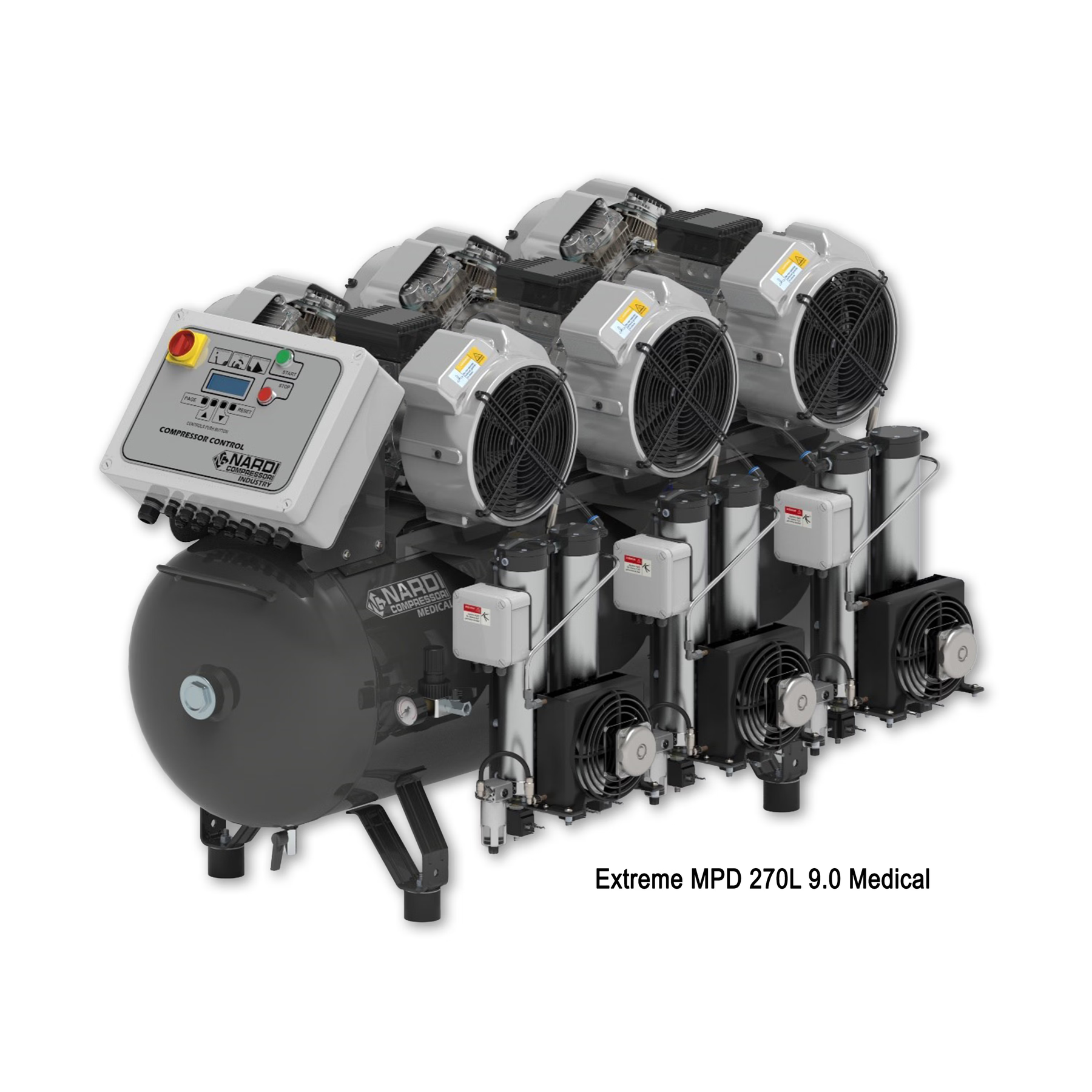

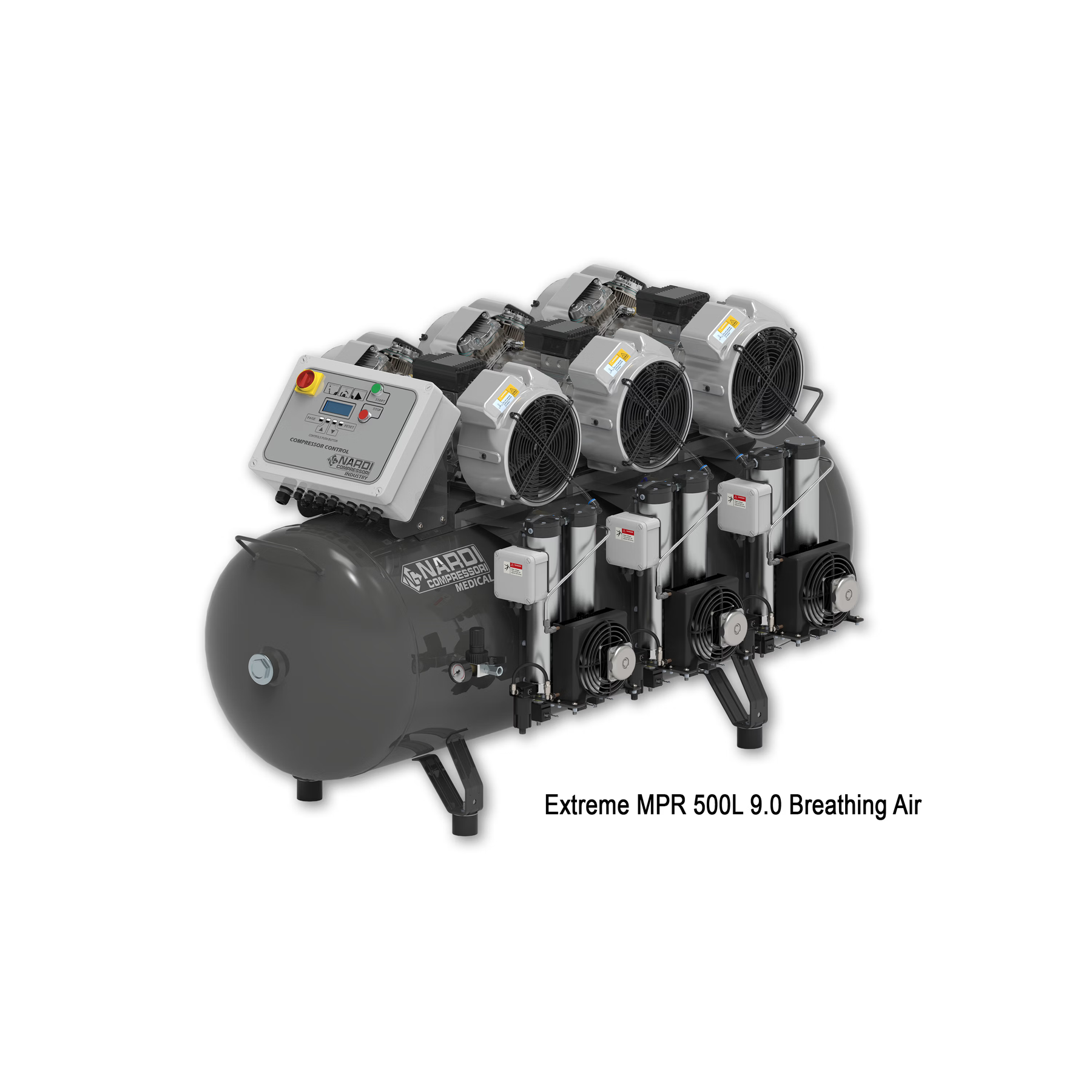

The Nardi Extreme MultiPower is a stationary oil-free compressor with one to three pump units on a 270 or 500 L tank. It delivers clean compressed air with no oil to change and no oil carried into the air, at 600 to 1,800 L/min and 10 bar. The Extreme 4/21B builds reach 21 bar at 520 to 780 L/min.
Models
- Extreme MP 270 L, 3, 6 or 9 hp, 10 bar
- Extreme MP 500 L, 6 or 9 hp, 10 bar
- Extreme 4/21B, 270 or 500 L, 6 or 9 hp, 21 bar
- Pressure switch control or electronic control, depending on model
- Three phase supply on every model
See the MultiPower page for how the pumps share the load.
Electrical supply. Supply voltage and frequency are confirmed on your quote.
Pricing and configuration are confirmed on your quote.
Built to order in Italy by Nardi Compressori.
See the Specifications tab for full technical specifications.
| Model | Supply | Air intake | Max pressure | Power | Receiver | Noise | Weight | L x W x H |
|---|---|---|---|---|---|---|---|---|
| Extreme MP 270 L 3 hp | Mains, three phase | 600 L/min | 10 bar (145 psi) | 3 hp (2.2 kW) | 270 L | 73 dB(A) | 116 kg (255.7 lb) | 160 x 64 x 87 cm |
| Extreme MP 270 L 6 hp | Mains, three phase | 1200 L/min | 10 bar (145 psi) | 6 hp (4.4 kW) | 270 L | 74 dB(A) | 165 kg (363.8 lb) | 160 x 64 x 87 cm |
| Extreme MP 270 L 9 hp | Mains, three phase | 1800 L/min | 10 bar (145 psi) | 9 hp (6.6 kW) | 270 L | 75 dB(A) | 198 kg (436.5 lb) | 160 x 64 x 87 cm |
| Extreme MP 500 L 6 hp | Mains, three phase | 1200 L/min | 10 bar (145 psi) | 6 hp (4.4 kW) | 500 L | 74 dB(A) | 220 kg (485 lb) | 195 x 64 x 110 cm |
| Extreme MP 500 L 9 hp | Mains, three phase | 1800 L/min | 10 bar (145 psi) | 9 hp (6.6 kW) | 500 L | 75 dB(A) | 253 kg (557.8 lb) | 195 x 64 x 110 cm |
| Extreme 4/21B 270 L 6 hp | Mains, three phase | 520 L/min | 21 bar (305 psi) | 6 hp (4.4 kW) | 270 L | 74 dB(A) | 185 kg (407.9 lb) | 160 x 64 x 87 cm |
| Extreme 4/21B 270 L 9 hp | Mains, three phase | 780 L/min | 21 bar (305 psi) | 9 hp (6.6 kW) | 270 L | 75 dB(A) | 218 kg (480.6 lb) | 160 x 64 x 87 cm |
| Extreme 4/21B 500 L 6 hp | Mains, three phase | 520 L/min | 21 bar (305 psi) | 6 hp (4.4 kW) | 500 L | 74 dB(A) | 240 kg (529.1 lb) | 195 x 64 x 110 cm |
| Extreme 4/21B 500 L 9 hp | Mains, three phase | 780 L/min | 21 bar (305 psi) | 9 hp (6.6 kW) | 500 L | 75 dB(A) | 273 kg (601.9 lb) | 195 x 64 x 110 cm |
| Specification | All models |
|---|---|
| Air outlet | G1/4 inch female |
| Lubrication | Oil-free, no oil change required |
| Working temperature | 5 to 45 C |
| Electrical supply | Confirmed on your quote |
| Country of origin | Italy |
Brand: Nardi Compressori
Category: Oil-Free Compressor
SKU: NRD-EMP-ELEC
