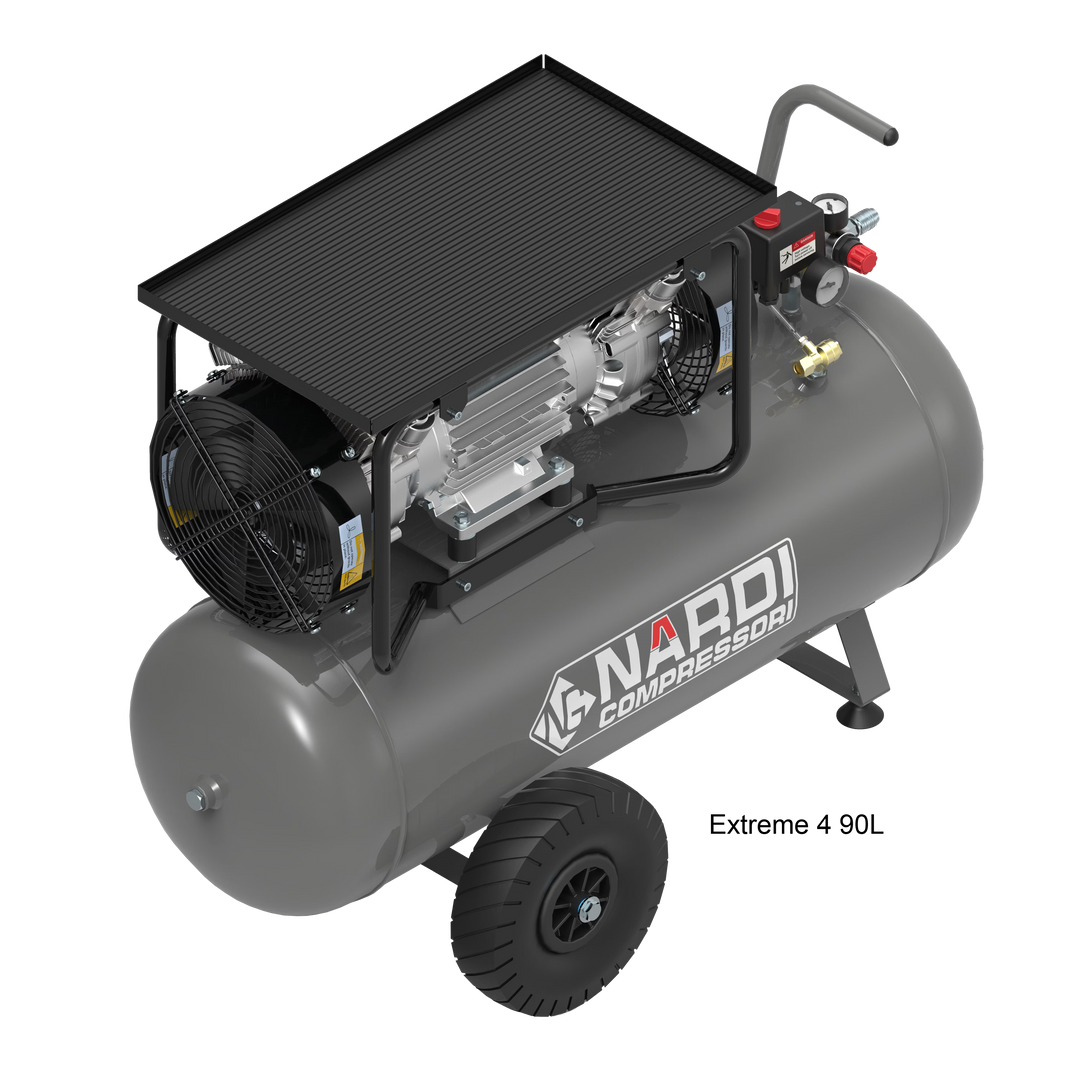

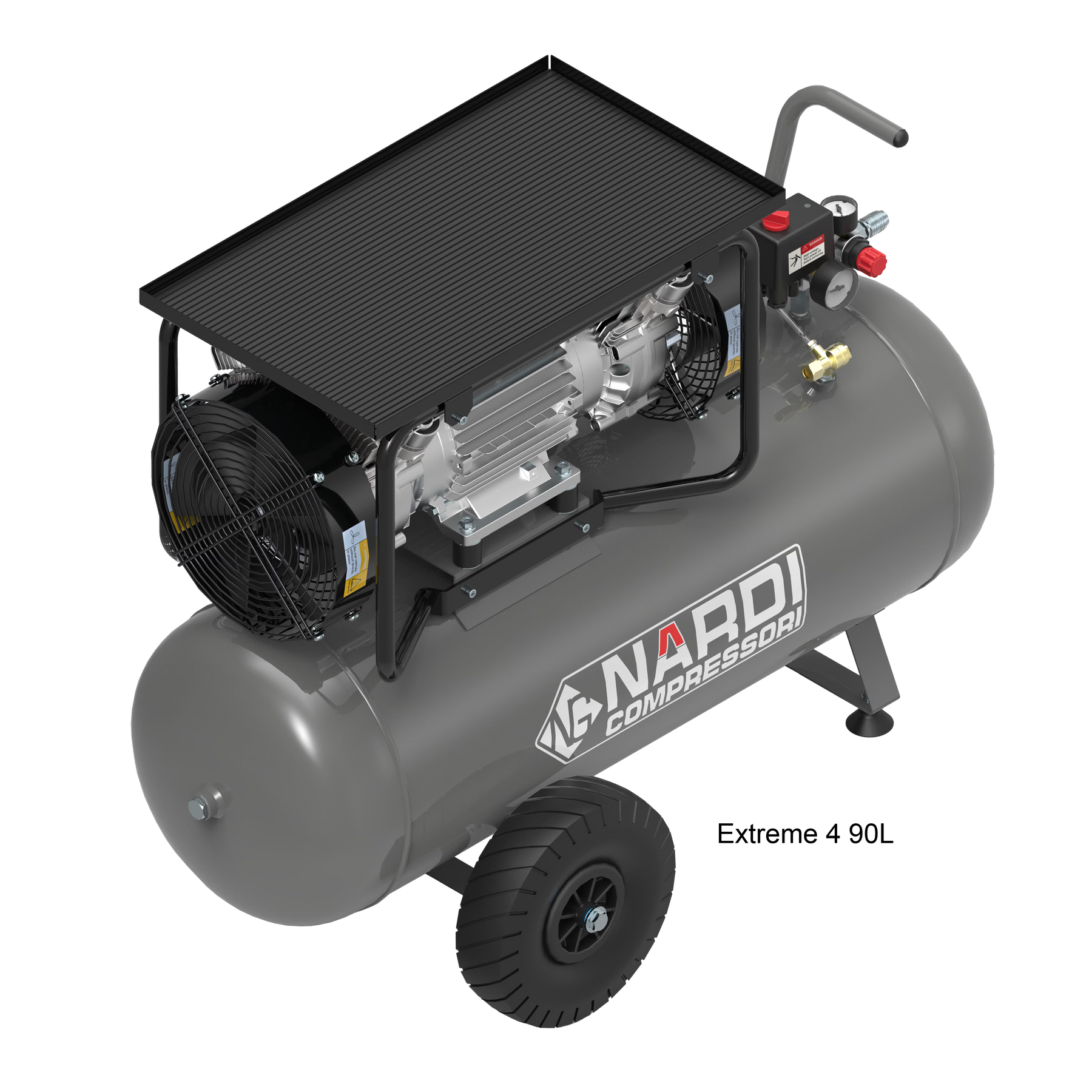

The Nardi Extreme 4 is the largest tanked portable Extreme, on a 90 L tank for jobs that draw more air. Its oil-free pump delivers clean compressed air with no oil to change and no oil carried into the air, with motors from 2 to 3 hp.
Models
- Extreme 4 90 L 2 hp, 240 L/min
- Extreme 4 90 L 2.5 hp, 400 L/min
- Extreme 4 90 L 3 hp, 480 L/min, three phase supply
Electrical supply. Supply voltage and frequency are confirmed on your quote.
Pricing and configuration are confirmed on your quote.
Built to order in Italy by Nardi Compressori.
See the Specifications tab for full technical specifications.
| Model | Supply | Air intake | Max pressure | Power | Receiver | Noise | Weight | L x W x H |
|---|---|---|---|---|---|---|---|---|
| Extreme 4 90 L 2 hp | Mains, single phase | 240 L/min | 10 bar (145 psi) | 2 hp (1.5 kW) | 90 L | 73 dB(A) | 62 kg (136.7 lb) | 107 x 57 x 81 cm |
| Extreme 4 90 L 2.5 hp | Mains, single phase | 400 L/min | 10 bar (145 psi) | 2.5 hp (1.84 kW) | 90 L | 73 dB(A) | 70 kg (154.3 lb) | 107 x 57 x 81 cm |
| Extreme 4 90 L 3 hp | Mains, three phase | 480 L/min | 10 bar (145 psi) | 3 hp (2.2 kW) | 90 L | 75 dB(A) | 66.8 kg (147.3 lb) | 109 x 56 x 81 cm |
| Specification | All models |
|---|---|
| Stages / cylinders | 1 / 2 |
| Air outlet | Quick coupling |
| Lubrication | Oil-free, no oil change required |
| Working temperature | 5 to 45 C |
| Electrical supply | Confirmed on your quote |
| Country of origin | Italy |
Brand: Nardi Compressori
Category: Oil-Free Compressor
SKU: NRD-EXT-4-ELEC
