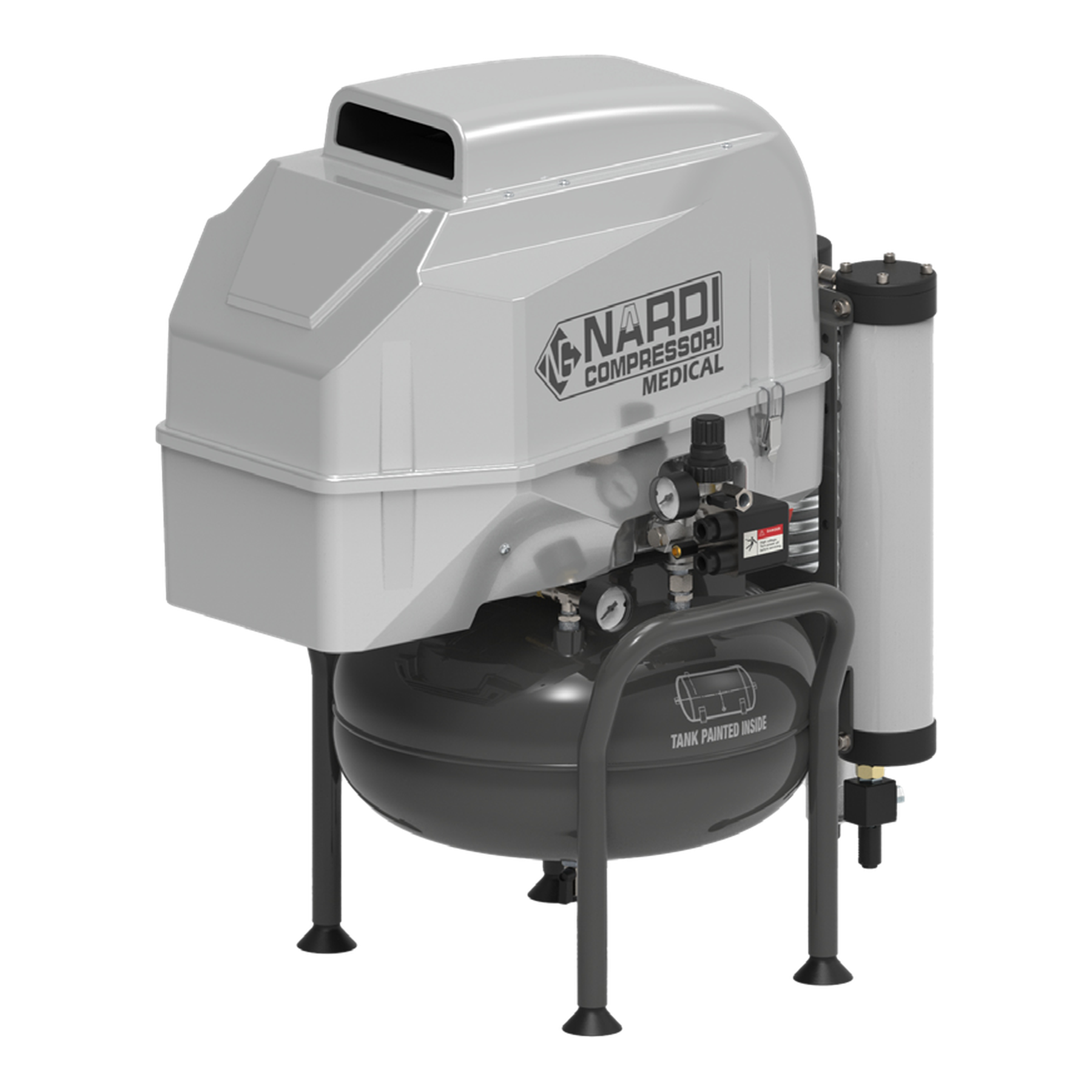

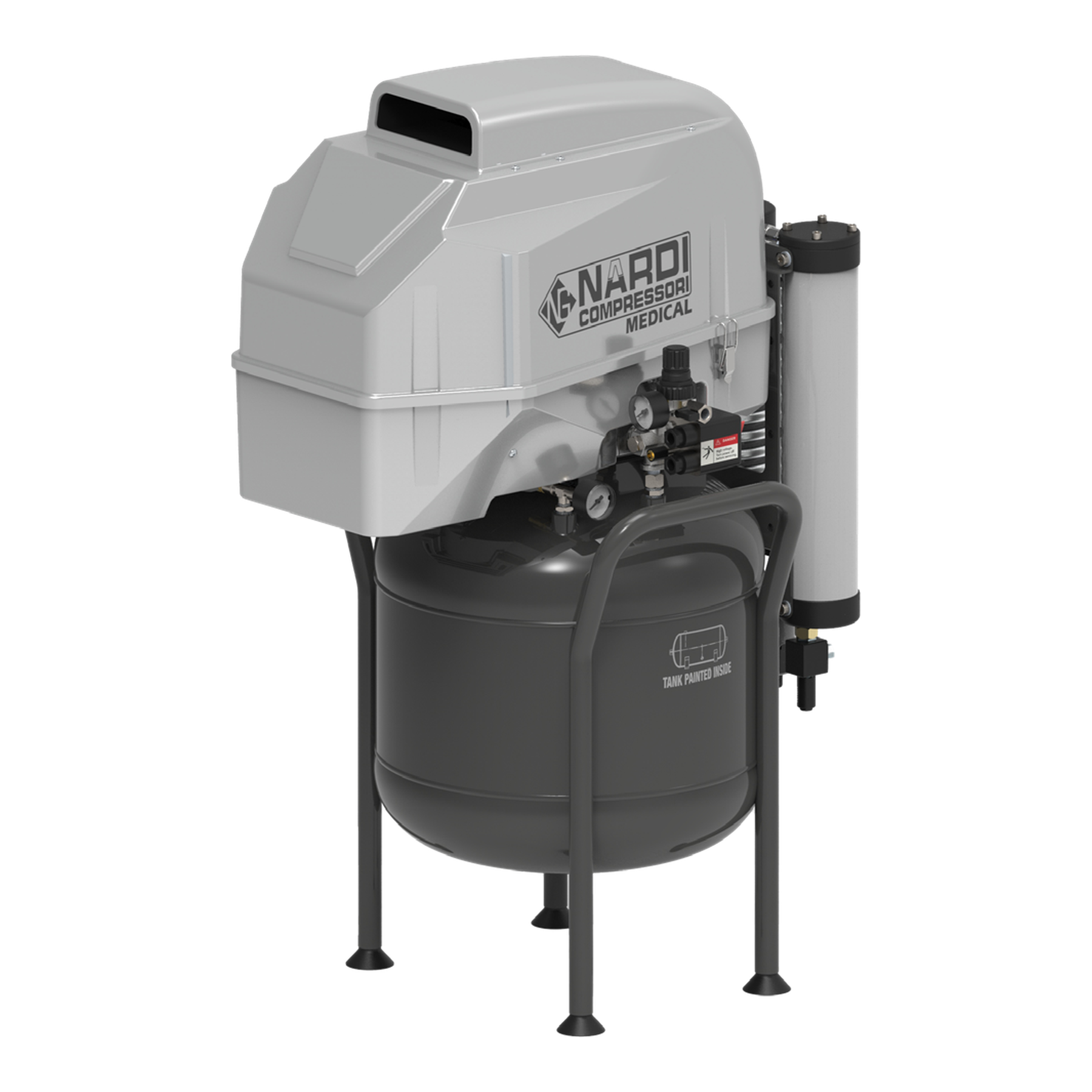

The Nardi Extreme 2 SIL places the Extreme 2 medical compressor in a sound-insulated cabinet, bringing noise down to 66 to 67 dB(A) for installation close to the treatment room. Available on a 25 L or 50 L tank at 1.5 or 2.0 HP, with or without the D400 dryer.
Models
- Extreme 2V SIL 25L 1.50, 1.5 HP, without dryer
- Extreme 2D SIL 25L 1.50, 1.5 HP, with D400 dryer
- Extreme 2V SIL 25L 2.00, 2.0 HP, without dryer
- Extreme 2D SIL 25L 2.00, 2.0 HP, with D400 dryer
- Extreme 2V SIL 50L 1.50, 1.5 HP, without dryer
- Extreme 2D SIL 50L 1.50, 1.5 HP, with D400 dryer
- Extreme 2V SIL 50L 2.00, 2.0 HP, without dryer
- Extreme 2D SIL 50L 2.00, 2.0 HP, with D400 dryer
Standard equipment
- Oil-free piston compressor block
- Air tank painted inside with corrosion inhibiting epoxy powder
- Automatic thermal protection on the motor
- Sound-insulated cabinet
Models marked D include an integrated Nardi absorption dryer. Models marked V are supplied without a dryer and can be paired with a Nardi dryer or filter depurator.
Electrical supply. Nardi builds this range at 230V single phase, 50 Hz as standard, and three phase models at 400V, 50 Hz. Single phase units from 100 to 240V at 50 or 60 Hz are available. The supply voltage for your site is confirmed on your quote.
Built to order in Italy by Nardi Compressori. Model, dryer and supply voltage are confirmed with you on your quote.
See the Specifications tab for full technical specifications.
| Model | Air delivery | Max pressure | Motor | Dryer | Tank | Noise | Weight | Dimensions (L x W x H) |
|---|---|---|---|---|---|---|---|---|
| Extreme 2V SIL 25L 1.50 | 125 L/min at 5 bar, 100 L/min at 8 bar | 8 bar (116 psi) | 1.5 HP (1.1 kW), single phase | None | 25 L | 66 dB(A) | 38.5 kg | 58 x 43 x 78 cm |
| Extreme 2D SIL 25L 1.50 | 125 L/min at 5 bar, 100 L/min at 8 bar | 8 bar (116 psi) | 1.5 HP (1.1 kW), single phase | D400 | 25 L | 66 dB(A) | 45.5 kg | 70 x 43 x 78 cm |
| Extreme 2V SIL 25L 2.00 | 156 L/min at 5 bar, 127 L/min at 8 bar | 8 bar (116 psi) | 2.0 HP (1.5 kW), single phase | None | 25 L | 67 dB(A) | 41 kg | 58 x 43 x 78 cm |
| Extreme 2D SIL 25L 2.00 | 156 L/min at 5 bar, 127 L/min at 8 bar | 8 bar (116 psi) | 2.0 HP (1.5 kW), single phase | D400 | 25 L | 67 dB(A) | 48 kg | 70 x 43 x 78 cm |
| Extreme 2V SIL 50L 1.50 | 125 L/min at 5 bar, 100 L/min at 8 bar | 8 bar (116 psi) | 1.5 HP (1.1 kW), single phase | None | 50 L | 66 dB(A) | 45 kg | 58 x 43 x 98 cm |
| Extreme 2D SIL 50L 1.50 | 125 L/min at 5 bar, 100 L/min at 8 bar | 8 bar (116 psi) | 1.5 HP (1.1 kW), single phase | D400 | 50 L | 66 dB(A) | 53 kg | 70 x 43 x 98 cm |
| Extreme 2V SIL 50L 2.00 | 156 L/min at 5 bar, 127 L/min at 8 bar | 8 bar (116 psi) | 2.0 HP (1.5 kW), single phase | None | 50 L | 67 dB(A) | 47 kg | 58 x 43 x 98 cm |
| Extreme 2D SIL 50L 2.00 | 156 L/min at 5 bar, 127 L/min at 8 bar | 8 bar (116 psi) | 2.0 HP (1.5 kW), single phase | D400 | 50 L | 67 dB(A) | 55 kg | 70 x 43 x 98 cm |
| Specification | Range |
|---|---|
| Source | Nardi Medical price list, Rev. 01/2026 |
| Country of origin | Italy |
Brand: Nardi Compressori
Category: Medical Compressor
SKU: NRD-MED-EXT-2V-SIL-25L-1.50
