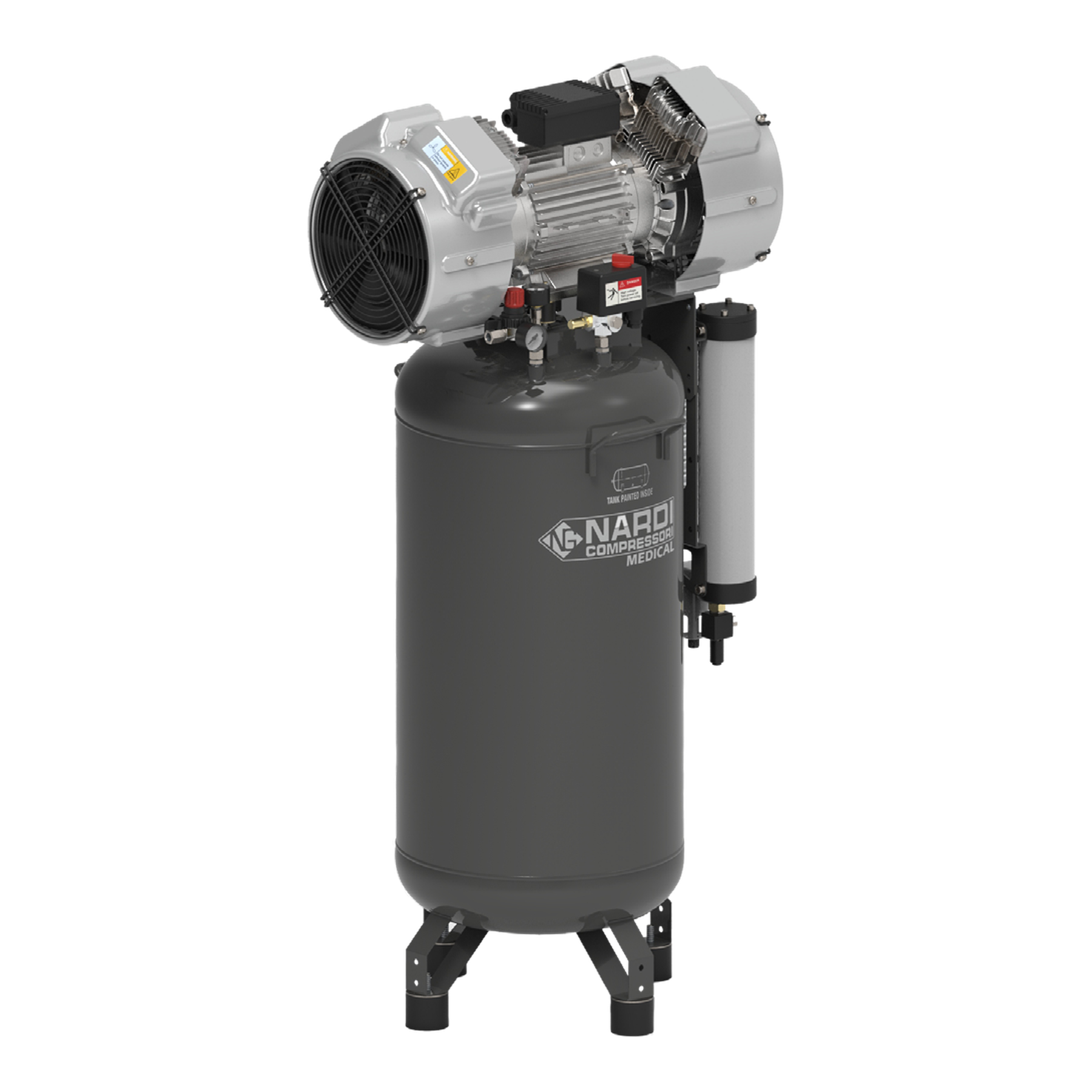

The Nardi Extreme 2 on a 90 L vertical tank, oil-free, with a small footprint for clinics and laboratories. The 2.0 and 2.5 HP models work at 8 bar. The 3.0 HP models are Nardi's CAD-CAM line, built for high air demand with a high degree of purity, working at 10 bar with an upgraded motor, improved ventilation and the D600 dryer for continuous duty.
Models
- Extreme 2V 90L 2.00, 2.0 HP, without dryer
- Extreme 2D 90L 2.00, 2.0 HP, with D400 dryer
- Extreme 2V 90L 2.50, 2.5 HP, without dryer
- Extreme 2D 90L 2.50, 2.5 HP, with D400 dryer
- Extreme 2V 90L 3.00 Single Phase, 3.0 HP, without dryer
- Extreme 2D 90L 3.00 Single Phase, 3.0 HP, with D600 dryer
- Extreme 2V 90L 3.00 Three Phase, 3.0 HP, without dryer
- Extreme 2D 90L 3.00 Three Phase, 3.0 HP, with D600 dryer
Standard equipment
- Oil-free piston compressor block
- Air tank painted inside with corrosion inhibiting epoxy powder
- Automatic thermal protection on the motor
Models marked D include an integrated Nardi absorption dryer. Models marked V are supplied without a dryer and can be paired with a Nardi dryer or filter depurator.
Electrical supply. Nardi builds this range at 230V single phase, 50 Hz as standard, and three phase models at 400V, 50 Hz. Single phase units from 100 to 240V at 50 or 60 Hz are available. The supply voltage for your site is confirmed on your quote.
Built to order in Italy by Nardi Compressori. Model, dryer and supply voltage are confirmed with you on your quote.
See the Specifications tab for full technical specifications.
| Model | Air delivery | Max pressure | Motor | Dryer | Tank | Noise | Weight | Dimensions (L x W x H) |
|---|---|---|---|---|---|---|---|---|
| Extreme 2V 90L 2.00 | 156 L/min at 5 bar, 127 L/min at 8 bar | 8 bar (116 psi) | 2.0 HP (1.5 kW), single phase | None | 90 L | 73 dB(A) | 57 kg | 46 x 43 x 140 cm |
| Extreme 2D 90L 2.00 | 156 L/min at 5 bar, 127 L/min at 8 bar | 8 bar (116 psi) | 2.0 HP (1.5 kW), single phase | D400 | 90 L | 73 dB(A) | 66 kg | 58.5 x 43 x 140 cm |
| Extreme 2V 90L 2.50 | 240 L/min at 5 bar, 190 L/min at 8 bar | 8 bar (116 psi) | 2.5 HP (1.84 kW), single phase | None | 90 L | 73 dB(A) | 67 kg | 64 x 45 x 140 cm |
| Extreme 2D 90L 2.50 | 240 L/min at 5 bar, 190 L/min at 8 bar | 8 bar (116 psi) | 2.5 HP (1.84 kW), single phase | D400 | 90 L | 73 dB(A) | 75 kg | 64 x 45 x 140 cm |
| Extreme 2V 90L 3.00 Single Phase | 240 L/min at 5 bar, 190 L/min at 8 bar | 10 bar (145 psi) | 3.0 HP (2.2 kW), single phase | None | 90 L | 73 dB(A) | 69 kg | 64 x 45 x 140 cm |
| Extreme 2D 90L 3.00 Single Phase | 240 L/min at 5 bar, 190 L/min at 8 bar | 10 bar (145 psi) | 3.0 HP (2.2 kW), single phase | D600 | 90 L | 73 dB(A) | 77 kg | 74 x 45 x 140 cm |
| Extreme 2V 90L 3.00 Three Phase | 312 L/min at 5 bar, 250 L/min at 8 bar | 10 bar (145 psi) | 3.0 HP (2.2 kW), three phase | None | 90 L | 73 dB(A) | 69 kg | 64 x 45 x 140 cm |
| Extreme 2D 90L 3.00 Three Phase | 312 L/min at 5 bar, 250 L/min at 8 bar | 10 bar (145 psi) | 3.0 HP (2.2 kW), three phase | D600 | 90 L | 73 dB(A) | 77 kg | 74 x 45 x 140 cm |
| Specification | Range |
|---|---|
| Source | Nardi Medical price list, Rev. 01/2026 (the Medical catalogue tables list this model as 100L) |
| Country of origin | Italy |
