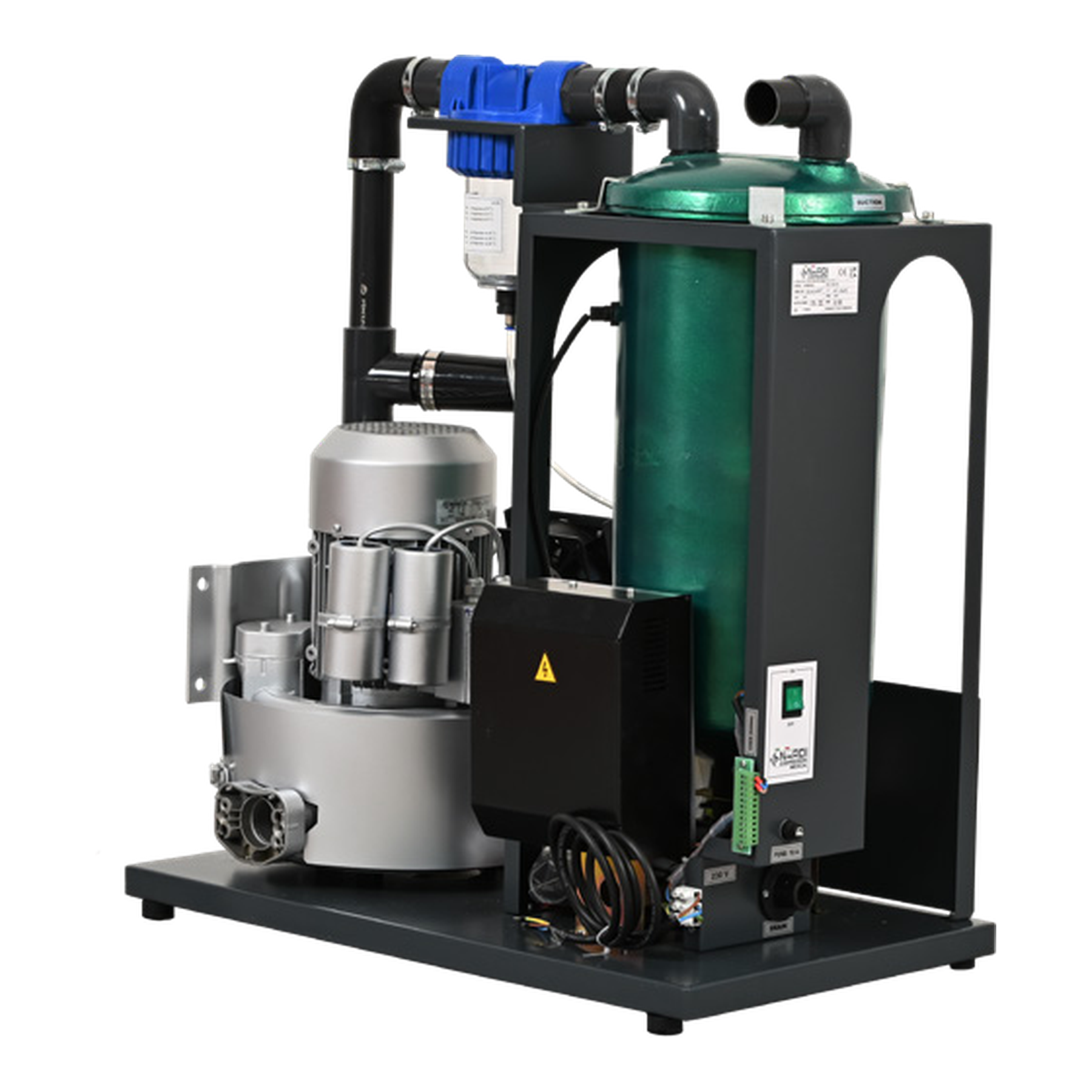

Nardi DSU dental suction system, open version
Nardi Compressori

Nardi Dental Suction Systems, DSU Range

  • In Stock - Ready to Ship
  • Custom Order - See Details Below
Request a Quote
/
Model
Request a Quote

Some Nardi units are configured or built to your specification; others are standard models we order in from the factory based on your selection. Custom Order items are confirmed and paid for at checkout, then fulfilled on the lead time below.

Lead time for Nardi products:

Lead time depends on the product. Replacement parts, filters, and accessories typically ship within days to a couple of weeks. Built-to-order units, such as Pacific Series compressors, take up to 4 to 6 weeks to build at the Nardi factory in Italy. From there, shipping to Canada takes:

  • Approximately 3 weeks by sea freight (7 to 9 weeks total)
  • Approximately 1 week by air freight, priced on request (5 to 7 weeks total)

What happens next:

  • Payment secures your place in the fulfillment queue
  • You receive an order confirmation with your final specification
  • We coordinate with Nardi to confirm your order and expected ship date
  • Shipping confirmation and tracking follow when your order leaves the factory or warehouse
  • If your timeline changes, we reach out proactively


Need expedited shipping? Use the Request a Quote button above. We'll confirm air freight options and cost, then send a formal quote for your approval.

Pricing for this product is confirmed on your quote.

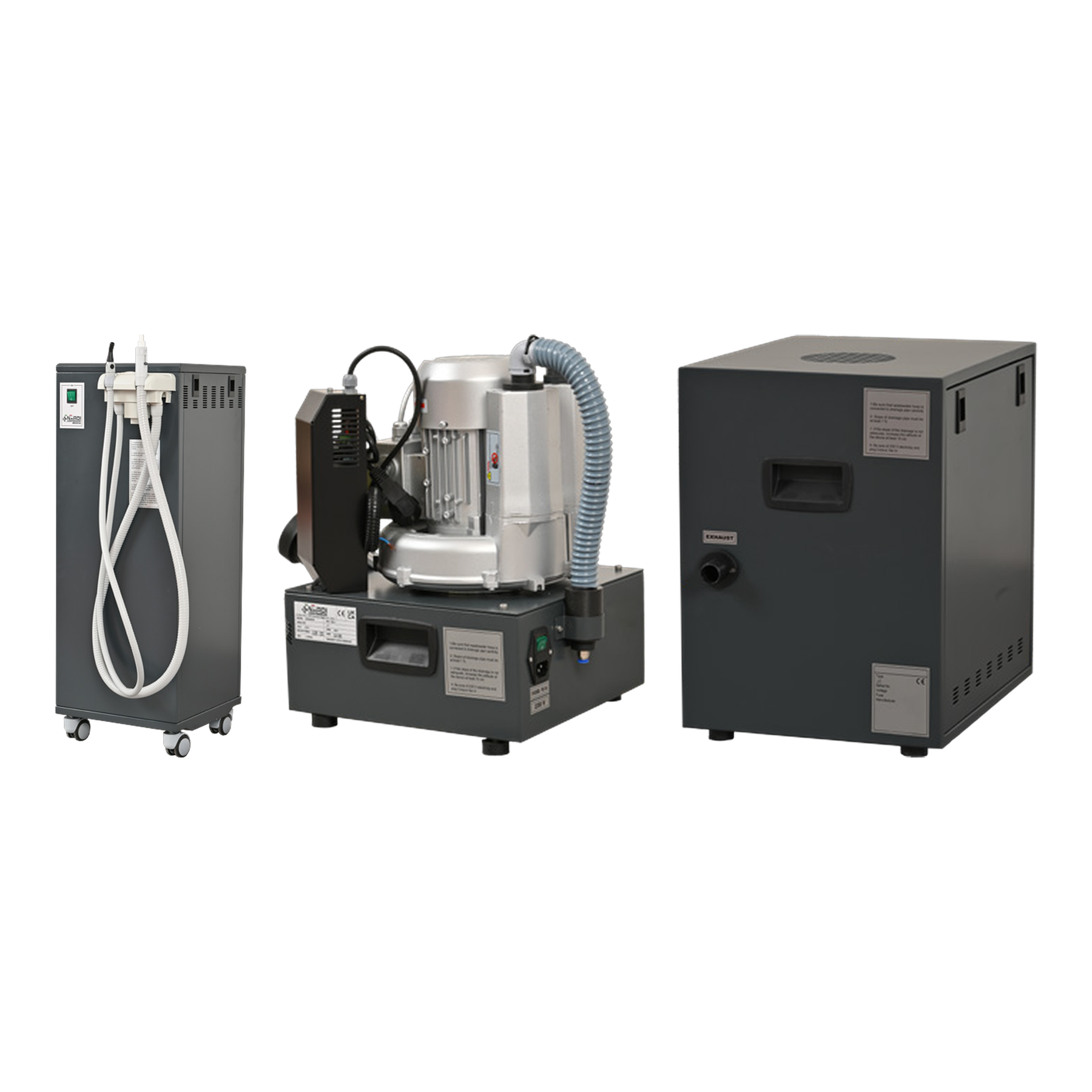

Nardi DSU suction systems serve dental chairs in three formats: a mobile cabinet, a compact semi-wet unit and an open version. They run on 110 to 230V at 50 or 60 Hz.

Models

  • DSU-001-A, mobile cabinet, automatic chairs, 6 L/min suction
  • DSU-001-M, mobile cabinet, manual chairs, 6 L/min suction
  • DSU-001-B, mobile cabinet, spittoon, 6 L/min suction
  • DSU-002-1, compact semi-wet, 1 to 2 chairs, 10 L/min suction
  • DSU-002-4, compact semi-wet, 3 to 4 chairs, 20 L/min suction
  • DSU-002-2, compact semi-wet, 8 to 10 chairs, 15 L/min suction
  • DSU-003-1, open version, 1 to 2 chairs, 10 L/min suction
  • DSU-003-3, open version, 3 to 4 chairs, 40 L/min suction
  • DSU-003-5, open version, 5 to 6 chairs, 10 L/min suction

Built to order in Italy by Nardi Compressori. Pricing for this range is confirmed on your quote.

See the Specifications tab for full technical specifications.

ModelTypeServesSuction capacityVacuum powerSupplyNoiseWeightDimensions (L x W x H)
DSU-001-AMobile cabinetAutomatic chairs6 L/min1,300 W110 to 230V, 50 to 60 Hz45 dB(A)35 kg85 x 42 x 32 cm
DSU-001-MMobile cabinetManual chairs6 L/min1,300 W110 to 230V, 50 to 60 Hz45 dB(A)35 kg85 x 42 x 32 cm
DSU-001-BMobile cabinetSpittoon6 L/min1,300 W110 to 230V, 50 to 60 Hz45 dB(A)40 kg90 x 42 x 32 cm
DSU-002-1Compact semi-wet1 to 2 chairs10 L/min1,300 W110 to 230V, 50 to 60 Hz55 dB(A)20 kg50 x 32 x 50 cm
DSU-002-4Compact semi-wet3 to 4 chairs20 L/min2,000 W110 to 230V, 50 to 60 Hz65 dB(A)30 kg60 x 50 x 38 cm
DSU-002-2Compact semi-wet8 to 10 chairs15 L/min1,300 W110 to 230V, 50 to 60 Hz45 dB(A)25 kg43 x 40 x 31 cm
DSU-003-1Open version1 to 2 chairs10 L/min1,300 W110 to 230V, 50 to 60 Hz53 dB(A)18 kg40 x 40 x 31 cm
DSU-003-3Open version3 to 4 chairs40 L/min2,000 W110 to 230V, 50 to 60 Hz63 dB(A)45 kg45 x 50 x 41 cm
DSU-003-5Open version5 to 6 chairs10 L/min3,000 W110 to 230V, 50 to 60 Hz65 dB(A)55 kg65 x 65 x 41 cm
SpecificationRange
SourceNardi Medical catalogue
Country of originItaly

Brand: Nardi Compressori

Category: Dental Suction System

SKU: NRD-MED-DSU-001-A
