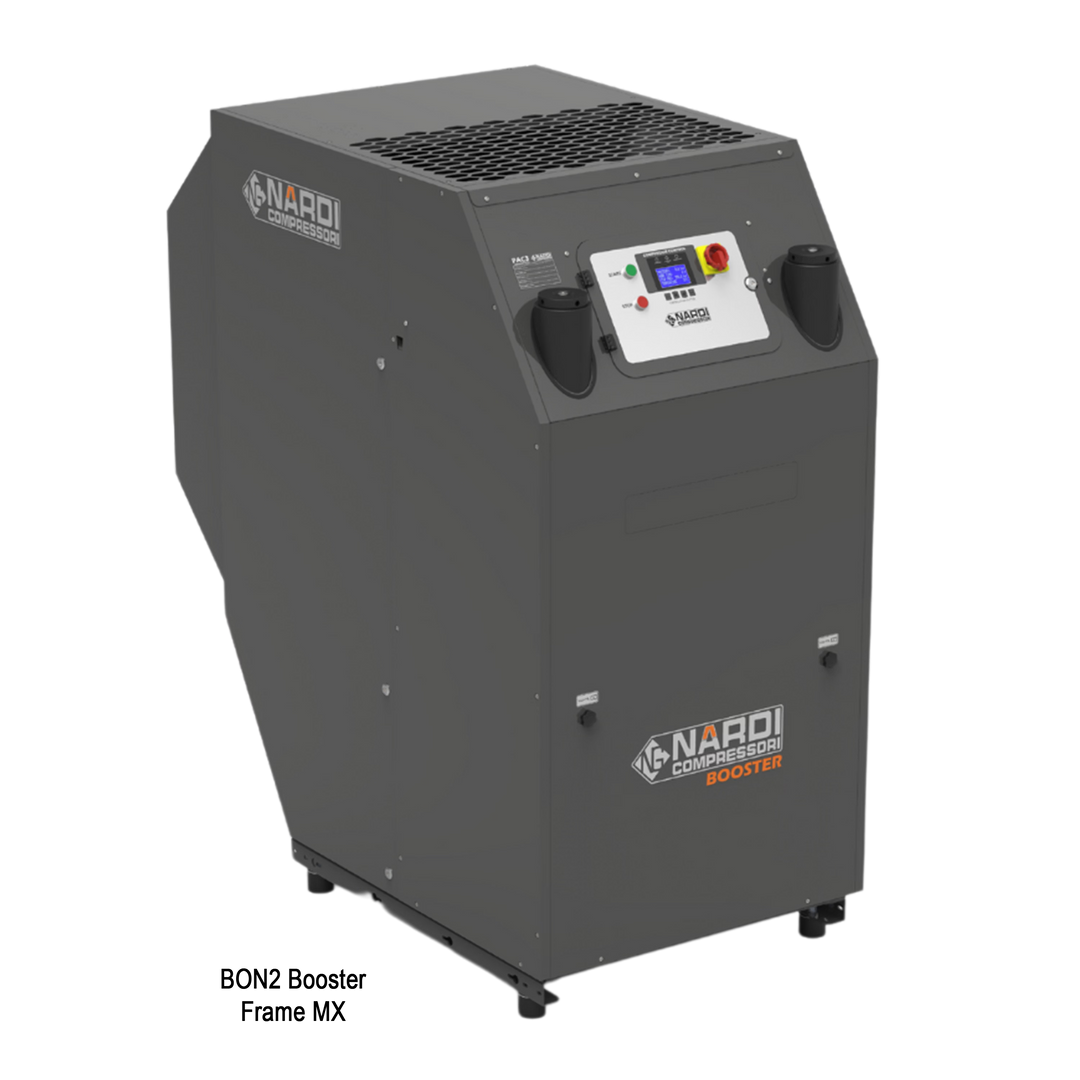

Nardi BON2 high pressure booster, frame MX

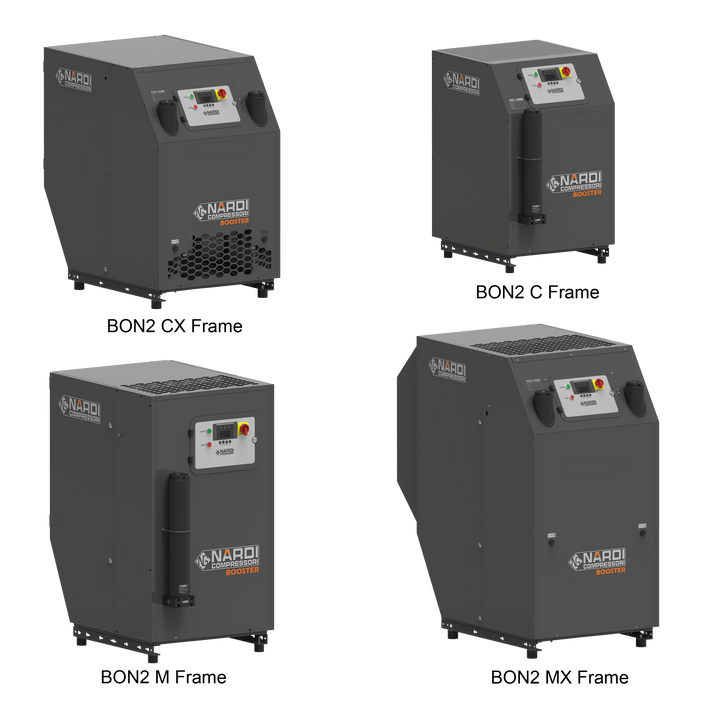

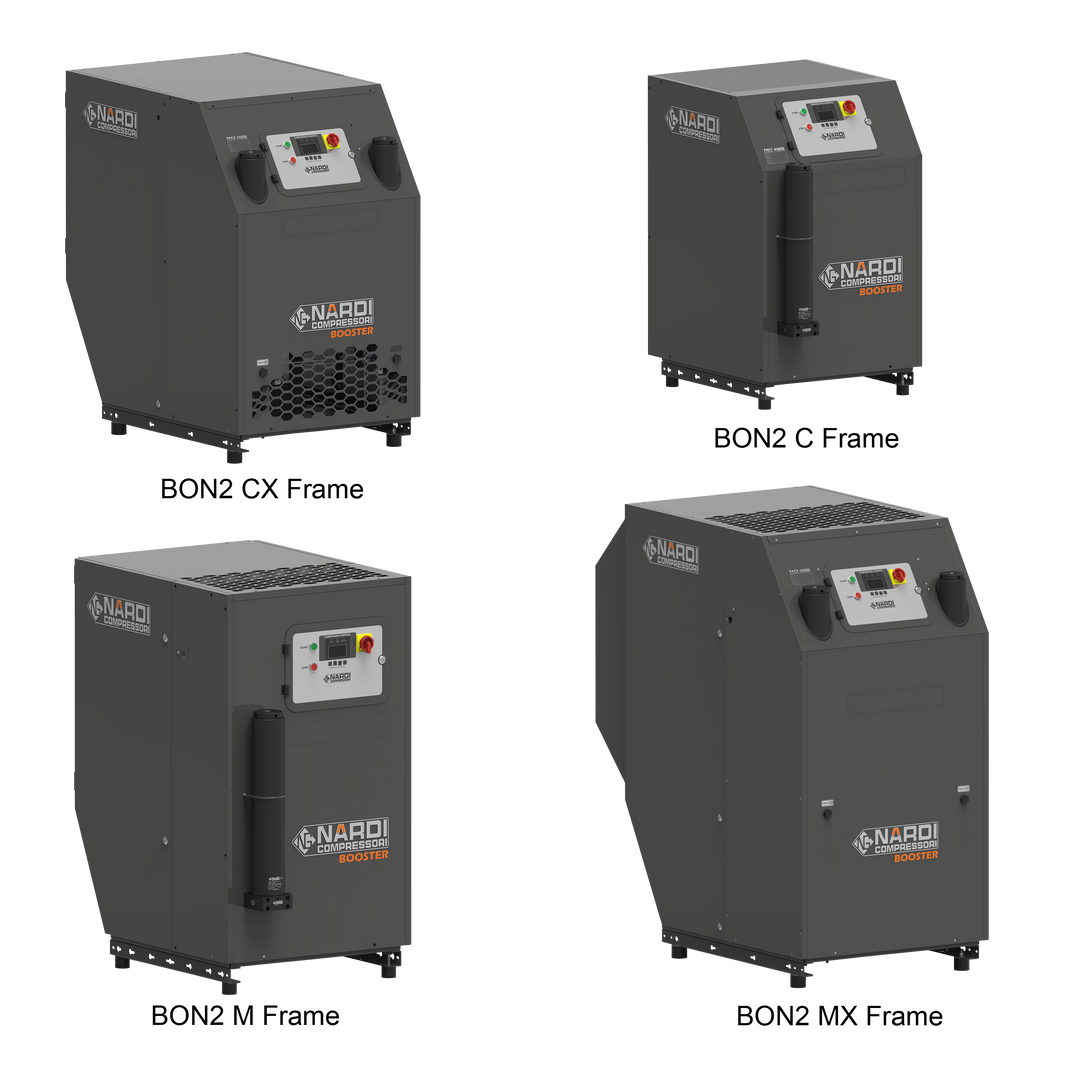

Nardi BON2 high pressure boosters

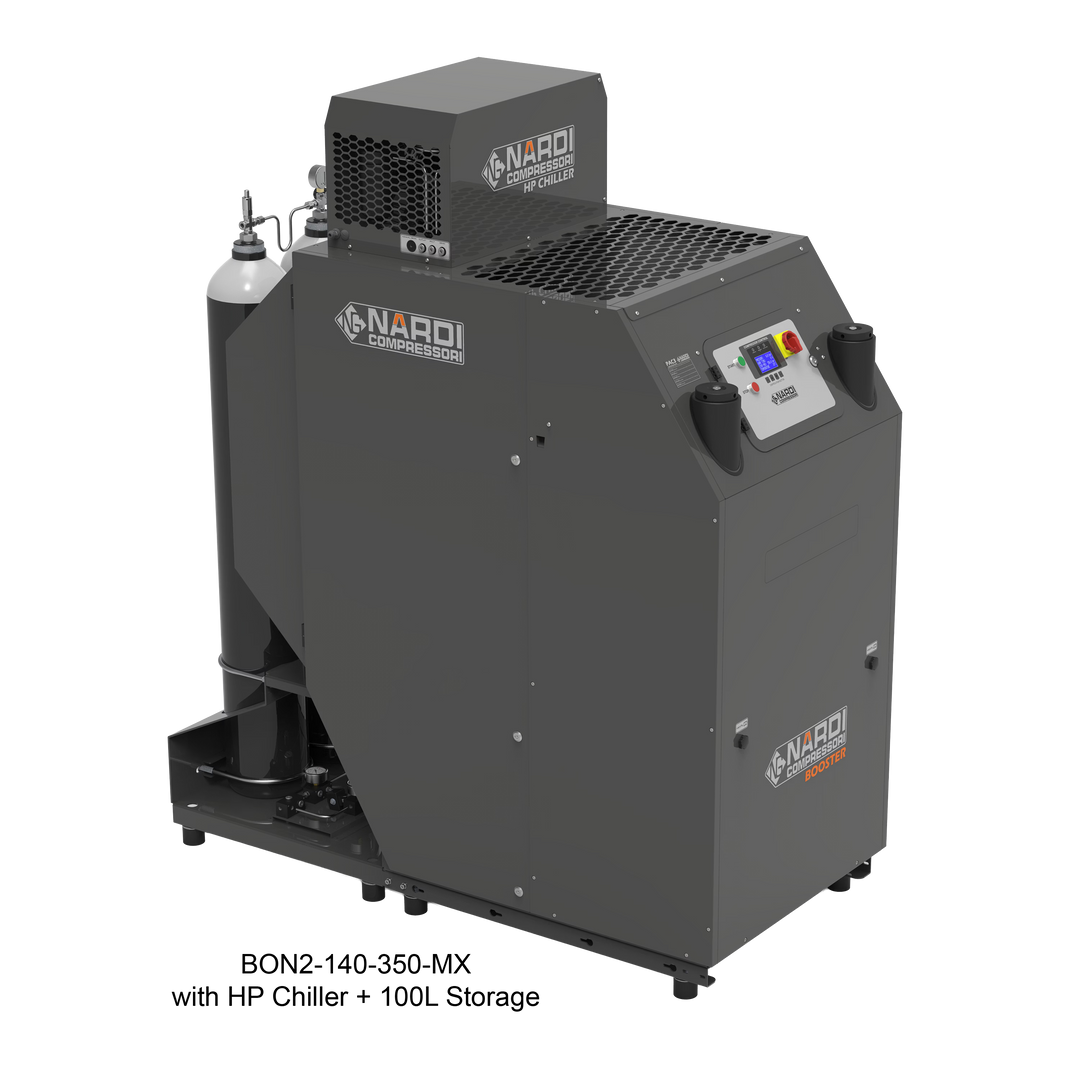

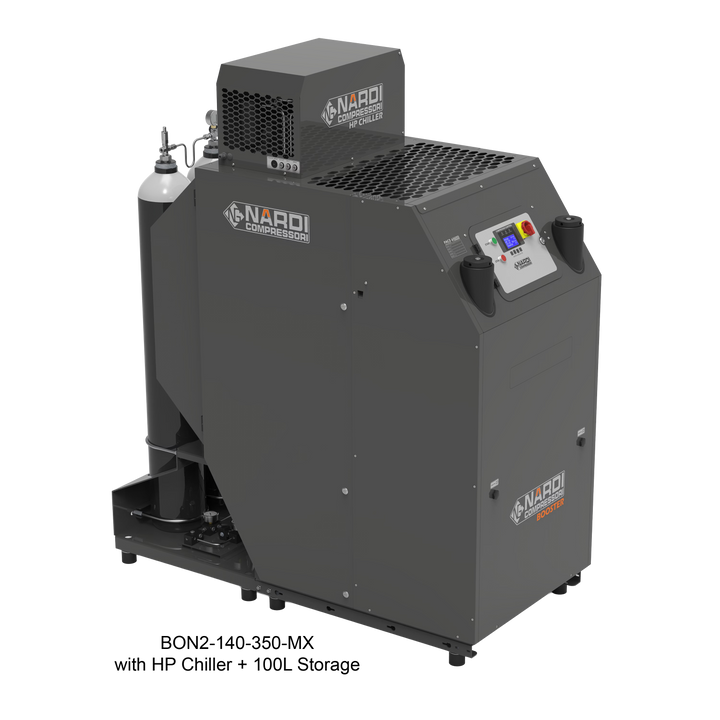

Nardi BON2-140 booster, frame MX, with high pressure chiller and 100 L storage

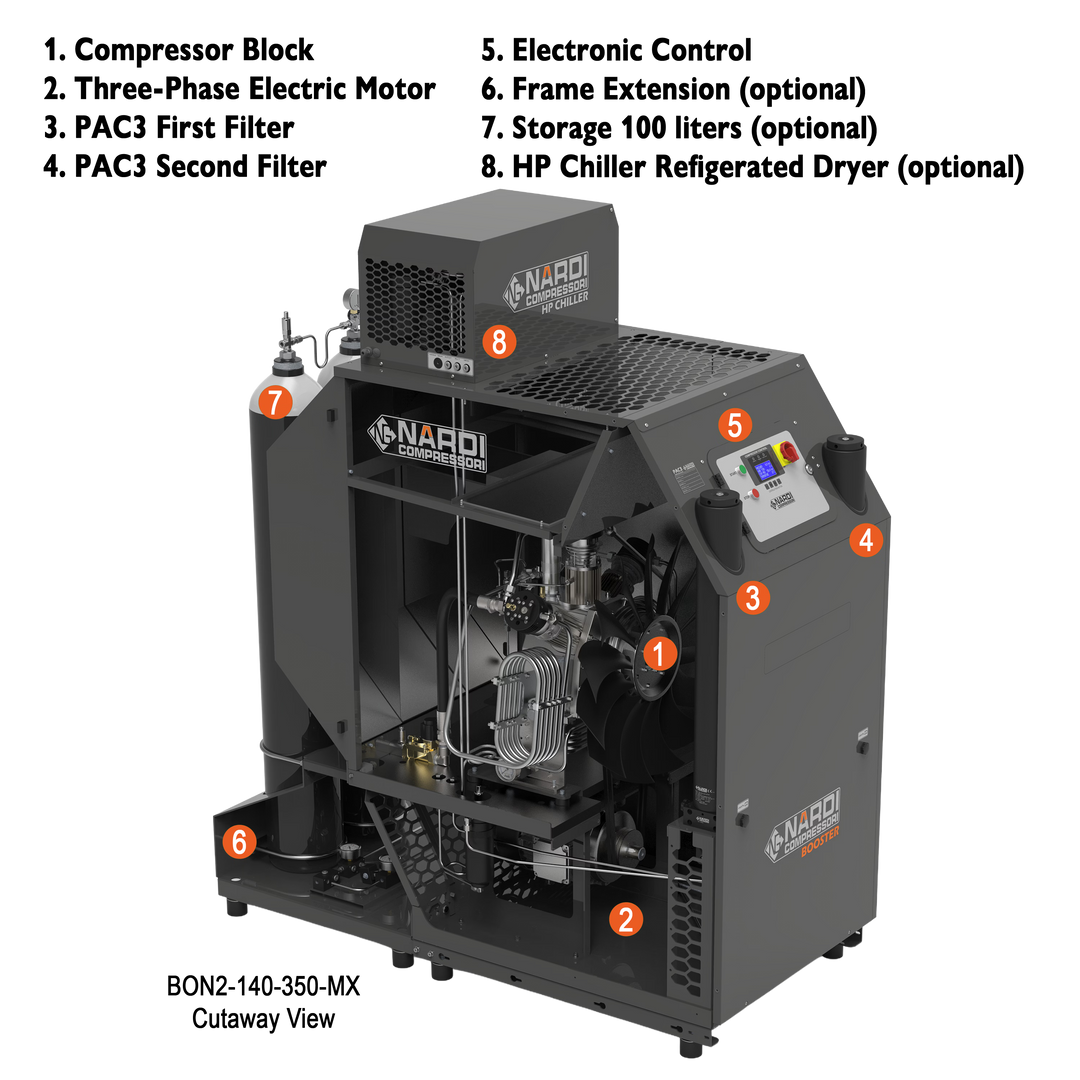

Nardi BON2-140 booster components
Nardi BON2 high pressure booster, frame MX
Nardi BON2 high pressure boosters
Nardi BON2-140 booster, frame MX, with high pressure chiller and 100 L storage
Nardi BON2-140 booster components
Nardi Compressori

Nardi BON2 High Pressure Gas Booster

  • In Stock - Ready to Ship
  • Custom Order - See Details Below
Request a Quote
/
Model
Frame
Request a Quote

Some Nardi units are configured or built to your specification; others are standard models we order in from the factory based on your selection. Custom Order items are confirmed and paid for at checkout, then fulfilled on the lead time below.

Lead time for Nardi products:

Lead time depends on the product. Replacement parts, filters, and accessories typically ship within days to a couple of weeks. Built-to-order units, such as Pacific Series compressors, take up to 4 to 6 weeks to build at the Nardi factory in Italy. From there, shipping to Canada takes:

  • Approximately 3 weeks by sea freight (7 to 9 weeks total)
  • Approximately 1 week by air freight, priced on request (5 to 7 weeks total)

What happens next:

  • Payment secures your place in the fulfillment queue
  • You receive an order confirmation with your final specification
  • We coordinate with Nardi to confirm your order and expected ship date
  • Shipping confirmation and tracking follow when your order leaves the factory or warehouse
  • If your timeline changes, we reach out proactively


Need expedited shipping? Use the Request a Quote button above. We'll confirm air freight options and cost, then send a formal quote for your approval.

The Nardi BON2 is a high pressure booster that draws gas from a supply line or low pressure source and recompresses it to a maximum of 350 bar (5,076 psi). Ten models in four frames cover delivery from 60 to 1,400 L/min, depending on model and inlet pressure.

Models

  • BON2-6, frame C, 60 L/min at 50 mbar inlet, 3 stages, 2.2 kW
  • BON2-25, frame C, 120 L/min at 7 bar inlet, 2 stages, 4 kW
  • BON2-55, frame C or M, 140 to 550 L/min, 2 stages, 5.5 kW
  • BON2-140, frame CX or MX, 350 to 1,400 L/min, 2 stages, 11 kW
  • BON2-160, frame CX or MX, 303 to 854 L/min, 2 stages, 11 kW
  • BON2-180, frame CX or MX, 177 L/min at 1 bar to 865 L/min at 5 bar inlet, 2 stages, 11 kW

Standard equipment

  • Electric control panel
  • Oil pump lubrication
  • Automatic condensate drain
  • PAC 3 purification, double PAC 3 on BON2-140, 160 and 180
  • Soft start on BON2-140, 160 and 180 (CX and MX frames)

Options

  • Soft start on BON2-6, 25 and 55
  • 50 micron suction filter, G1 inch (PA001-219)
  • ATEX Zone II certificate

Built to order in Italy. Model, frame, gas, connections and three phase supply voltage are confirmed on your quote.

See the Specifications tab for full technical specifications.

SpecificationBON2 range
Outlet pressure350 bar (5,076 psi) maximum
Inlet pressure50 mbar to 15 bar, by model
Delivery60 to 1,400 L/min, by model and inlet pressure
Stages2 (BON2-6: 3)
Motor2.2 kW (BON2-6), 4 kW (BON2-25), 5.5 kW (BON2-55), 11 kW (BON2-140, 160, 180)
FramesC (BON2-6, 25, 55), M (BON2-55), CX and MX (BON2-140, 160, 180)
PurificationPAC 3, double PAC 3 on BON2-140, 160, 180
Noise75 dB(A) in frames C and CX, 68 dB(A) in frames M and MX
Weight264 kg (C and M), 470 kg (CX), 520 kg (MX)
Dimensions (L x W x H)C 75 x 93 x 123 cm, M 75 x 108 x 134 cm, CX 84 x 75 x 142 cm, MX 87 x 152 x 172 cm
Electrical supplyThree phase, confirmed on your quote
Country of originItaly
SourceNardi PL HP BOOSTER-26.00 (January 2026) and BON2 brochures (2023)
