Name: Nardi BM Medium Pressure Gas Booster
Brand: Nardi Compressori
SKU: NRD-BM40

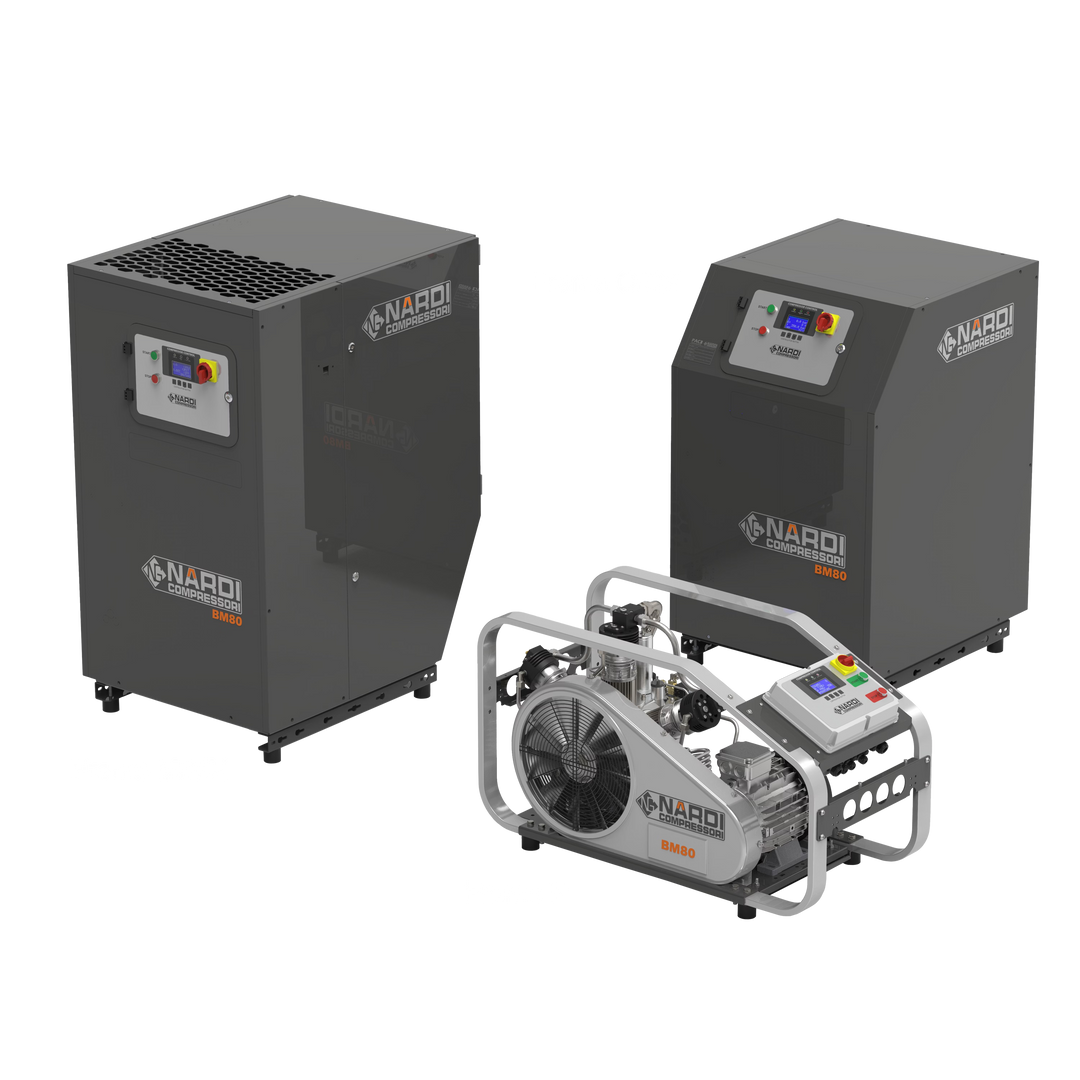

Nardi BM medium pressure boosters in frames P, C and M

In Stock - Ready to Ship
Custom Order - See Details Below

Request a Quote

Maximum Pressure

40 bar

60 bar

80 bar

Quantity

Request a Quote

Some Nardi units are configured or built to your specification; others are standard models we order in from the factory based on your selection. Custom Order items are confirmed and paid for at checkout, then fulfilled on the lead time below.

Lead time for Nardi products:

Lead time depends on the product. Replacement parts, filters, and accessories typically ship within days to a couple of weeks. Built-to-order units, such as Pacific Series compressors, take up to 4 to 6 weeks to build at the Nardi factory in Italy. From there, shipping to Canada takes:

Approximately 3 weeks by sea freight (7 to 9 weeks total)
Approximately 1 week by air freight, priced on request (5 to 7 weeks total)

What happens next:

Payment secures your place in the fulfillment queue
You receive an order confirmation with your final specification
We coordinate with Nardi to confirm your order and expected ship date
Shipping confirmation and tracking follow when your order leaves the factory or warehouse
If your timeline changes, we reach out proactively

Need expedited shipping? Use the Request a Quote button above. We'll confirm air freight options and cost, then send a formal quote for your approval.

[{"id":50891332059375,"title":"40 bar","option1":"40 bar","option2":null,"option3":null,"sku":"NRD-BM40","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Nardi BM Medium Pressure Gas Booster - 40 bar","public_title":"40 bar","options":["40 bar"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":50891332092143,"title":"60 bar","option1":"60 bar","option2":null,"option3":null,"sku":"NRD-BM60","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Nardi BM Medium Pressure Gas Booster - 60 bar","public_title":"60 bar","options":["60 bar"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":50891332124911,"title":"80 bar","option1":"80 bar","option2":null,"option3":null,"sku":"NRD-BM80","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Nardi BM Medium Pressure Gas Booster - 80 bar","public_title":"80 bar","options":["80 bar"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The Nardi BM is a medium pressure booster for recompressing gas from an existing pressurised supply. It accepts inlet pressure from 4 to 12 bar and delivers at 40, 60 or 80 bar, from 220 to 5,190 L/min depending on pump size and inlet pressure.

Frames

Frame P, portable, aluminium frame with epoxy powder paint and stainless steel components
Frame C, compact and silent, for indoor installation
Frame M, larger silent enclosure with anti-vibration housing and side access

Standard equipment

Electronic control panel monitoring temperature, oil level, current, inlet and outlet pressure
Oil pump lubrication
50 micron suction filter, G1 inch (PA001-219)
Soft start on 11, 12, 13 and 15 kW models

Options

Gas quality monitoring for organic compound contamination
9 inch touchscreen compressor control

Built to order in Italy. Pump size, frame and supply voltage are confirmed on your quote.

See the Specifications tab for full technical specifications.

Specification	BM range
Inlet pressure	4 to 12 bar
Outlet pressure	40, 60 or 80 bar by model
Delivery	220 to 5,190 L/min, by pump size and inlet pressure
Motor	2.5 to 15 kW
Frames	P (portable), C (indoor), M (silenced, side access)
Electrical supply	Three phase, confirmed on your quote
Country of origin	Italy
Source	Nardi BM brochure, 2023 edition
