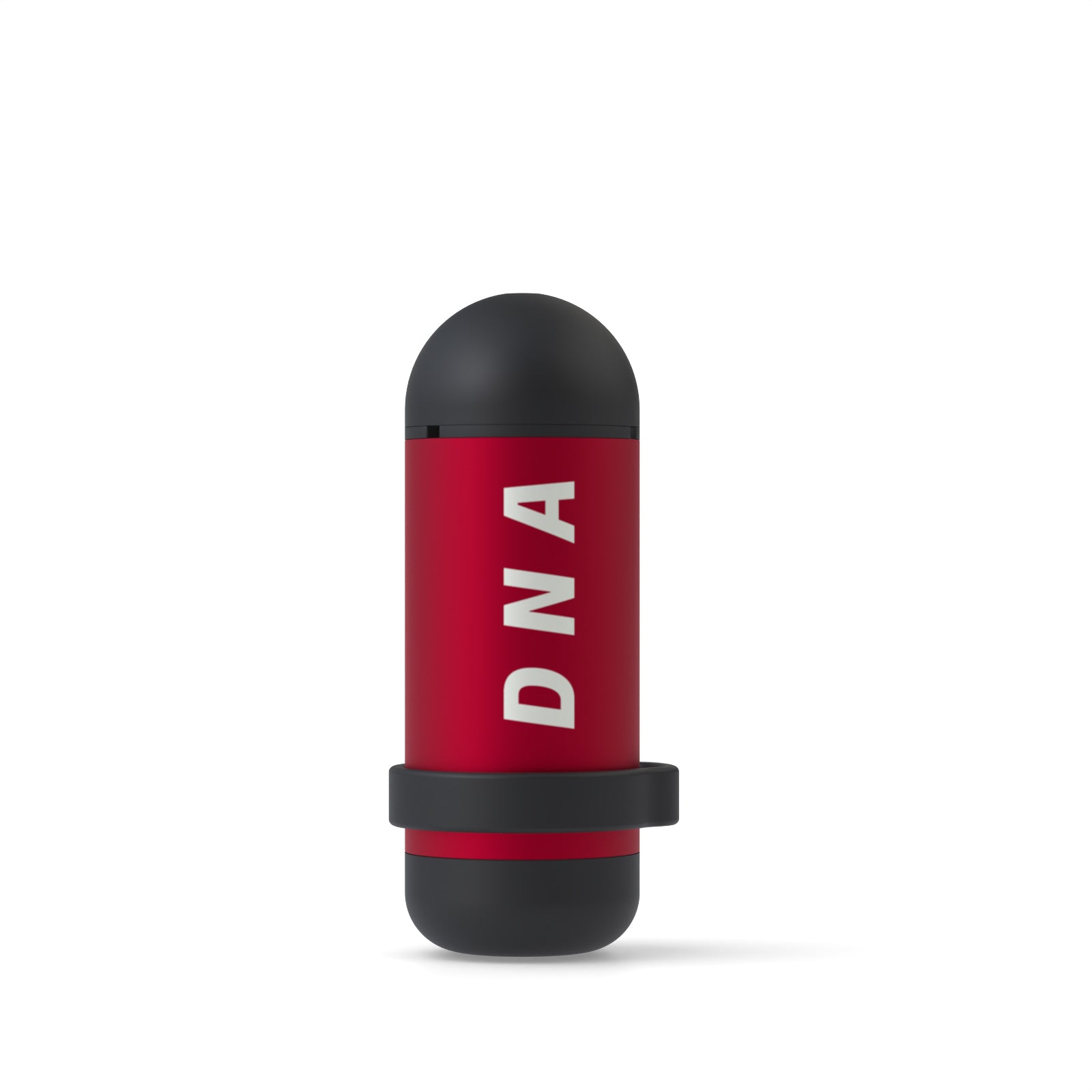

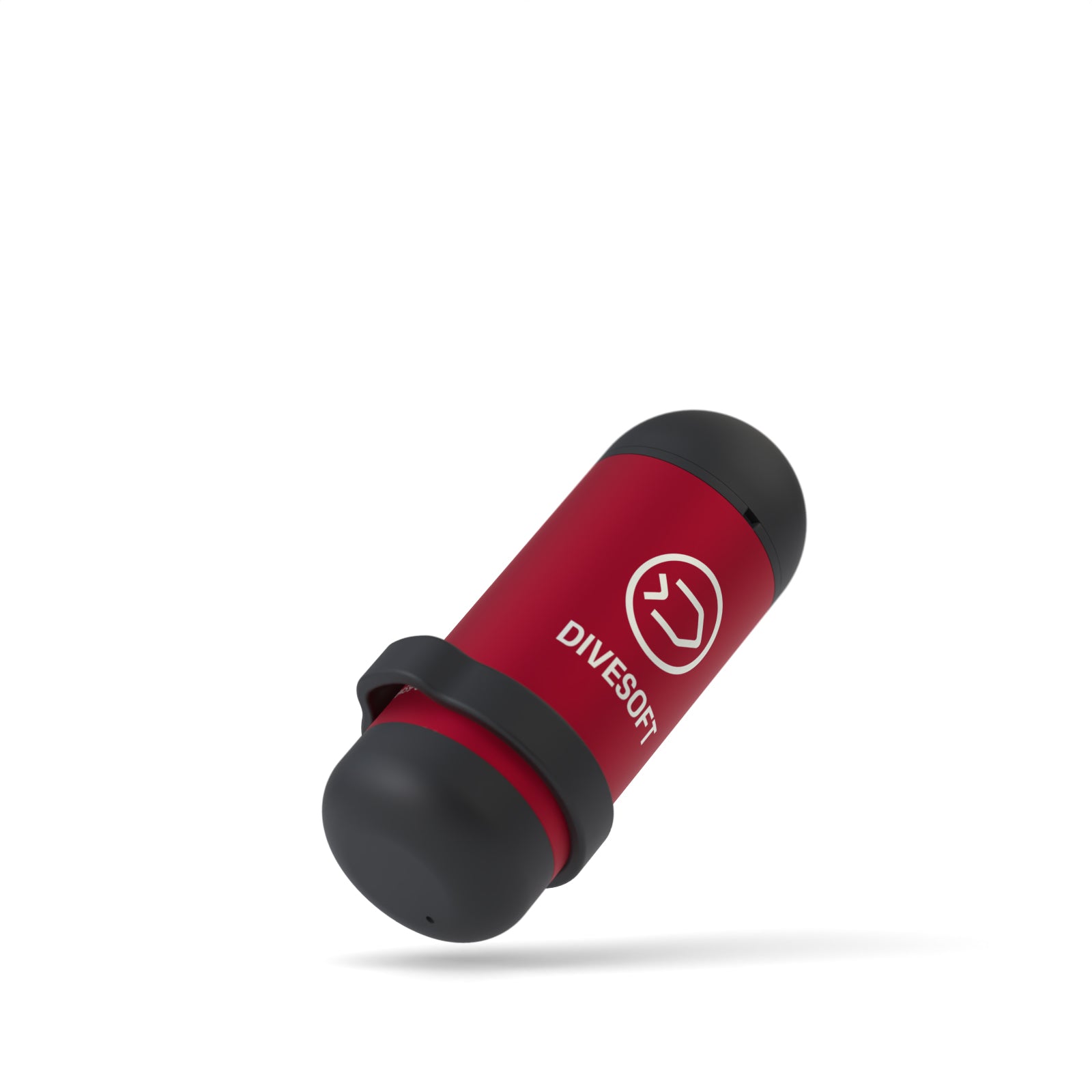

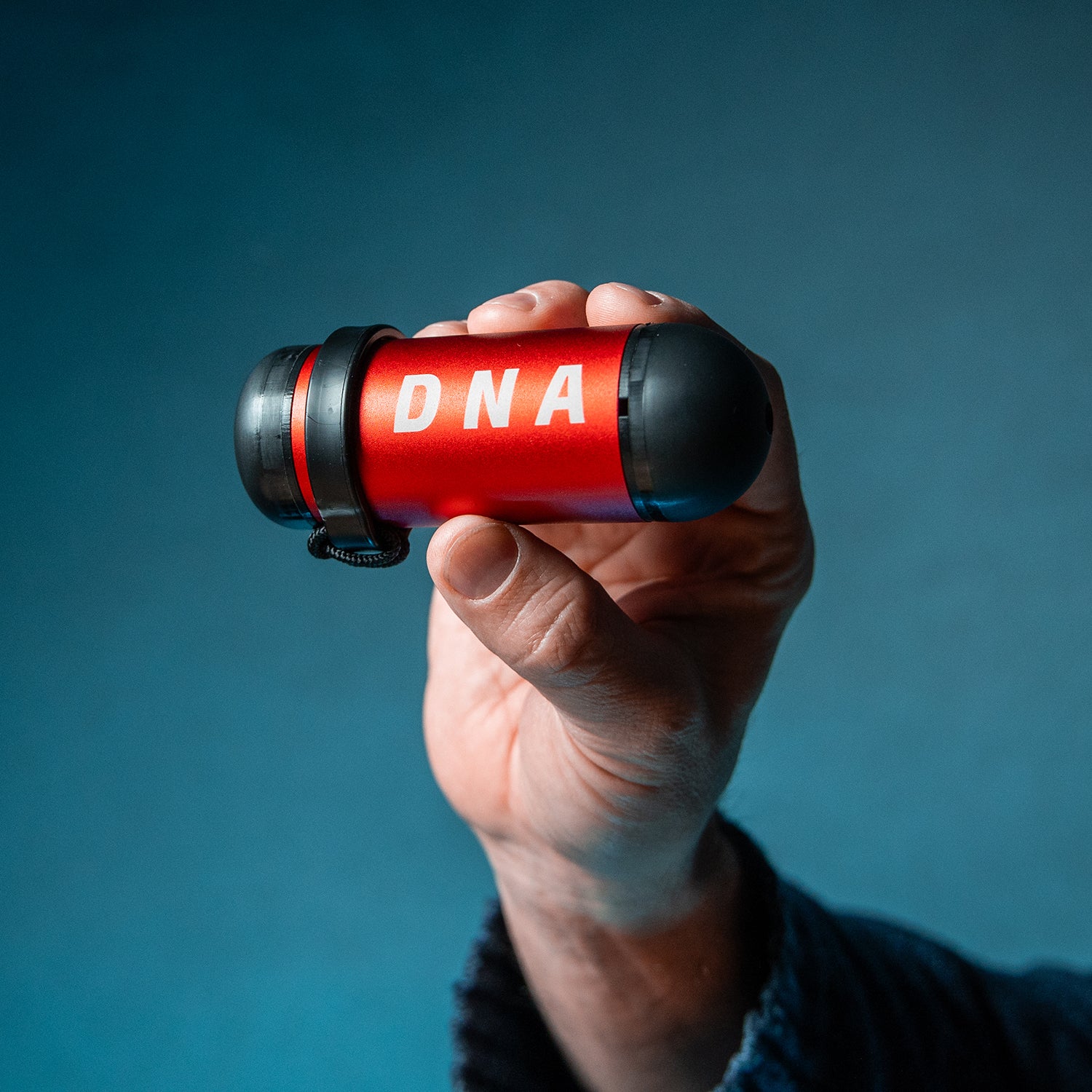

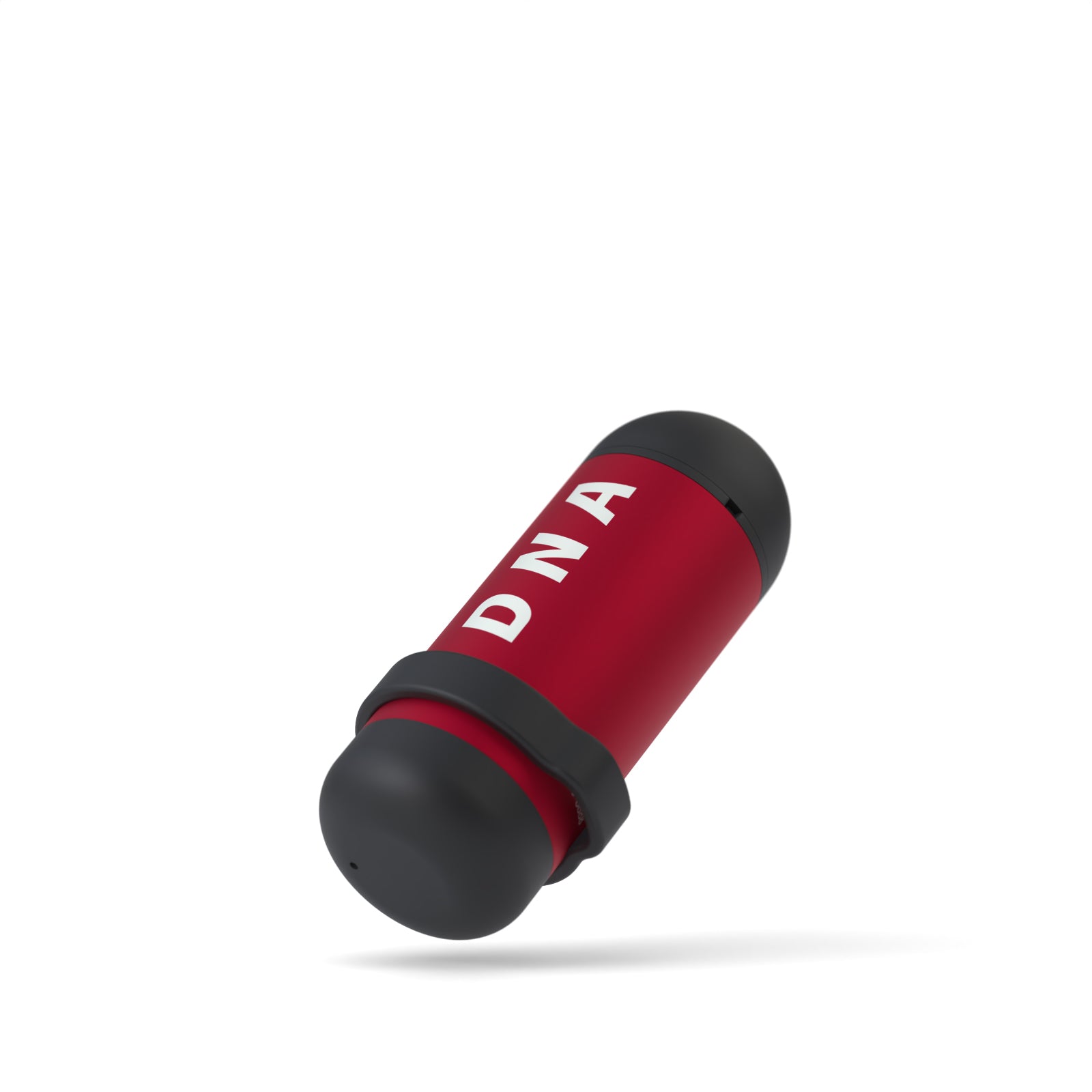

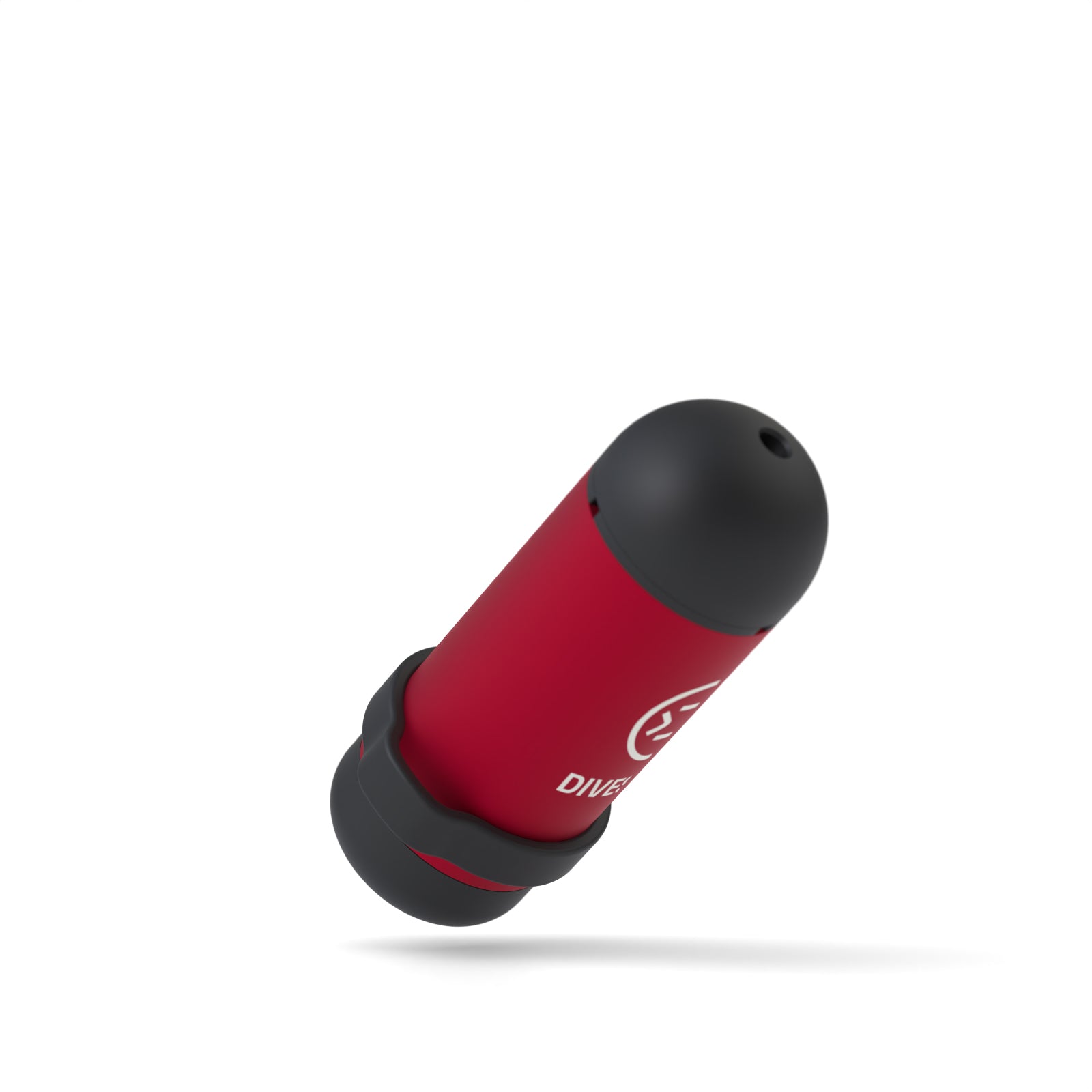

A small & smart pocket Nitrox analyzer that offers simple Oxygen measurement. The perfect partner for recreational and beginner Nitrox divers. Analyzing is easy and comfortable using the Divesoft App. No Internet is needed as the App operates offline.
The DNA does not include the Oxygen sensor. The Oxygen sensor is purchased separately as the DNA can be used with a functional spent rebreather oxygen sensor R22 (Molex connection) which is easily replaceable by the user. Help the environment by recycling your buddy's rebreather Oxygen sensor during their annual sensor replacement.
Package includes:
- DNA (without the Oxygen sensor)

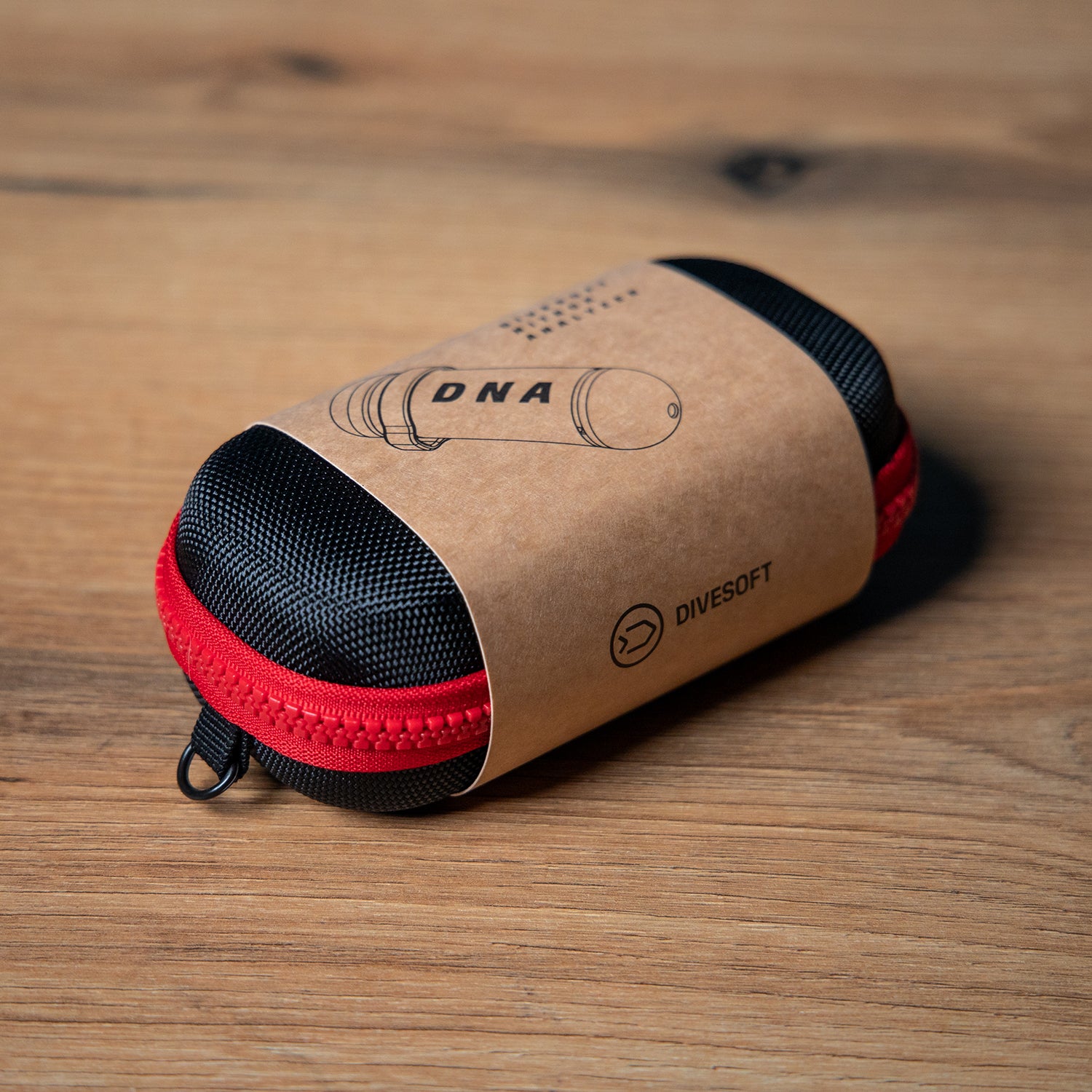

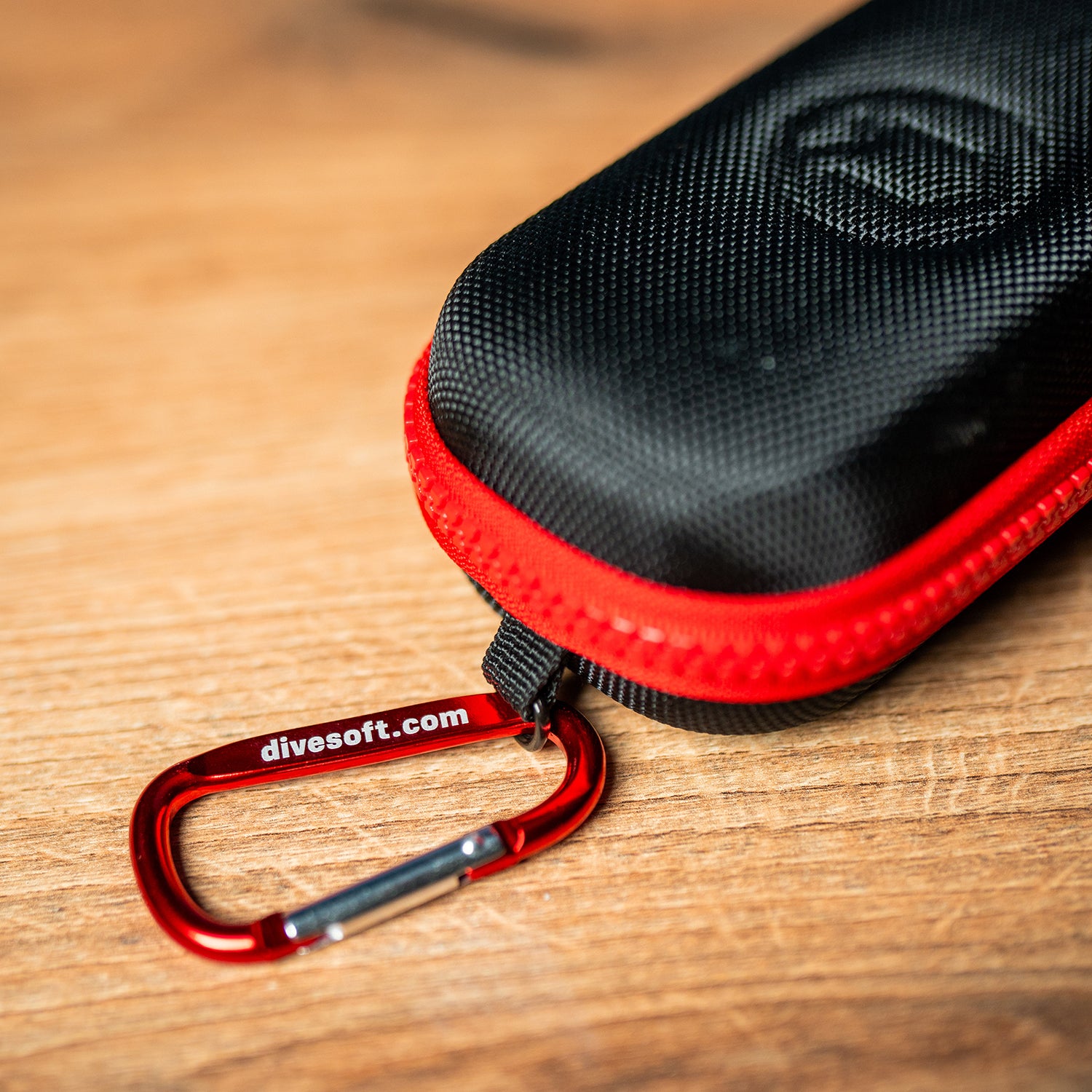

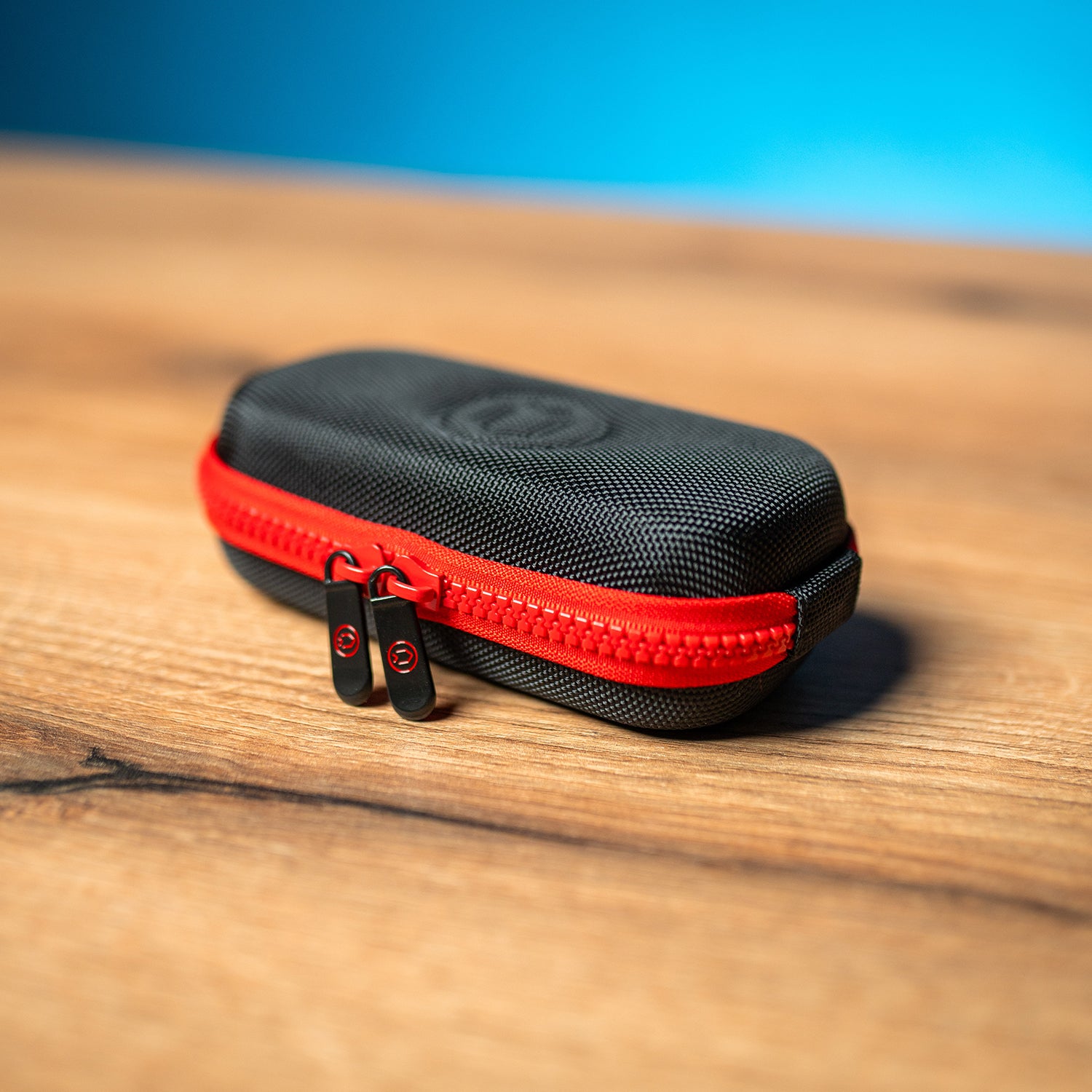

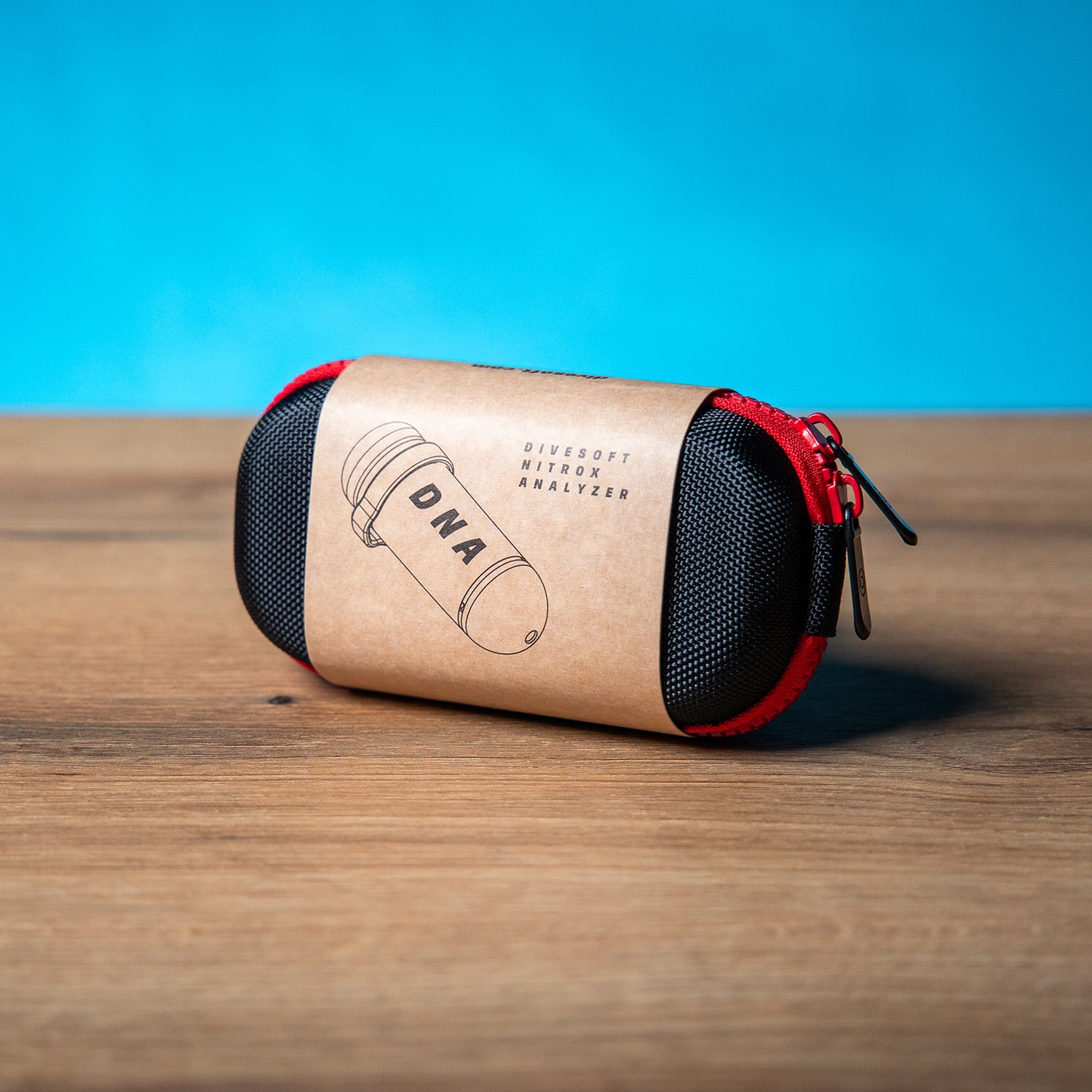

- Semi-Hard Zipper Case 75×150
We recommend:
- Divesoft Oxygen Sensor R22S
- Connection Hose
- Flow Limiter for QD Connection (Analyzer)
- Professional Flow Limiter Mk2 DIN G5/8
User manuals:

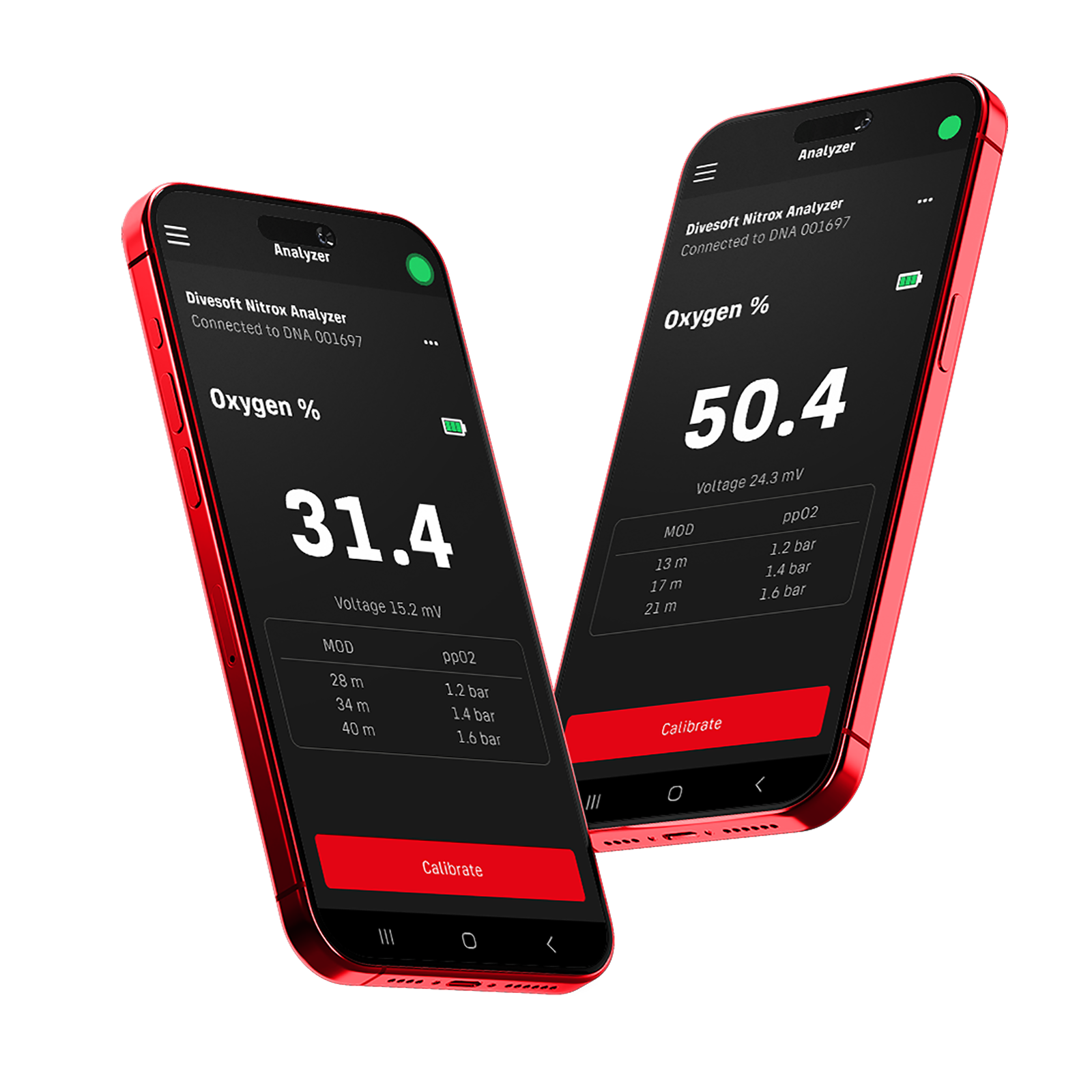

Divesoft.app
Get all you need for your dive in one place. The Divesoft.app was designed to be your hub to get prepared for your dive. It can be used by all levels of divers who can benefit from its features at any time.
See the Specifications tab for full technical specifications.
- Dimensions: 45.6 × 111 × 40 mm (1.8 × 4.4 × 1.6 inches)
- Weight: 100 g (3.5 oz)
- Weight with sensor: 126 g (4.4 oz)
- Oxygen concentration measurement range: 0 to 100%
- Measuring temperature: 0 to +40°C (32 to 104°F)
- Mixture pressure: consistent with ambient pressure, in the range of 700–1100 millibars (20–32 inches Hg), corresponding to standard atmosphere at 0 to 3000 m (0–10000 ft) above sea level
- Rated gas throughput: 0.2 L/min
- Oxygen sensor: Divesoft R-22S or compatible (expected lifetime of a brand-new sensor is 2–3 years)
- Power source: CR 2450, user replaceable (expected lifetime 1–2 years)
- Gas connection: direct contact connection to DIN valve (EN 144-2) for 200/300 bar (G 5/8 thread) and M26×2 valves. Compatible with the Divesoft professional flow limiter and connection hose.
- Warranty: 24 months; 12 months on the oxygen sensor. The battery is not covered by the warranty.
Brand: Divesoft
Category: Analyzers
SKU: DS-8460
