HYDPRO Air Management

Drysuit Valves

Inlet and exhaust valves built on patented Pentagon Technology and the Water Lock Framework, with a 4X high-efficiency membrane for accurate air control and stable overpressure management.

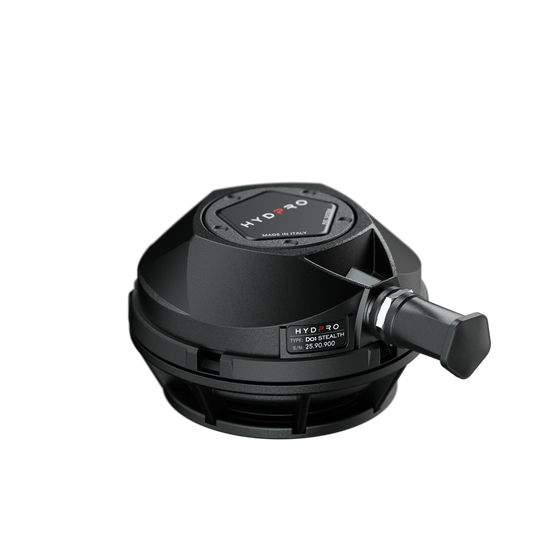

Drysuit Inlet Valve (DSV) - D01S Stealth

D01S Stealth inlet dry suit valve. Patented Pentagon Technology, Water Lock Framework, 4X high-efficiency membrane. Accurate air control and stable overpressure management.

D01 SeriesDrysuit ValveMade in Italy

D01S Stealth

Item	Configuration and characteristics	MSRP (CAD)
DSV-IN-D01S-STEALTH	DSV Series: D01S Stealth	$141.95

Port fit options available: Port Fit S, 34mm (1.34 in) or Port Fit L, 38mm (1.5 in). Both at the same price.

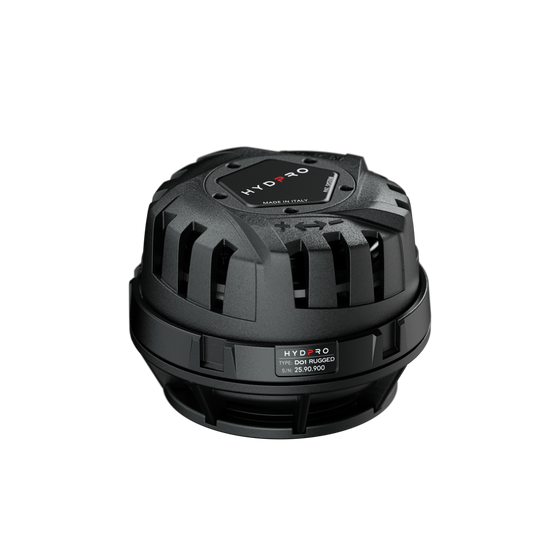

Drysuit Exhaust Valve (DSV) - D01S Rugged

D01S Rugged drysuit exhaust valve. Patented Pentagon Technology, Water Lock Framework, 4X high-efficiency membrane. Accurate air control and stable overpressure management.

D01 SeriesDrysuit ValveMade in Italy

D01S Rugged

Item	Configuration and characteristics	MSRP (CAD)
DSV-EX-D01S-RUGGED	DSV Series: D01S Rugged	$156.95

Port fit options available: Port Fit S, 34mm (1.34 in) or Port Fit L, 38mm (1.5 in). Both at the same price.

Ordering note

To specify the required port fit, add the suffix 34MM or 38MM to the part number. Example: DSV-IN-D01S-STEALTH-34MM

Power Inflators

Inflator power units across the Tek and Sport ranges, with metal or technopolymer actuation cores and graded flow control.

Power Inflator - X01 Series

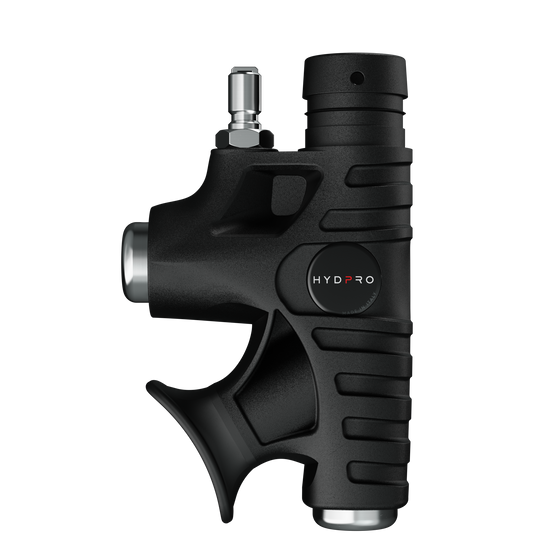

X01 Tech power unit with Metal Actuation Core Assembly. 19mm ergonomic buttons, Thread Lock system, first-gen piston with 3 flow gradations (150–275 l/m). Basefit exhaust with 3 flow levels.

X01 SeriesPower InflatorMade in Italy

X01 Tech

Item	Configuration and characteristics	MSRP (CAD)
PWR-X01-TECH	Power Series: X01 Tech Metal actuation core assembly	$113.95
PWR-X01K-TECH	Power Series: X01 Tech Technopolymer actuation core assembly	$107.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

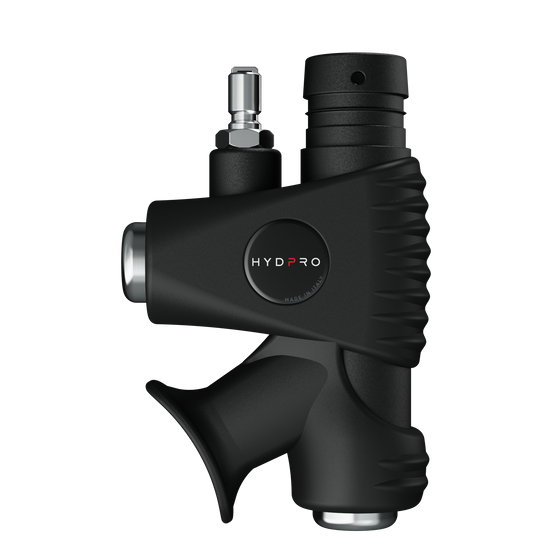

X01 Pro

Item	Configuration and characteristics	MSRP (CAD)
PWR-X01-PRO	Power Series: X01 Pro Metal actuation core assembly	$119.95
PWR-X01K-PRO	Power Series: X01 Pro Technopolymer actuation core assembly	$113.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

Power Inflator - J01 Series

J01 K-Style power unit with Metal Actuation Core Assembly. 22mm ergonomic buttons, second-gen piston, 4 adjustable flow settings (max 275 l/m). Bond-Seal exhaust technology, 4 flow levels.

J01 SeriesPower InflatorMade in Italy

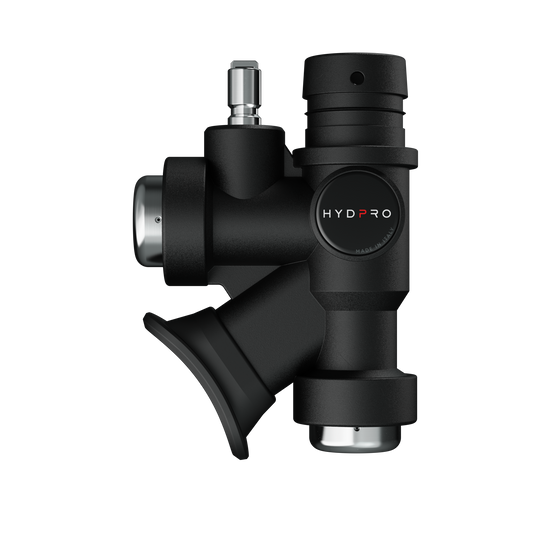

J01 K-Style

Item	Configuration and characteristics	MSRP (CAD)
PWR-J01-KSTYLE	Power Series: J01 K-Style Metal actuation core assembly	$113.95
PWR-J01K-KSTYLE	Power Series: J01 K-Style Technopolymer actuation core assembly	$107.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

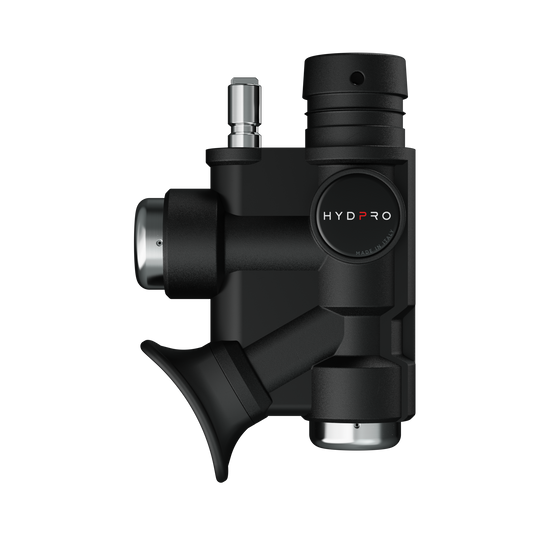

J01 Raw

Item	Configuration and characteristics	MSRP (CAD)
PWR-J01-RAW	Power Series: J01 Raw Metal actuation core assembly	$113.95
PWR-J01K-RAW	Power Series: J01 Raw Technopolymer actuation core assembly	$107.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

Power Inflator - Q01 Series

Q01 Code power unit with Metal Actuation Core Assembly. 25mm ergonomic buttons, second-gen pistons, Edge Lock system, Q-Boost (140% airflow increase). Flow gradient 4+1 levels, max 350 l/m. Bond-Seal exhaust.

Q01 SeriesPower InflatorMade in Italy

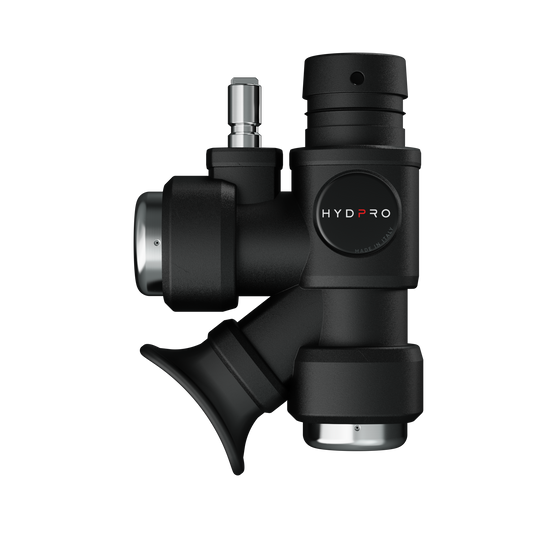

Q01 Code

Item	Configuration and characteristics	MSRP (CAD)
PWR-Q01-CODE	Power Series: Q01 Code Metal actuation core assembly	$124.95
PWR-Q01K-CODE	Power Series: Q01 Code Technopolymer actuation core assembly	$119.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

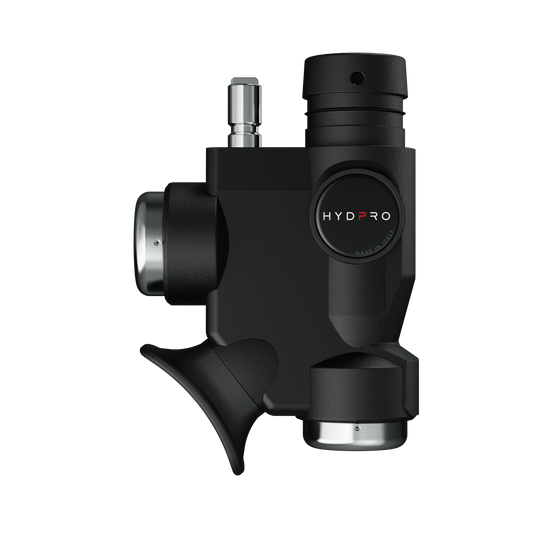

Q01 Stout

Item	Configuration and characteristics	MSRP (CAD)
PWR-Q01-STOUT	Power Series: Q01 Stout Metal actuation core assembly	$124.95
PWR-Q01K-STOUT	Power Series: Q01 Stout Technopolymer actuation core assembly	$119.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

Power Inflator - V01 Series

V01 Base sport power unit. Base Schrader-valve inflation system. Lightweight, minimal maintenance.

V01 SeriesPower InflatorMade in Italy

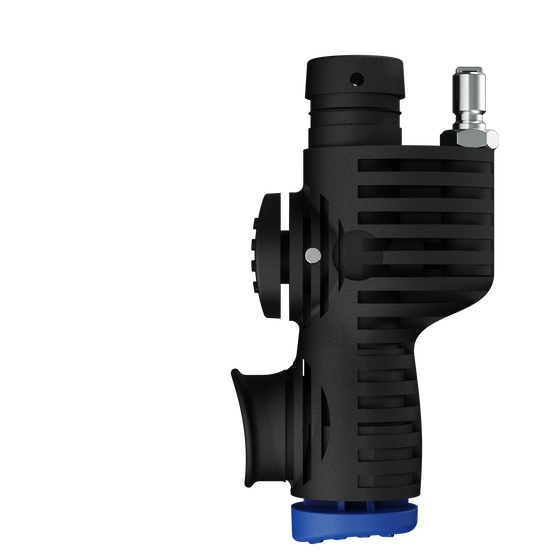

V01 Base

Item	Configuration and characteristics	MSRP (CAD)
PWR-V01-BASE	Power Series: V01 Base	$85.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

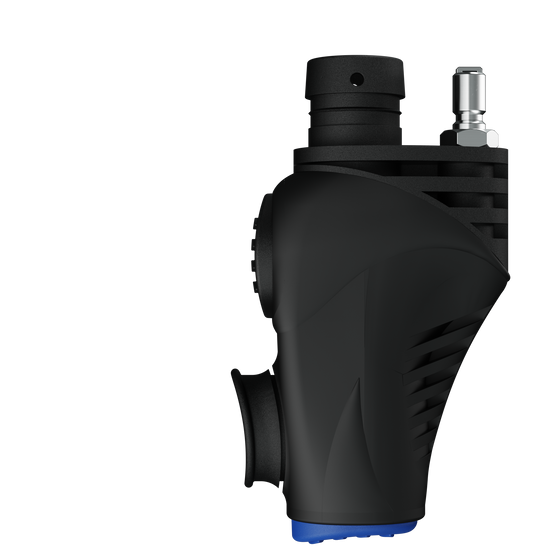

V01 Shark

Item	Configuration and characteristics	MSRP (CAD)
PWR-V01-SHARK	Power Series: V01 Shark	$85.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

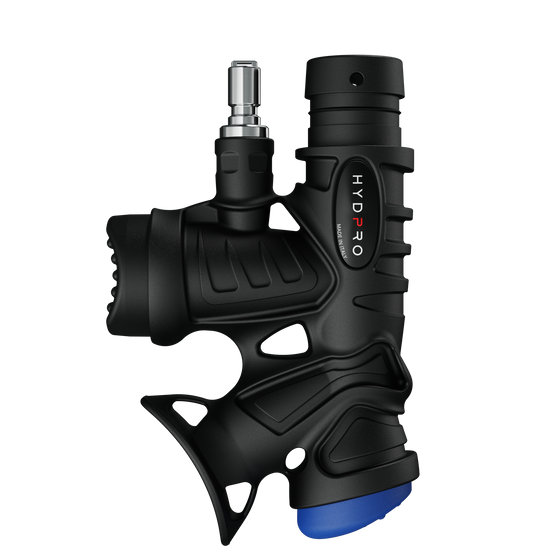

Power Inflator - V02 Dynamic

V02 Dynamic power unit. 22mm ergonomic buttons, second-gen piston, 4 adjustable flow settings (max 275 l/m). Bond-Seal exhaust.

V02 SeriesPower InflatorMade in Italy

V02 Dynamic

Item	Configuration and characteristics	MSRP (CAD)
PWR-V02-DYNA	Power Series: V02 Dynamic	$90.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

Ordering note

To specify the mount standard, add the suffix T22 or T25 to the part number. Example: PWR-X01K-TECH-T22

Connectors

The system interface joining power units, hoses and valves. Machined to controlled tolerances, in Pipe and R.E.V. ranges.

Connector - P01 Series

Pipe P01 Classic connector. 53mm (~2.09") diameter, 8-ridge interlock profile, 3mm trapezoidal thread.

P01 SeriesConnectorMade in Italy

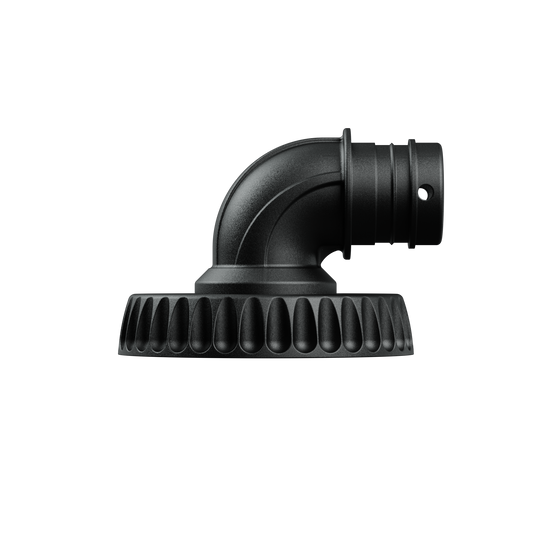

P01 Pipe Classic

Item	Configuration and characteristics	MSRP (CAD)
CON-PP1-CLA	Connector Series: P01 Pipe Classic	$35.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

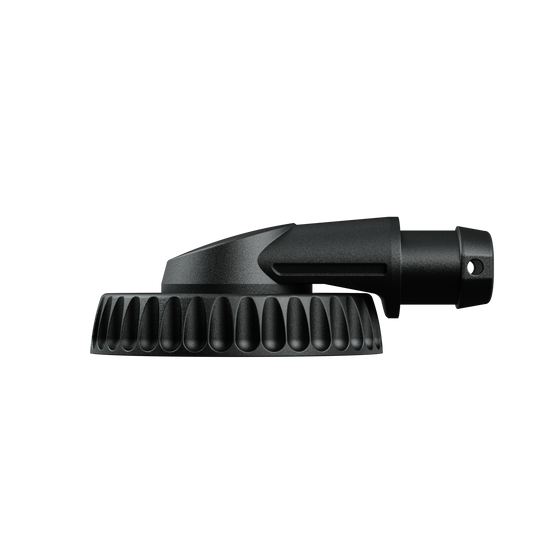

P01 Pipe Keen

Item	Configuration and characteristics	MSRP (CAD)
CON-PP1-KEE	Connector Series: P01 Pipe Keen	$42.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

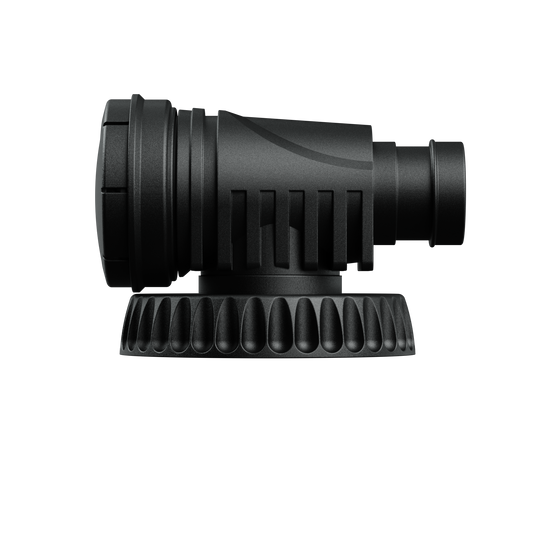

P01 R.E.V. Classic

Item	Configuration and characteristics	MSRP (CAD)
CON-RP1-CLA	Connector Series: P01 R.E.V. Classic	$49.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

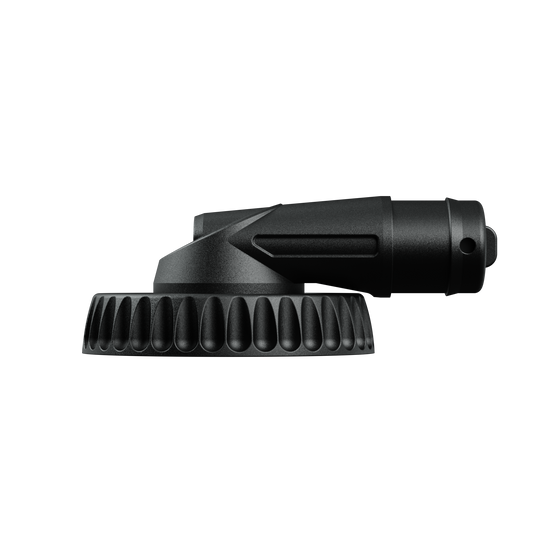

P01 R.E.V. Keen

Item	Configuration and characteristics	MSRP (CAD)
CON-RP1-KEE	Connector Series: P01 R.E.V. Keen	$63.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

Connector - T01 Series

Pipe T01 Classic connector. 47mm (~1.85") diameter, 13mm collar height, 1.25mm-pitch dodecagonal coupling geometry.

T01 SeriesConnectorMade in Italy

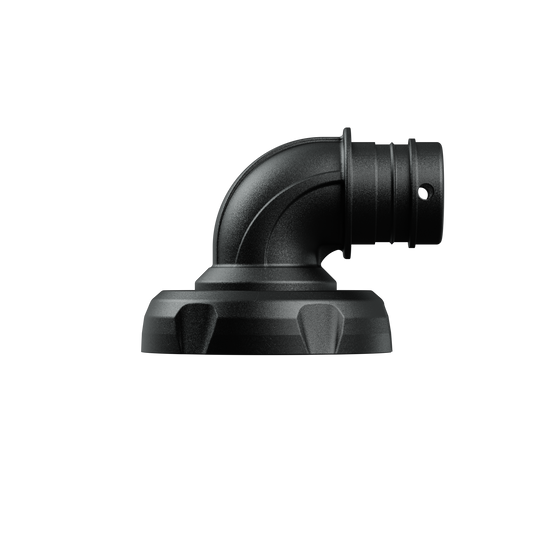

T01 Pipe Classic

Item	Configuration and characteristics	MSRP (CAD)
CON-PT1-CLA	Connector Series: T01 Pipe Classic	$35.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

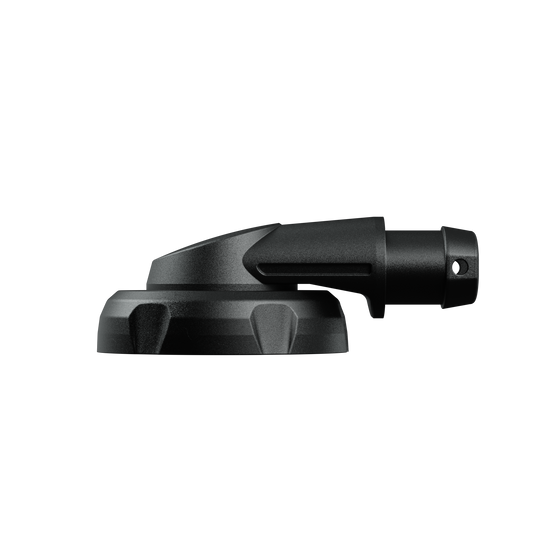

T01 Pipe Keen

Item	Configuration and characteristics	MSRP (CAD)
CON-PT1-KEE	Connector Series: T01 Pipe Keen	$42.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

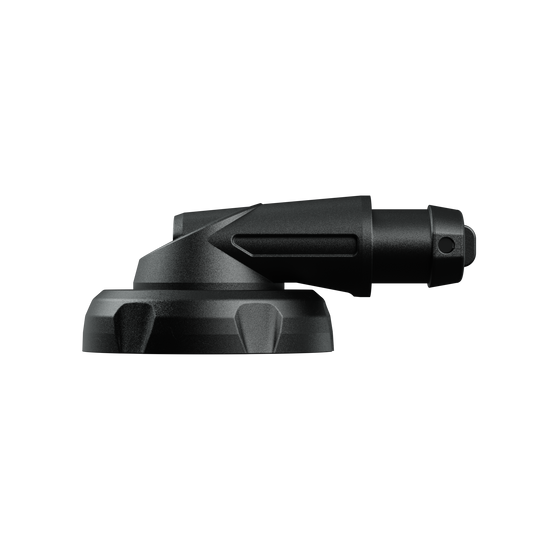

T01 R.E.V. Keen

Item	Configuration and characteristics	MSRP (CAD)
CON-RT1-KEE	Connector Series: T01 R.E.V. Keen	$63.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

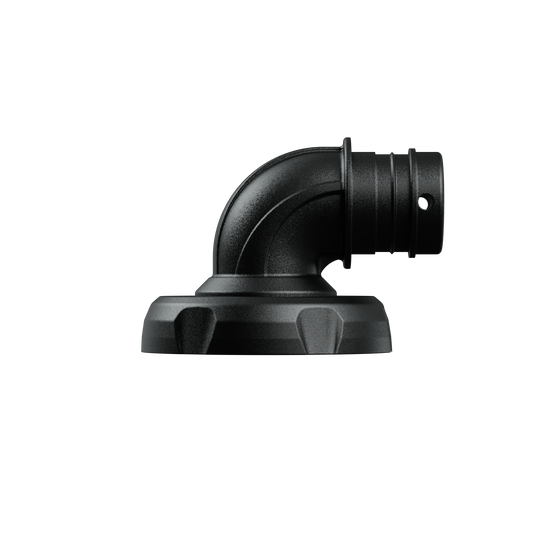

Connector - T02 Series

Pipe T02 Classic connector. 48mm (~1.77") diameter, 13mm collar height, 2mm-pitch dodecagonal coupling.

T02 SeriesConnectorMade in Italy

T02 Pipe Classic

Item	Configuration and characteristics	MSRP (CAD)
CON-PT2-CLA	Connector Series: T02 Pipe Classic	$35.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

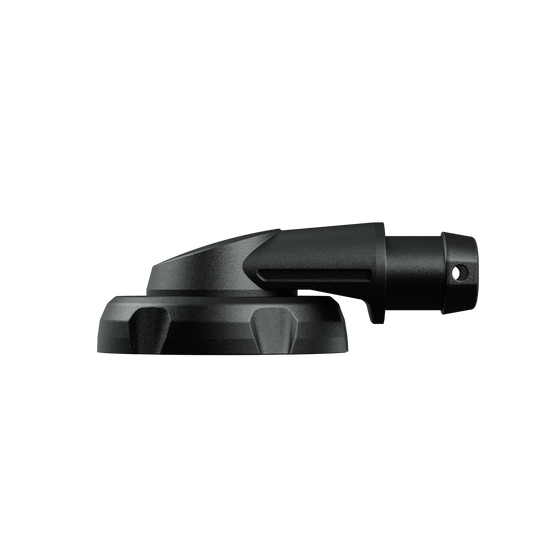

T02 Pipe Keen

Item	Configuration and characteristics	MSRP (CAD)
CON-PT2-KEE	Connector Series: T02 Pipe Keen	$42.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

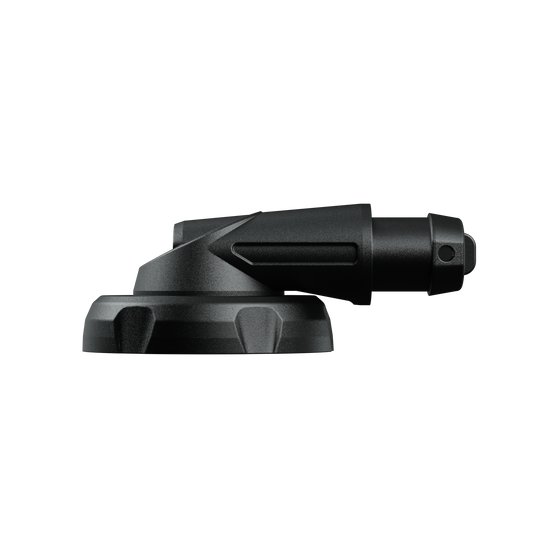

T02 R.E.V. Keen

Item	Configuration and characteristics	MSRP (CAD)
CON-RT2-KEE	Connector Series: T02 R.E.V. Keen	$63.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

Connector - P03 Series

Pipe P03 Keen connector. 53mm (~2.09") diameter, 5-ridge Core-Sink ultra-flat profile, 2.5mm trapezoidal thread. Patented Core-Sink Technology.

P03 SeriesConnectorMade in Italy

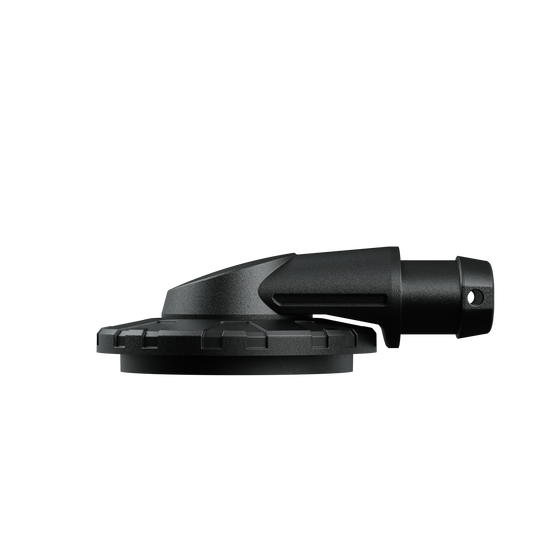

P03 Pipe Keen

Item	Configuration and characteristics	MSRP (CAD)
CON-PP3-KEE	Connector Series: P03 Pipe Keen	$49.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

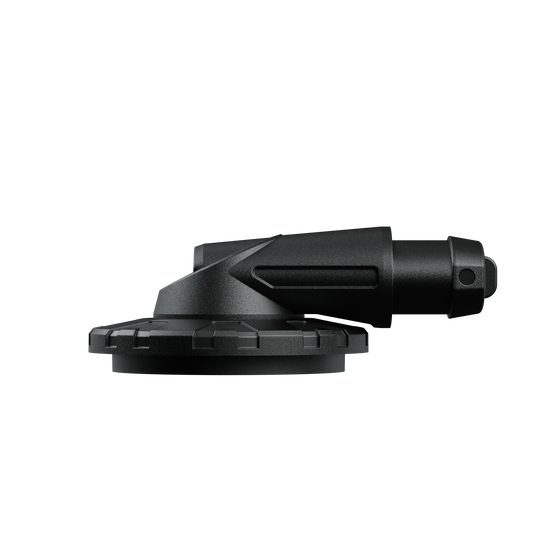

P03 R.E.V. Keen

Item	Configuration and characteristics	MSRP (CAD)
CON-RP3-KEE	Connector Series: P03 R.E.V. Keen	$63.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

Connector - P04 Series

Pipe P04 Keen connector. 45mm (~1.77") diameter, medium-profile geometry, 5-ridge interlock, 2.5mm trapezoidal thread.

P04 SeriesConnectorMade in Italy

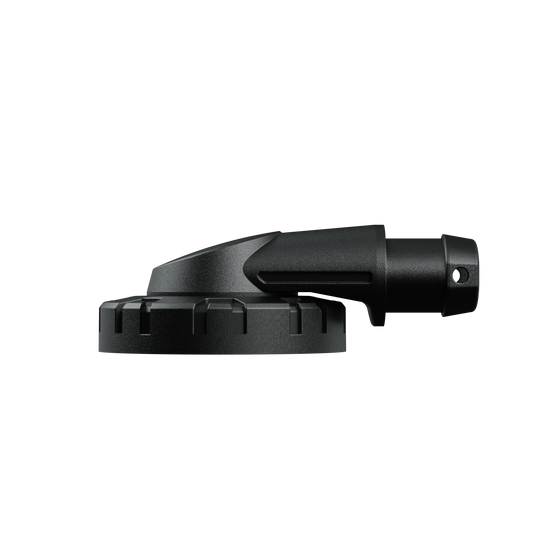

P04 Pipe Keen

Item	Configuration and characteristics	MSRP (CAD)
CON-PP4-KEE	Connector Series: P04 Pipe Keen	$42.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

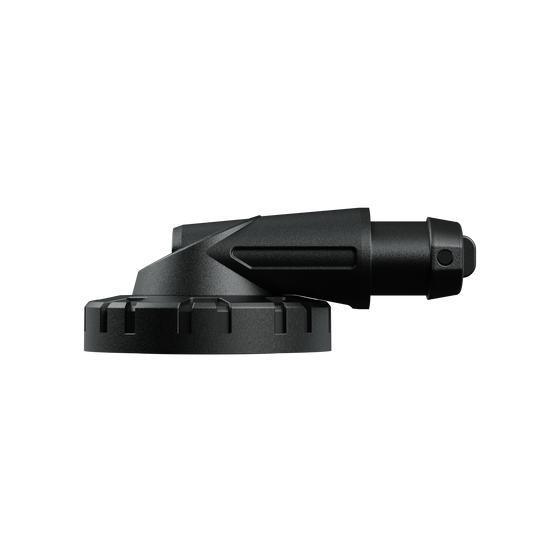

P04 R.E.V. Keen

Item	Configuration and characteristics	MSRP (CAD)
CON-RP4-KEE	Connector Series: P04 R.E.V. Keen	$63.95

Mount standard options available: Type 22, 22mm (7/8 in) or Type 25, 25mm (1 in). Both at the same price.

Ordering note

To specify the mount standard, add the suffix T22 or T25 to the part number. Example: CON-PP1-CLA-T22

Over Pressure Valves

Overpressure protection on a 1.2 bar relief spring, with an optional Plus uprate, across the Classic and Shield ranges.

Over Pressure Valve (OPV) - P01 Series

P01 Classic OPV. Spring 1.2, Over Pressure Value 0.18 bar. Knob Type C BLK. 53mm diameter, 8-ridge interlock profile.

P01 SeriesOver Pressure ValveMade in Italy

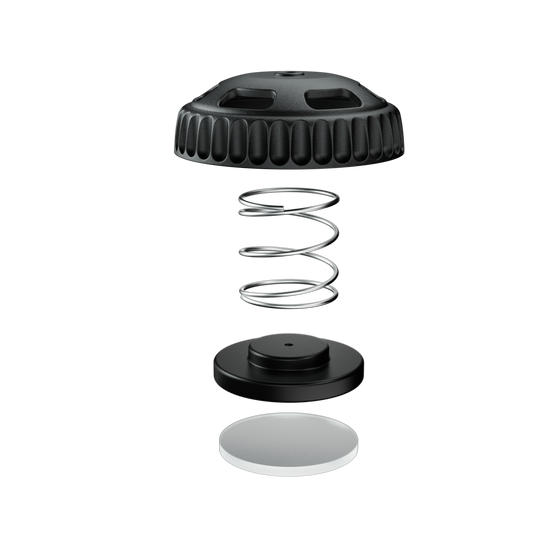

P01 Classic

Item	Configuration and characteristics	MSRP (CAD)
OPV-P01-CLA-12-BLK	O.P.V. Series: P01 Classic Spring 1.2, over pressure value 0.18 bar	$36.95
OPV-P01-CLA-12-BLK-PLUS	O.P.V. Series: P01 Classic Spring 1.2 with Plus uprate	$42.95

Pull knob options available: Type A, 34mm (1.34 in), Type B, 37.5mm (1.48 in) or Type C, 19mm (0.75 in). All three at the same price.

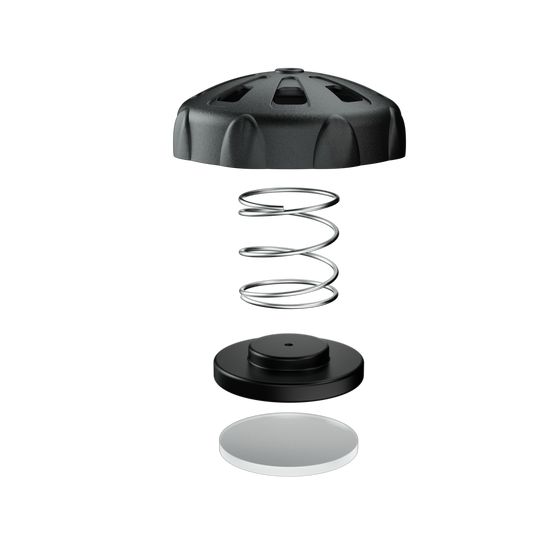

P01 Elite

Item	Configuration and characteristics	MSRP (CAD)
OPV-P01-ELI-12-BLK	O.P.V. Series: P01 Elite Spring 1.2, over pressure value 0.18 bar	$36.95
OPV-P01-ELI-12-BLK-PLUS	O.P.V. Series: P01 Elite Spring 1.2 with Plus uprate	$42.95

Pull knob options available: Type A, 34mm (1.34 in), Type B, 37.5mm (1.48 in) or Type C, 19mm (0.75 in). All three at the same price.

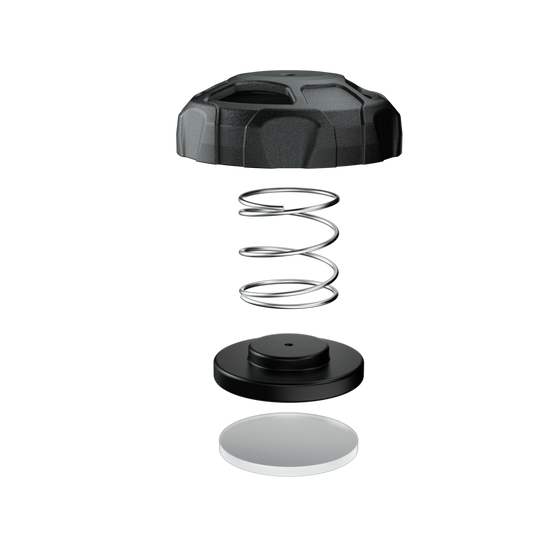

P01 Stone

Item	Configuration and characteristics	MSRP (CAD)
OPV-P01-STO-12-BLK	O.P.V. Series: P01 Stone Spring 1.2, over pressure value 0.18 bar	$36.95
OPV-P01-STO-12-BLK-PLUS	O.P.V. Series: P01 Stone Spring 1.2 with Plus uprate	$42.95

Pull knob options available: Type A, 34mm (1.34 in), Type B, 37.5mm (1.48 in) or Type C, 19mm (0.75 in). All three at the same price.

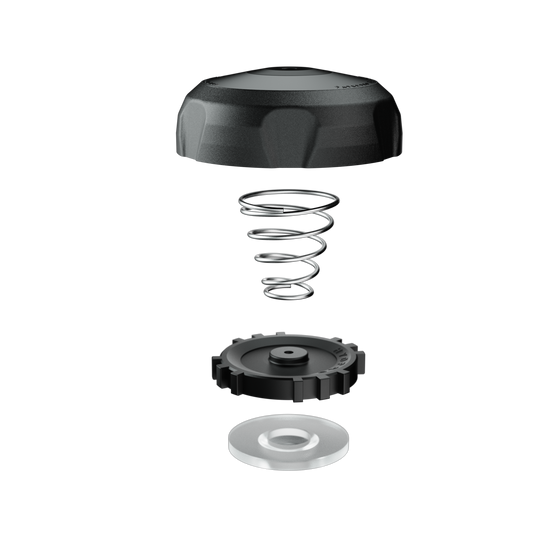

P01 Shield

Item	Configuration and characteristics	MSRP (CAD)
OPV-P01-SHI-12-BLK	O.P.V. Series: P01 Shield Spring 1.2, over pressure value 0.18 bar	$54.95

Pull knob options available: Type A, 34mm (1.34 in), Type B, 37.5mm (1.48 in) or Type C, 19mm (0.75 in). All three at the same price.

Over Pressure Valve (OPV) - T01 Series

T01 Stone OPV. 47mm diameter, 1.25mm-pitch dodecagonal coupling. Spring 1.2, Over Pressure Value 0.18 bar. Knob Type C BLK.

T01 SeriesOver Pressure ValveMade in Italy

T01 Series

Item	Configuration and characteristics	MSRP (CAD)
OPV-T01-STO-12-BLK	O.P.V. Series: T01 Series	$42.95

Pull knob options available: Type A, 34mm (1.34 in), Type B, 37.5mm (1.48 in) or Type C, 19mm (0.75 in). All three at the same price.

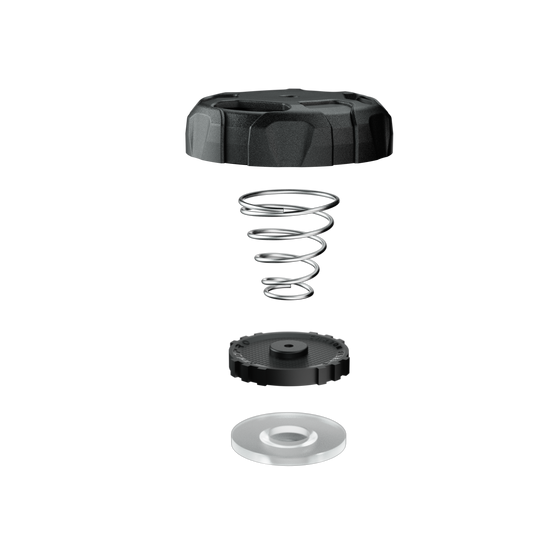

Over Pressure Valve (OPV) - T02 Series

T02 Stone OPV. 48mm diameter, 2mm-pitch dodecagonal coupling. Spring 1.2, Over Pressure Value 0.18 bar. Knob Type C BLK.

T02 SeriesOver Pressure ValveMade in Italy

T02 Series

Item	Configuration and characteristics	MSRP (CAD)
OPV-T02-STO-12-BLK	O.P.V. Series: T02 Series	$42.95

Pull knob options available: Type A, 34mm (1.34 in), Type B, 37.5mm (1.48 in) or Type C, 19mm (0.75 in). All three at the same price.

Over Pressure Valve (OPV) - P03 Series

P03 Sharp OPV. 53mm diameter, 5-ridge Core-Sink ultra-flat profile. Spring 1.2, Over Pressure Value 0.18 bar. Knob Type C BLK. Patented Core-Sink Technology.

P03 SeriesOver Pressure ValveMade in Italy

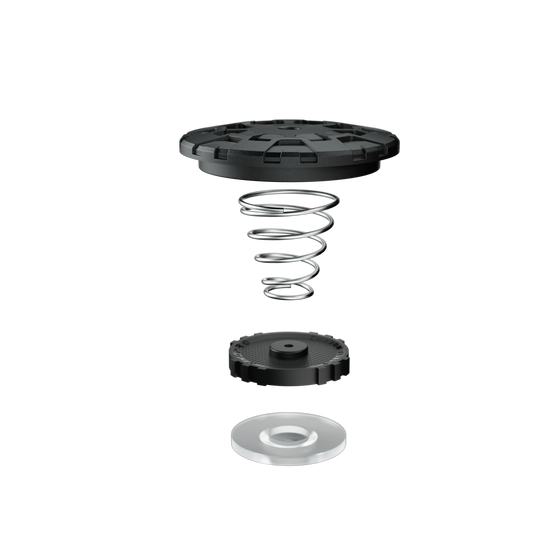

P03 Sharp

Item	Configuration and characteristics	MSRP (CAD)
OPV-P03-SHA-12-BLK	O.P.V. Series: P03 Sharp	$48.95

Pull knob options available: Type A, 34mm (1.34 in), Type B, 37.5mm (1.48 in) or Type C, 19mm (0.75 in). All three at the same price.

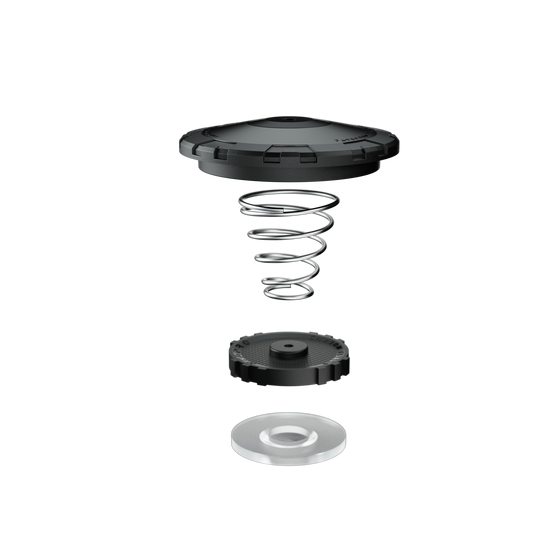

P03 Shield

Item	Configuration and characteristics	MSRP (CAD)
OPV-P03-SHI-12-BLK	O.P.V. Series: P03 Shield	$60.95

Pull knob options available: Type A, 34mm (1.34 in), Type B, 37.5mm (1.48 in) or Type C, 19mm (0.75 in). All three at the same price.

Over Pressure Valve (OPV) - P04 Series

P04 Sharp OPV. 45mm diameter, 5-ridge interlock, 2.5mm trapezoidal thread. Spring 1.2, Over Pressure Value 0.18 bar. Knob Type C BLK.

P04 SeriesOver Pressure ValveMade in Italy

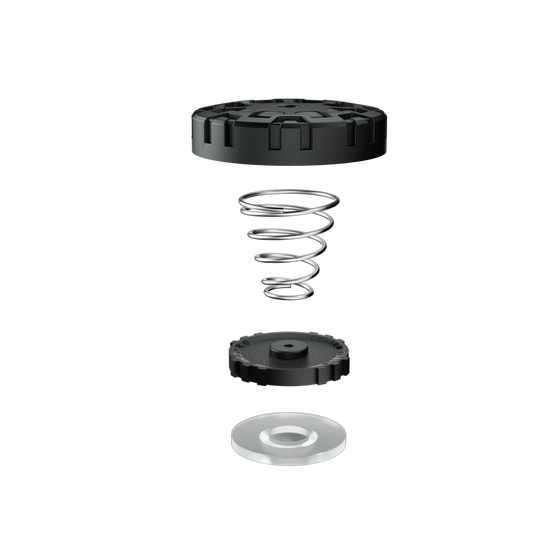

P04 Sharp

Item	Configuration and characteristics	MSRP (CAD)
OPV-P04-SHA-12-BLK	O.P.V. Series: P04 Sharp	$42.95

Pull knob options available: Type A, 34mm (1.34 in), Type B, 37.5mm (1.48 in) or Type C, 19mm (0.75 in). All three at the same price.

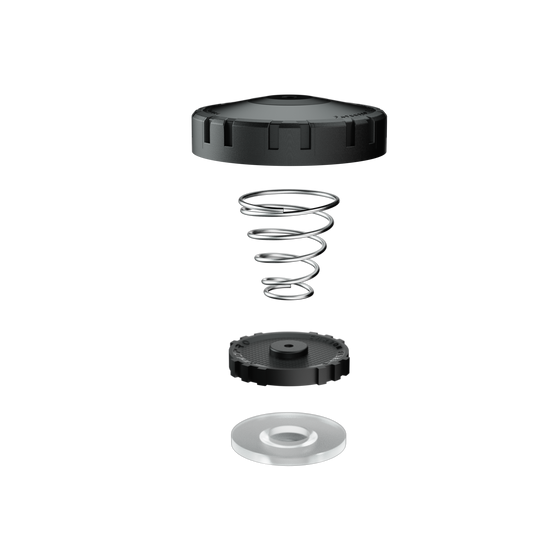

P04 Shield

Item	Configuration and characteristics	MSRP (CAD)
OPV-P04-SHI-12-BLK	O.P.V. Series: P04 Shield	$54.95

Pull knob options available: Type A, 34mm (1.34 in), Type B, 37.5mm (1.48 in) or Type C, 19mm (0.75 in). All three at the same price.

Ordering note

To specify the pull knob, insert TA, TB or TC at the knob position in the part number. Example: OPV-P01-CLA-12-TA-BLK

Service Kits

Maintenance kits pair tools with spare parts for full servicing. Substitution kits supply spares only. Each is matched to a power unit or valve series.

Maintenance Kit X01 (Tools & Spares) X01 Series

KIT-MAINT-X01$198.95

Maintenance Kit J&Q (Tools & Spares) Q01 Series

KIT-MAINT-JQ$205.95

Maintenance Kit V02 (Tools & Spares) V02 Series

KIT-MAINT-V02$205.95

Maintenance Kit D01 (Tools & Spares) D01 Series

KIT-MAINT-D01$212.95

Substitution Kit X01 (Spares) X01 Series

KIT-SUB-X01$85.95

Substitution Kit J&Q (Spares) Q01 Series

KIT-SUB-JQ$92.95

Substitution Kit V02 (Spares) V02 Series

KIT-SUB-V02$92.95

Substitution Kit V01 (Spares) V01 Series

KIT-SUB-V01$70.95

Substitution Kit D01 (Spares) D01 Series

KIT-SUB-D01$99.95

Tools and Compounds

Dedicated multitools, unlock tools, tightening keys, and the HYDPRO lubricant compound for field and bench servicing.

X01 Series Multitool X01 Series

TOOL-X01-MULTI$42.95

J&Q Series Multitool Q01 Series

TOOL-JQ-MULTI$42.95

D01 Unlock Tool D01 Series

TOOL-D01-UNLOCK$14.95

D01 Tightening Key Set D01 Series

KEY-D01-TIGHT-SET$42.95

P03 Tightening Key P03 Series

KEY-P03-TIGHT$14.95

E01 Tightening Key E01 Series

KEY-E01-TIGHT$14.95

Lube (5ml) Maintenance Compound

COMP-LUBE-5ML$14.95

Technical Notes

Actuation Cores Standard Core is the metal actuation core assembly. K-Variant Core is the technopolymer version, denoted by the K in the part number (X01K, J01K, Q01K), and prices below the metal core.

Fit options Mount standard, port fit and pull knob are fitment selections. None of them changes the price. The options available are shown under each item, and the part number rule is stated once at the foot of each section.

OPV Springs The Standard spring is rated 1.2 with an over pressure value of 0.18 bar. The Plus uprate is offered on the Classic, Elite and Stone ranges. It is not offered on Shield.

Servicing Maintenance Kits include tools and spares; Substitution Kits are spares only. Multitools, tightening keys and the unlock tool are sold individually.

Corrugated Hoses The Air Management corrugated hoses are not yet released on the store and are not listed here. They will appear automatically when they go live.

Low and high pressure hoses Hoses are a separate book. See the HYDPRO hose catalogue.

HYDPRO Air Management

Price Reference

Drysuit Valves

D01S Stealth

D01S Rugged

Ordering note

Power Inflators

X01 Tech

X01 Pro

J01 K-Style

J01 Raw

Q01 Code

Q01 Stout

V01 Base

V01 Shark

V02 Dynamic

Ordering note

Connectors

P01 Pipe Classic

P01 Pipe Keen

P01 R.E.V. Classic

P01 R.E.V. Keen

T01 Pipe Classic

T01 Pipe Keen

T01 R.E.V. Keen

T02 Pipe Classic

T02 Pipe Keen

T02 R.E.V. Keen

P03 Pipe Keen

P03 R.E.V. Keen

P04 Pipe Keen

P04 R.E.V. Keen

Ordering note

Over Pressure Valves

P01 Classic

P01 Elite

P01 Stone

P01 Shield

T01 Series

T02 Series

P03 Sharp

P03 Shield

P04 Sharp

P04 Shield

Ordering note

Service Kits

Tools and Compounds

Technical Notes
